Toyota COROLLA 锁芯组件 — Figure 6712

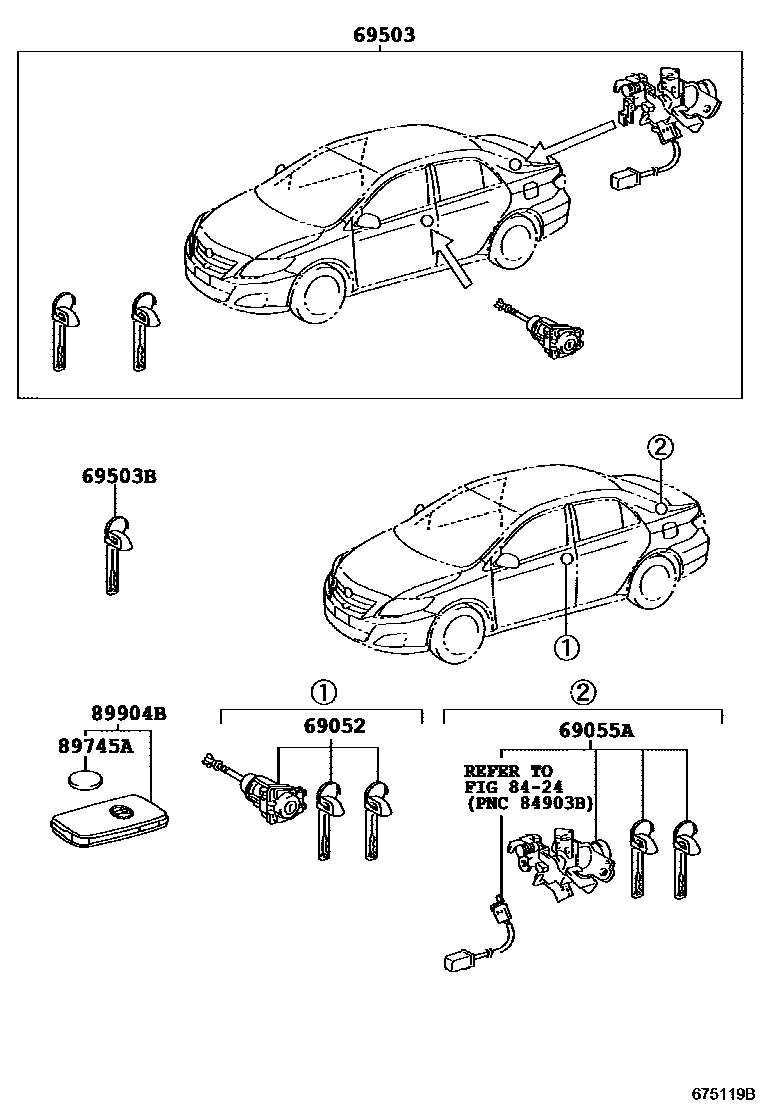

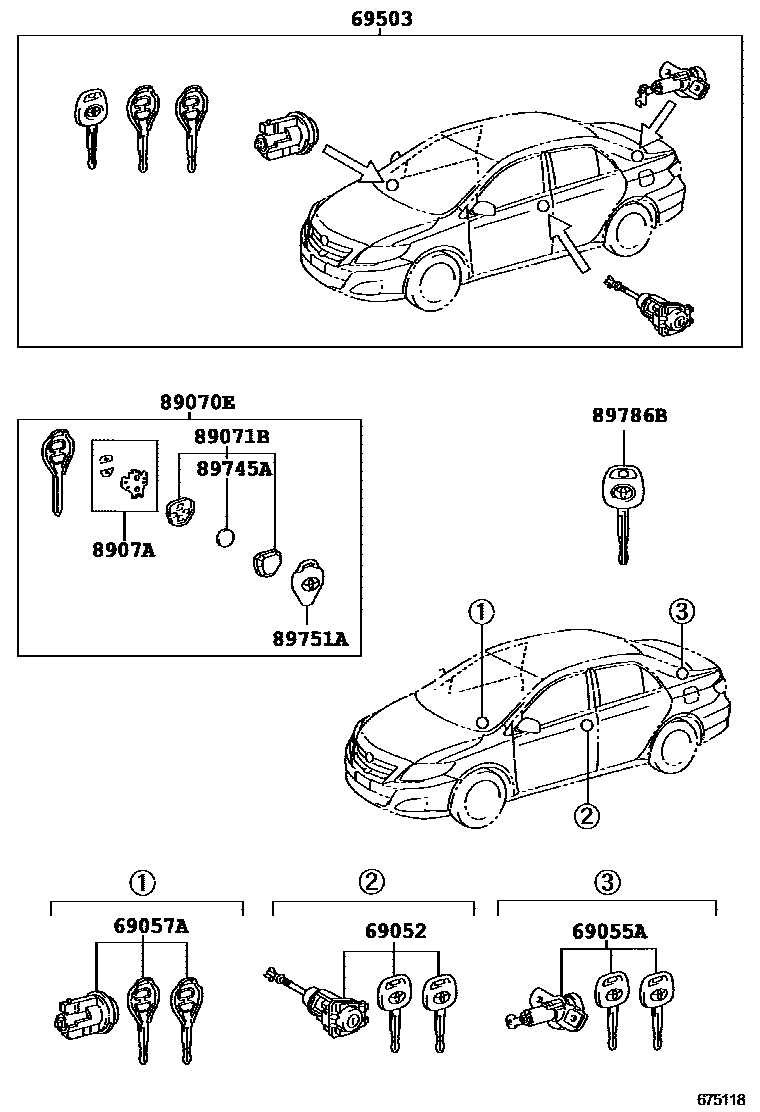

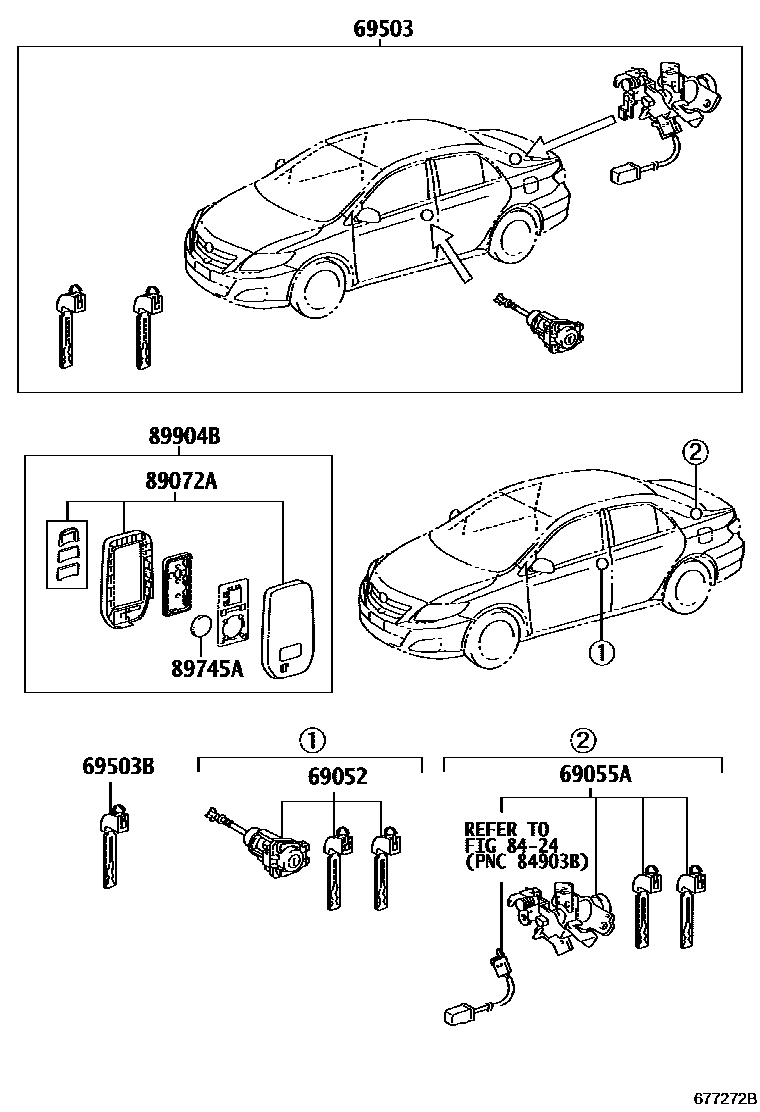

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-02130 · 69052-02310 · 69052-06100 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02180 · 69055-02190 · 69055-02290 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02200 · 69057-02570 |
| 69503 | Door lock cylinder components | 69005-02280 · 69005-02290 · 69005-02660 · 69005-02B50 |
| 69503B | internal tooth key | 69515-12310 · 69515-52110 |
| 89070E | Remote key assembly | 89070-02280 · 89070-02590 · 89070-02591 · 89070-0D180 |
| 89071B | Remote key sub-assembly module assembly | 89071-02050 · 89071-0D040 |
| 89072A | Remote key shell assembly | 89072-02630 |
| 8907A | Transmitter switch assembly | 8907A-28010 |
| 89745A | Transmitter battery | 89745-45010 · 89745-48030 · 89745-52020 |
| 89751A | Transmitter housing cover | 89751-02030 · 89751-0D020 · 89751-0D021 |
| 89786B | transceiver key secondary transmitter | 89786-60170 · 89786-60220 |
| 89904B | Electronic key transmitter sub-assembly | 89904-02040 · 89904-02041 · 89904-02050 · 89904-02070 |
