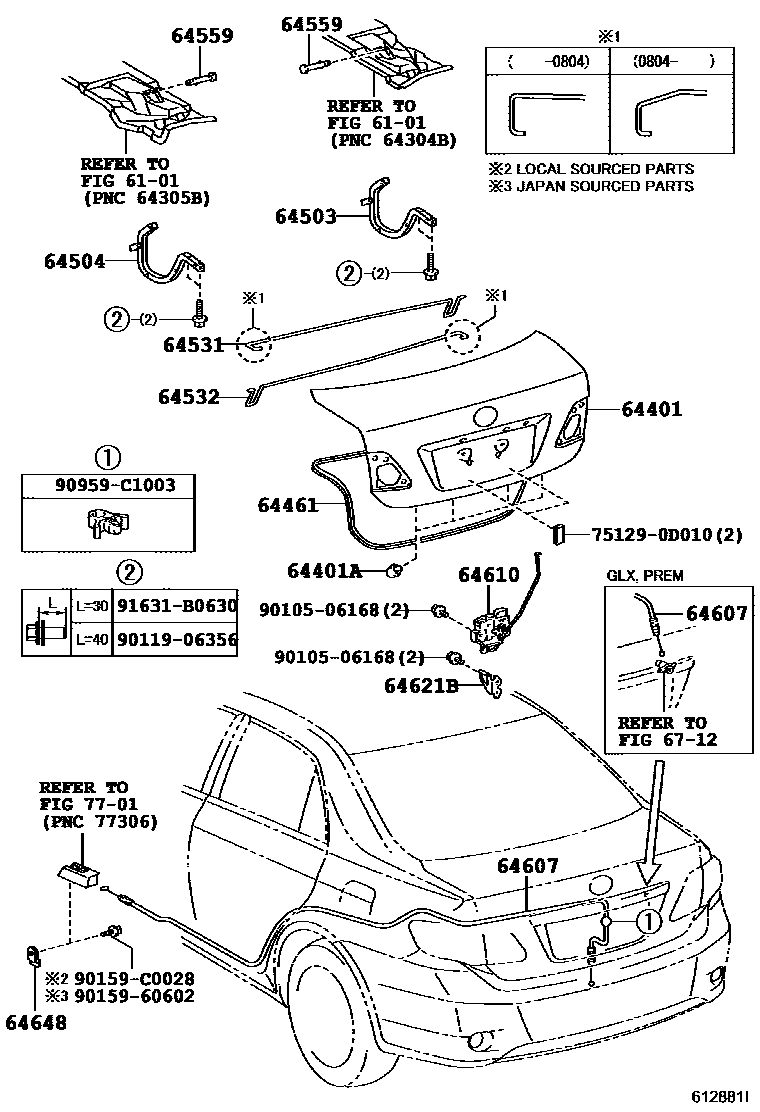

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-02240 · 64401-02250 · 64401-02260 · 64401-02270 · 64401-02300 · 64401-02310 · 64401-02720 · 64401-02730 · 64401-02740 · 64401-02750 · 64401-02760 · 64401-02770 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09116 |
| 64461 | Trunk door seal | 64461-02120 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02100 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02100 |
| 64531 | Trunk door right hinge torsion bar | 64531-02190 · 64531-02191 · 64531-02192 · 64531-02200 · 64531-02201 · 64531-02202 |
| 64532 | Trunk door left hinge torsion bar | 64532-02180 · 64532-02181 · 64532-02182 · 64532-02190 · 64532-02191 · 64532-02192 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02190 · 64607-02191 · 64607-02200 · 64607-02201 |
| 64610 | Trunk door lock assembly | 64600-02020 · 64610-02110 |
| 64621B | Trunk door latch | 64621-06060 |
| 64648 | Trunk door lock opener seal | 64648-02020 · 64648-12020 |
