Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 31 PNC and OE references.

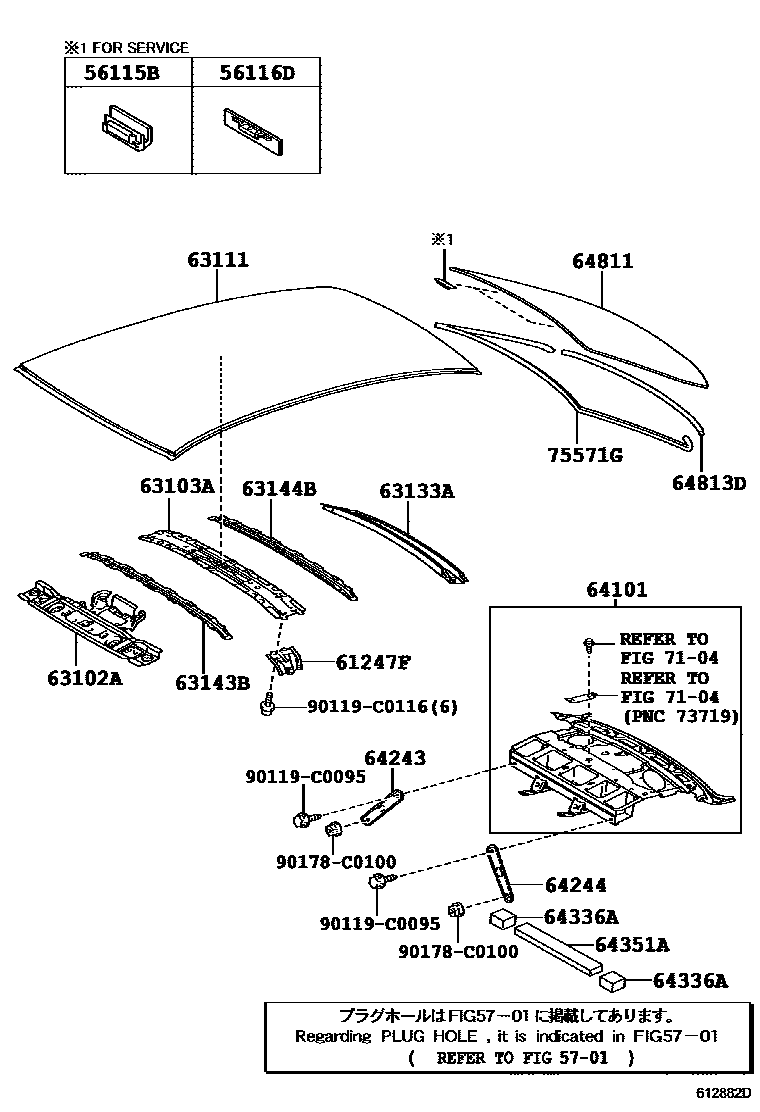

Toyota COROLLA 天窗板和背窗玻璃 EPC diagram — 612882D
天窗板和背窗玻璃 — 612882D (200705 – 999999)

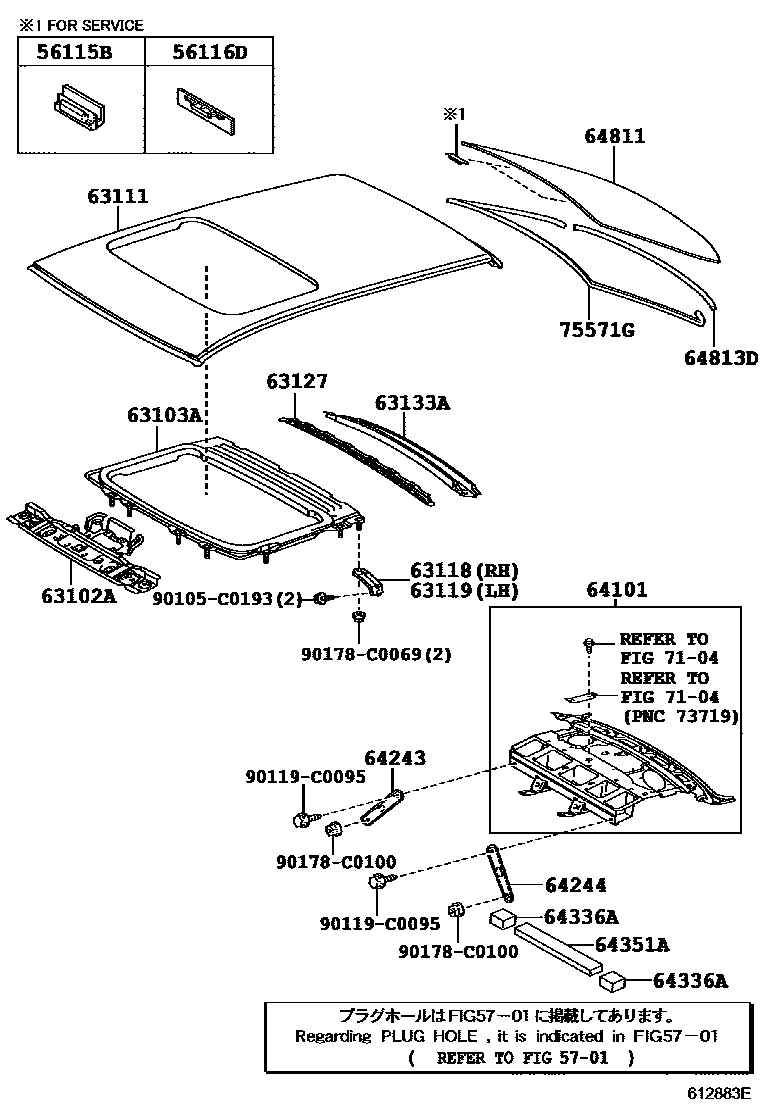

Toyota COROLLA 天窗板和背窗玻璃 EPC diagram — 612883E
天窗板和背窗玻璃 — 612883E (200705 – 999999)

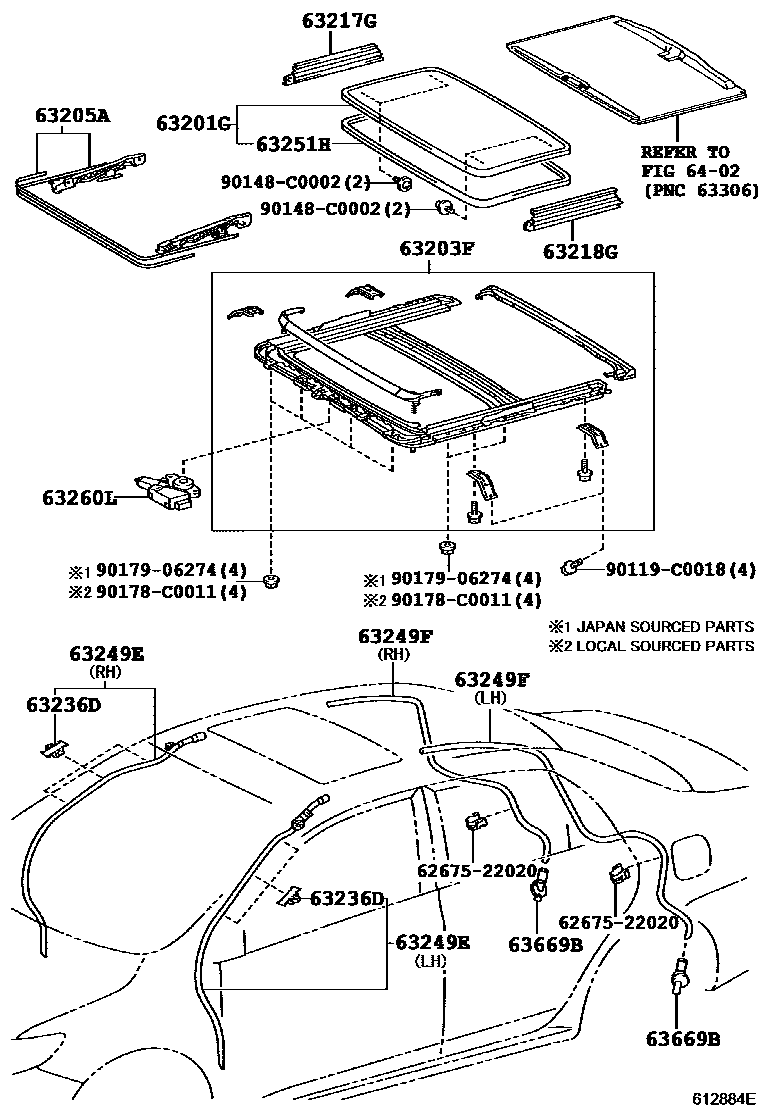

Toyota COROLLA 天窗板和背窗玻璃 EPC diagram — 612884E
天窗板和背窗玻璃 — 612884E (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
56115BBack window glass stop No. 156115-30120
56116DNo. 2 stopper for back window glass56116-22050
61247FRoof inner longitudinal beam reinforcement61247-02040
63102AWindshield roof sub-assembly63102-02090 · 63102-02100
63103ARoof panel reinforcement sub-assembly63141-02080 · 63142-02040
63111roof panel63111-02270 · 63111-02280
63118Right roof panel bracket63118-02030
63119Left roof panel bracket63118-02030
63127No. 5 roof panel reinforcement63127-12010
63133Aupper frame of back window63105-02100
63143BNo. 3 roof panel reinforcement63143-12130
63144BNo. 4 roof panel reinforcement63144-12110
63201GSliding sunroof glass sub-assembly63201-02060
63203FSliding sunroof frame sub-assembly63203-02020
63205ASliding sunroof transmission cable sub-assembly63205-0N010
63217GRight sliding sunroof trim63217-0N010
63218GSliding sunroof trim, left63218-0N010
63236DSliding skylight drain hose clamp63236-12010
63249ESliding skylight drain hose63249-02190 · 63249-02200
63249FSliding skylight drain hose63249-02210
63251HSliding skylight seal63251-02050
63260LSliding sunroof lift handle assembly63260-02060
63669BSliding skylight drain seal90480-26020
64101Upper back panel sub-assembly64101-02140
64243No. 2 right compartment partition64243-02020
64244No. 2 left compartment partition64244-02020
64336AGlove box decorative panel side silencer pad64336-02010
64351ANo. 1 glove box decorative mat64351-02010
64811back window glass64801-02903
64813DBack window glass adhesive seal64813-02040 · 64813-02110
75571GNo. 1 rear window outer upper protective strip75571-02220
