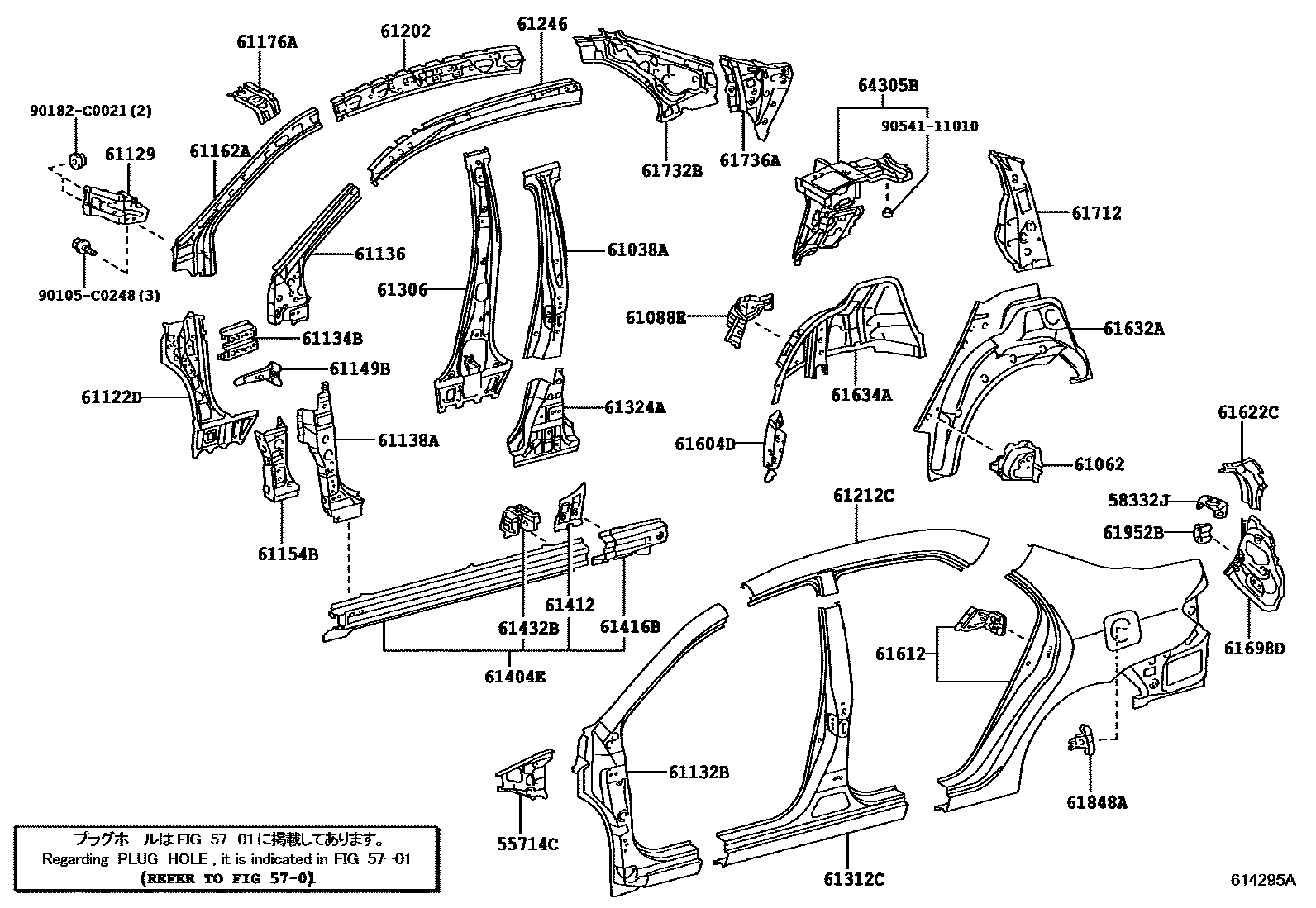

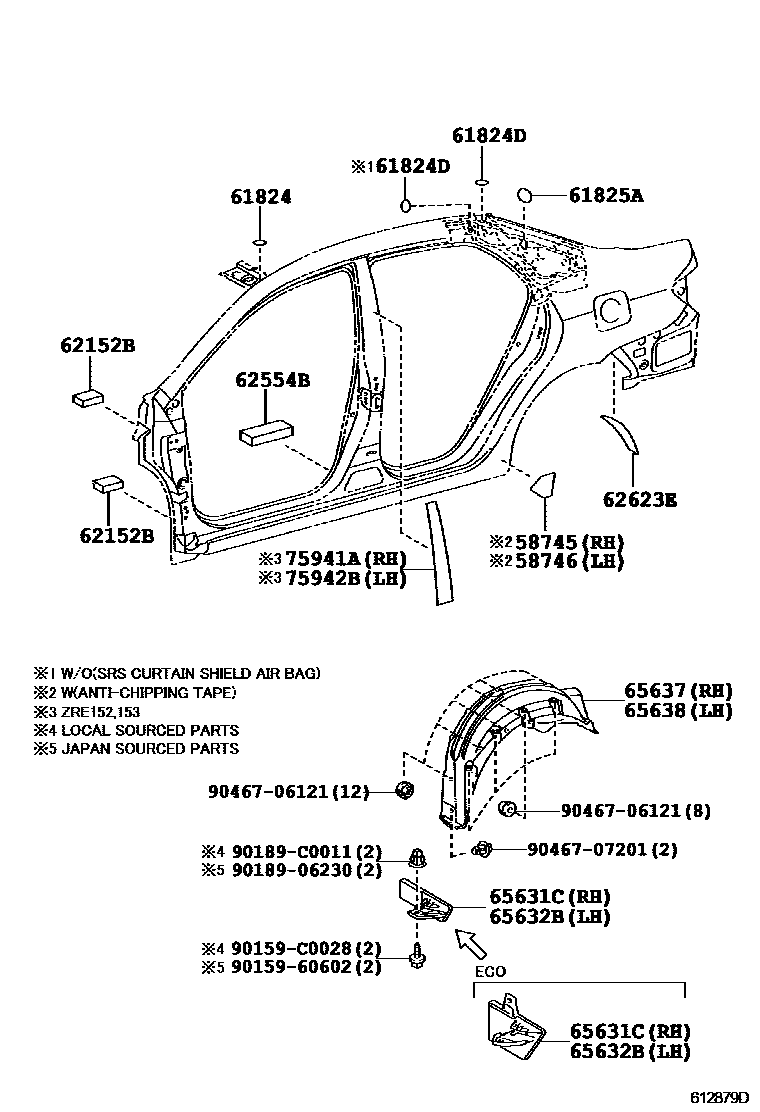

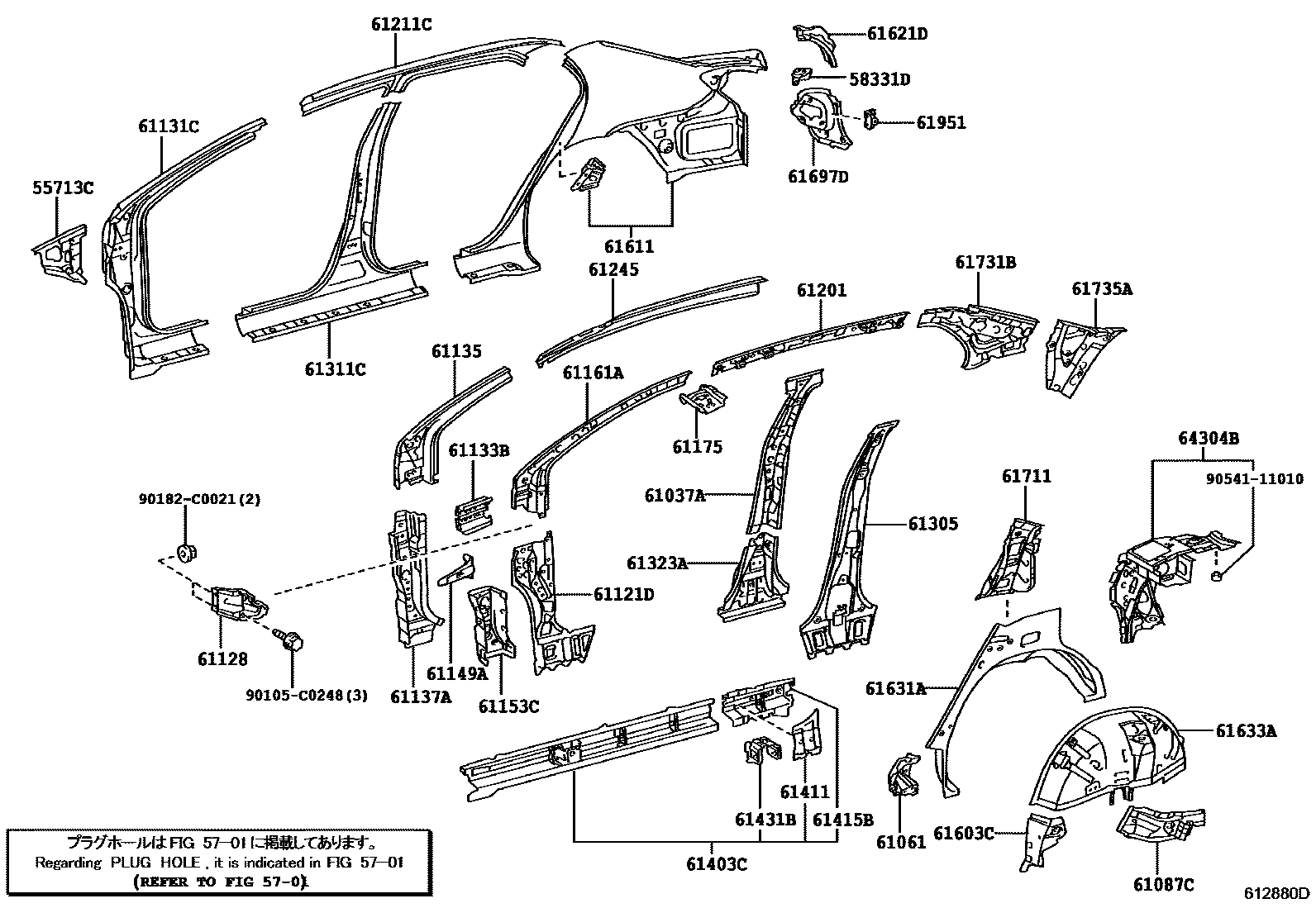

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 87 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55713C | Right front wall upper side panel | 55713-02070 |
| 55714C | Left front wall upper side panel | 55714-02070 |
| 58331D | No. 1 suitcase decorative panel bracket | 58331-02070 |
| 58332J | No. 2 suitcase decorative panel bracket | 58332-02020 |
| 58745 | Right front side panel protector | 58741-02100 |
| 58746 | Left front side panel protector | 58742-02100 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02910 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02910 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-02030 · 61615-02030 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-02030 · 61616-02030 |
| 61087C | Rear right seat backrest side mounting bracket sub-assembly | 61087-02030 · 61087-02031 |
| 61088E | Rear left seat back side mounting bracket sub-assembly | 61088-02030 · 61088-02031 |
| 61121D | Right front panel | 61121-02080 |
| 61122D | Left front panel | 61122-02090 |
| 61128 | Right front wall side panel reinforcement | 61103-02100 |
| 61129 | Left front wall side panel reinforcement | 61104-02100 |
| 61131C | Right body outer front pillar | 61131-02210 · 61131-02220 |
| 61132B | Left body outer front pillar | 61132-02240 · 61132-02250 |
| 61133B | Right body outer front pillar bracket | 61133-02030 |
| 61134B | Left body outer front pillar bracket | 61134-02030 |
| 61135 | Reinforcement member on the right front body pillar | 61135-02110 |
| 61136 | Reinforcement member on left front body pillar | 61136-02110 |
| 61137A | Right body outer front pillar lower reinforcement | 61137-02100 |
| 61138A | Left body outer front pillar lower reinforcement | 61138-02100 |
| 61149A | Right front door opening limiter reinforcement | 61149-02080 |
| 61149B | Left front door opening limiter reinforcement | 61149-02080 |
| 61153C | Right body front pillar lower hinge fixing | 61153-02080 |
| 61154B | Left body front pillar lower hinge fixing | 61154-02080 |
| 61161A | Right body inner front pillar | 61161-02120 |
| 61162A | Left side inner front pillar | 61162-02130 |
| 61175 | No. 2 right side body inner front pillar reinforcement | 61175-02080 |
| 61176A | No. 2 left body inner front pillar reinforcement | 61176-02080 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-02100 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-02100 |
| 61211C | Roof right side rail | 61211-02140 |
| 61212C | Roof left side rail | 61212-02140 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-02110 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-02110 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02050 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02050 |
| 61311C | Right rear body front outer panel | 61311-02170 · 61311-02180 |
| 61312C | Left rear body front outer panel | 61312-02170 · 61312-02180 |
| 61323A | Right body center pillar lower reinforcement | 61323-02080 |
| 61324A | Left body center pillar lower reinforcement | 61324-02080 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02080 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02080 |
| 61411 | Right door outer sill panel | 61411-02110 |
| 61412 | Left door outer sill panel | 61412-02110 |
| 61415B | Right door outer sill extension | 61415-02030 |
| 61416B | Left door outer sill extension | 61416-02030 |
| 61431B | Right side door sill panel No. 6 reinforcement | 61431-02030 |
| 61432B | Left side door sill panel No. 6 reinforcement | 61432-02030 |
| 61603C | Right wheel cover sub-assembly | 61603-02030 |
| 61604D | Left side wheel cover sub-assembly | 61604-02030 |
| 61611 | Right side hoarding | 61601-02230 · 61601-02240 |
| 61612 | left side panel | 61602-02240 · 61602-02250 |
| 61621D | Back door right opening slot | 61621-02110 |
| 61622C | Luggage trunk left opening slot | 61622-02110 |
| 61631A | Right wheel cover outer panel | 61631-02100 |
| 61632A | Left side wheel cover outer panel | 61632-02100 |
| 61633A | Right wheel housing lining panel | 61633-02903 |
| 61634A | Left side wheel housing lining panel | 61634-02905 |
| 61697D | Right side enclosure end cover | 61697-02020 |
| 61698D | Left side enclosure end cover | 61698-02020 |
| 61711 | Roof right side outer panel | 61711-02040 |
| 61712 | Roof left outer panel | 61712-02040 |
| 61731B | Roof right inner panel | 61731-02170 |
| 61732B | Roof left inner panel | 61732-02170 |
| 61735A | Right rear roof inner panel | 61735-02080 |
| 61736A | Left rear roof inner panel | 61736-02080 |
| 61824 | Noise Control Panel No. 1 | 61824-02170 |
| 61824D | Noise Control Panel No. 1 | 61824-02170 |
| 61825A | Noise Control Panel No. 2 | 61825-52060 |
| 61848A | Left side panel fixing | 61848-02050 |
| 61951 | Right trim part bracket | 61951-02010 |
| 61952B | Left trim part bracket | 61952-02010 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 62623E | Right rear side wheel housing lining block | 62623-02020 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02091 · 64304-02092 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02091 · 64305-02092 |
| 65631C | Right rear wheel house front panel | 65631-02110 · 65631-02190 |
| 65632B | Left rear wheel house front panel | 65632-02110 · 65632-02190 |
| 65637 | Right rear wheel house lining | 65637-02060 |
| 65638 | Left rear wheel house lining | 65638-02060 |
| 75941A | Right center pillar trim | 75941-02070 |
| 75942B | Left center pillar trim | 75942-02070 |
