Toyota COROLLA 地板垫和地毯 — Figure 5804

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 5 PNC and OE references.

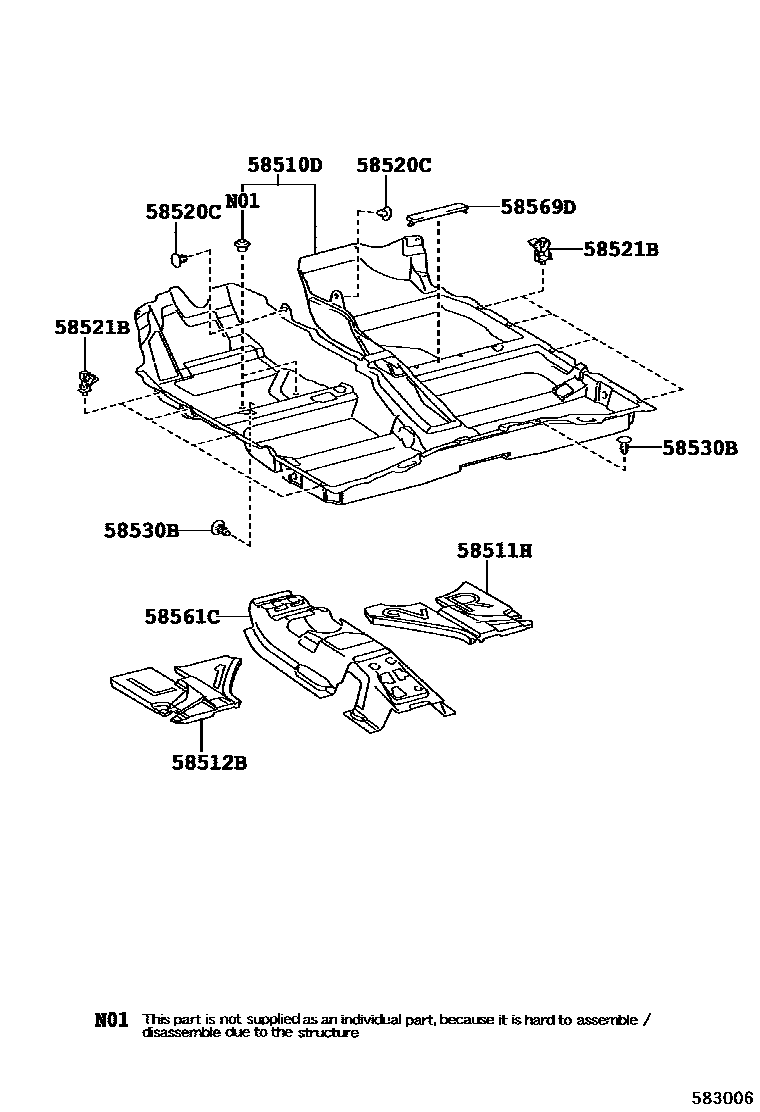

Toyota COROLLA 地板垫和地毯 EPC diagram — 583006A
地板垫和地毯 — 583006A (200705 – 999999)

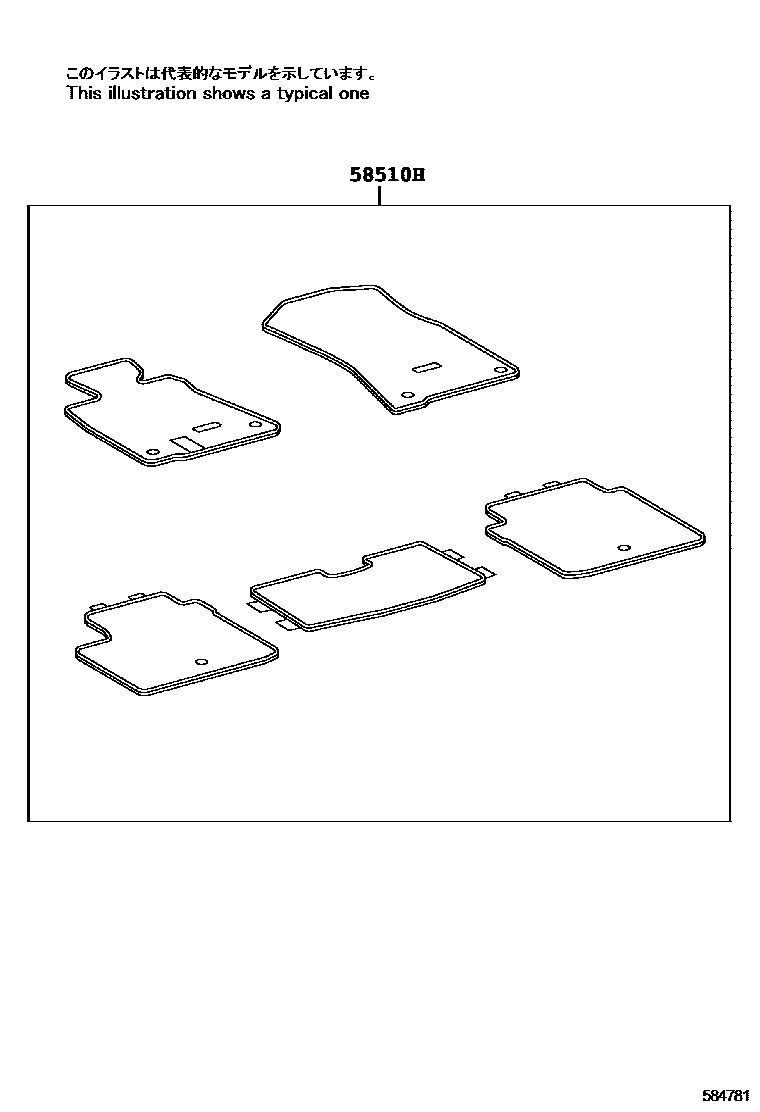

Toyota COROLLA 地板垫和地毯 EPC diagram — 584841
地板垫和地毯 — 584841 (201204 – 999999)

PNC and OE references

PNCPart nameOE numbers
58510HFloor mat assembly58510-YY800
58511HFront floor right mat58512-02050
58512BFront floor left mat58511-02060
58521Bcarpet hook58521-02070
58561CFront floor silencer No. 158561-02140
