Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

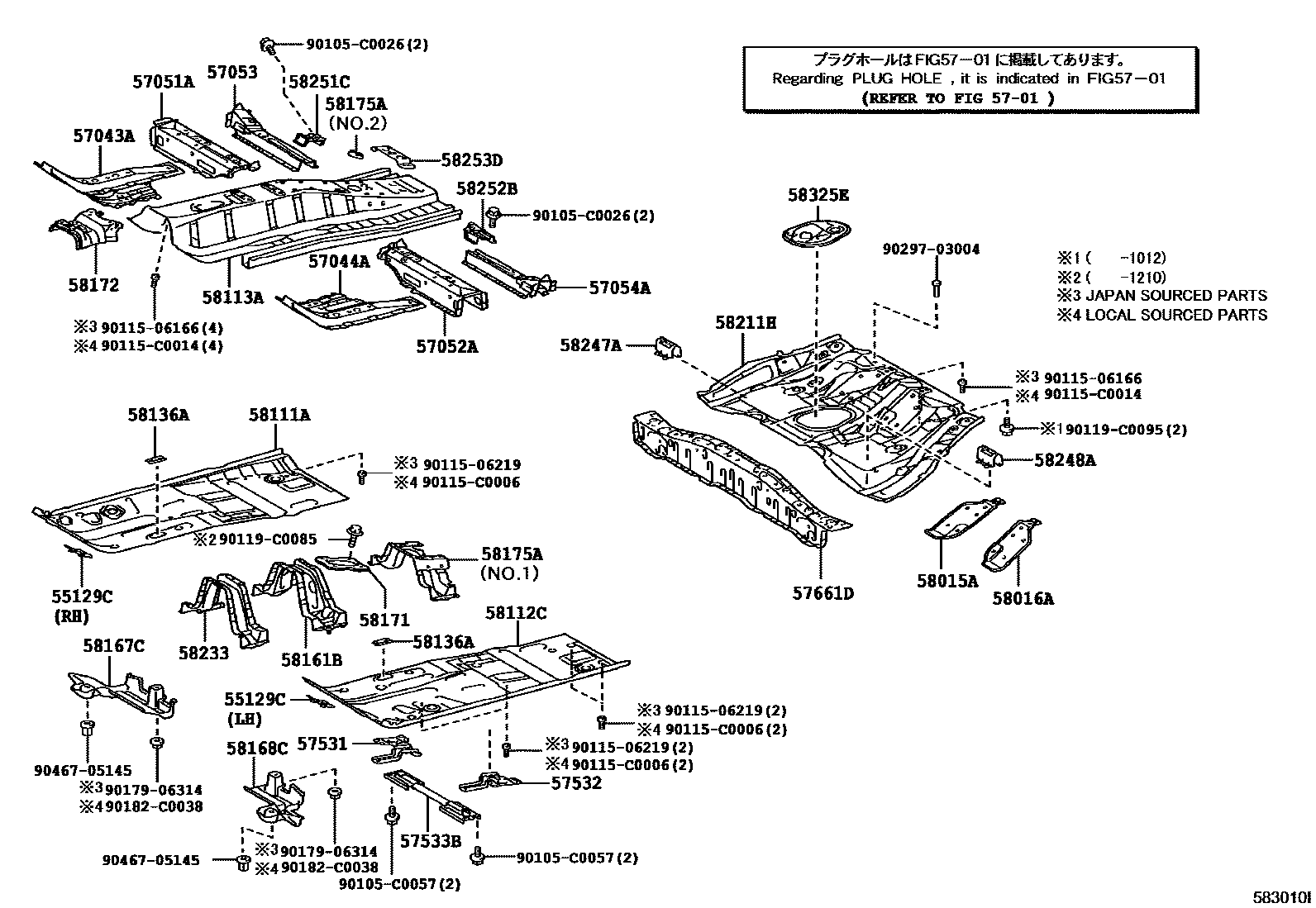

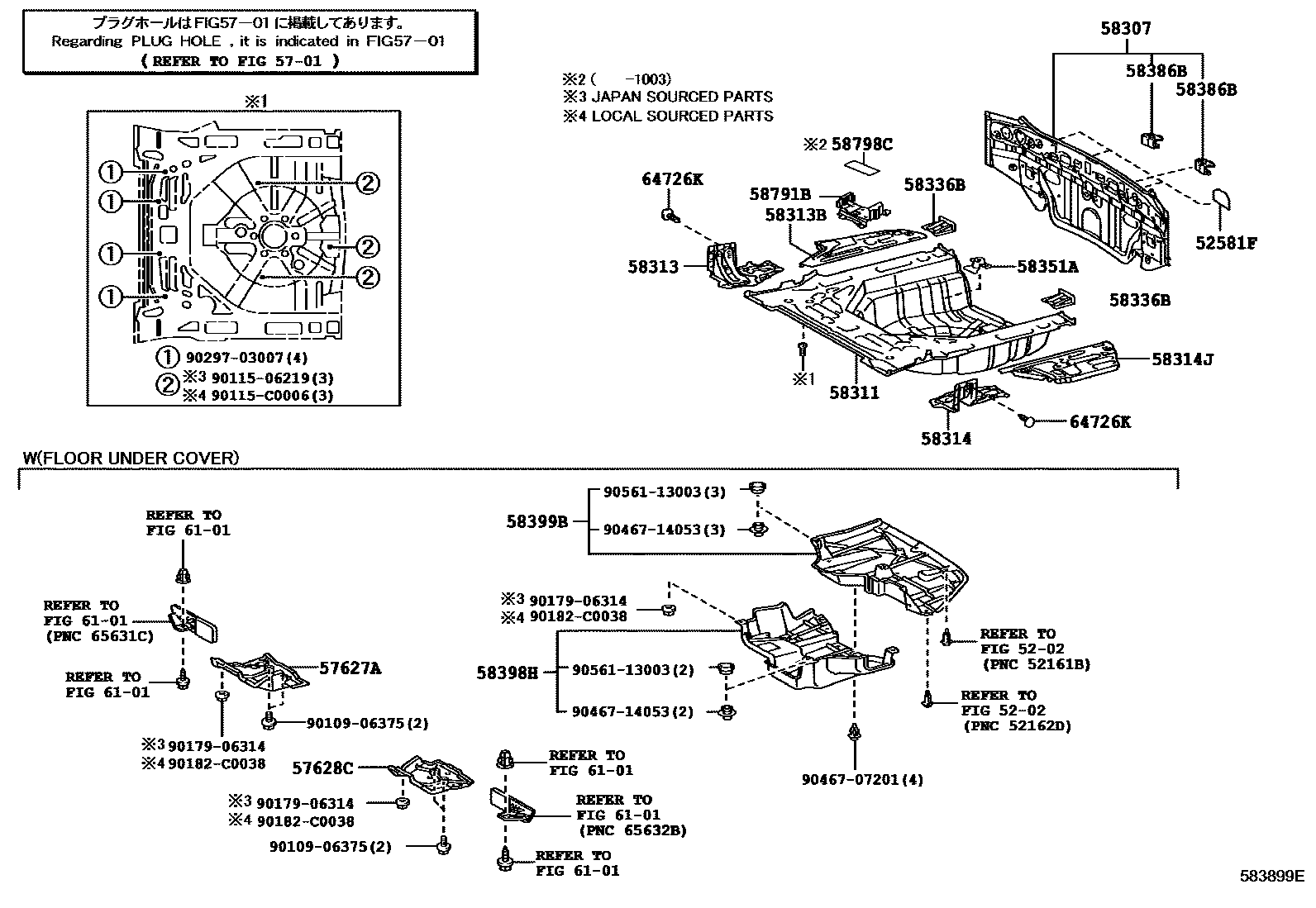

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52581F | rear bumper protector | 52581-02050 · 52581-02080 · 52581-12140 |
| 55129C | Front panel hole cover | 55129-02040 · 55139-02030 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-02020 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-02020 |
| 57051A | Front floor right cross member sub-assembly | 57051-02040 |
| 57052A | Front floor left cross member sub-assembly | 57052-02030 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02040 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02050 |
| 57531 | Front floor center bracket right bracket | 57531-02020 |
| 57532 | Front floor center bracket left bracket | 57532-02020 |
| 57533B | Front floor center bracket | 57501-02030 · 57501-12020 |
| 57627A | Rear floor right longitudinal member cover | 57627-02070 |
| 57628C | Rear floor left longitudinal member cover | 57628-02080 |
| 57661D | rear floor front cross member | 57407-02110 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02080 · 58015-02081 · 58015-02082 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02090 · 58016-02091 · 58016-02092 |
| 58111A | Front floor right bottom panel | 58111-02918 |
| 58112C | Front floor left bottom panel | 58112-02902 |
| 58113A | front floor center panel | 58113-02901 · 58113-02910 |
| 58136A | Front floor access hole cover | 58136-02040 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-02060 |
| 58167C | Front floor center right cover | 58167-02020 |
| 58168C | Front floor center left cover | 58168-02020 |
| 58171 | Parking brake base reinforcement | 58171-02070 · 58171-02071 |
| 58172 | No. 3 ECU mounting bracket | 58173-02010 |
| 58175A | No. 1 parking brake base reinforcement | 57805-02060 · 58176-02030 |
| 58211H | central floor base | 58211-02908 |
| 58233 | Exhaust pipe mounting bracket | 58203-02030 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-02040 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-02040 |
| 58251C | Front floor right bracket | 58251-02040 |
| 58252B | Front floor left bracket | 58252-02020 |
| 58253D | Parking brake cable bracket | 58253-02060 |
| 58307 | Body lower back panel sub-assembly | 58307-02150 |
| 58311 | rear floor pan | 58311-02160 |
| 58313 | Rear floor right panel | 58305-02020 |
| 58313B | Rear floor right panel | 58313-02070 |
| 58314 | rear floor left panel | 58306-02020 |
| 58314J | rear floor left panel | 58314-02070 |
| 58325E | Rear floor access hole cover | 58325-02090 |
| 58336B | Rear floor pan reinforcement | 58336-02080 |
| 58351A | Spare tire rack bracket | 58351-02010 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02020 |
| 58398H | No. 1 floor under cover | 58398-02050 |
| 58399B | Floor No. 2 lower cover | 58399-02030 |
| 58791B | jack bracket | 58791-02050 |
| 58798C | Jack bracket cushion | 58798-02010 |
| 64726K | Luggage rear trim clip | 64726-12040 |
