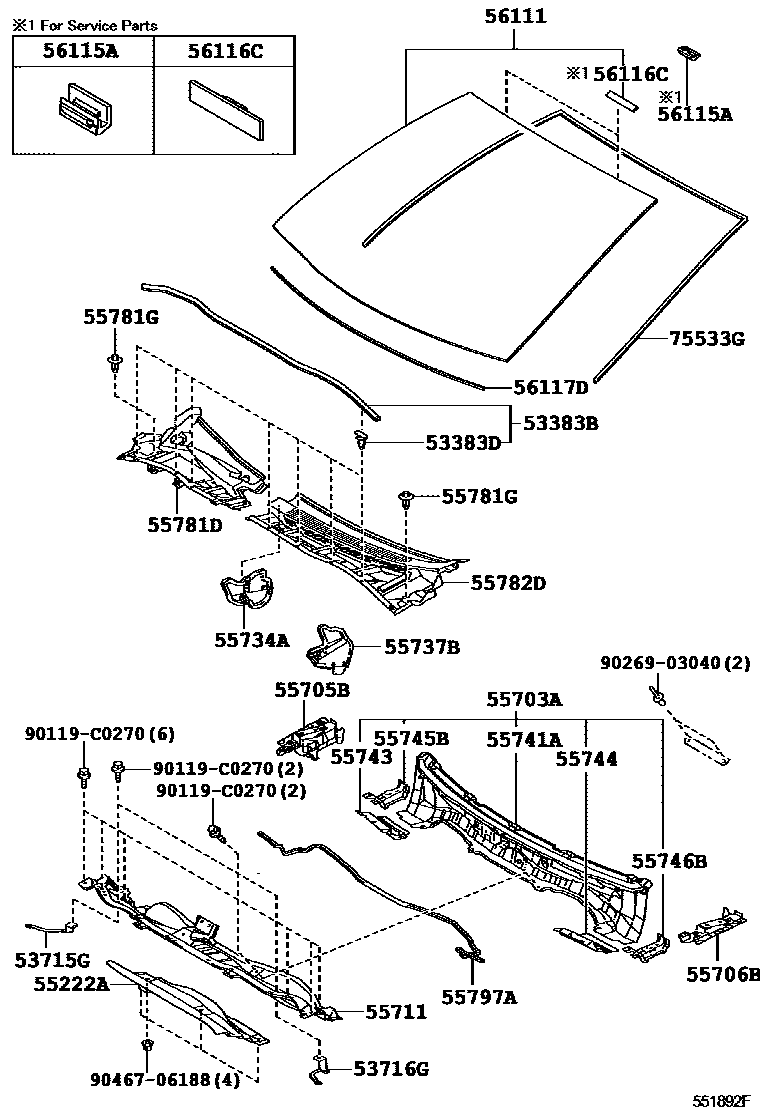

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02120 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 53715G | Right front fender fender rear extension | 53715-02040 |
| 53716G | Left front fender fender rear extension | 53716-02030 |
| 55222A | Center heat insulation pad on outer side of front cowl | 55224-02050 |
| 55703A | Front wall upper inner panel sub-assembly | 55703-02190 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02060 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02060 |
| 55711 | Front outer panel | 55701-02230 |
| 55734A | Right waterproof cover | 55734-02050 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02040 |
| 55741A | Front inner panel | 55741-02210 |
| 55743 | Right front upper outer corner panel | 55743-02040 |
| 55744 | Left front upper outer corner panel | 55744-02020 |
| 55745B | Right front wall upper inner corner panel | 55745-02060 |
| 55746B | Left front upper inner corner panel | 55746-02060 |
| 55781D | Ventilation grille on right front apron | 55708-02380 |
| 55781G | Ventilation grille clips on front apron | 90467-C0026 |
| 55782D | Ventilation grille on left front apron | 55709-02270 |
| 55797A | Front wall pumping device seal | 55797-02030 |
| 56111 | windshield | 56101-02909 · 56101-02910 · 56101-02911 · 56101-02926 · 56101-02927 · 56101-02928 · 56101-02940 · 56101-02941 · 56101-02942 · 56101-02943 · 56101-02945 · 56101-02946 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117D | windshield adhesive seal | 56117-02100 |
| 75533G | Windshield outer protective strip | 75531-02110 |
