Toyota COROLLA 仪表板和手套箱 — Figure 5501

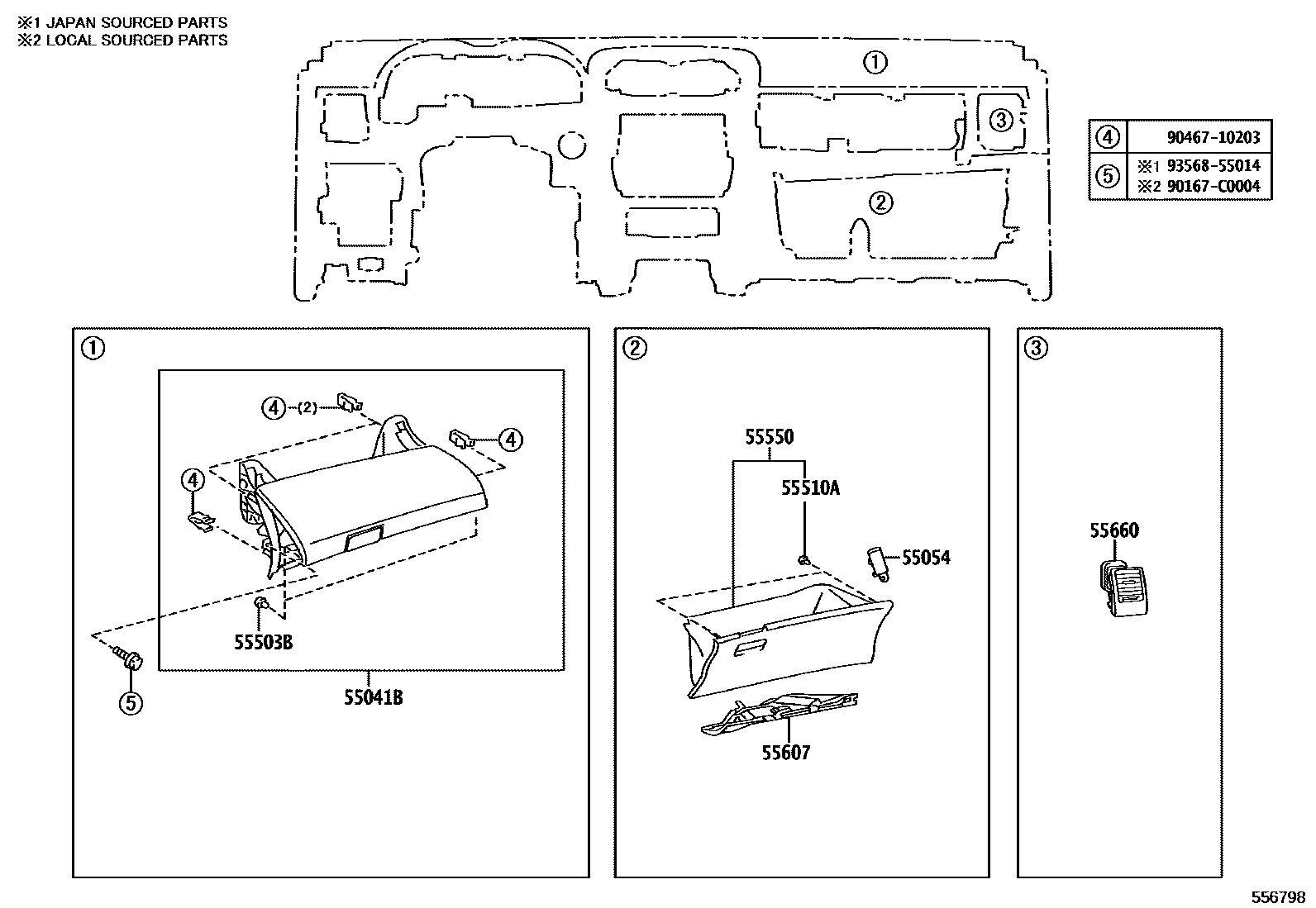

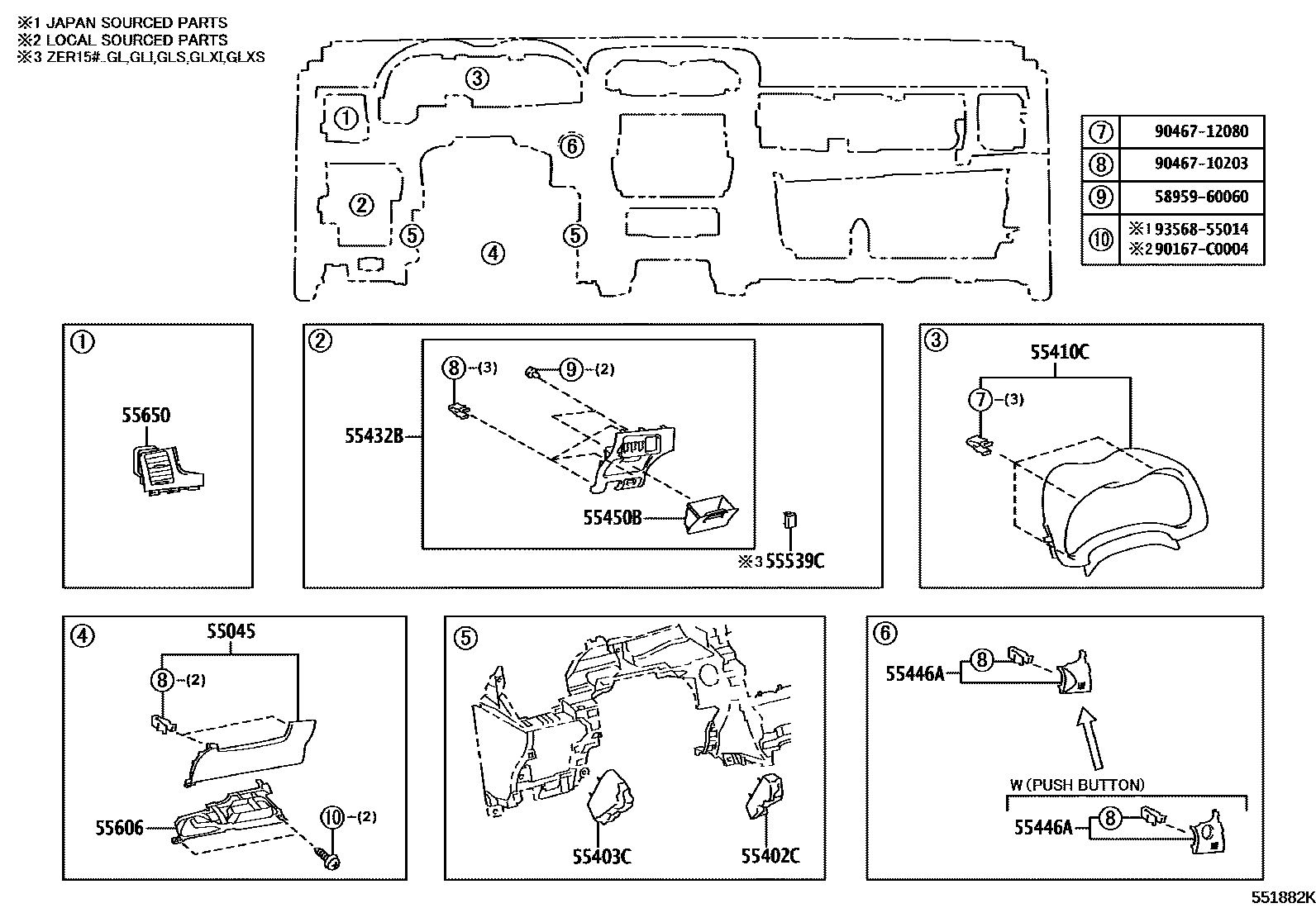

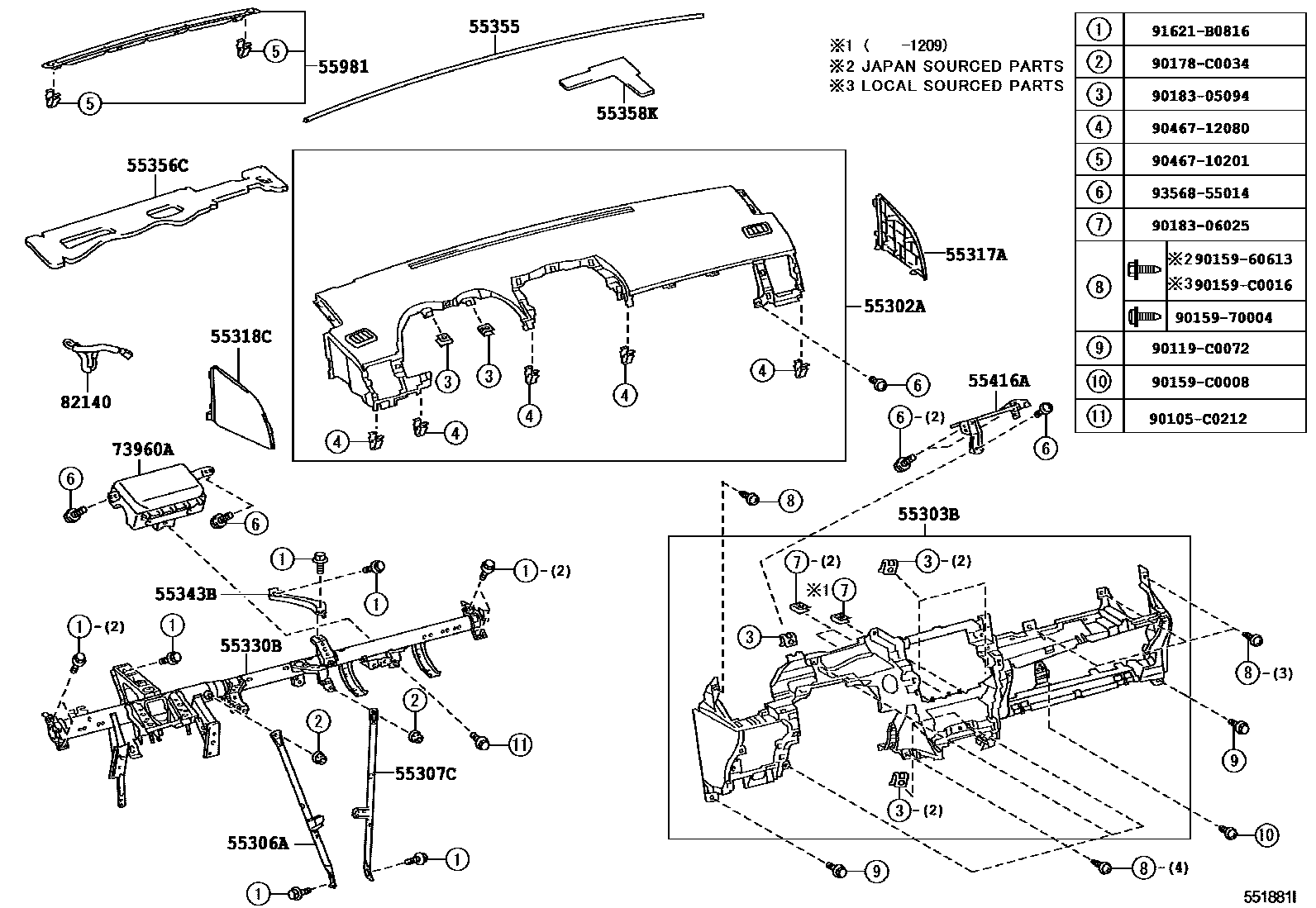

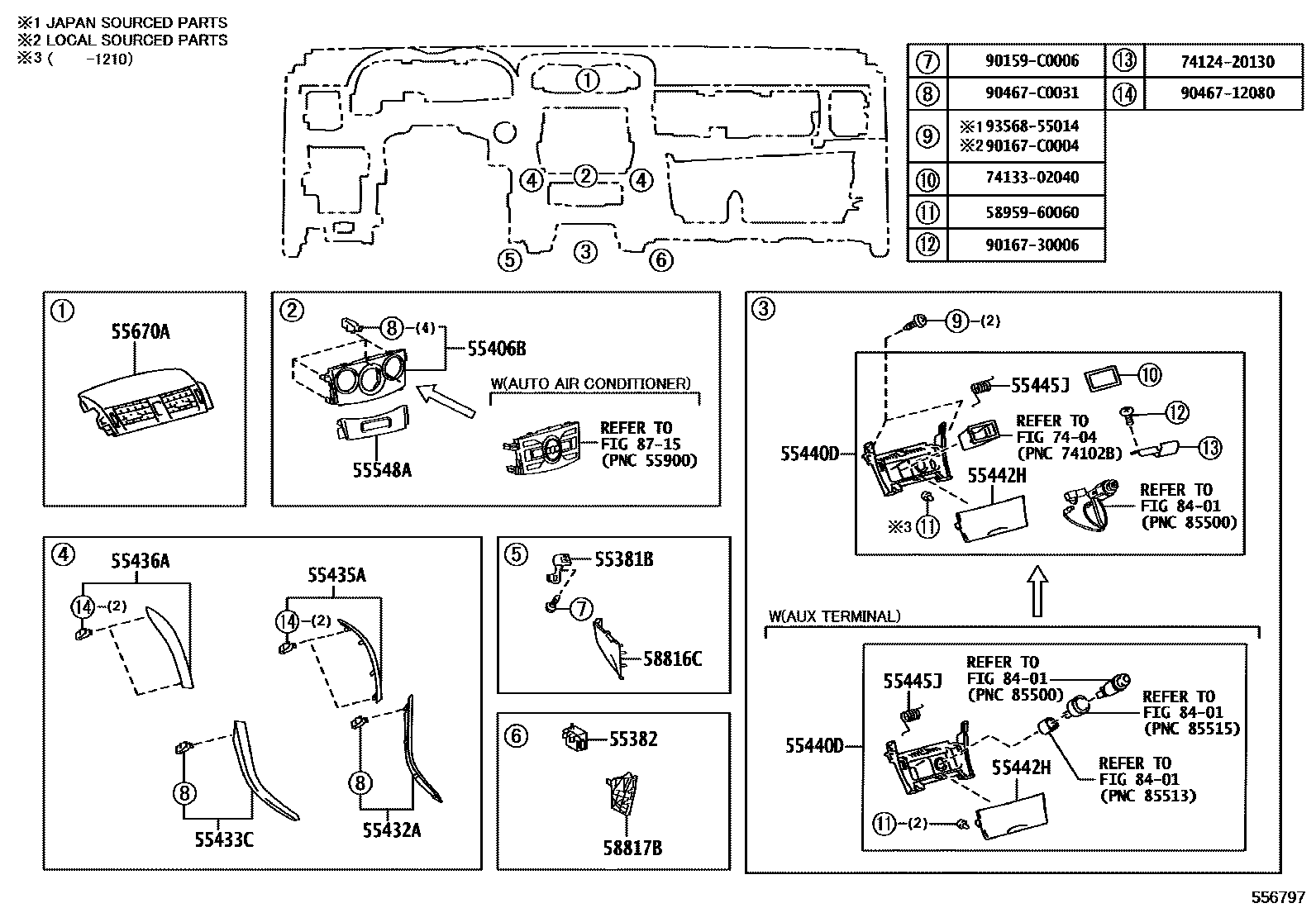

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12030 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02290 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02150 |
| 55330B | Instrument panel reinforcement assembly | 55330-02460 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02090 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02110 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02110 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-02060 |
| 55381B | No. 1 decorative panel mounting bracket | 55381-02150 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-02120 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-02030 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-02130 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02220 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-02070 |
| 55432A | Dashboard lower right decorative panel | 55432-02181 · 55432-02450 |
| 55433C | Instrument panel lower left decorative panel | 55433-02121 · 55433-02310 |
| 55435A | Dashboard right end decorative panel | 55435-02190 · 55435-02370 |
| 55436A | Instrument panel left end decorative panel | 55436-02150 · 55436-02330 |
| 55440D | Dashboard storage box assembly | 55440-02080 · 55440-02220 · 55440-02230 · 55440-02330 · 55440-02610 |
| 55442H | Dashboard storage box cover | 55442-02160 · 55442-02440 · 55442-02710 · 55442-02720 · 55442-02730 |
| 55445J | Dashboard storage box spring | 55445-02130 · 55445-12130 |
| 55503B | Cushion pad (for glove box) | 58959-60060 |
| 55510A | Cushion (for glovebox lid) | 55557-53030 |
| 55548A | Dashboard hole cover | 55548-02090 · 55548-02360 · 55548-02490 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02101 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02121 |
| 55670A | Instrument panel central air register assembly | 55670-02160 · 55670-02161 · 55670-02162 · 55670-02163 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-02040 · 55981-02050 · 55981-02060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02100 |
| 82140 | Instrument panel wiring harness assembly | 82140-02270 |
