Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

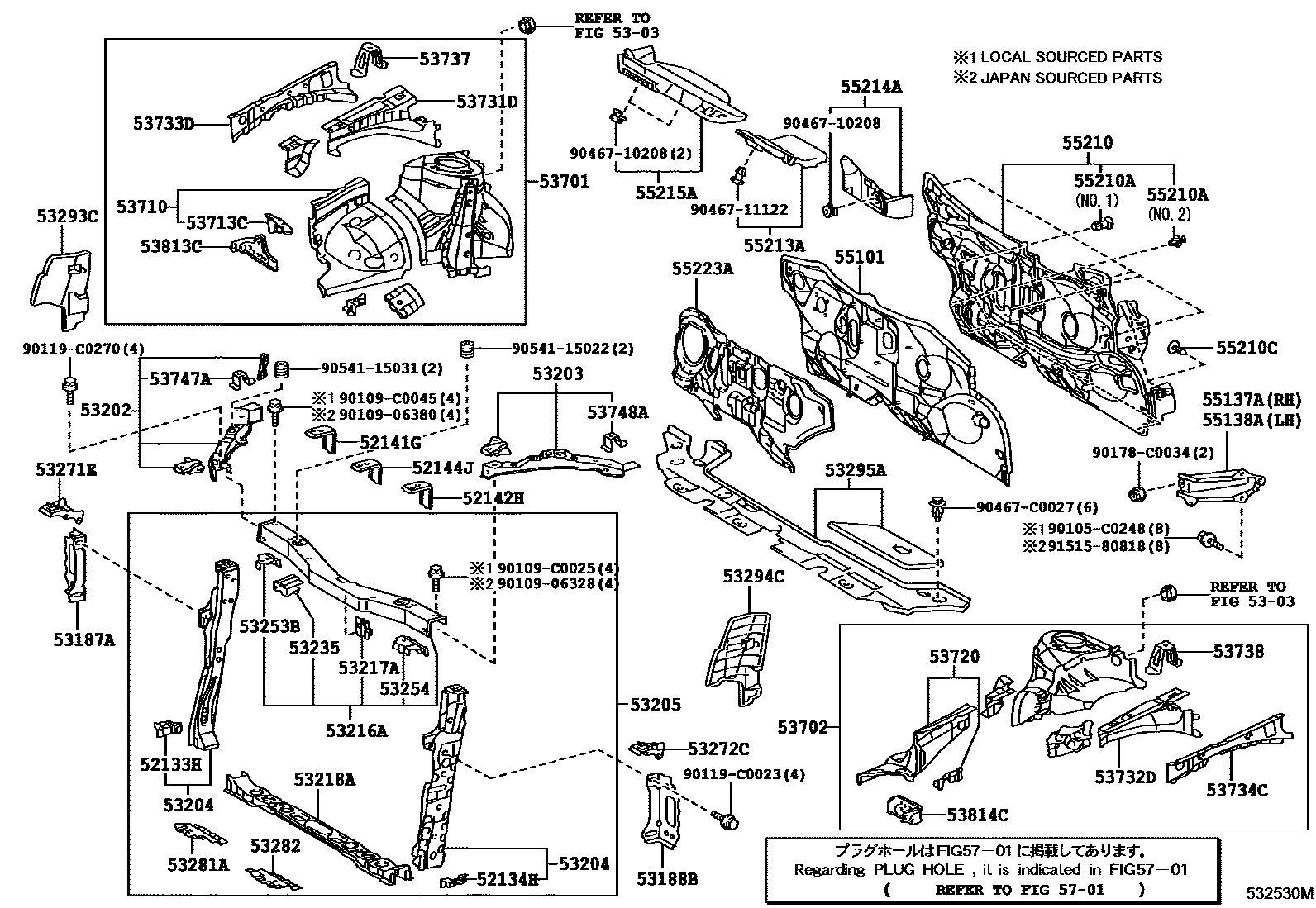

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52133H | Front bumper right side bracket | 52133-02050 |
| 52134H | Front bumper left bracket | 52134-02040 |
| 52141G | Front bumper right side stay | 52081-02090 |
| 52142H | Front bumper left stay | 52082-02090 |
| 52144J | Front bumper center stay | 52085-02050 |
| 53187A | Radiator right side bracket stay | 53187-02030 |
| 53188B | Radiator left bracket stay | 53188-02030 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02090 |
| 53203 | Radiator left bracket sub-assembly | 53203-02100 |
| 53204 | Radiator bracket to cross member bracket sub-assembly | 53204-02020 · 53209-02050 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02140 |
| 53216A | Radiator upper bracket | 53215-02901 |
| 53217A | engine cover lock bracket | 53217-02030 |
| 53218A | Radiator lower support | 53218-02030 |
| 53235 | Speaker mounting bracket | 53235-02030 |
| 53253B | Radiator mounting bracket | 53253-02030 |
| 53254 | Radiator upper left mounting bracket | 53254-02030 |
| 53271E | Right headlight mounting bracket | 53271-02050 |
| 53272C | Left headlight mounting bracket | 53272-02050 |
| 53281A | Install reinforcement on the right side of the front body | 53281-02030 |
| 53282 | Install reinforcement on the left side of the front body | 53282-02030 |
| 53293C | Radiator right baffle | 53293-02050 · 53293-02100 |
| 53294C | Radiator left baffle | 53294-02050 · 53294-02100 |
| 53295A | Air deflector on radiator | 53140-02020 |
| 53701 | Right front fender fender sub-assembly | 53701-02160 |
| 53702 | Left front fender fender sub-assembly | 53702-02110 |
| 53710 | Right fender assembly with front longitudinal beam | 53710-02050 · 53710-02904 |
| 53713C | Right front fender fender front extension | 53713-02050 |
| 53720 | Left fender assembly with front longitudinal beam | 53720-02050 |
| 53731D | Right front fender to cowl side upper beam | 53731-02070 |
| 53732D | Left front fender to cowl side upper beam | 53732-02080 |
| 53733D | Right front fender to cowl side front lower beam | 53733-02030 |
| 53734C | Left front fender to cowl side front lower beam | 53734-02030 |
| 53737 | Right front fender to front wall side sill | 53737-02060 |
| 53738 | Left front fender to front wall side sill | 53737-02060 |
| 53747A | Fender fender right extension | 53747-02050 |
| 53748A | Fender fender left extension | 53748-02050 |
| 53813C | Right front fender extension | 53813-02051 |
| 53814C | Left front fender extension | 53814-02051 |
| 55101 | Front apron sub-assembly | 55101-02840 · 55101-02850 |
| 55137A | Right side bracket (front wall to frame) | 55137-02050 |
| 55138A | Left side bracket (front wall to frame) | 55138-02040 |
| 55210 | Front wall insulation pad assembly | 55210-02260 |
| 55210A | clip | 90467-11122 · 90467-11127 |
| 55213A | Front wall muffler pad | 55213-02200 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-02050 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-02050 |
| 55223A | Front wall outer heat insulation pad | 55223-02200 |
