Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

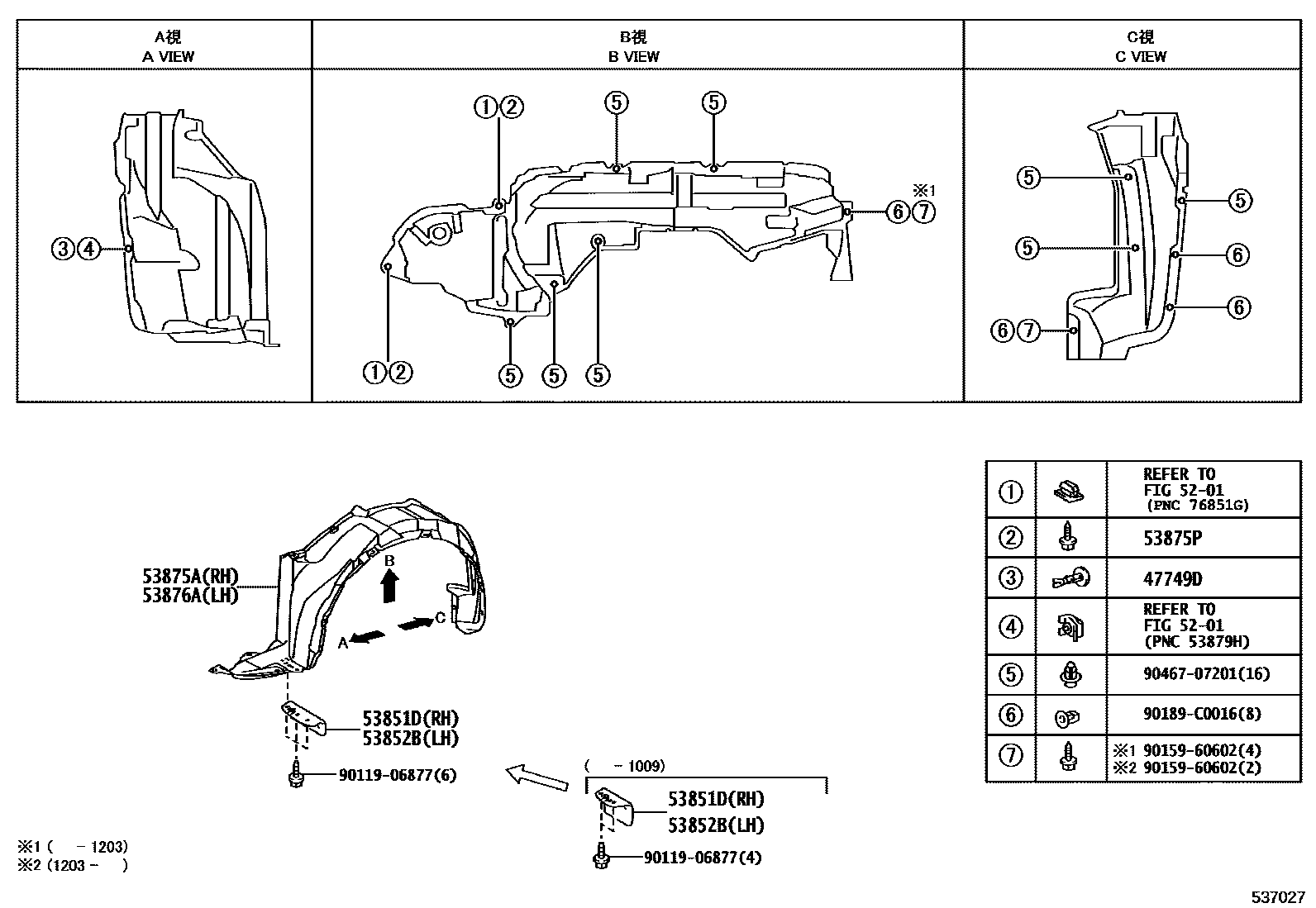

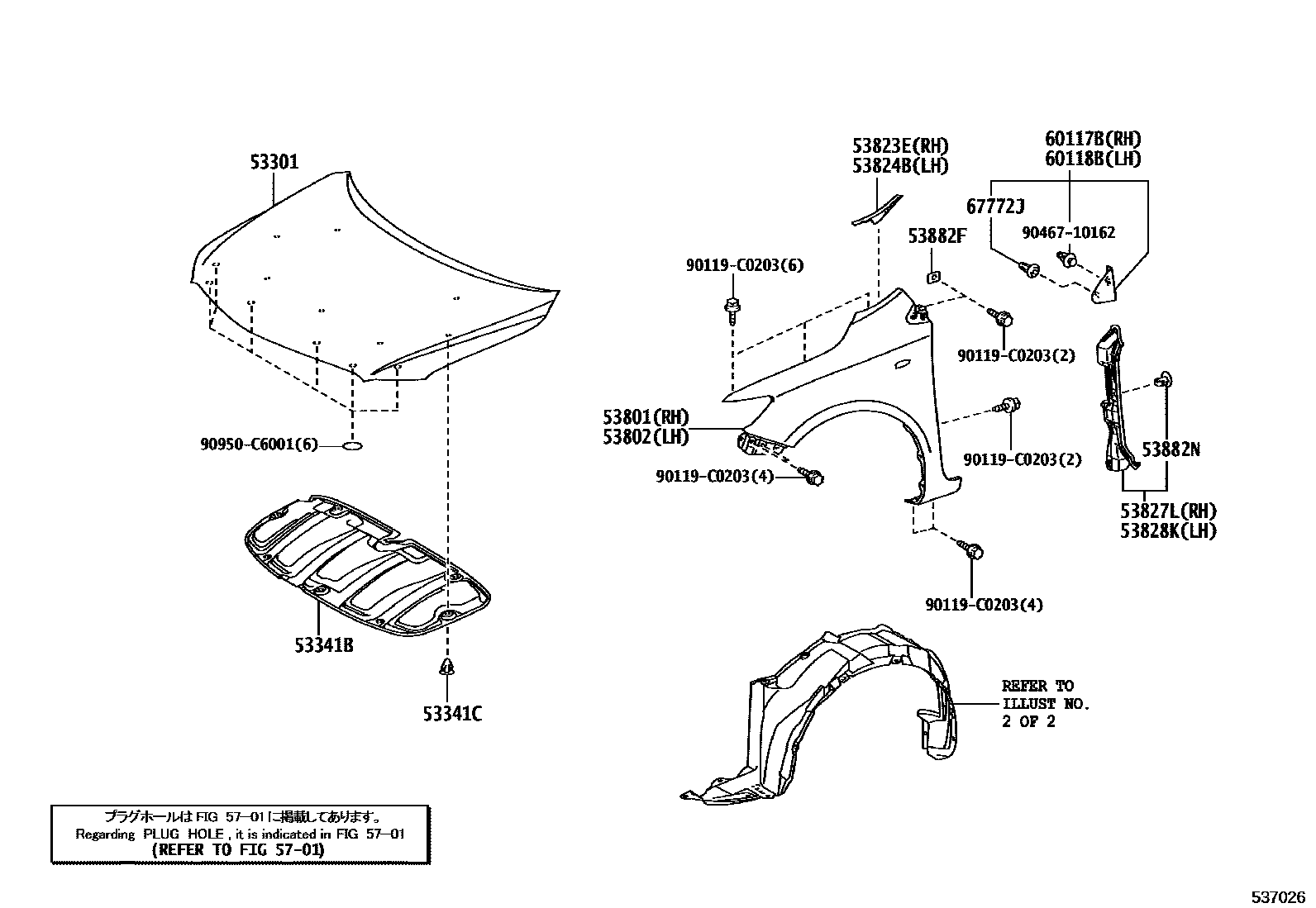

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-02030 · 47749-58010 |
| 53301 | Engine cover sub-assembly | 53301-02180 |
| 53341B | engine cover gasket | 53341-02160 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-C0006 · 90467-C0025 |
| 53801 | Right front fender sub-assembly | 53811-02210 · 53811-02220 · 53811-02320 · 53811-02330 |
| 53802 | Left front fender sub-assembly | 53812-02210 · 53812-02220 · 53812-02320 · 53812-02330 |
| 53823E | No. 2 right front side panel protector | 53823-02020 |
| 53824B | No. 2 left front side panel protector | 53824-02020 |
| 53827L | Right front fender side panel protector | 53827-02090 |
| 53828K | Left front fender side panel protector | 53828-02090 |
| 53851D | Right front fender outer panel pad | 53851-02060 · 53851-02070 |
| 53852B | Left front fender exterior panel pad | 53852-02030 · 53852-02040 |
| 53875A | Right front fender lining | 53875-02240 · 53875-02390 |
| 53875P | Screw No. 1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-02240 · 53876-02390 |
| 53882F | front fender seal | 53882-16030 |
| 60117B | Right front pillar upper cover sub-assembly | 60117-02060 |
| 60118B | Left front pillar upper cover sub-assembly | 60118-02060 |
| 67772J | Front pillar cover fixing cover | 67772-95J03 |
