Toyota COROLLA 后保险杠及附件 — Figure 5202

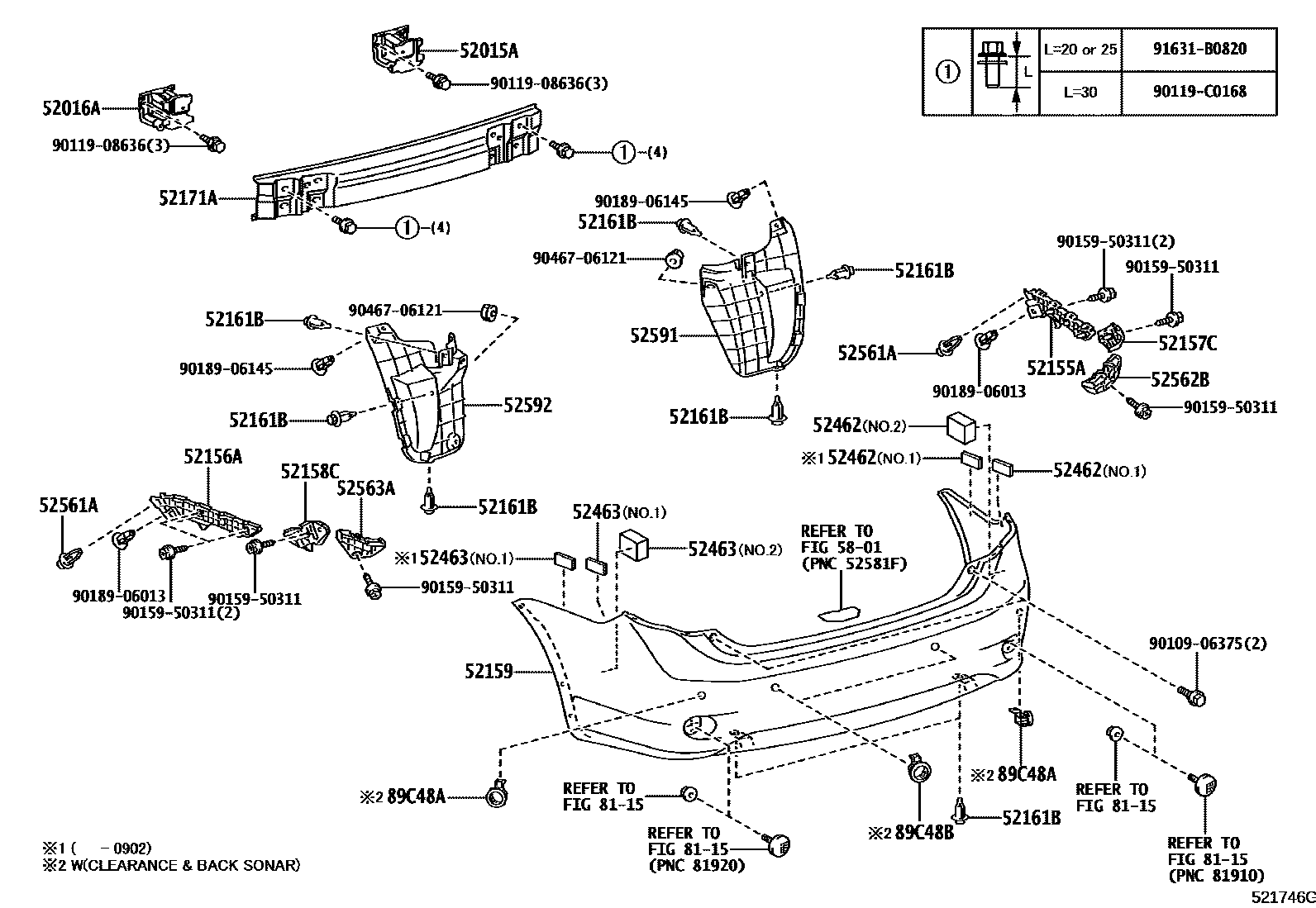

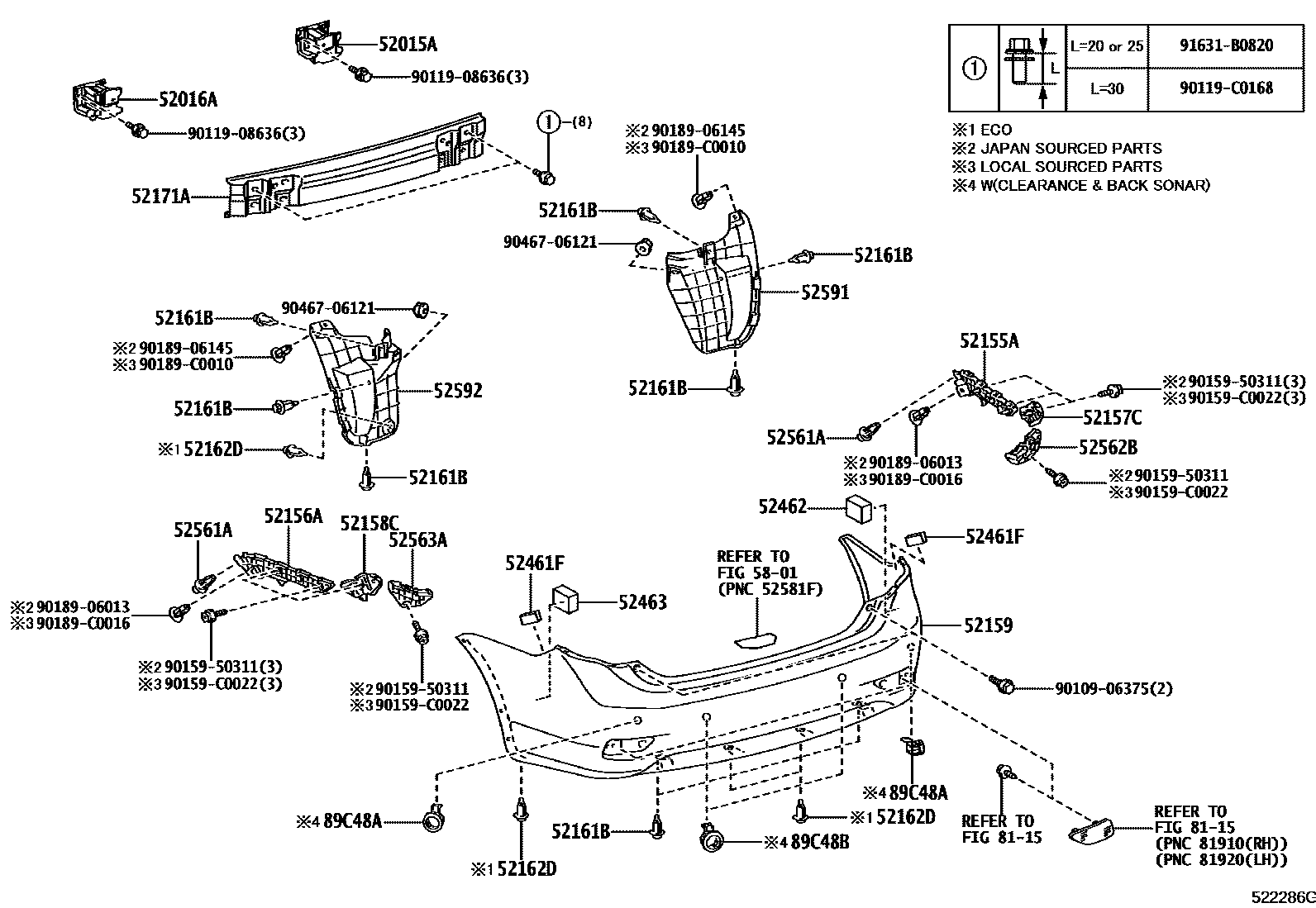

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-02080 |
| 52016A | Rear bumper left arm sub-assembly | 52016-02070 |
| 52155A | Rear bumper right side bracket | 52155-02090 |
| 52156A | Rear bumper left bracket | 52156-02050 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-02040 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-02030 |
| 52159 | rear bumper cover | 52159-02953 · 52159-02954 · 52159-02955 · 52159-02956 · 52159-02980 · 52159-02981 · 52159-02982 · 52159-02983 |
| 52161B | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-02110 |
| 52461F | rear bumper lining | 52461-02020 |
| 52462 | Rear bumper right side lining | 52461-02020 · 52462-02060 · 52462-02120 |
| 52463 | Rear bumper left lining | 52461-02020 · 52462-02060 · 52462-02120 |
| 52561A | Clip (for rear bumper mount) | 90467-05090 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02070 · 52562-02150 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02050 · 52563-02120 |
| 52591 | Rear bumper right seal | 52591-02160 |
| 52592 | Rear bumper left seal | 52592-02150 |
