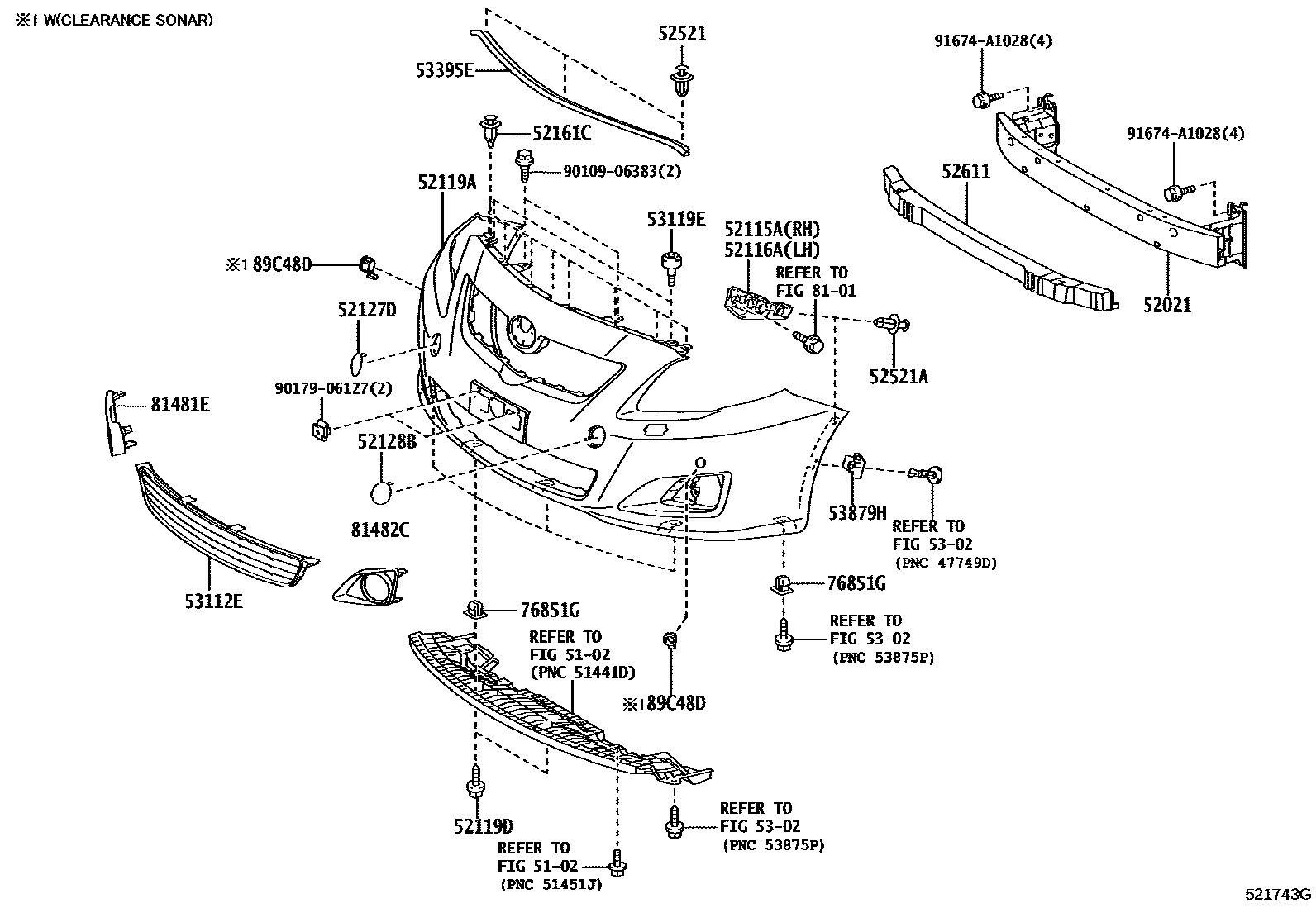

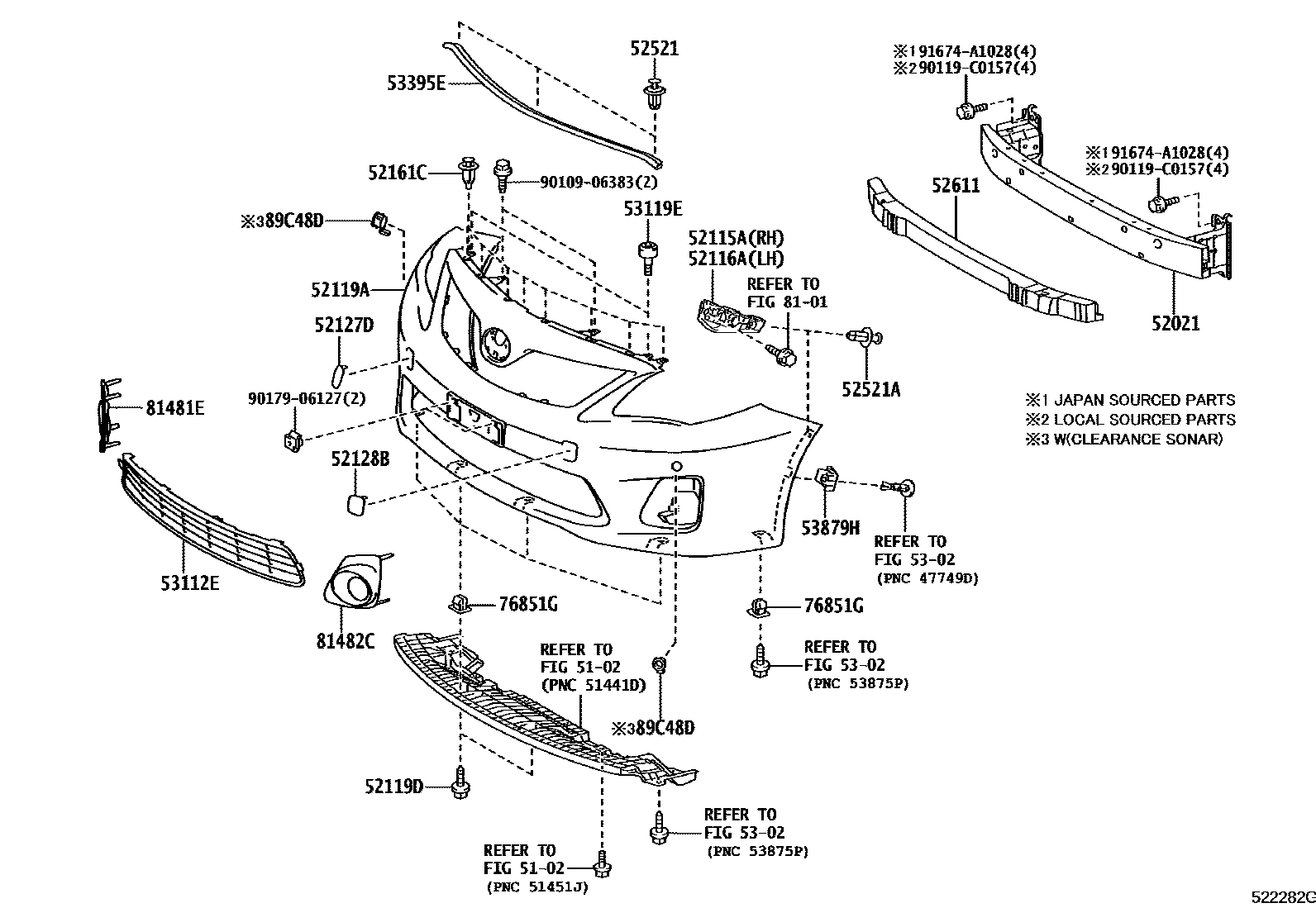

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02140 |
| 52115A | Front bumper right side bracket | 52115-02110 · 52115-02190 |
| 52116A | Front bumper left bracket | 52116-02110 · 52116-02190 |
| 52119A | front bumper cover | 52119-02974 · 52119-02975 · 52119-02976 · 52119-02977 · 52119-02978 · 52119-0Z910 · 52119-0Z911 · 52119-0Z912 · 52119-0Z913 · 52119-0Z914 |
| 52119D | Screw No. 1 | 90159-60488 |
| 52127D | Front bumper right hole cover | 52127-02910 · 52127-02916 |
| 52128B | Front bumper left hole cover | 52128-02910 · 52128-02916 |
| 52161C | front bumper insert | 52161-02040 · 52161-16010 |
| 52611 | front bumper energy absorber | 52611-02150 · 52611-02240 |
| 53112E | No. 1 radiator lower grille | 53112-02100 · 53112-02270 |
| 53119E | Radiator grille protector | 53119-42020 |
| 53395E | Engine cover to front end plate seal | 53395-02030 |
| 53879H | Front fender lining fixing parts | 53879-02060 · 53879-58010 |
| 76851G | No. 1 screw seal | 90189-06193 · 90189-C0006 · 90189-C0015 |
| 81481E | Right fog light cover | 52030-02010 · 52030-02020 · 81481-02080 |
| 81482C | Left fog light cover | 52040-02010 · 52040-02020 · 81482-02070 |
