Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

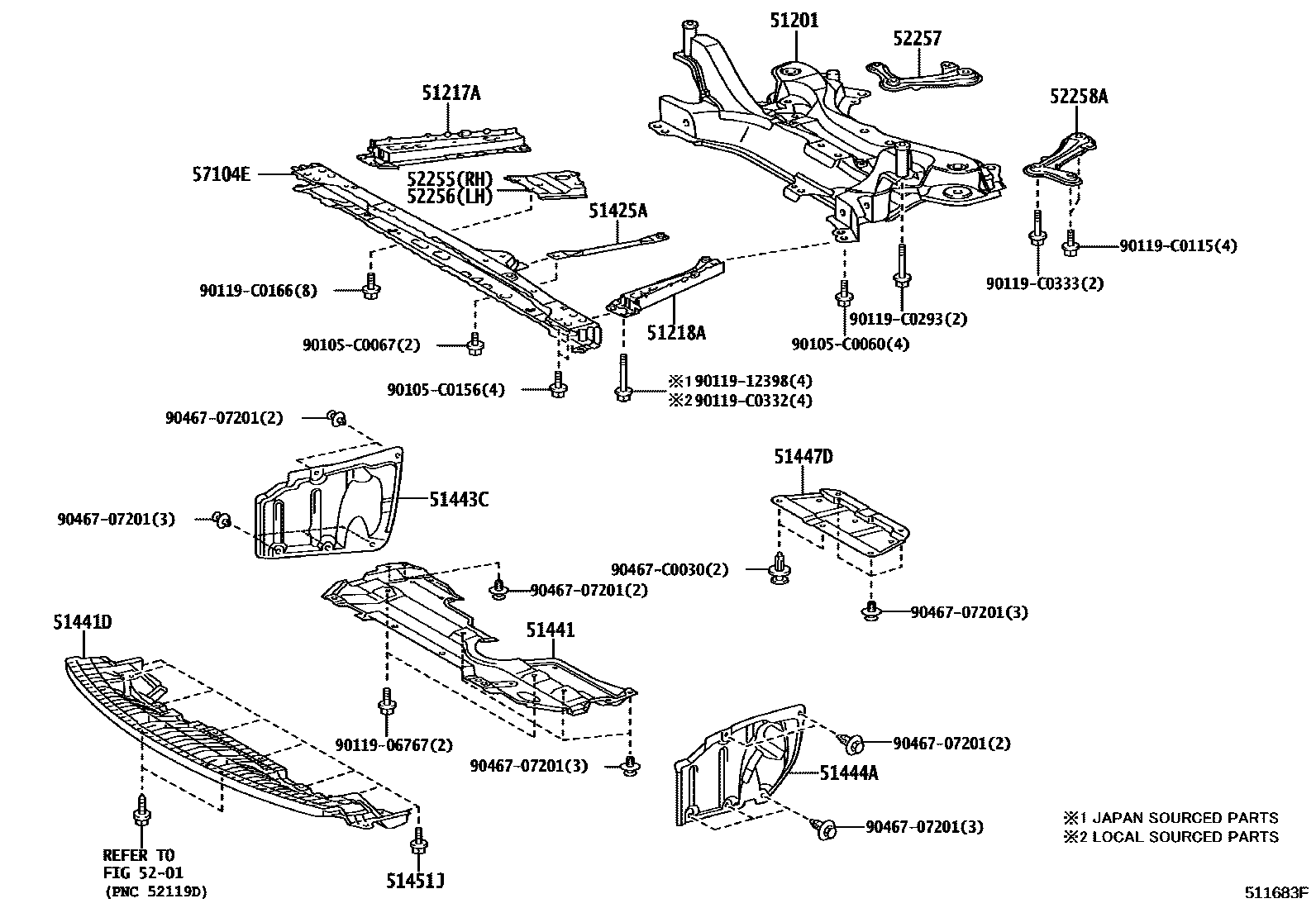

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02131 · 51201-02132 |
| 51217A | Right front suspension cross member reinforcement | 51107-02030 |
| 51218A | Left front suspension cross member reinforcement | 51108-02030 |
| 51425A | Engine front mounting bracket lower reinforcement | 51425-02030 · 51425-02040 |
| 51441 | No. 1 engine bottom cover | 51441-02300 · 51441-12270 |
| 51441D | engine cover | 52618-02030 |
| 51443C | Engine right rear bottom cover | 51443-02070 |
| 51444A | Engine left rear bottom cover | 51444-02060 |
| 51447D | No. 4 engine center bottom cover | 51447-02030 |
| 51451J | Bolt No. 1 | 90119-06767 |
| 52255 | Right front suspension cross member front bracket | 52255-02030 |
| 52256 | Left front suspension cross member front bracket | 52256-02030 |
| 52257 | Right front suspension cross member rear bracket | 52257-02050 · 52257-02051 |
| 52258A | Left front suspension cross member rear bracket | 52258-02050 · 52258-02051 |
| 57104E | Front cross member sub-assembly | 57104-02130 |
