Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

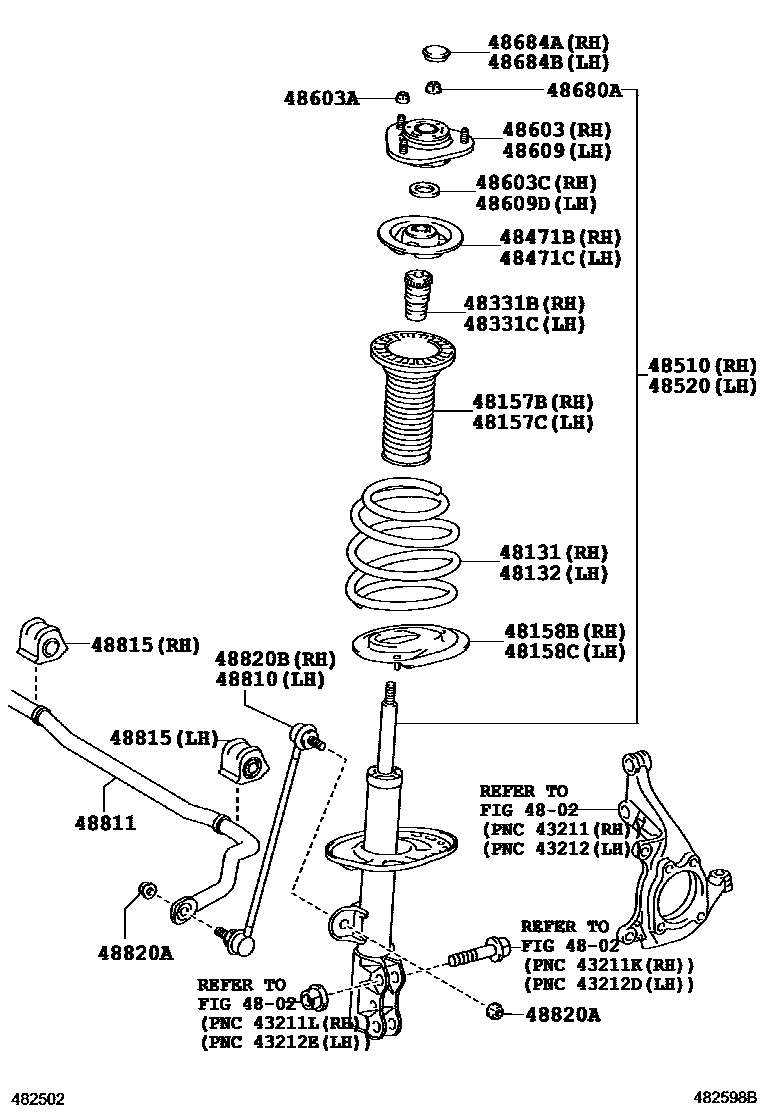

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02C50 · 48131-02C90 · 48131-02G60 · 48131-02G61 · 48131-02G70 · 48131-02K80 |
| 48132 | Left front coil spring | 48131-02C50 · 48131-02C90 · 48131-02G60 · 48131-02G61 · 48131-02G70 · 48131-02K80 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02131 · 48157-02132 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02131 · 48157-02132 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02100 · 48158-02101 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02100 · 48158-02101 |
| 48331B | Right front spring buffer block | 48331-12220 |
| 48331C | Left front spring buffer block | 48331-12220 |
| 48471B | Front coil spring upper right seat | 48044-02180 · 48044-42010 |
| 48471C | Front coil spring upper left seat | 48044-02180 · 48044-42010 |
| 48510 | Right front shock absorber assembly | 48510-09S10 · 48510-09S20 · 48510-09W70 · 48510-09W71 · 48510-09W80 |
| 48520 | Left front shock absorber assembly | 48520-09K70 · 48520-09K80 · 48520-09P70 · 48520-09P71 · 48520-09P80 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02180 |
| 48603A | Nut (for front suspension mount) | 90178-10030 · 90178-C0061 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02180 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-14005 · 90177-C0007 · 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-0R020 · 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-0R020 · 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-02080 |
| 48811 | front stabilizer bar | 48811-02220 · 48811-02320 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-02160 · 48815-02190 |
| 48820A | Nut (for front stabilizer bar link) | 90178-C0027 · 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-02080 |
