Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

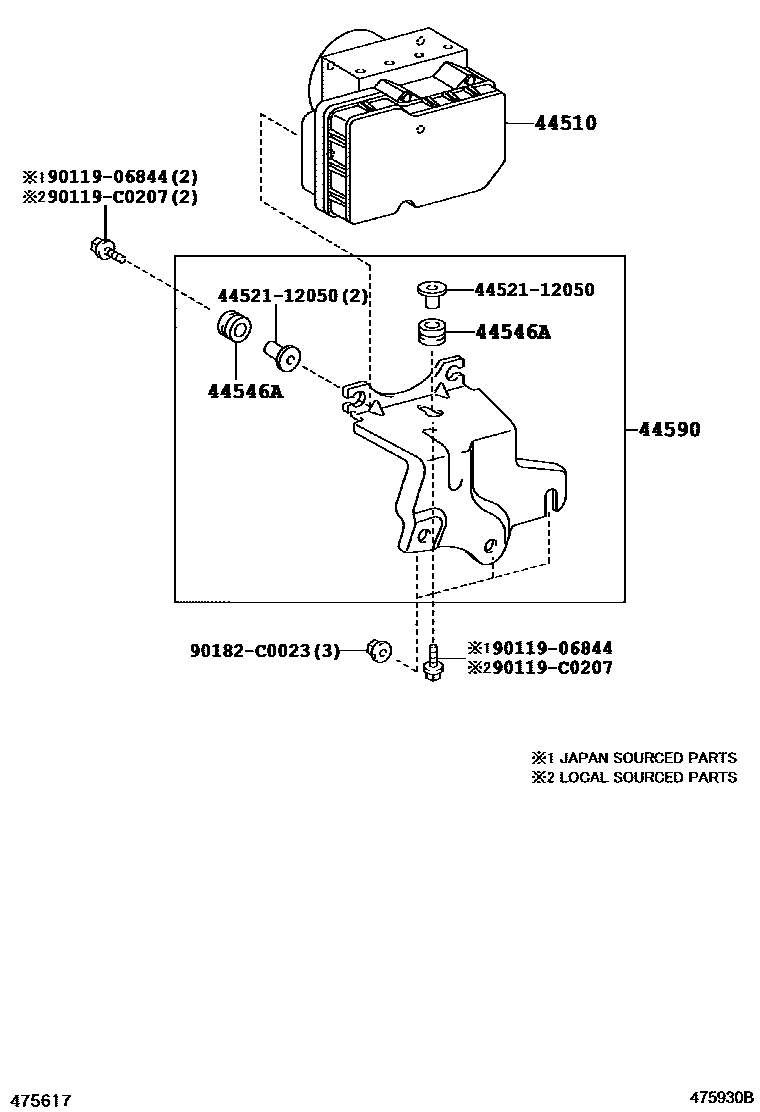

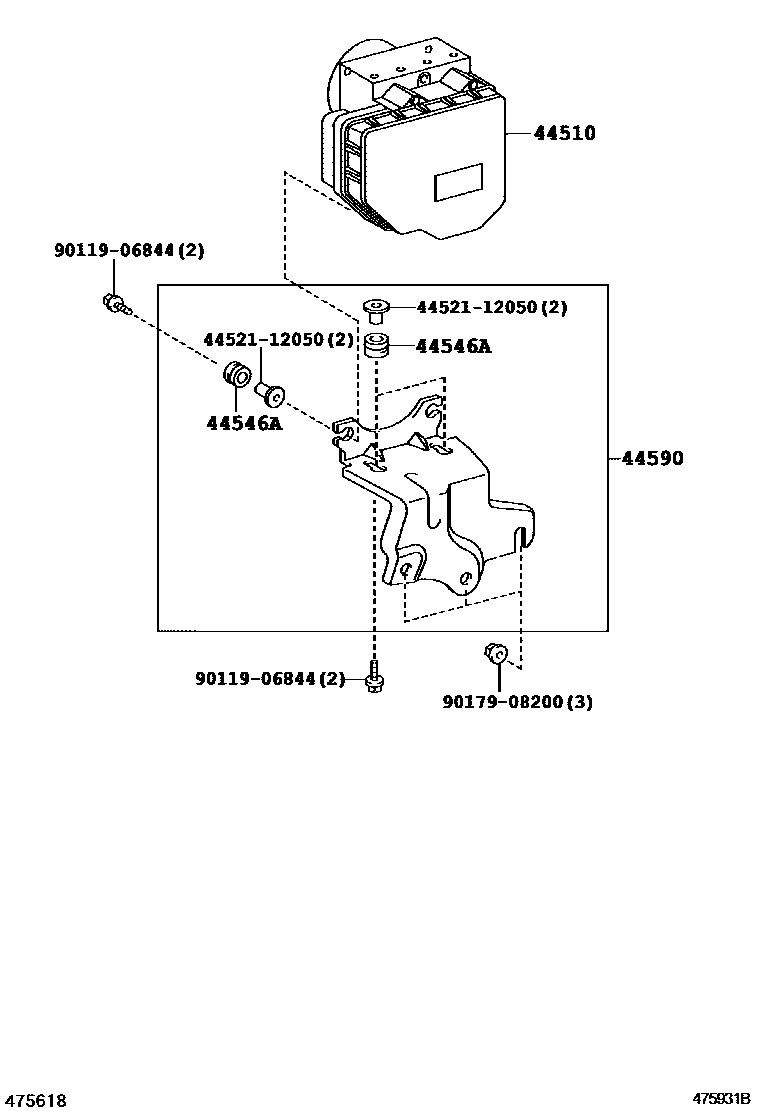

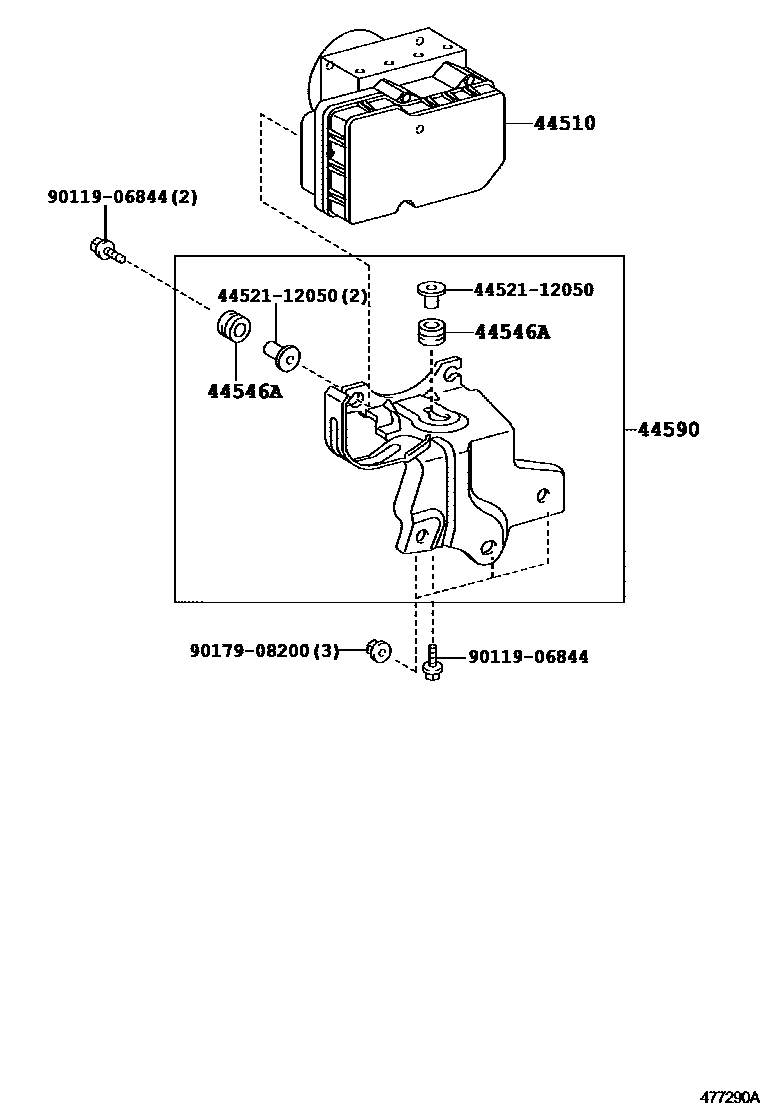

| 44510 | brake actuator assembly | 44050-02230 · 44050-02231 · 44050-02250 · 44050-12610 |
| 44546A | Brake actuator bolt cushion | 44547-02040 |
| 44590 | Brake actuator bracket assembly | 44590-02180 · 44590-02190 · 44590-02290 |

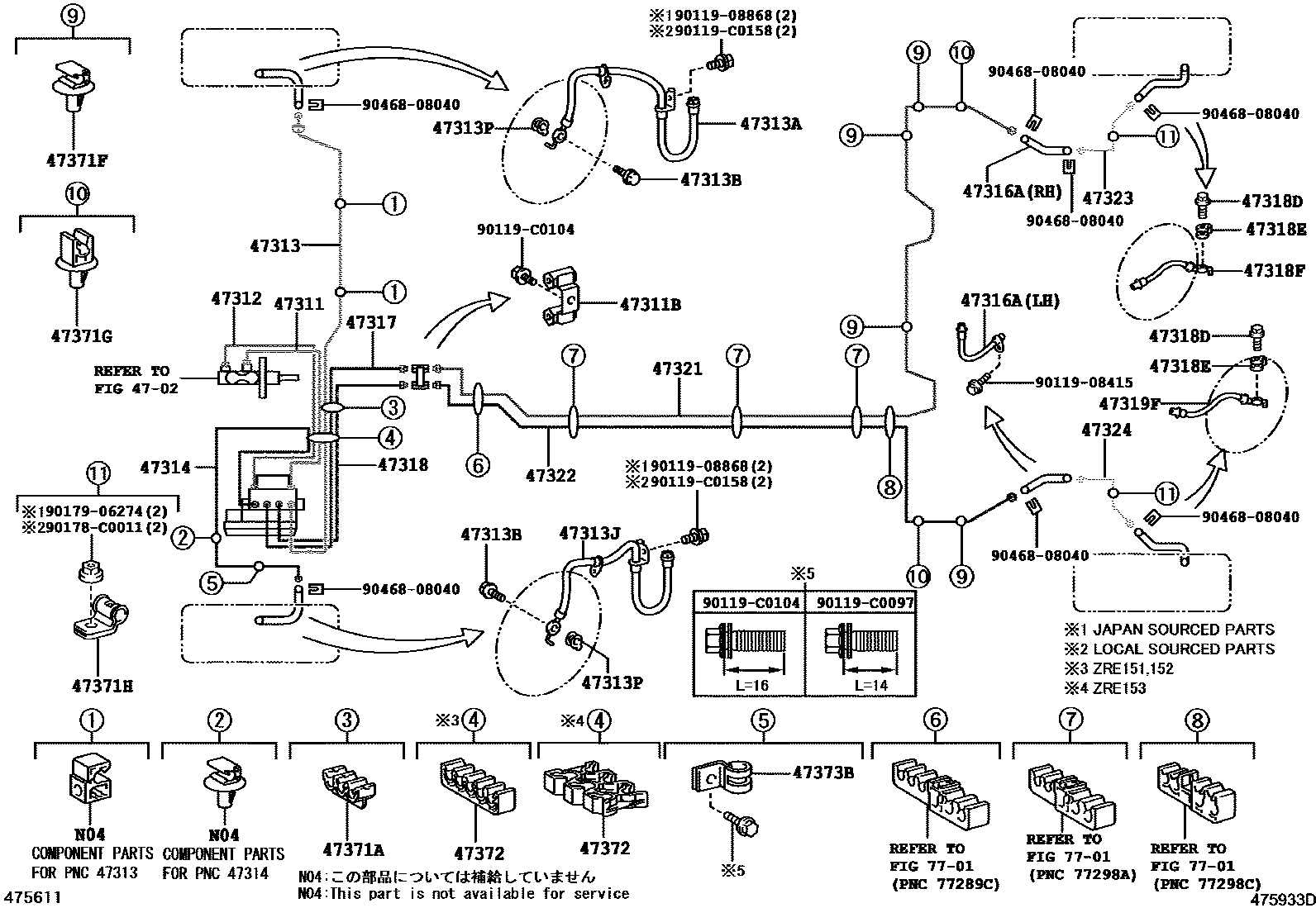

| 47311 | No. 1 front brake pipe | 47311-02510 · 47311-02520 · 47311-02710 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-C0001 |
| 47312 | No. 2 front brake pipe | 47312-02390 · 47312-02400 · 47312-02610 |
| 47313 | No. 3 front brake pipe | 47313-02460 · 47313-02470 · 47313-02660 |
| 47313A | No. 1 front flexible hose | 90947-C2008 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2009 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02460 · 47314-02470 · 47314-02660 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-C2006 · 90947-C2007 |
| 47317 | No. 7 front brake pipe | 47317-02380 · 47317-02390 · 47317-02580 |
| 47318 | No. 8 front brake pipe | 47318-02400 · 47318-02410 · 47318-02600 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-C2005 |
| 47319F | Left rear flexible hose | 90947-C2005 |
| 47321 | No. 1 rear brake pipe | 47321-02220 |
| 47322 | No. 2 rear brake pipe | 47322-02220 |
| 47323 | No. 3 rear brake pipe | 47323-02100 |
| 47324 | No. 4 rear brake pipe | 47324-02100 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90949-01D29 |
| 47371H | No. 12 brake pipe clamp | 90461-10837 |
| 47372 | No. 2 brake pipe clamp | 90464-00898 · 90464-00900 · 90464-00933 |
| 47373B | No. 3 brake pipe clamp | 90461-10781 |
