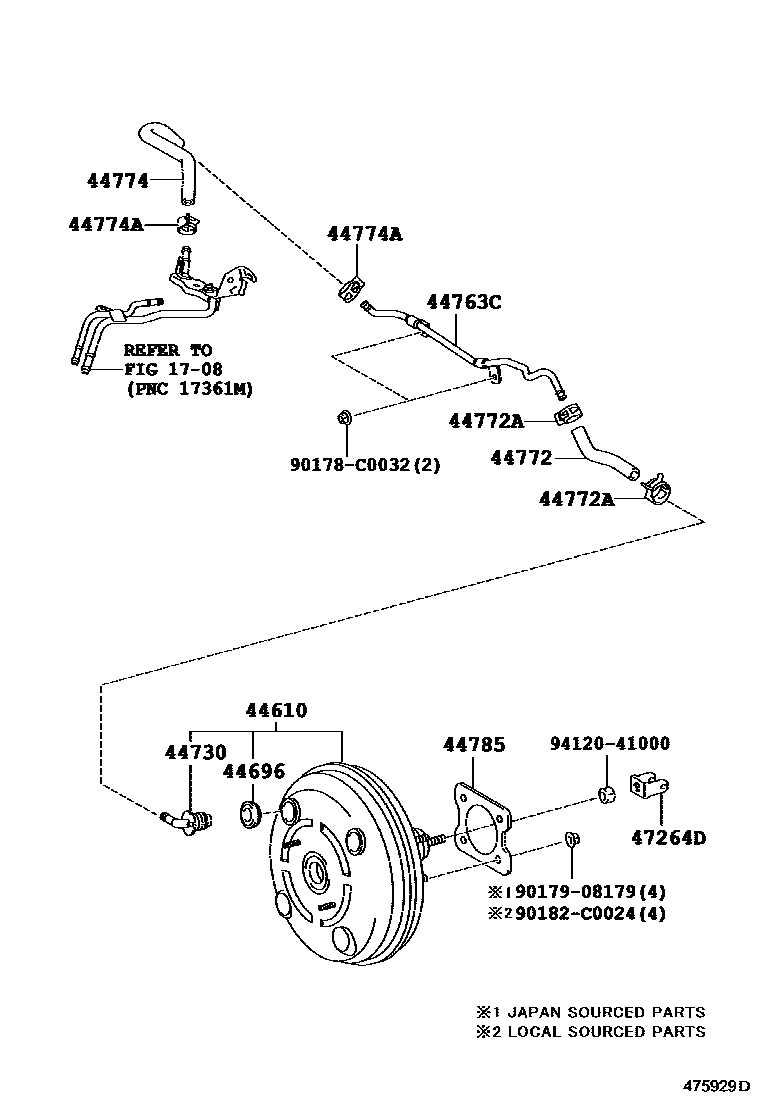

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02420 · 44610-02421 · 44610-02422 · 44610-02430 · 44610-02431 · 44610-02432 · 44610-02433 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-14050 · 44730-20170 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-02070 |
| 44772 | Hoses (check valve to connector tube) | 44772-02030 · 44772-02060 |
| 44772A | Clip (for check valve to connector tube) | 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02070 · 44774-02240 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44785 | brake booster pad | 44785-02050 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-0P010 |
