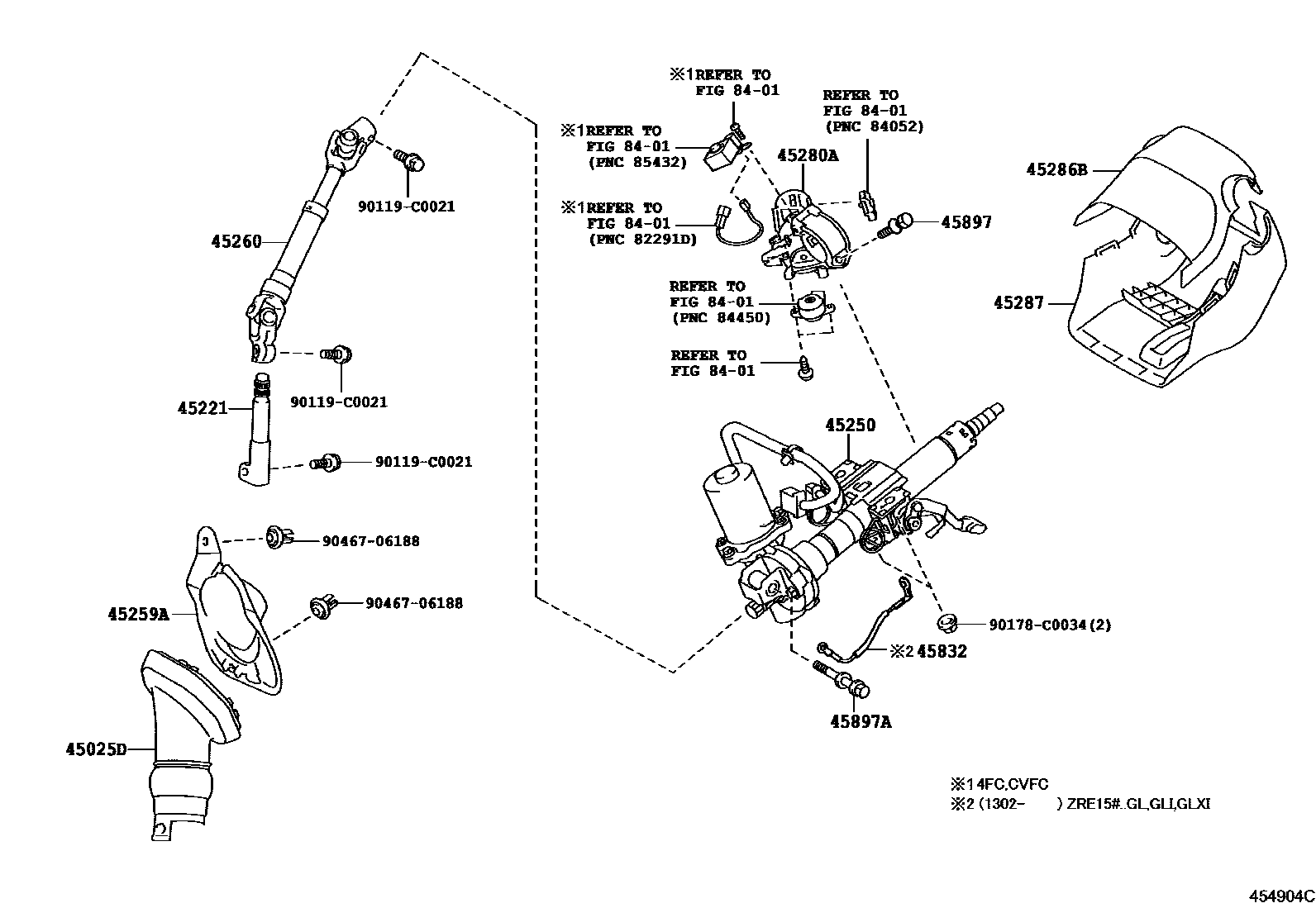

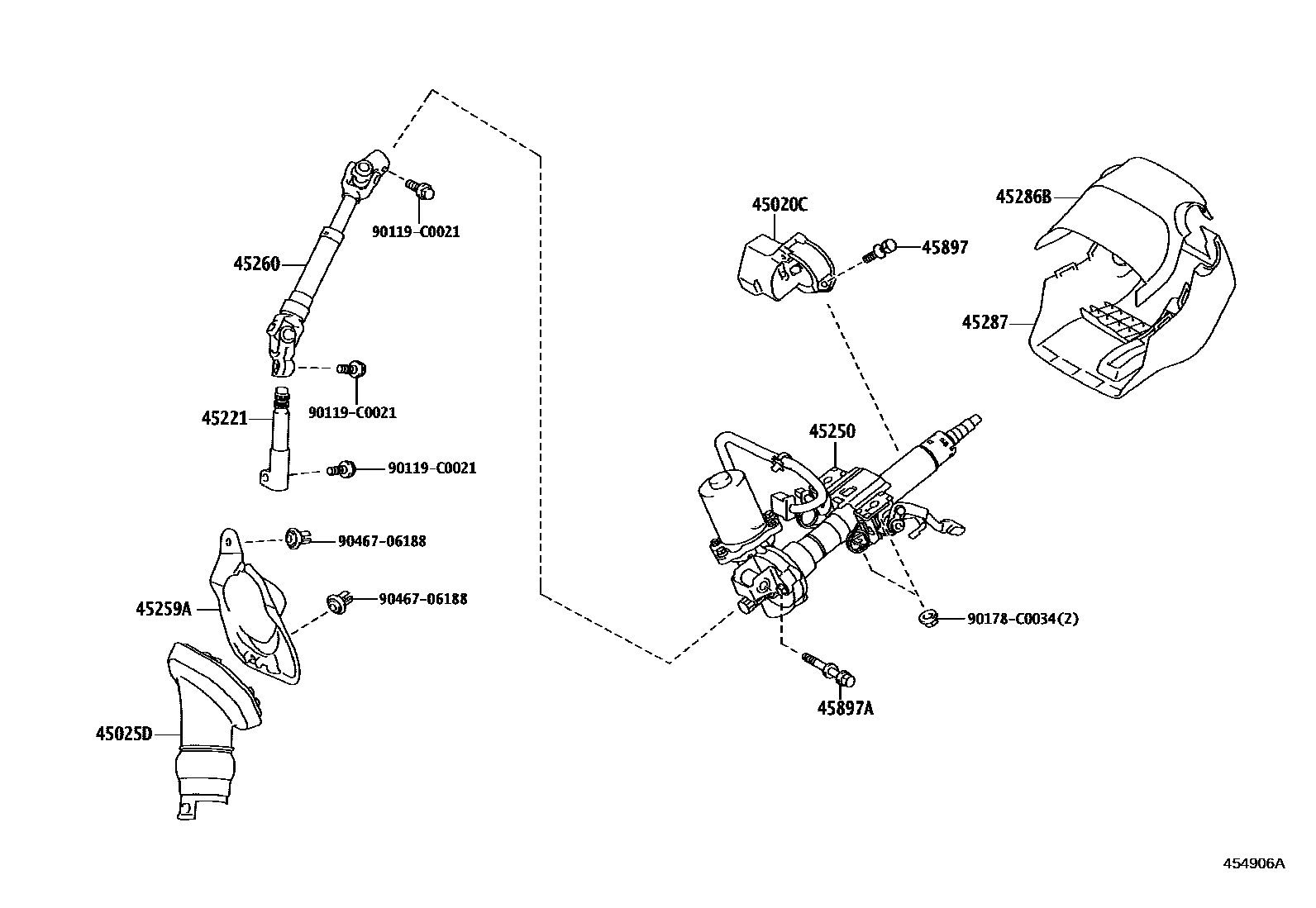

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-02250 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02100 |
| 45221 | steering intermediate shaft | 45221-02060 |
| 45250 | Steering column assembly | 45250-02720 · 45250-02730 |
| 45259A | Steering column hole cover silencer plate | 45259-02090 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02100 · 45260-02180 |
| 45280A | Steering column upper bracket assembly | 45280-02180 · 45280-02190 |
| 45832 | Tilt-adjustable steering bracket connection cable | 45832-02040 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 · 90119-10981 |
