Toyota COROLLA 前桥壳和差速器 — Figure 4301

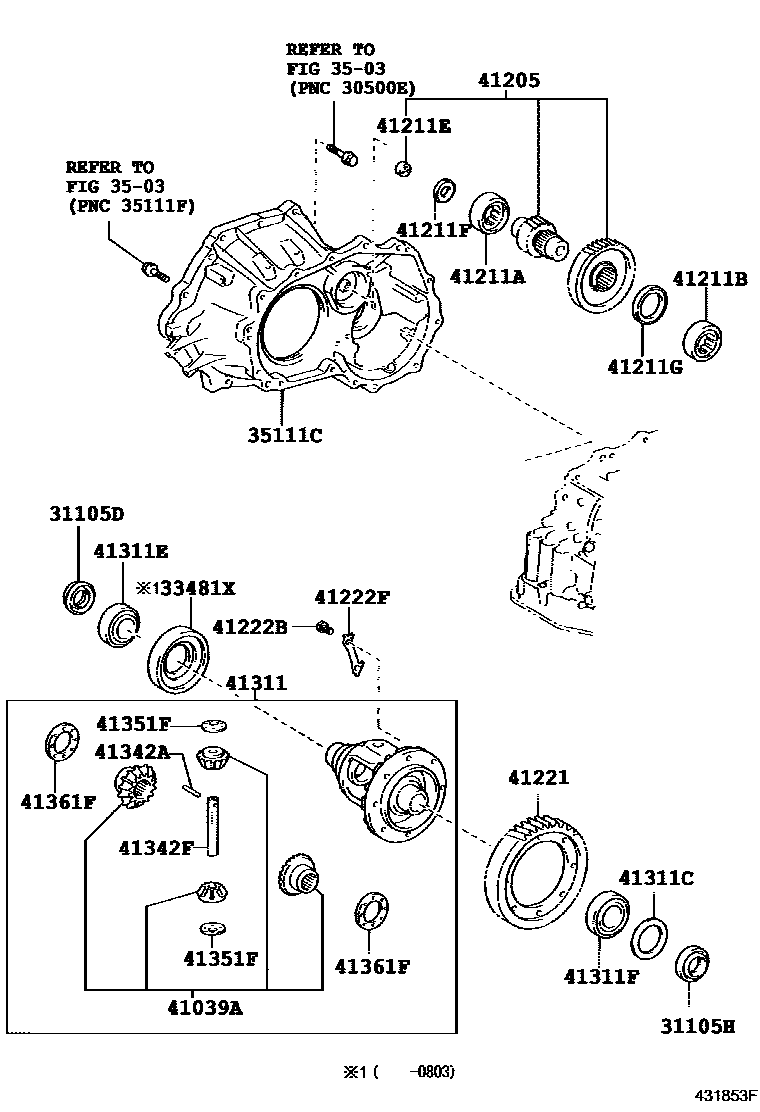

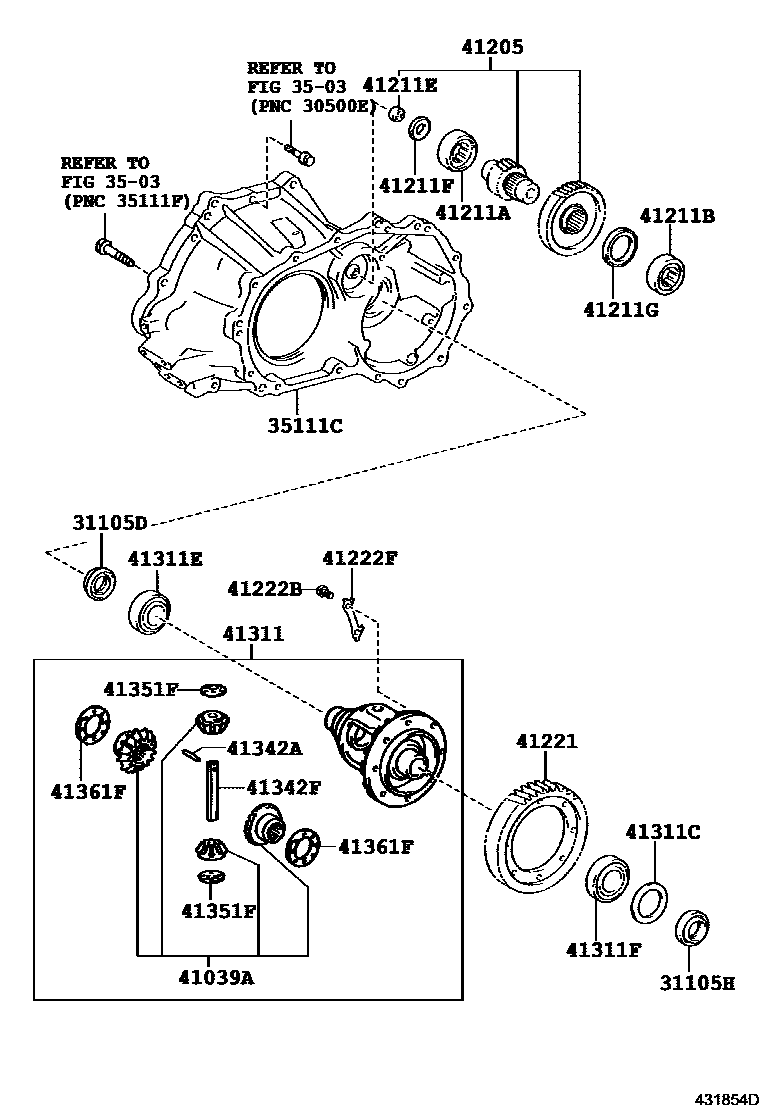

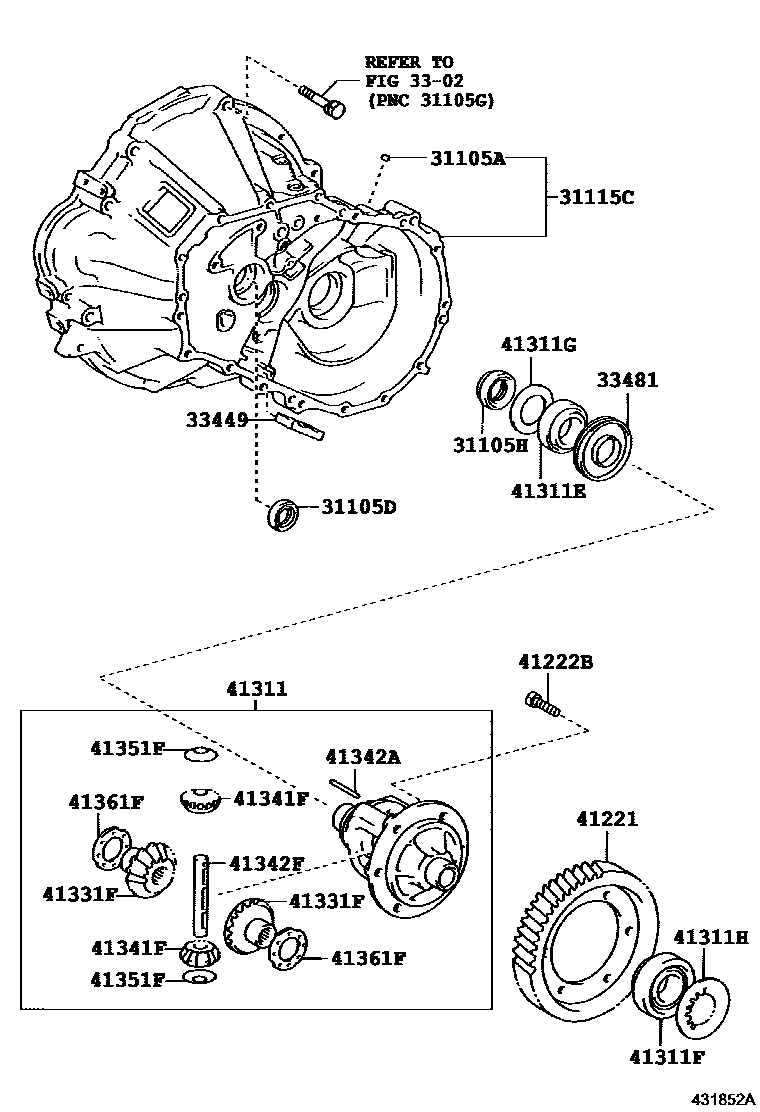

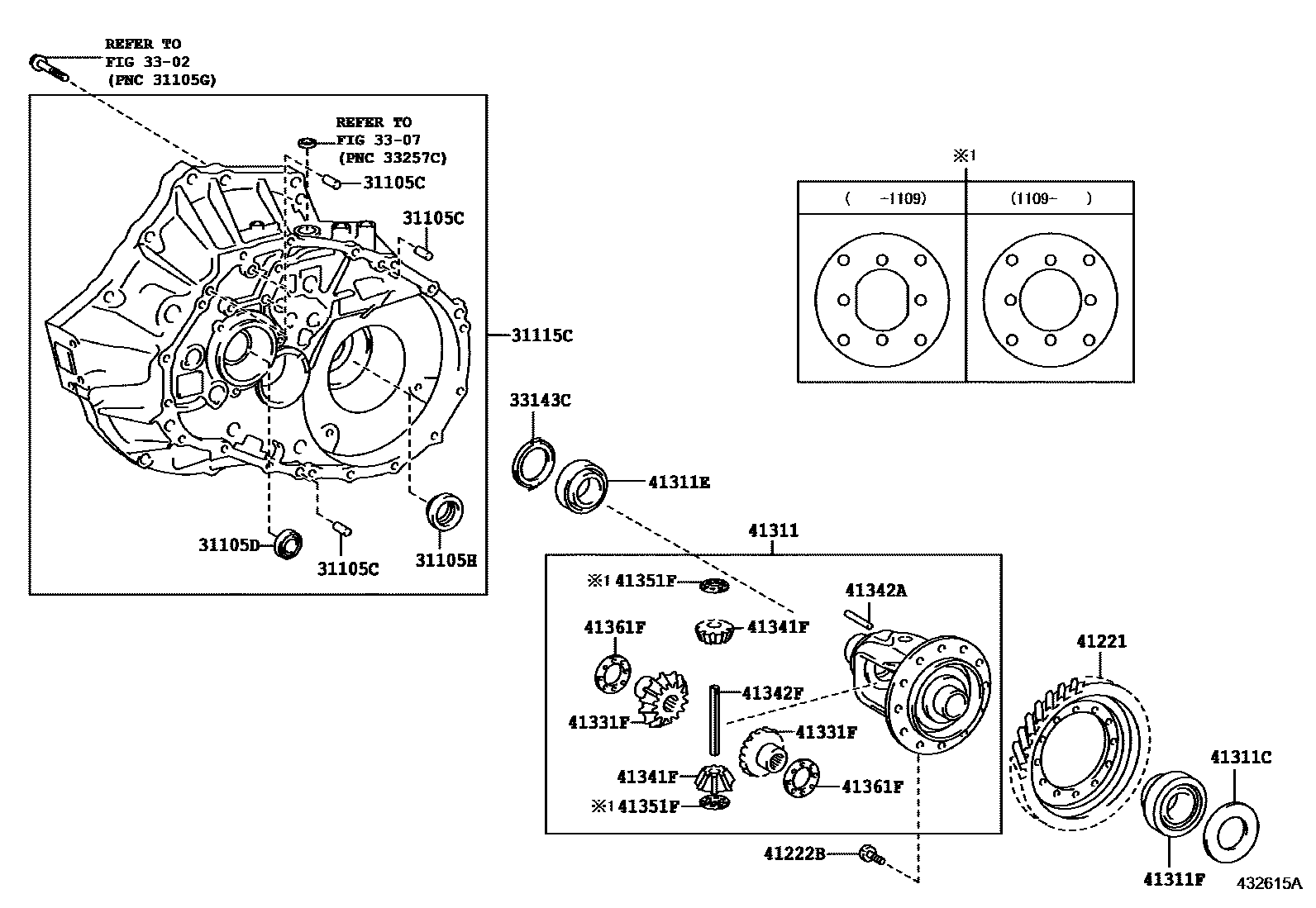

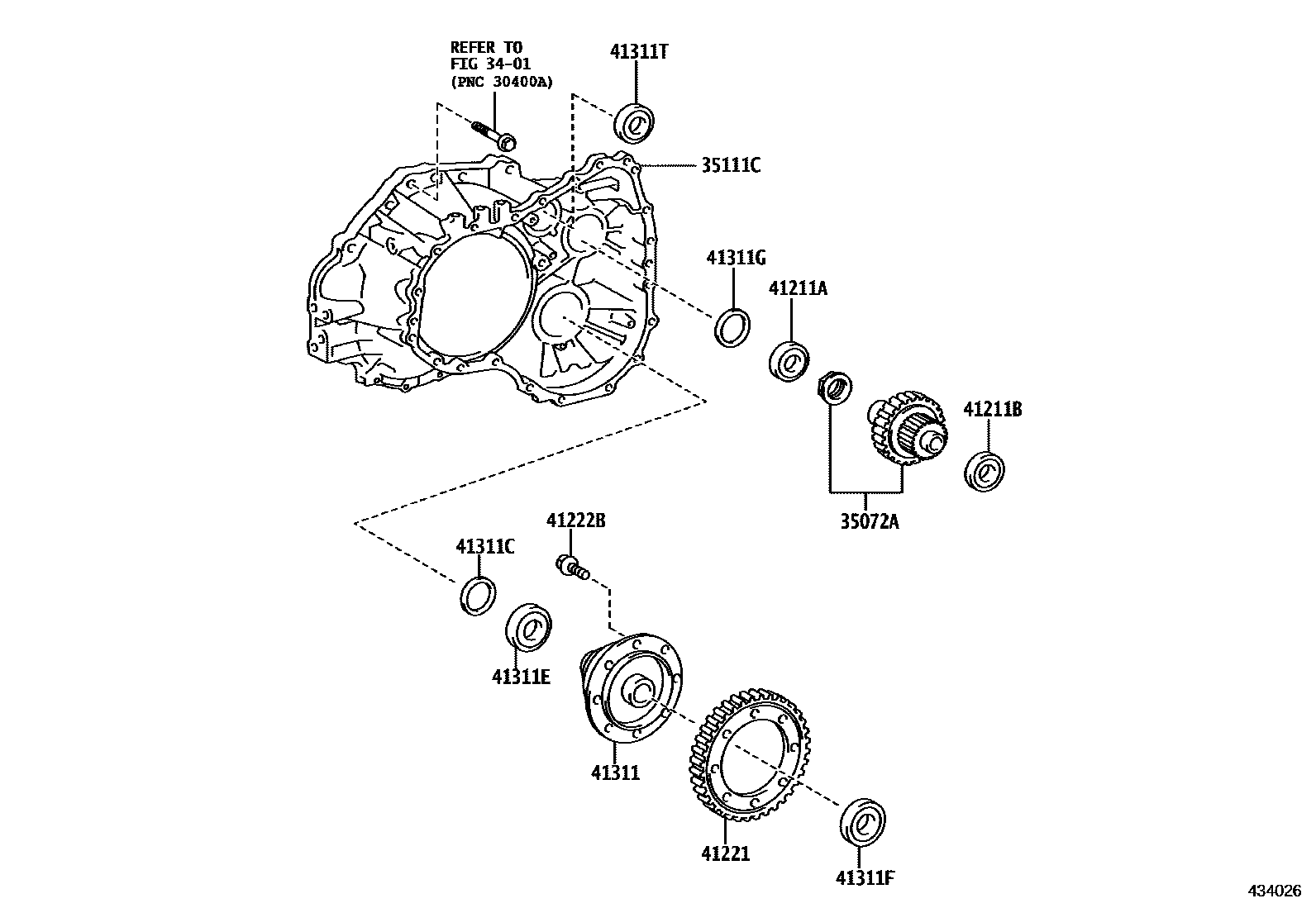

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105C | Direct sales (for transmission axle housing) | 90250-08054 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25028 · 90311-27010 · 90311-34031 · 90311-34045 · 90311-35055 · 90311-C0009 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-34030 · 90311-34033 · 90311-34044 · 90311-35054 · 90311-35057 · 90311-40030 · 90311-40036 · 90311-C0005 · 90311-C0010 · 90311-C0012 · 90311-C0014 |
| 31115C | Front transmission axle housing (MTM) | 31105-02070 · 31105-02080 · 31105-20101 |
| 33143C | Front differential oil baffle | 33143-20060 |
| 33449 | derailleur magnet | 33449-0D020 · 33449-0D030 · 33449-12020 |
| 33481 | Speedometer driving gear (MTM) | 33481-0D050 · 33481-12040 · 33481-20160 |
| 33481X | speedometer drive gear | 33481-32020 |
| 35072A | Counter shaft driven gear assembly | 35072-12050 |
| 35111C | Transmission axle housing | 35105-12080 · 35105-12090 · 35105-12091 · 35105-52071 |
| 41039A | Differential gear assembly | 41039-12010 · 41039-32010 · 41039-32021 |
| 41205 | Differential drive pinion sub-assembly | 41205-52021 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 · 90366-25019 · 90366-25021 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 · 90366-29010 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-02100 · 41221-02110 · 41221-02140 · 41221-02160 · 41221-12441 · 41221-20490 · 41221-52090 · 41221-52091 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 · 90105-12319 · 90105-12379 · 90105-C0221 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41311 | front differential case | 41301-02030 · 41301-0D010 · 41301-0D030 · 41301-12041 · 41301-12210 · 41301-12280 · 41301-20270 · 41301-32061 · 41301-42190 · 41301-52070 |
| 41311C | Rear gasket (for front differential case) | 90564-48001 · 90564-48002 · 90564-48003 · 90564-48004 · 90564-48005 · 90564-48006 · 90564-48007 · 90564-48008 · 90564-48009 · 90564-48010 · 90564-48011 · 90564-48012 · 90564-48013 · 90564-48014 · 90564-48015 · 90564-48016 · 90564-48017 · 90564-48018 · 90564-48019 · 90564-48020 · 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 · 90564-61077 · 90564-61078 · 90564-61079 · 90564-61080 · 90564-61081 · 90564-61082 · 90564-61083 · 90564-61084 · 90564-61085 · 90564-61086 · 90564-61087 · 90564-61088 · 90564-61089 · 90564-61090 · 90564-61091 · 90564-61092 · 90564-61093 · 90564-61094 · 90564-61095 · 90564-61096 · 90564-61097 · 90564-61098 · 90564-61099 · 90564-61100 · 90564-61101 · 90564-61102 · 90564-61103 · 90564-61104 · 90564-61105 · 90564-61106 · 90564-61107 · 90564-61108 · 90564-61109 · 90564-61110 · 90564-61111 · 90564-61112 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-38004 · 90366-40016 · 90366-40097 · 90366-40117 · 90366-57028 · 90366-C0007 · 90366-C0013 · 90366-C0019 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40094 · 90366-44001 · 90366-44007 · 90366-57028 · 90366-C0010 · 90366-C0016 · 90366-C0022 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90564-47001 · 90564-47002 · 90564-47003 · 90564-47004 · 90564-47005 · 90564-47006 · 90564-47007 · 90564-47008 · 90564-47009 · 90564-47010 · 90564-47011 · 90564-47012 · 90564-47013 · 90564-47014 · 90564-47015 · 90564-47016 · 90564-47017 · 90564-47018 · 90564-47019 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41311T | Roller bearing (for secondary pulley shaft) | 90365-24001 |
| 41331F | Front differential side gear | 41331-0D040 · 41331-12011 · 41331-12140 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-0D040 · 41341-12030 · 41341-12090 · 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0D020 · 41342-12140 · 41342-20060 · 41342-20080 · 41342-20090 · 41342-28010 · 41342-32020 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-28010 · 41351-30060 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 |
