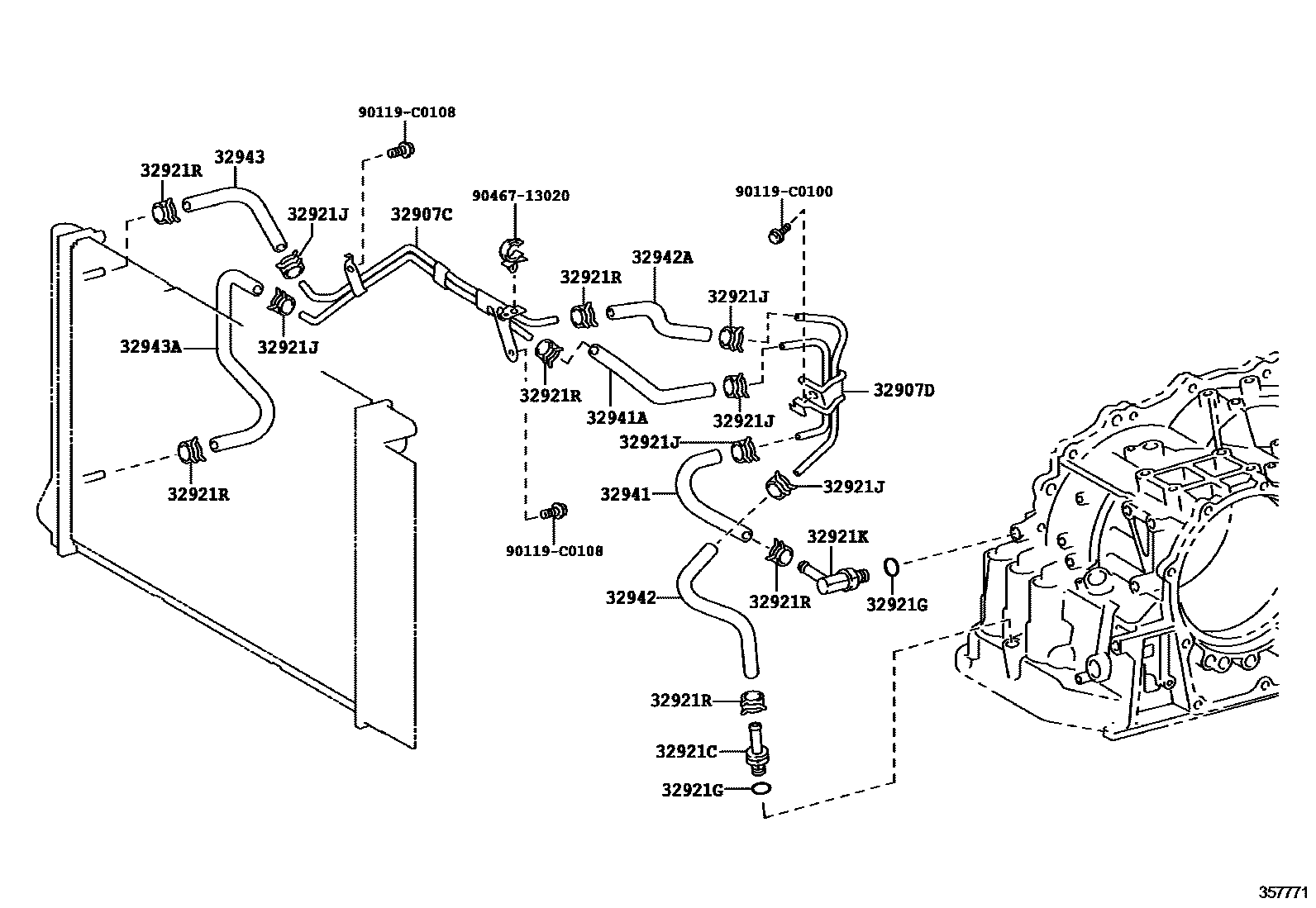

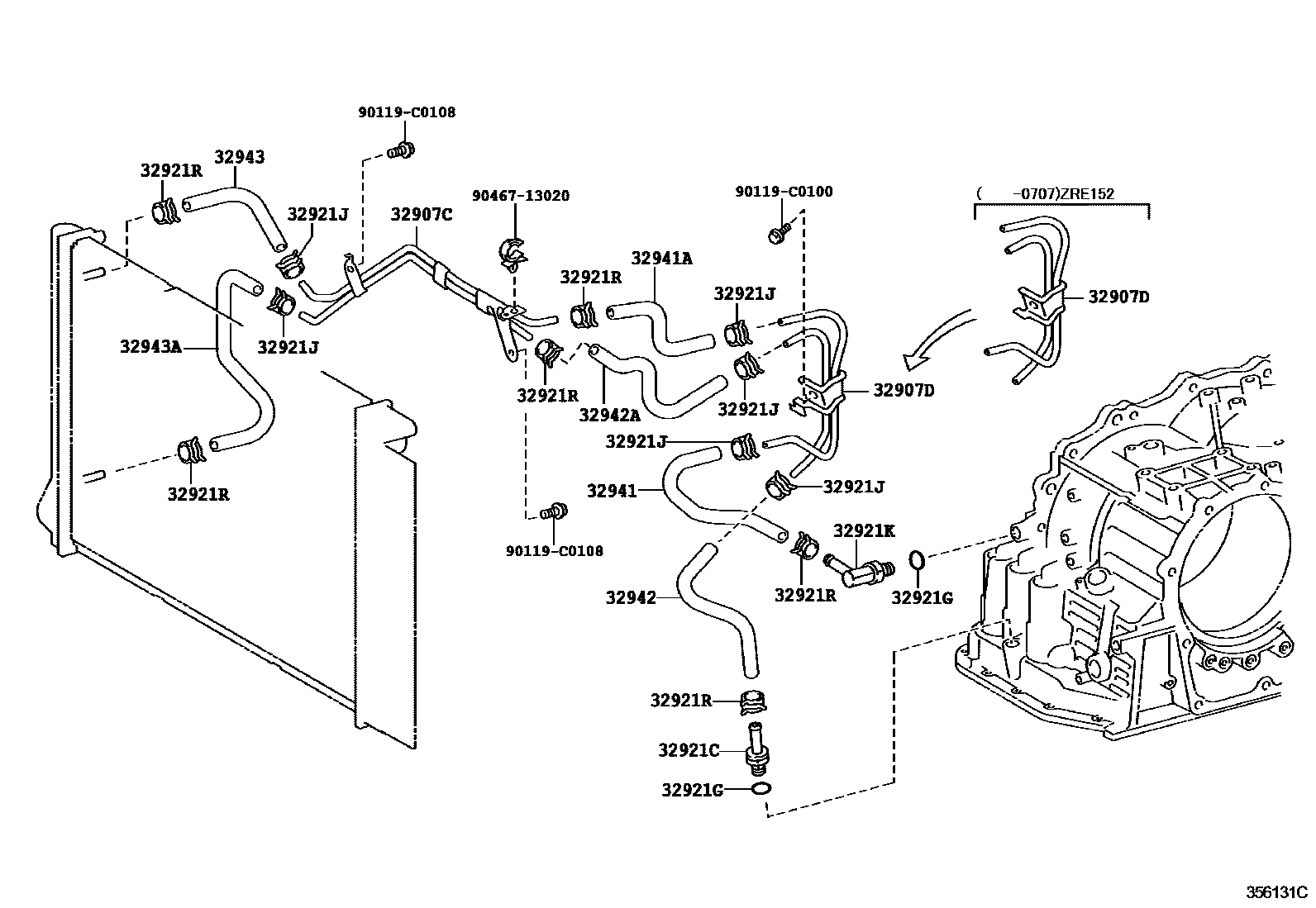

Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514
Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907C | No. 1 transmission oil cooler pipe sub-assembly without hose | 32907-02080 · 32907-02081 |
| 32907D | No. 2 transmission oil cooler pipe sub-assembly without hose | 32907-02090 · 32907-02100 · 32907-02101 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13007 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10018 · 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 96135-51300 · 96137-41501 |
| 32921K | Connector No. 2 (for transmission oil cooler pipe) | 90404-13005 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90466-C0026 · 96137-41501 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32943-02120 · 32943-02140 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 90445-C0002 · 90445-C0007 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32943-02130 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 90445-C0002 · 90445-C0007 |
| 32943 | No. 1 transmission oil cooler hose | 32943-02090 |
| 32943A | No. 2 transmission oil cooler hose | 32943-02100 |
