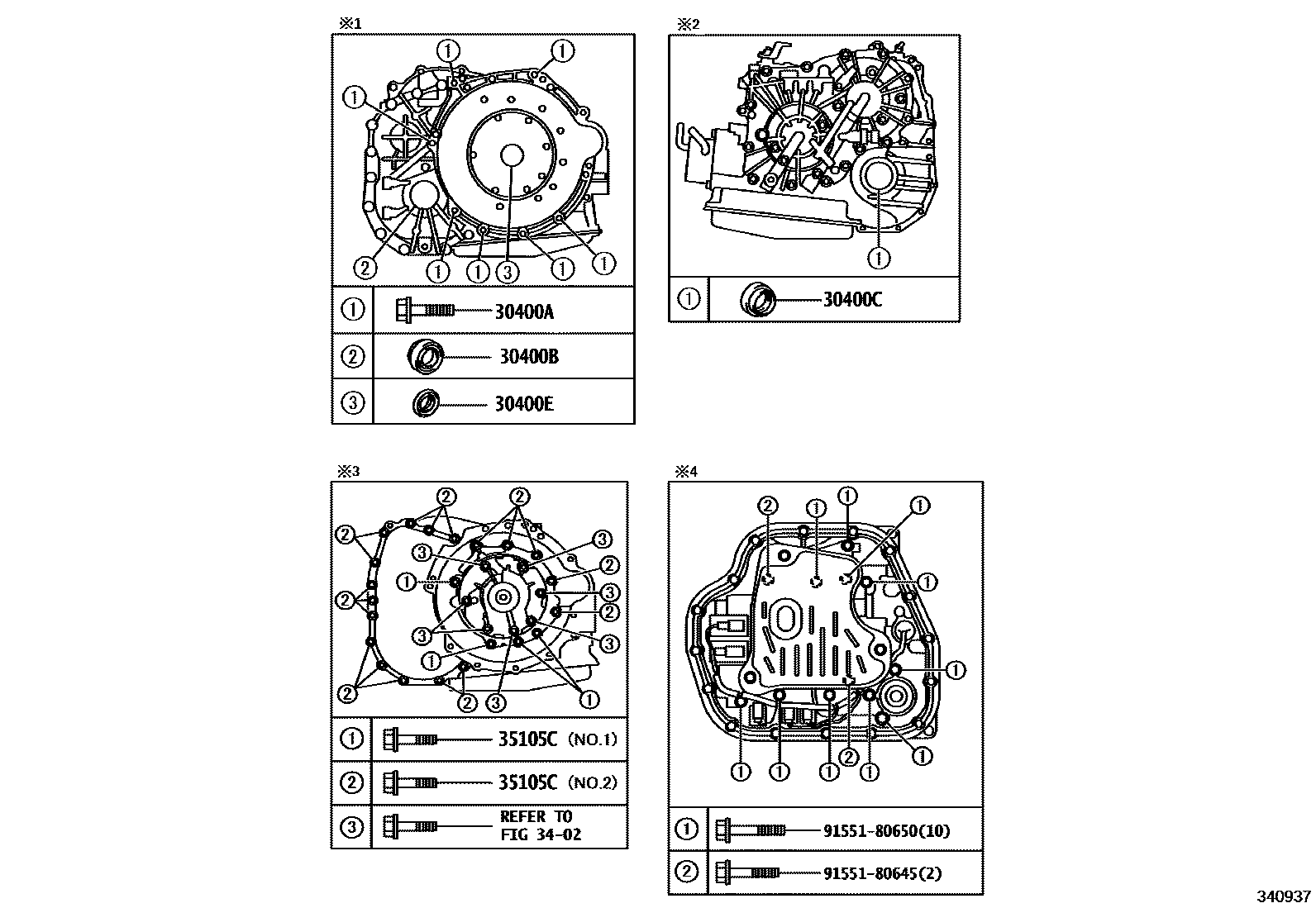

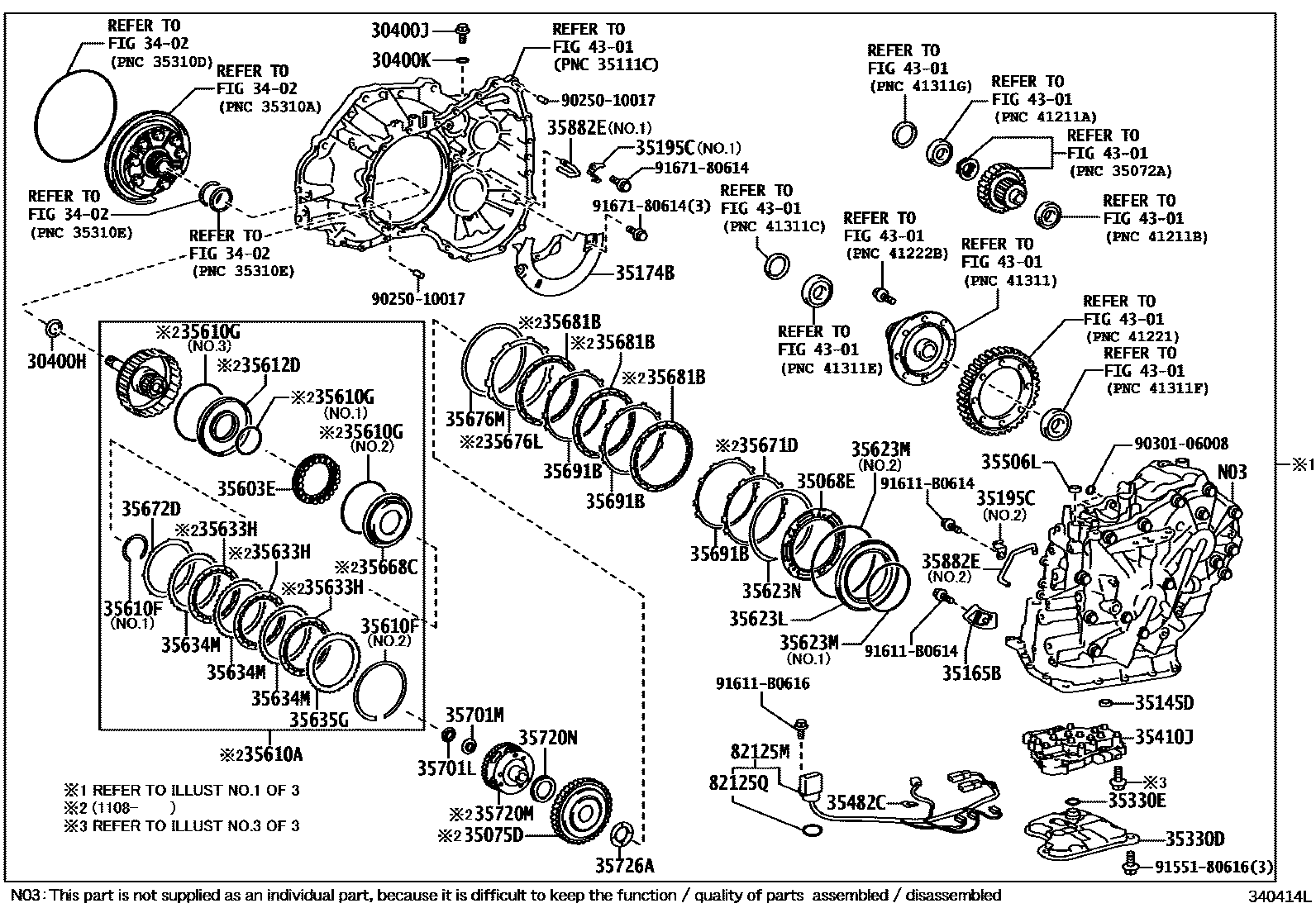

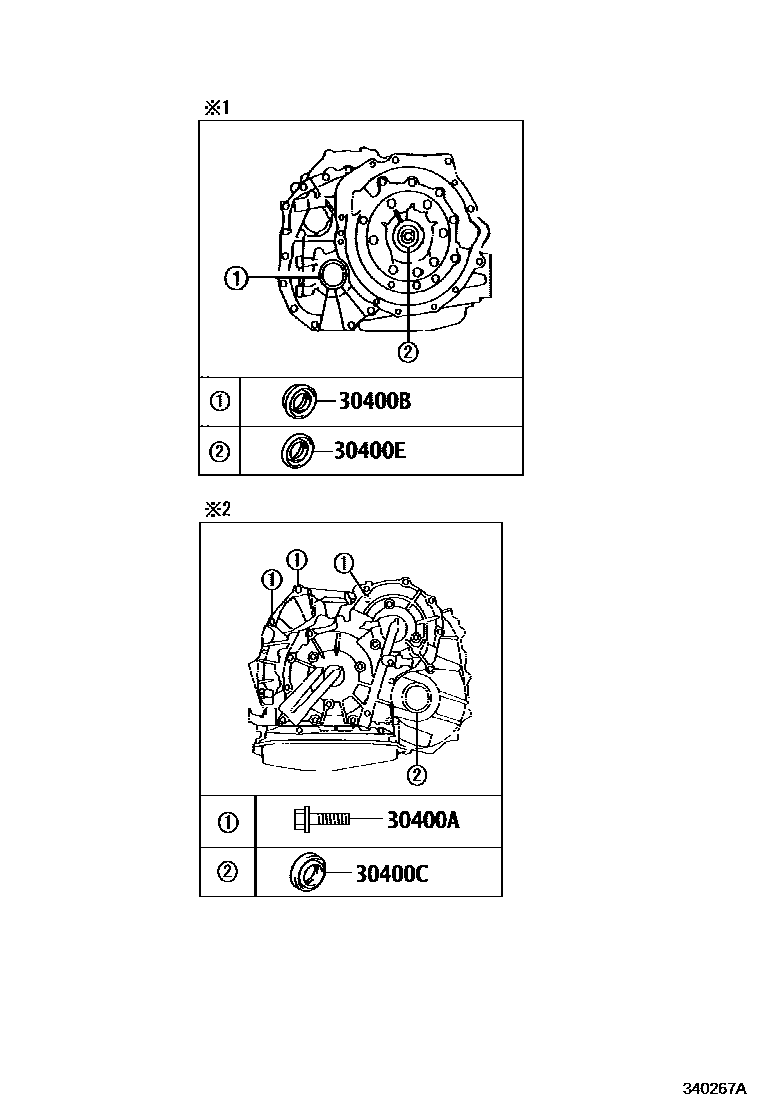

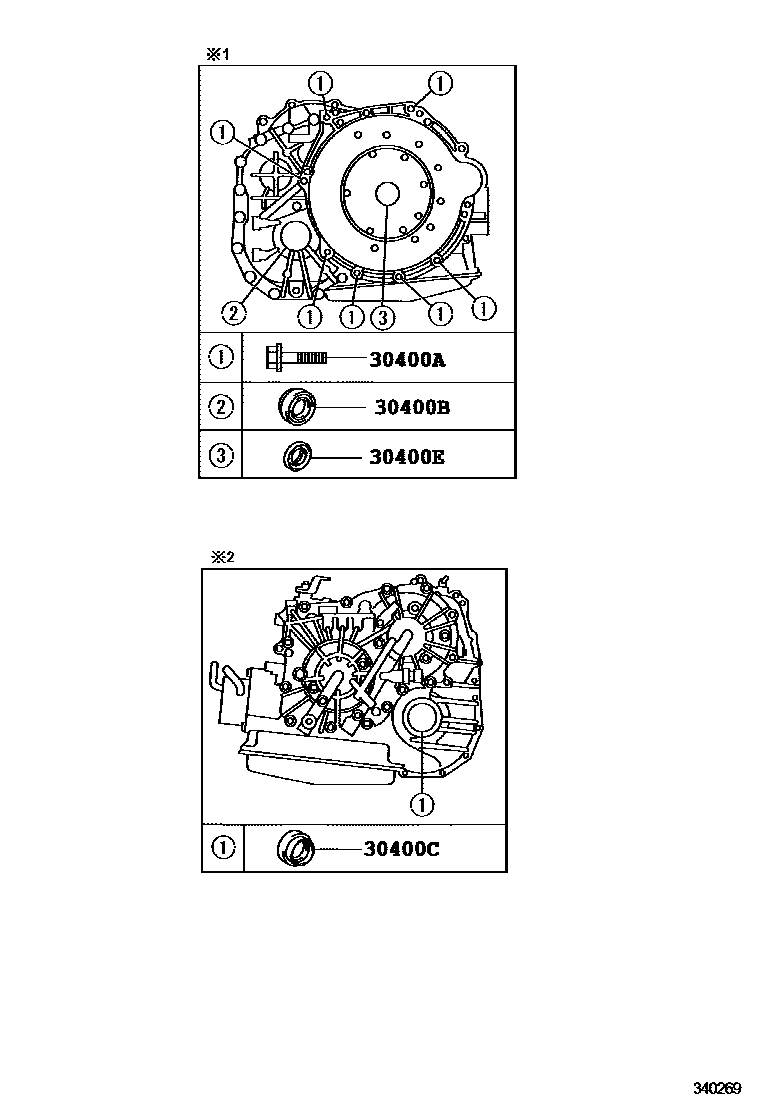

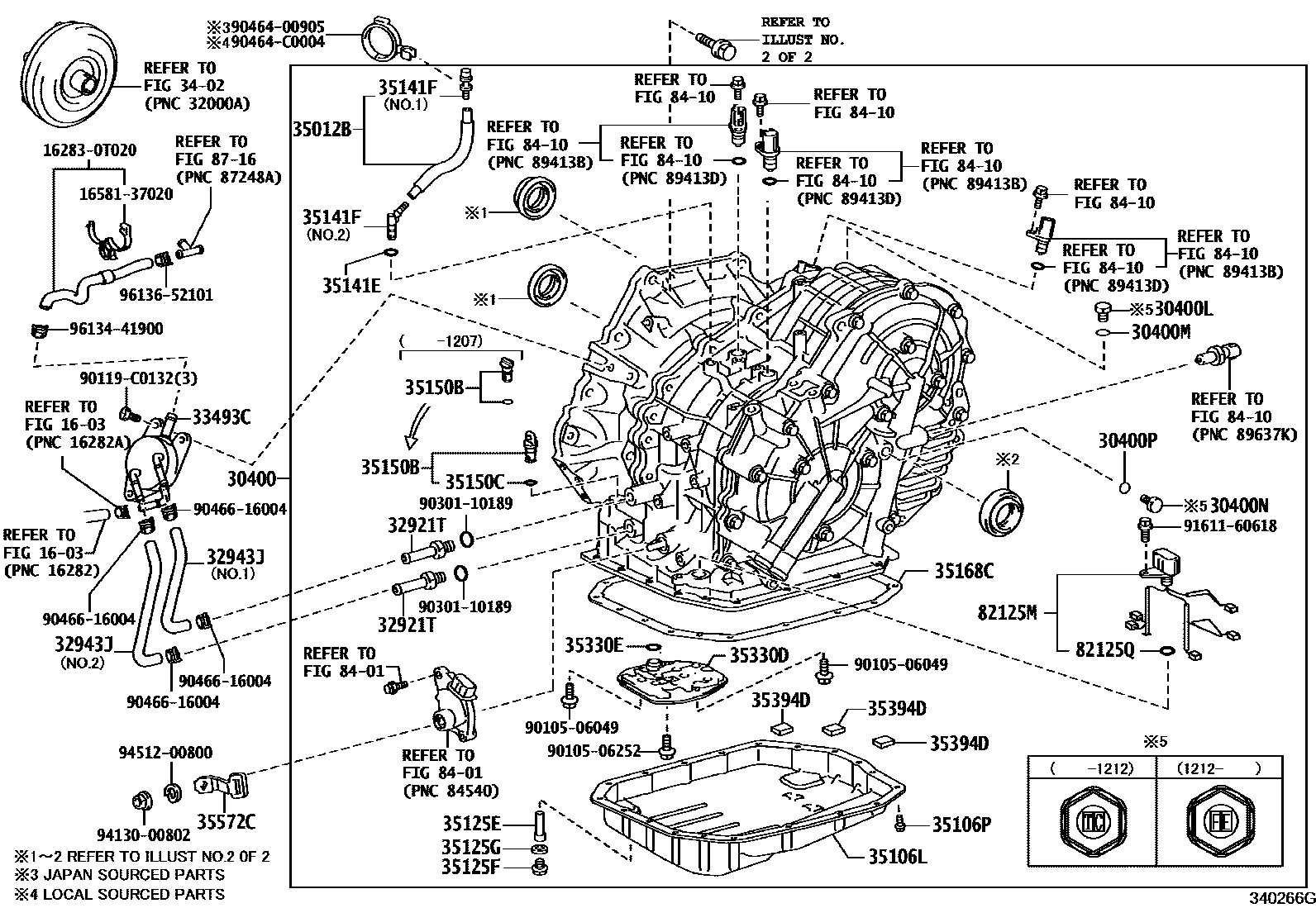

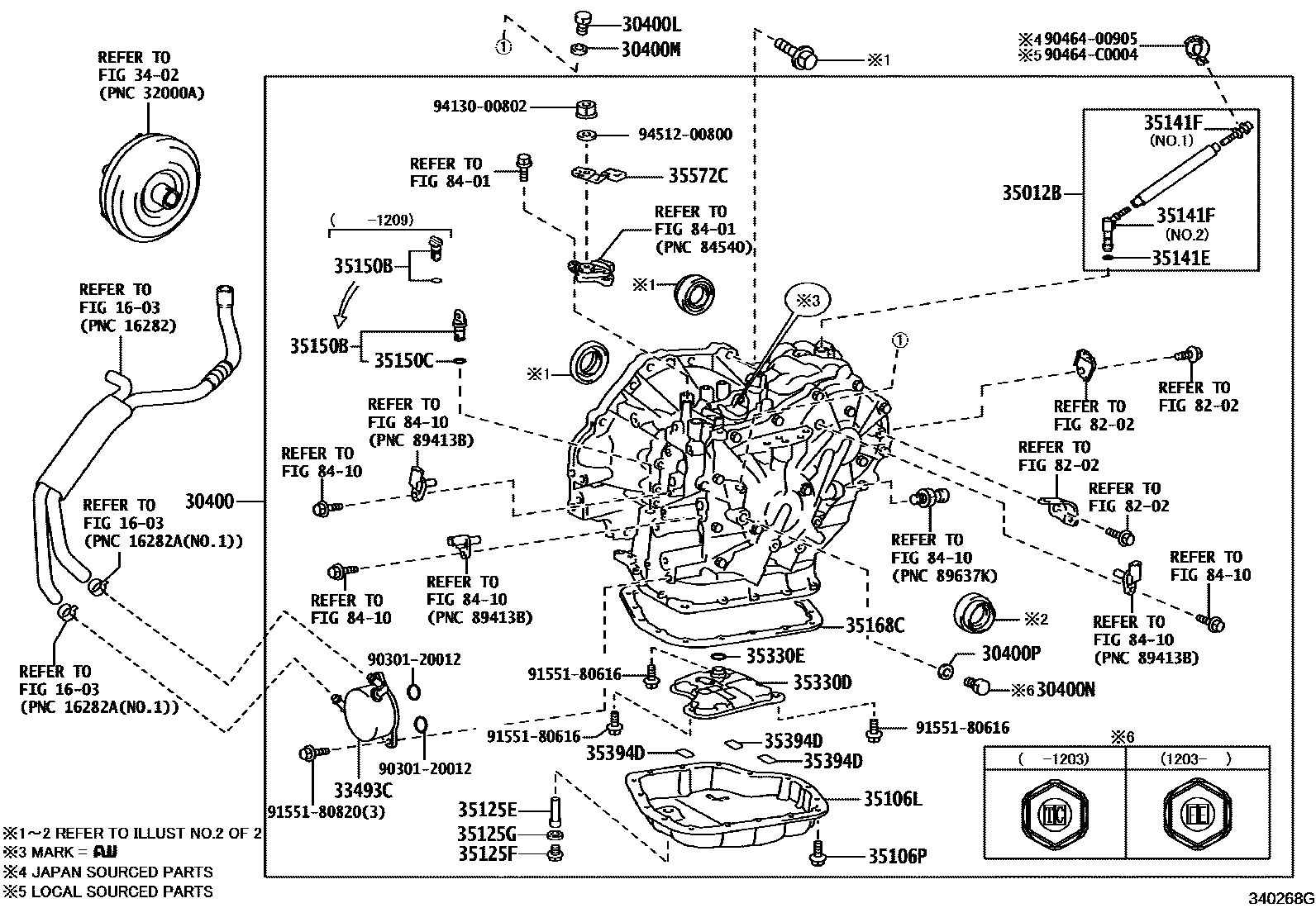

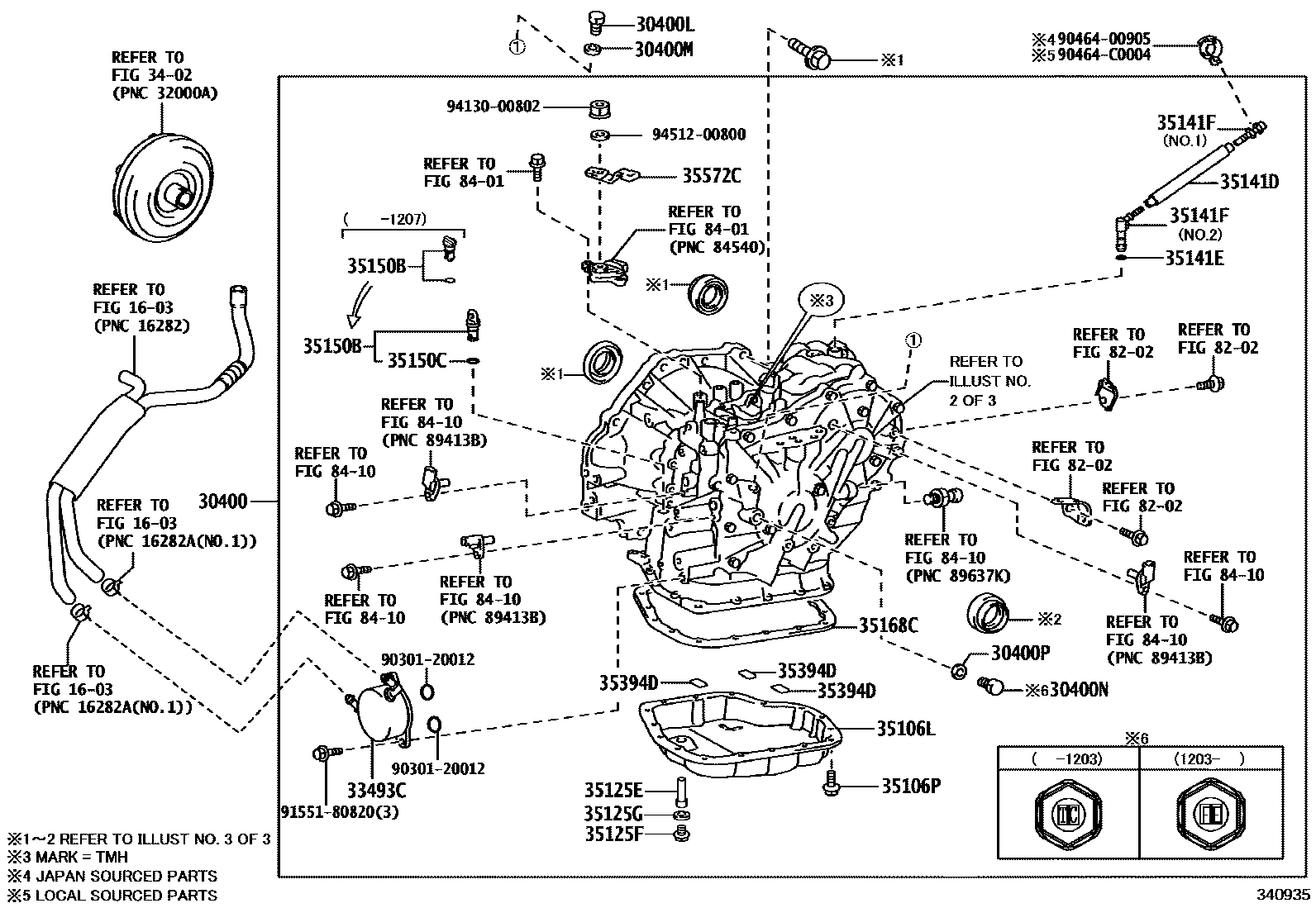

Toyota COROLLA 传动桥总成(CVT) — Figure 3401
Toyota COROLLA EPC diagram 3401, 传动桥总成(CVT), with 7 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30400 | Continuously variable transmission axle assembly | 30400-12250 · 30400-20030 · 30400-20070 |
| 30400A | Bolts (for securing transaxle and engine) | 90119-C0139 · 91512-61045 · 91612-61045 |
| 30400B | No. 1 T-type oil seal (for CVT) | 90311-35055 · 90311-40026 |
| 30400C | No. 2 T-type oil seal (for CVT) | 90311-35054 · 90311-35068 · 90311-50026 · 90311-50050 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-45025 · 90311-45027 |
| 30400H | Thrust needle roller bearing | 90374-20005 |
| 30400J | Transmission axle hole plug | 90341-08001 |
| 30400K | Transaxle hole plug gasket | 90301-06196 |
| 30400L | Oil filling plug (CVT) | 90341-12025 · 90341-18061 · 90341-18077 |
| 30400M | Oil filling plug gasket (CVT) | 90430-12221 · 90430-18008 |
| 30400N | Oil filling plug (CVT) | 90341-18061 · 90341-18077 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 32921T | Pipe connector | 90404-13004 |
| 32943J | Transmission oil cooler hose | 32942-02080 · 90445-C0004 |
| 33493C | Transmission oil cooler | 33493-20040 · 33493-20100 · 33493-52030 |
| 35012B | Transmission breather hose sub-assembly | 35012-12090 · 35012-12100 · 3510A-44010 · 3510A-44011 · 3510A-44012 |
| 35068E | First and reverse brake return spring sub-assembly | 35068-12020 |
| 35075D | Front planetary ring gear sub-assembly | 35075-12031 |
| 35105C | Bolts (for transaxle housing and transaxle housing) | 90105-08071 · 91551-10830 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-20031 · 35106-20040 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35125E | Overflow pipe (CVT) | 35125-20490 · 35125-44070 |
| 35125F | Overflow plug (CVT) | 90341-12034 |
| 35125G | Overflow plug gasket (CVT) | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-12090 · 35121-12100 |
| 35141E | O-ring (for breather plug) | 90301-06005 |
| 35141F | No. 1 vent plug (CVT) | 90930-03149 · 90930-03164 · 90930-03191 · 90930-03216 |
| 35145D | Transmission axle housing gasket | 35145-21010 · 35145-33010 |
| 35150B | gearbox plug assembly | 35150-44010 · 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35165B | No. 1 gearbox block | 35165-12030 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-12090 · 35168-12091 · 35168-20010 |
| 35174B | Oil storage tank locking plate | 35174-12010 |
| 35195C | No. 1 transmission axle fuel supply pipe clamp | 35195-12040 · 35195-12050 |
| 35330D | Oil filter assembly | 35330-0W080 · 35330-0W090 |
| 35330E | O-ring (for oil filter) | 90301-22014 · 90301-24013 |
| 35394D | Oil filter magnet (CVT) | 35394-30011 |
| 35410J | Transmission valve body assembly | 35410-12780 |
| 35482C | temperature sensor clip | 35482-12010 |
| 35506L | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35572C | transmission control lever | 35572-12160 · 35572-12170 · 35572-42030 |
| 35603E | Forward gear clutch return spring sub-assembly | 35603-12040 |
| 35610A | Forward gear multi-plate clutch assembly | 35610-12242 |
| 35610F | Snap ring (for forward multi-plate clutch) | 90520-44041 · 90520-99087 |
| 35610G | O-ring (for forward multi-plate clutch) | 90301-50001 · 90301-95003 · 90301-99155 |
| 35612D | forward clutch piston | 35612-12072 |
| 35623L | Reverse brake piston | 35623-12080 |
| 35623M | O-ring (for reverse brake piston) | 90301-98002 · 90301-99087 |
| 35623N | Snap ring (for reverse brake piston) | 90520-99090 |
| 35633H | Clutch disc (for forward multi-plate clutch) | 35633-12091 · 35633-12092 |
| 35634M | No. 1 clutch plate (for forward multi-plate clutch) | 35634-12050 |
| 35635G | forward clutch flange | 35635-12020 · 35635-12030 · 35635-12040 · 35635-12050 · 35635-12060 · 35635-12150 · 35635-12160 · 35635-12170 |
| 35668C | No. 1 clutch balancer | 35668-12011 |
| 35671D | brake cushion | 35671-12011 |
| 35672D | clutch cushion | 35672-12040 |
| 35676L | brake flange | 35676-12081 |
| 35676M | Snap ring (for brake flange) | 90520-99086 |
| 35681B | No. 1 brake disc | 35681-52051 |
| 35691B | No. 1 brake pad | 35691-12010 |
| 35701L | Thrust bearing race (for input shaft) | 35789-12090 |
| 35701M | Thrust needle roller bearing (for input shaft) | 90374-18008 |
| 35720M | Planetary gear assembly | 35720-12061 |
| 35720N | Thrust needle roller bearings (for planetary gears) | 90374-34014 |
| 35726A | Planetary ring gear thrust washer | 35726-12010 |
| 35882E | Differential gear lubricant oil supply pipe | 35882-12030 · 35882-12040 |
| 82125M | Transmission wiring harness | 82125-12400 · 82125-44020 |
| 82125Q | O-ring (for transmission wiring harness) | 90301-21009 |
