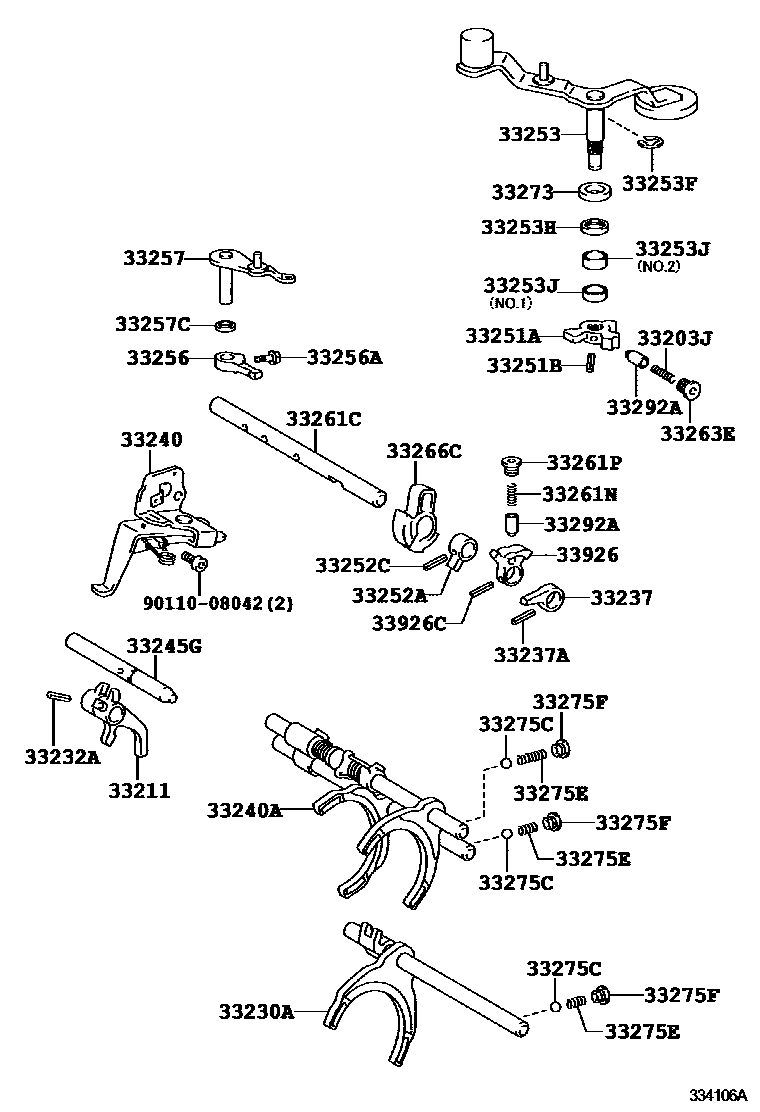

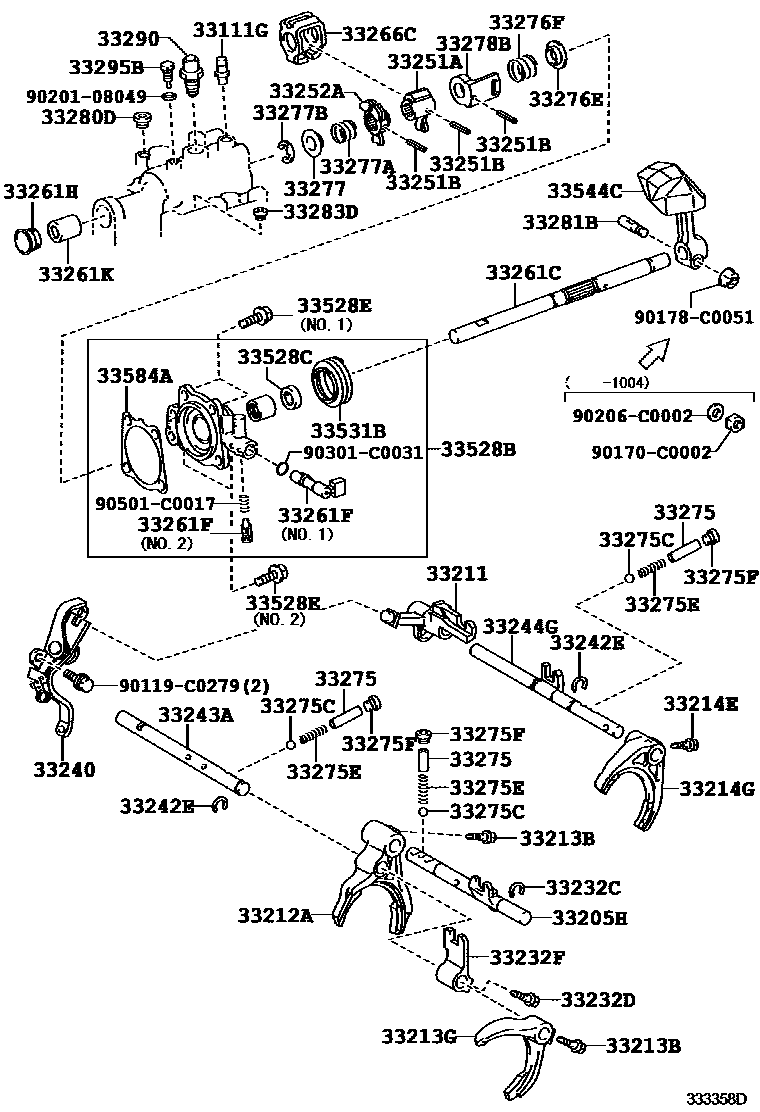

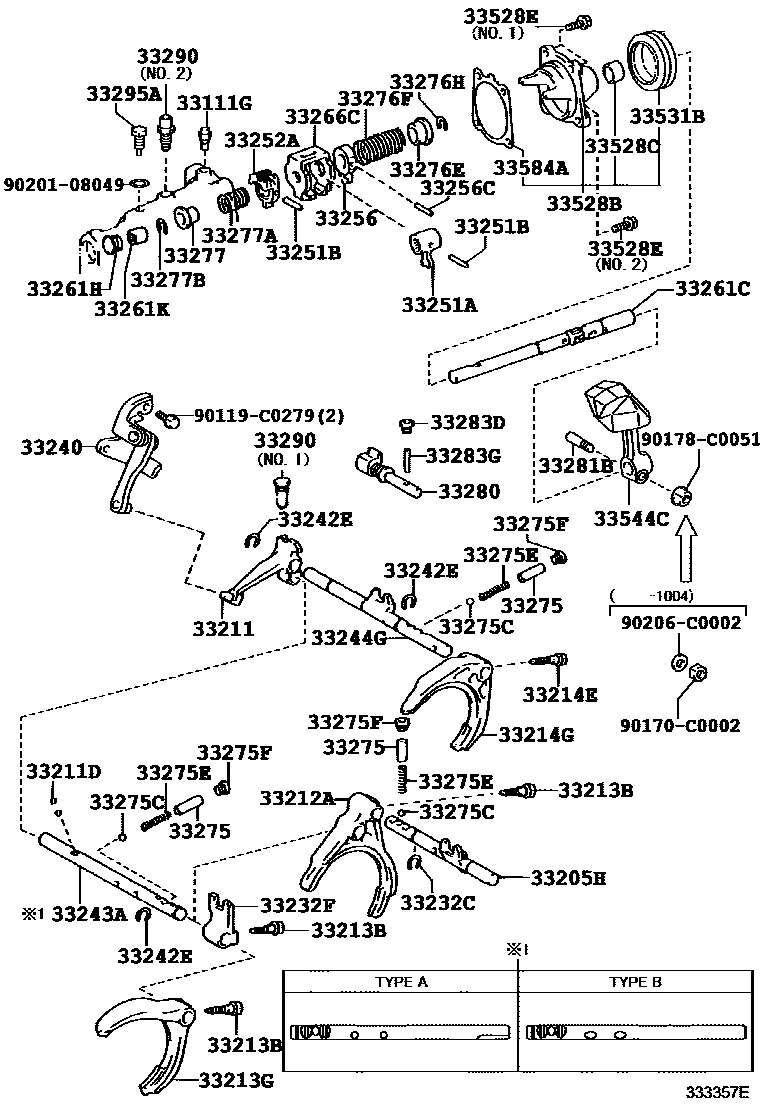

Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 3 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03133 · 90930-C3008 · 90930-C3017 |
| 33203J | Spring (steel ball for shift lever shaft) | 90501-12221 |
| 33205H | No. 1 shift fork shaft sub-assembly | 33205-02010 · 33205-0D010 · 33205-0D020 · 33205-12070 |
| 33211 | Reverse Shift Fork | 33211-02010 · 33211-0D040 · 33211-0D050 · 33211-12021 · 33211-12050 · 33211-20050 |
| 33211D | Steel ball (for reverse shift fork) | 90360-06004 · 90360-C0005 |
| 33212A | No. 1 shift fork | 33212-10013 |
| 33213B | Bolt (for securing shift fork) | 90105-06115 · 90109-C0009 |
| 33213G | No. 2 shift fork | 33213-20050 |
| 33214E | Bolt (for shift fork lock) | 90105-06115 · 90109-C0009 |
| 33214G | No. 3 shift fork | 33214-20050 · 33230-20010 |
| 33230A | No. 1 shift fork shaft assembly | 33230-20060 |
| 33232A | Slotted spring pin (for securing shift guide block) | 90254-05001 |
| 33232C | Snap ring (for first and second gear shift guide blocks) | 90520-12003 |
| 33232D | Bolt (for fixing the transmission guide block) | 90105-06115 · 90109-C0009 |
| 33232F | No. 1 transmission guide block | 33232-02010 · 33232-0D020 · 33232-12040 · 33232-20030 |
| 33237 | Separate guide block | 33237-20010 |
| 33237A | Slotted spring pin (for detaching guide blocks) | 90254-05001 |
| 33240 | Reverse shift arm bracket assembly | 33240-0D030 · 33240-0D040 · 33240-16020 · 33240-20030 · 33240-20050 |
| 33240A | No. 2 shift fork shaft assembly | 33240-20080 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-0D040 · 33243-0D060 · 33243-20070 |
| 33244G | No. 3 shift fork shaft | 33244-02010 · 33244-0D030 · 33244-0D050 · 33244-20051 · 33244-52030 |
| 33245G | No. 4 shift fork shaft | 33245-20030 |
| 33251A | Internal shift lever No. 1 | 33251-02010 · 33251-02020 · 33251-12090 · 33251-12100 · 33251-20130 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05011 · 90254-05016 · 90254-C0001 |
| 33252A | Internal shift lever No. 2 | 33252-02010 · 33252-0D010 · 33252-0D011 · 33252-12030 · 33252-12040 · 33252-20070 |
| 33252C | Slotted spring pin (for inner shift lever No. 2) | 90254-05001 |
| 33253 | No. 1 outer shift lever | 33253-20081 |
| 33253F | E-ring (for outer shift lever) | 90523-15003 |
| 33253H | Oil seal (for outer shift lever) | 90310-18003 |
| 33253J | Bushing (for outer shift lever) | 90384-14008 · 90384-18018 |
| 33256 | Internal gear selector | 33256-0D020 · 33256-12022 · 33256-20040 |
| 33256A | Fixing bolt (for interior gear selector) | 90105-08079 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-05016 · 90254-C0001 |
| 33257 | External gear selector | 33257-20050 · 33257-20051 |
| 33257C | Oil seal (for external gear lever) | 90310-15005 |
| 33261C | shift lever shaft | 33261-02010 · 33261-02011 · 33261-02030 · 33261-0D050 · 33261-0D051 · 33261-12180 · 33261-20150 · 33261-52110 |
| 33261F | Direct sales (for shift lever shaft) | 33267-02010 · 33267-02020 · 33267-12030 · 33267-20030 |
| 33261H | Oil seal (for shift lever shaft) | 90310-15004 · 90310-C0002 |
| 33261K | Needle roller bearing (for gear selector shaft) | 90369-15001 · 90369-C0004 · 90369-C0008 |
| 33261N | Compression spring (for shift lever shaft) | 90501-11107 |
| 33261P | Headed straight thread plug (for shift lever shaft) | 90341-16013 |
| 33263E | Screw plug (for gear selector shaft) | 90341-16013 |
| 33266C | shift interlock plate | 33266-02010 · 33266-02020 · 33266-0D020 · 33266-12050 · 33266-20020 · 33266-20070 |
| 33273 | No. 1 shift lever shaft cover gasket | 90560-18017 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-10003 · 90360-C0007 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-12187 · 90501-12207 · 90501-13087 · 90501-C0022 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-02010 · 33276-0D010 · 33276-12022 · 33276-12040 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-15048 · 90501-17040 · 90501-C0013 · 90501-C0015 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 · 90520-C0003 |
| 33277 | No. 2 gear selector spring seat | 33277-02010 · 33277-0D020 · 33277-12011 · 33277-12020 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-16190 · 90501-16192 · 90501-C0012 · 90501-C0016 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 · 90523-C0001 |
| 33278B | Shift lever shaft bracket | 33278-12030 |
| 33280 | Reverse gear positioning pin assembly | 33280-0D010 · 33280-0D020 |
| 33280D | Headed straight thread plug (for reverse gear locating pin) | 90341-14008 |
| 33281B | Shift lever lock pin (for outer shift lever) | 33281-02010 · 33281-16020 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 · 90341-C0004 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33290 | No. 1 locking steel ball assembly | 33290-0D010 · 33290-0D020 · 33290-12011 · 33290-52040 |
| 33292A | Locking steel ball pin | 33292-20010 |
| 33295A | Reverse gear positioning shaft | 33295-0D010 · 33295-52010 |
| 33295B | Shift positioning plate pin | 33295-0D010 · 33295-52010 |
| 33528B | control shaft cover | 33506-02010 · 33506-02020 · 33506-0D020 · 33506-12170 · 33506-17081 |
| 33528C | Oil seal (for control shaft cover) | 90310-C0001 · 90311-18013 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 · 90119-C0281 · 90119-C0282 · 91612-61025 |
| 33531B | Dust boot (for shift lever shaft) | 33531-0D020 · 33531-12030 |
| 33544C | Gear shifter damper | 33544-02020 · 33544-02021 · 33544-12050 |
| 33584A | Shift lever stopper gasket | 33584-0D010 · 33584-12060 |
| 33926 | Front inner shift lever | 33926-20020 |
| 33926C | Slotted spring pin (for inner shift lever) | 90254-05001 |
