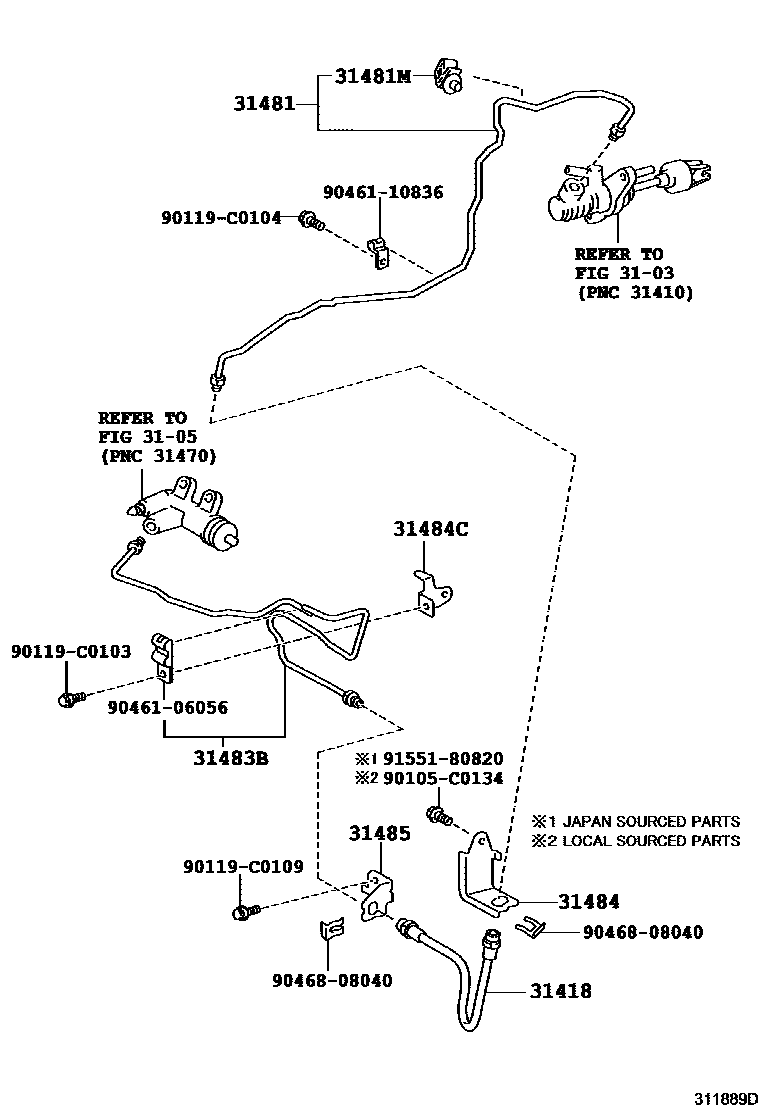

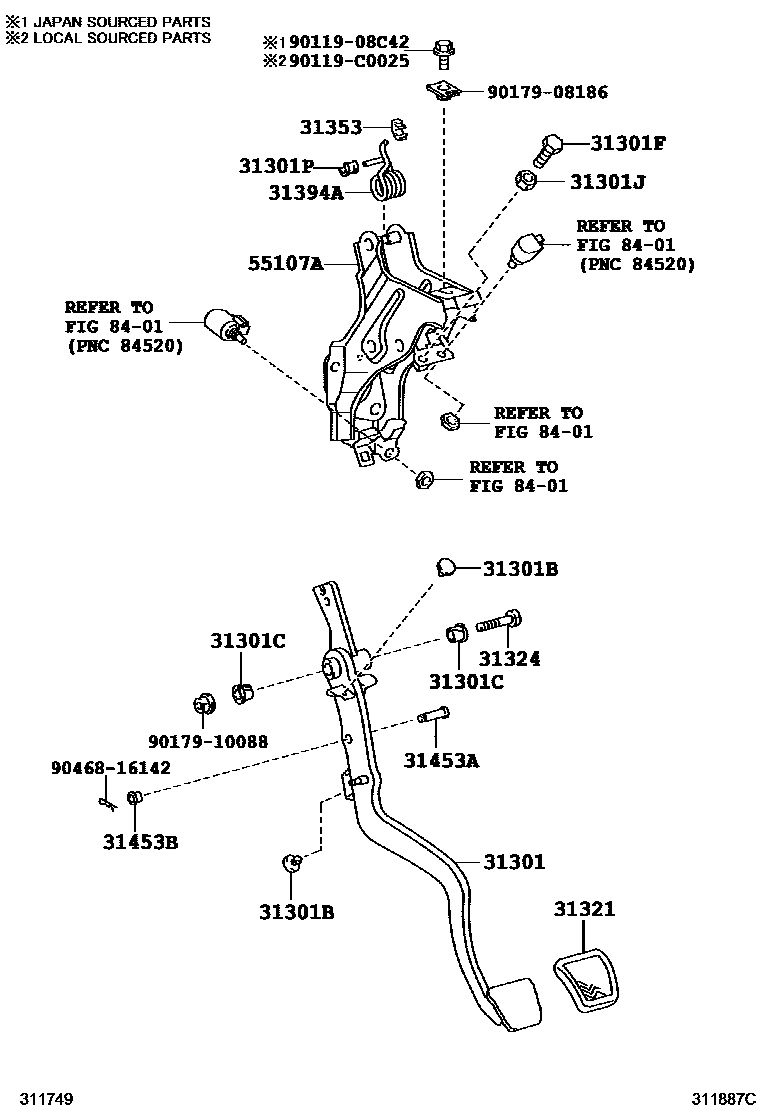

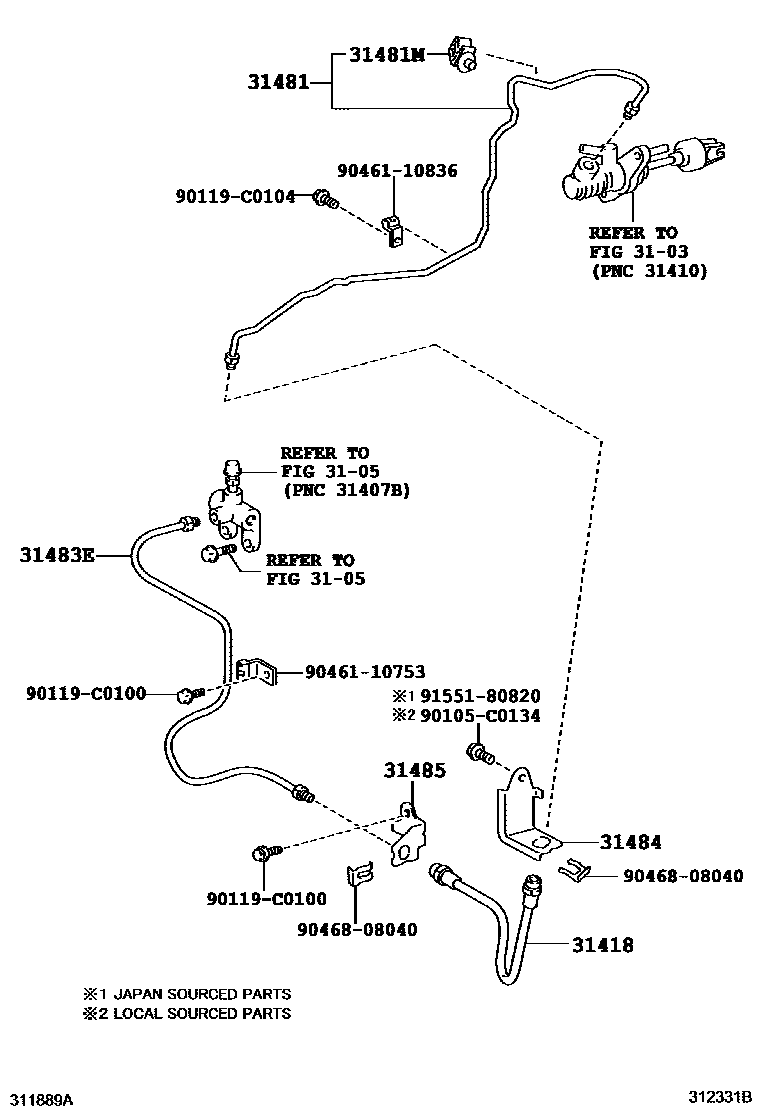

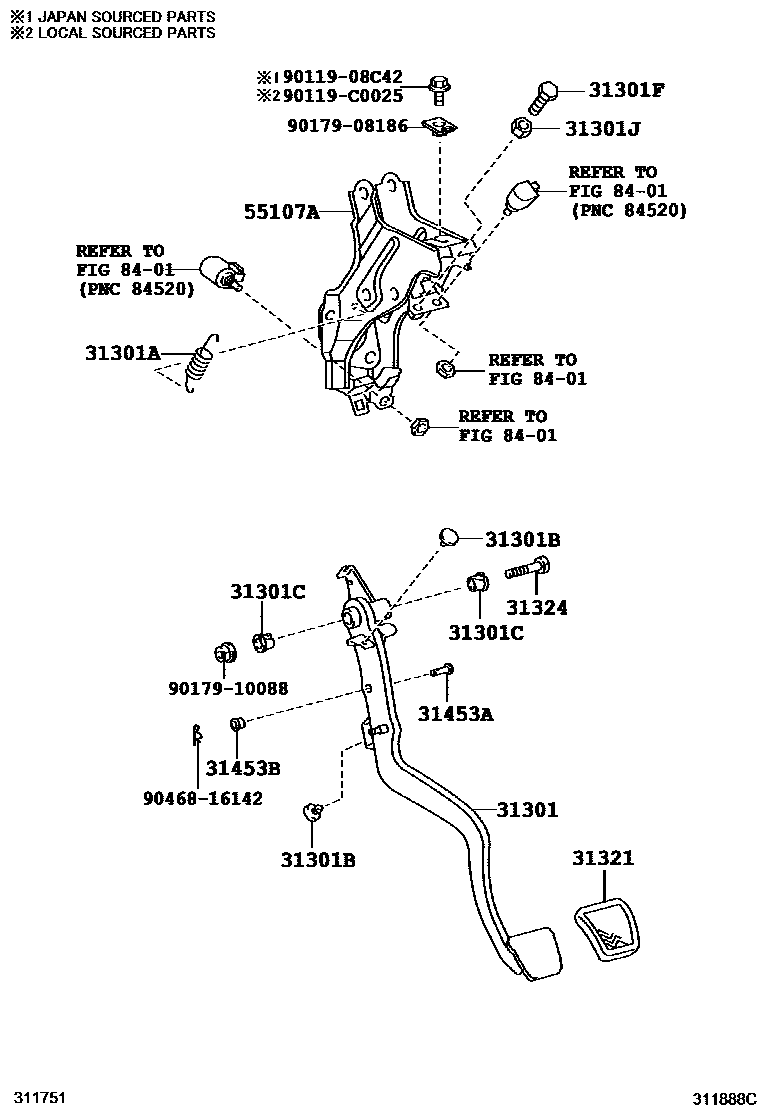

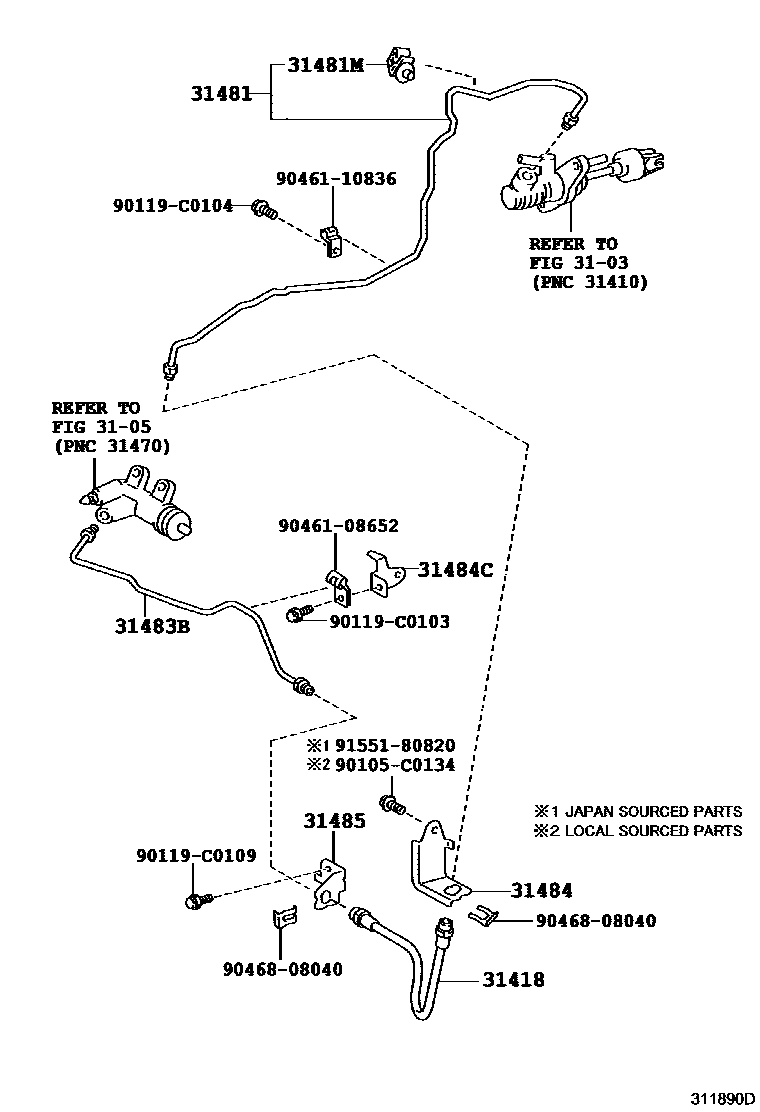

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02230 · 31301-02231 · 31301-02240 · 31301-02241 |
| 31301A | Spring (for clutch pedal) | 90507-14047 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 · 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 46441-12020 · 94130-61000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-42010 |
| 31324 | clutch pedal shaft | 90109-10167 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31394A | Pedal spring with hook | 31394-12080 |
| 31418 | clutch hose | 90947-02E28 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-02270 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01D46 |
| 31483B | Accumulator to flexible hose pipe | 31483-02170 · 31483-02210 |
| 31483E | Clutch release bleeder pipe | 31483-02301 |
| 31484 | Flexible hose bracket (for clutch) | 31484-12500 |
| 31484C | No. 1 clutch tube bracket | 31484-52150 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-02140 · 31484-12510 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02180 · 55107-02181 · 55107-02190 · 55107-02191 |
