Toyota COROLLA 离合器和分离叉 — Figure 3101

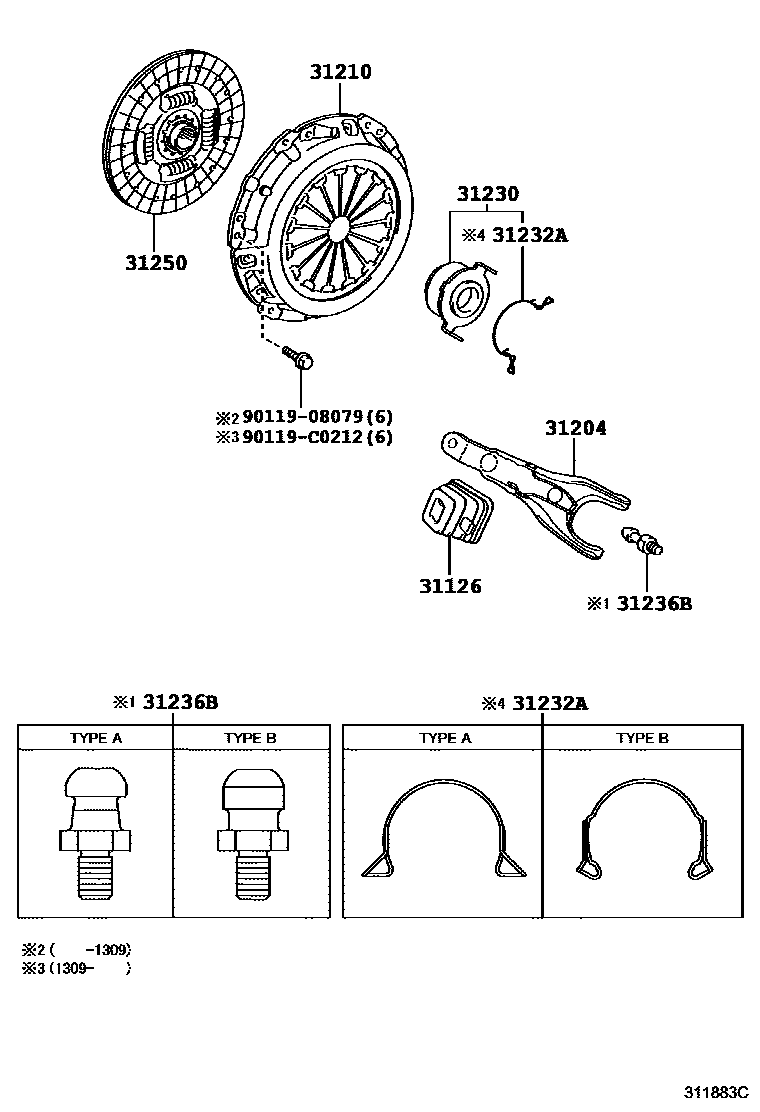

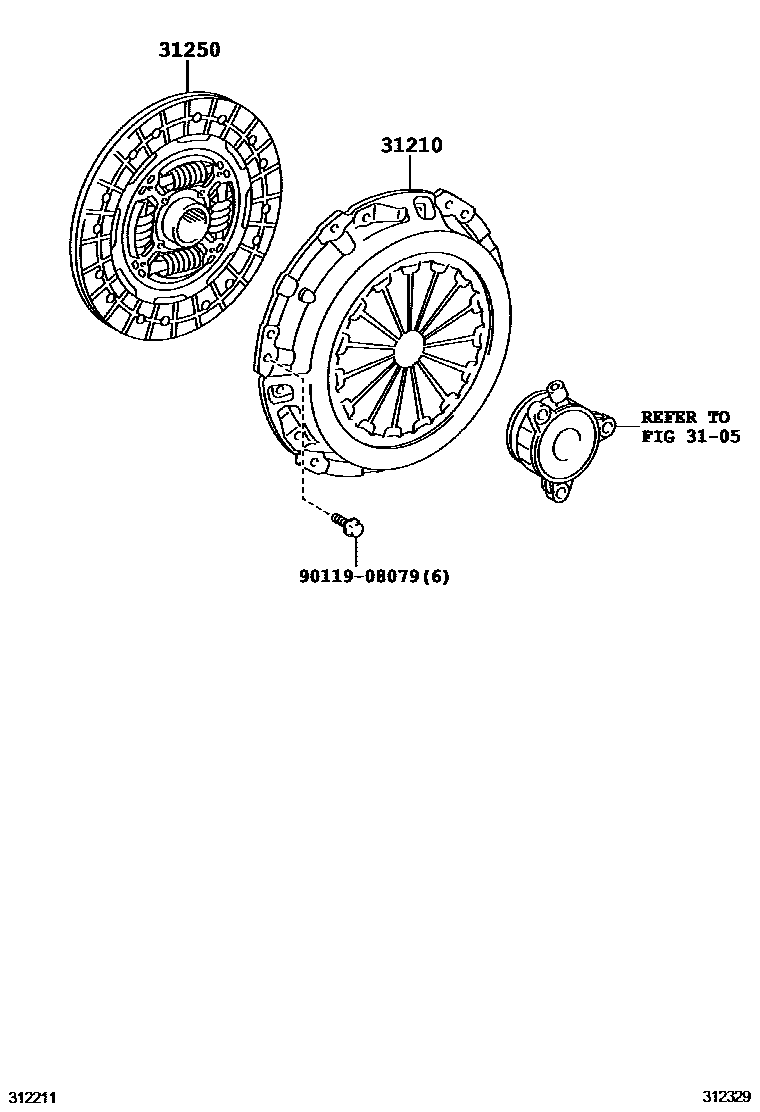

Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-0D040 · 31126-12051 |
| 31204 | Clutch release fork assembly | 31204-0D030 · 31204-52010 |
| 31210 | Clutch cover assembly | 31210-02260 · 31210-02270 · 31210-42030 |
| 31230 | Clutch release bearing assembly | 31230-0D010 · 31230-12180 · 31230-12181 · 31230-12191 |
| 31232A | Release bearing hub clip | 31232-12070 · 31232-12080 |
| 31236B | Split fork bracket | 31236-0D010 · 31236-12020 |
| 31250 | Clutch disc assembly | 31250-02150 · 31250-02201 · 31250-42020 · 31250-42021 |
