Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 13 PNC and OE references.

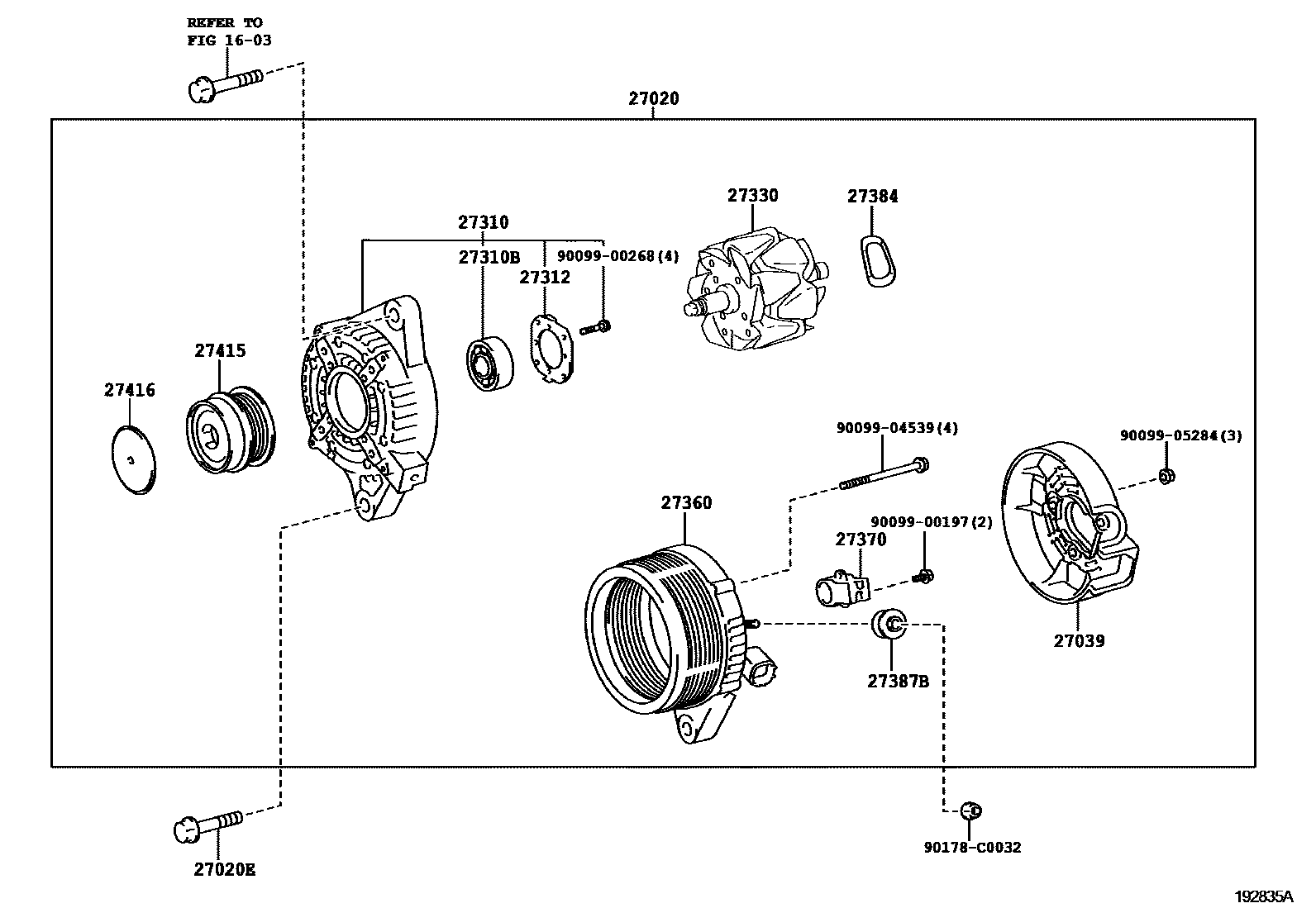

Toyota COROLLA Alternator EPC diagram — 192835A
Alternator — 192835A (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-0T030 · 27060-0T031
27020EBolts (for generator)90105-10307
27039Alternator Rear End Cover27039-0P070 · 27039-0T030
27310Alternator Drive End Frame Assembly27310-0T030
27310BBearing (for Alternator Drive End Frame)90068-10033 · 90068-10042
27312Retainer Plate27312-0M070 · 27312-72100
27330Alternator Rotor Assembly27330-0T030
27360Alternator Stator Coil Assembly27360-0T030
27370Alternator Brush Holder Assembly27370-0T030
27384Washer27384-50030
27387BGenerator terminal insulation pad27387-0H110 · 27387-0T030
27415PULLEY, ALTERNATOR W/CLUTCH27415-0T010 · 27415-0T011 · 27415-0T060
27416Generator pulley cover27416-0W020 · 27416-0W050
