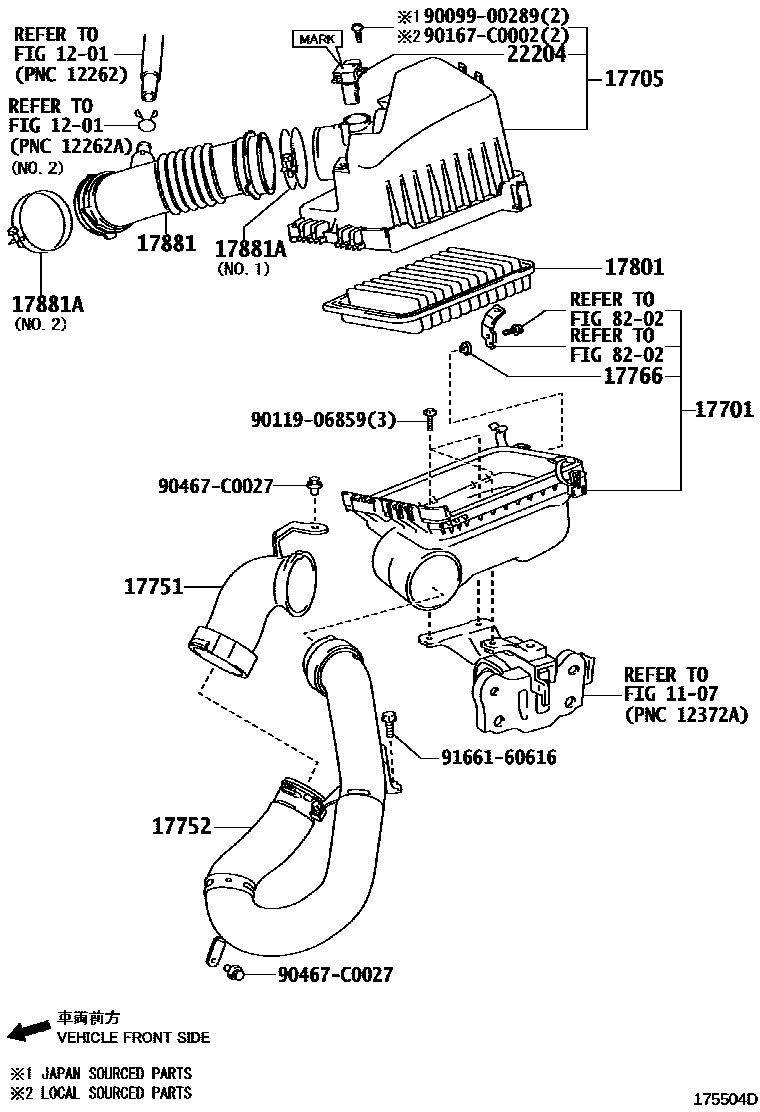

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17701 | Air filter housing sub-assembly | 17701-0T010 · 17701-0T100 |
| 17705 | Air filter cover sub-assembly | 17705-0T010 · 17705-0T130 · 17705-0T131 |
| 17751 | No. 1 air filter air inlet | 17751-0T010 |
| 17752 | No. 2 air filter air inlet | 17752-0T010 |
| 17766 | No. 2 air filter stay | 17706-0T010 · 17706-22010 |
| 17801 | Air filter element sub-assembly | 17801-0T020 |
| 17881 | No. 1 air cleaner hose | 17880-0T010 · 17880-0T120 · 17880-0T130 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 · 96111-10780 · 96111-10830 |
| 22204 | Intake air flow meter assembly | 22204-0T010 · 22204-0T040 · 22204-28010 |
