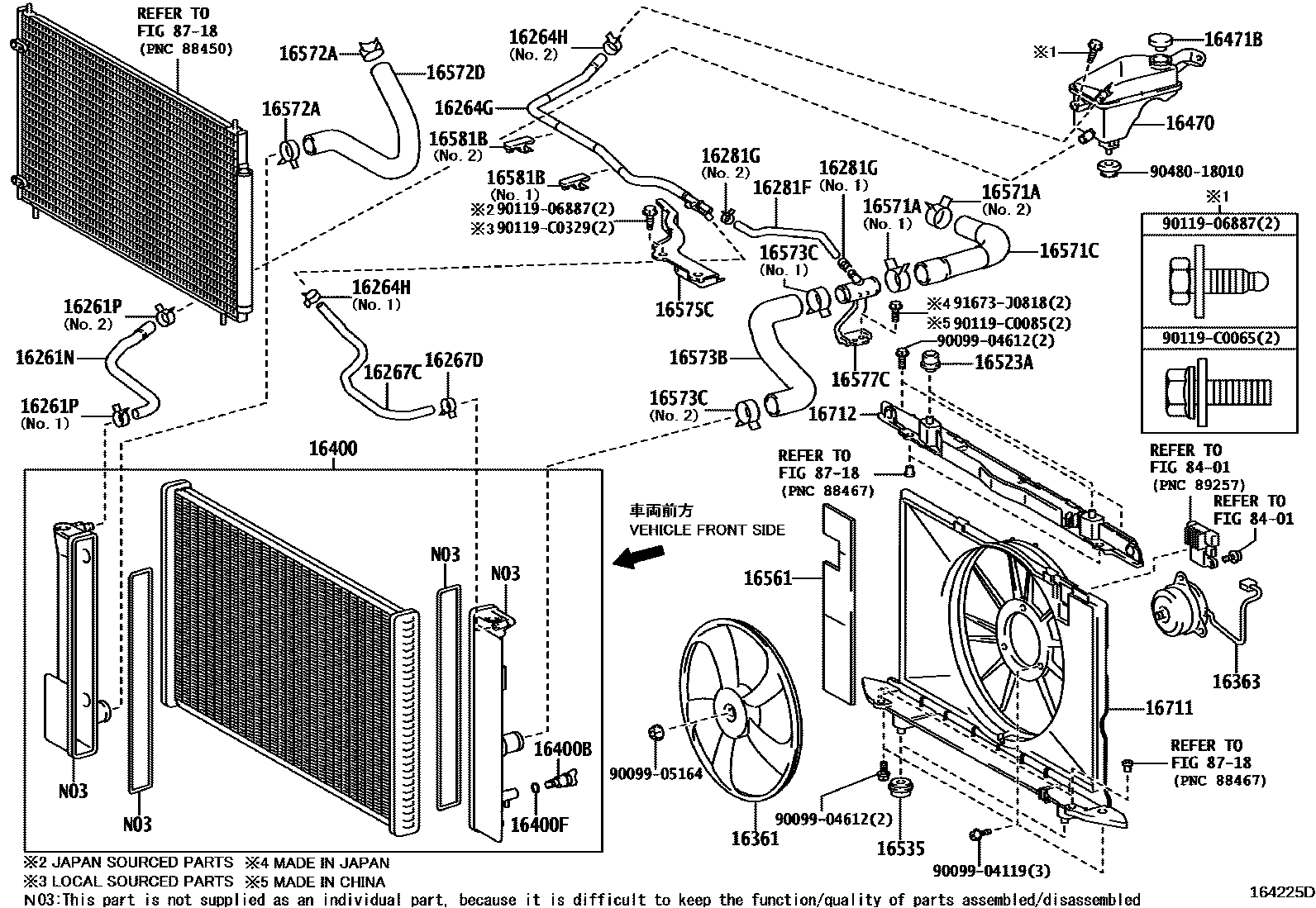

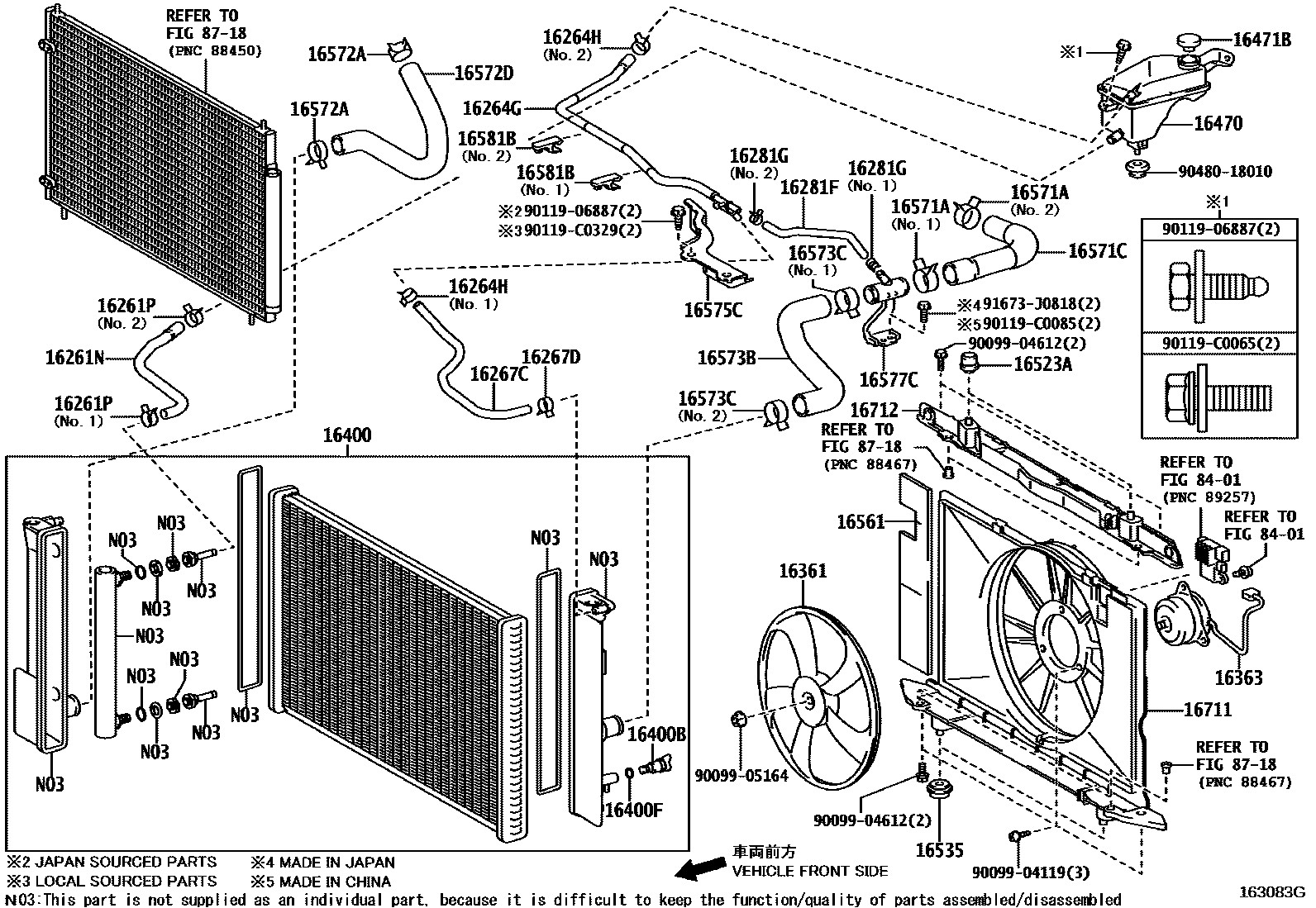

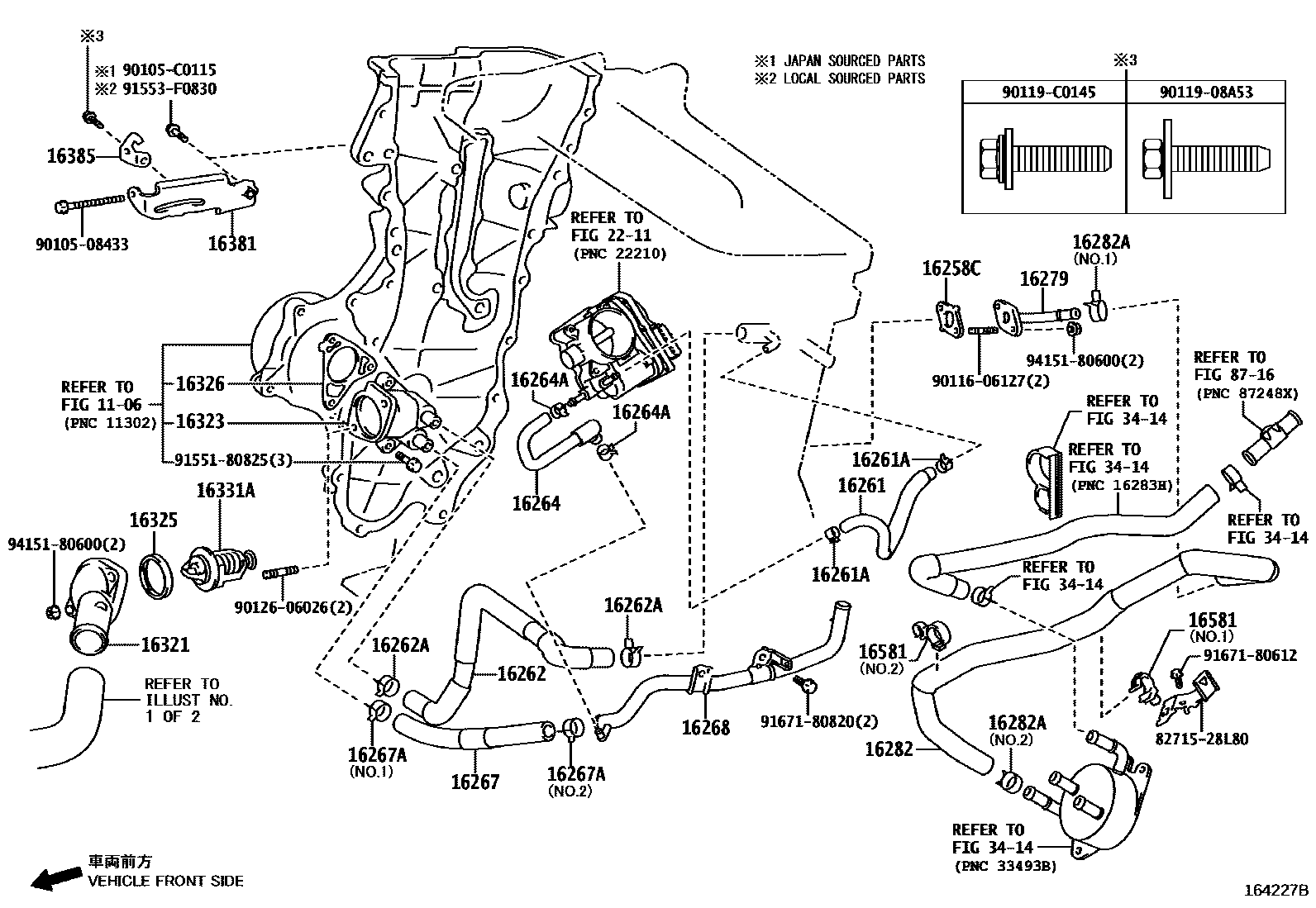

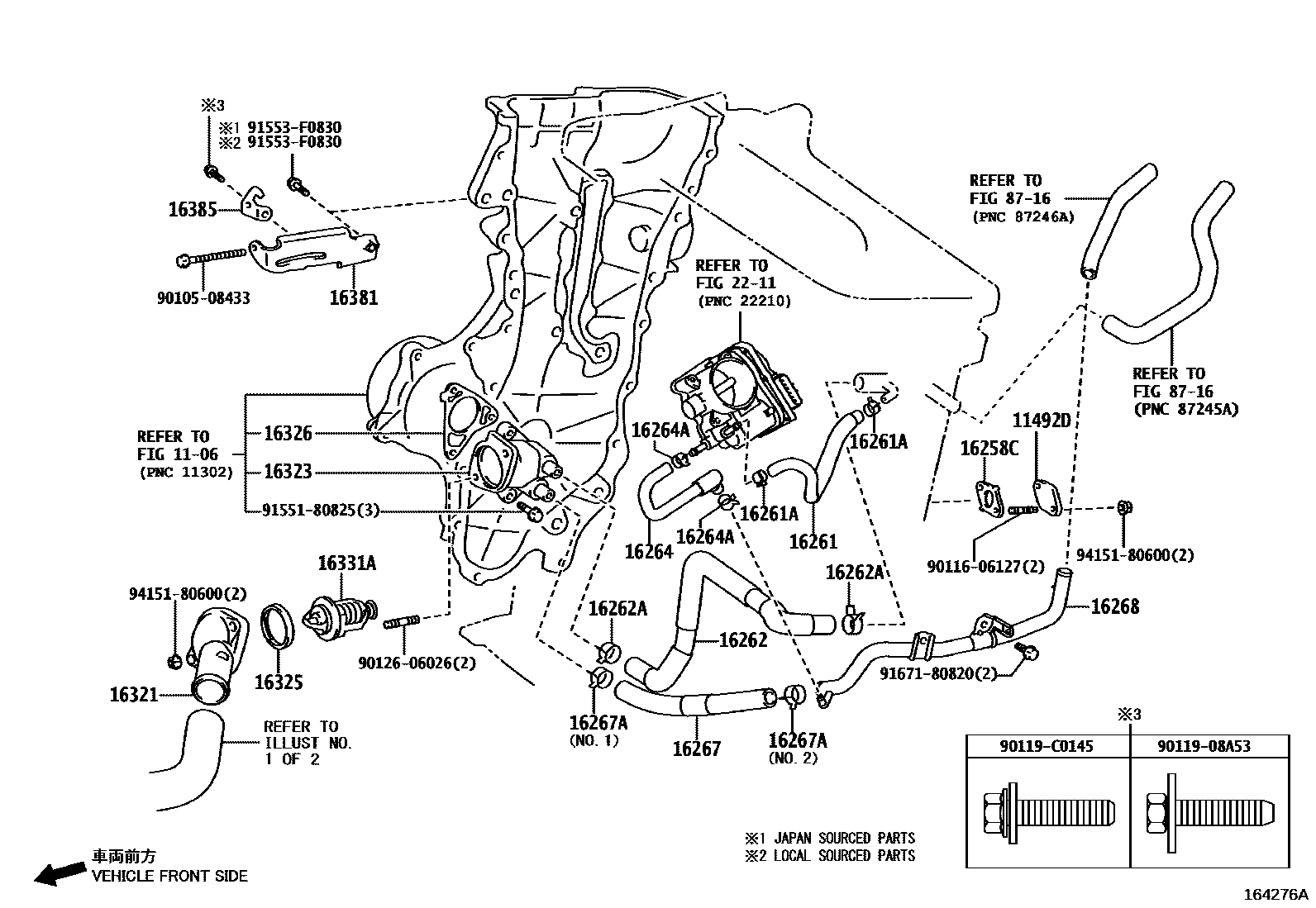

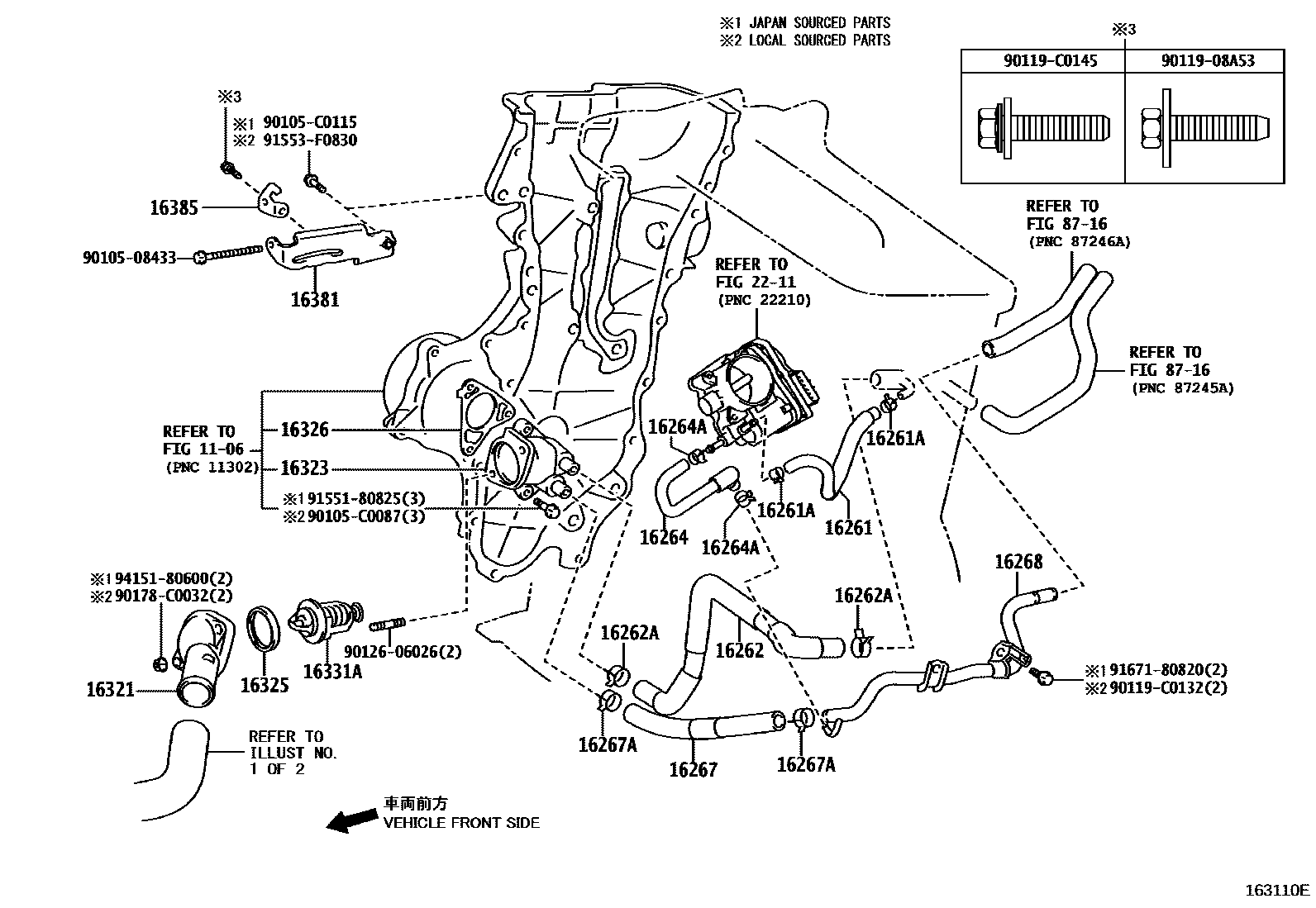

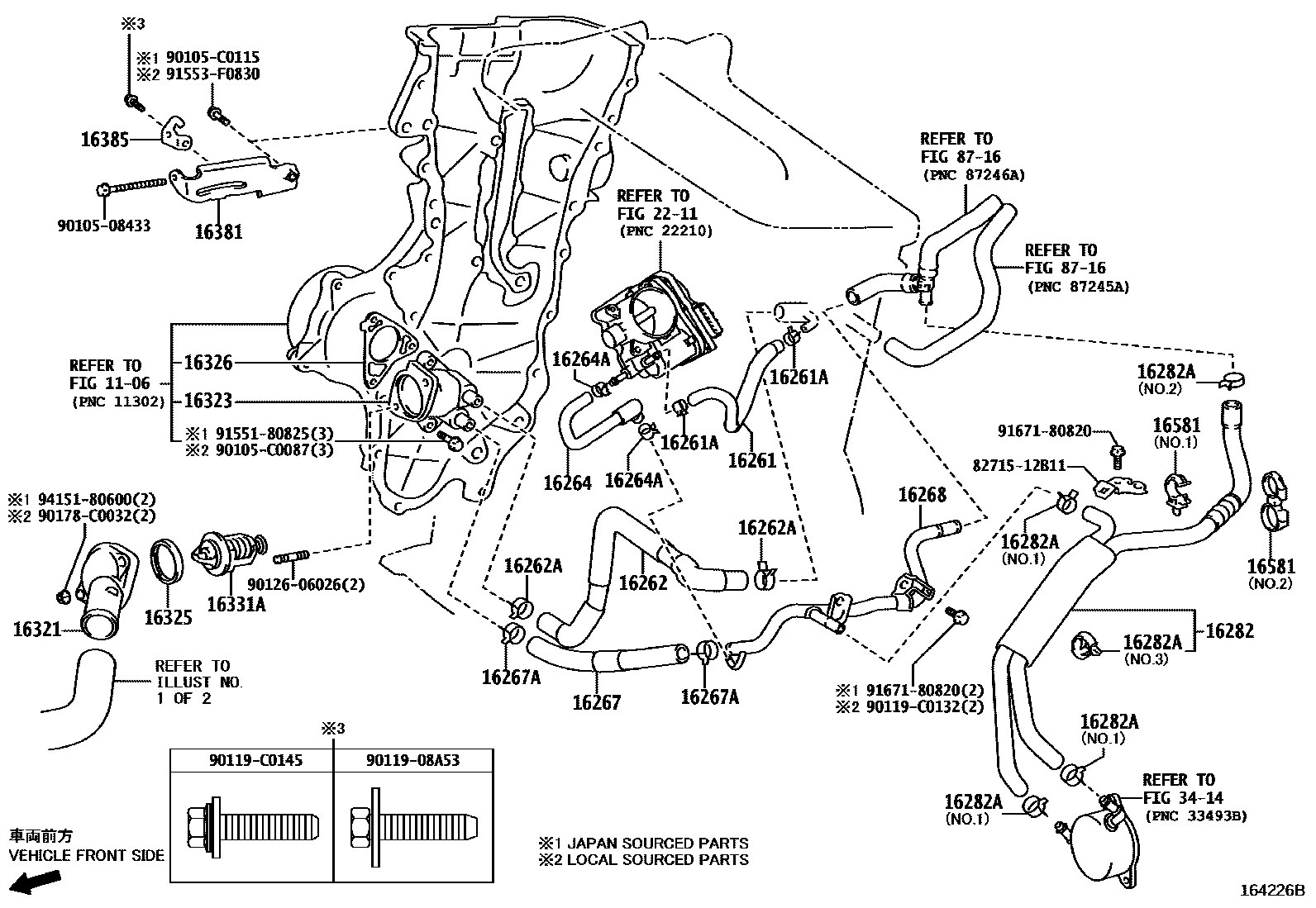

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11492D | No. 1 sealing plate | 11492-37010 |
| 16258C | Gasket (for water bypass pipe) | 16258-28040 |
| 16261 | HOSE, WATER BY-PASS | 16261-0T040 · 16261-0T041 · 16261-0T101 · 16261-37021 · 16261-37051 · 16261-37052 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 96137-41501 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-0T010 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0006 · 90466-C0007 · 96136-52201 · 96136-52501 |
| 16262 | water inlet hose | 16262-0T010 · 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 90466-C0014 · 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0T030 · 16264-0T031 · 16264-0T061 · 16264-37021 · 16264-37041 · 16264-37042 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 96137-41501 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16264-0T010 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90466-C0003 · 90466-C0004 · 90467-15022 · 96136-52101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T020 · 16267-37010 · 16267-37020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0014 · 96136-42501 · 96136-52701 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-0T010 · 16267-0T030 · 16267-0T031 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90467-15022 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T060 · 16268-0T070 · 16268-37021 · 16268-37030 · 16268-37031 · 16268-37041 |
| 16279 | No. 3 water bypass pipe | 16279-37010 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16281-0T010 · 16281-0T040 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-C0005 · 90467-17013 · 96136-51901 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16260-37080 · 16282-37050 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 16581-37090 · 90466-C0006 · 96134-41900 · 96136-42101 · 96136-42201 · 96136-42501 · 96136-52201 |
| 16321 | water inlet | 16321-0T020 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-0T040 · 16323-37020 · 16323-37030 · 16323-37031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0T010 · 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 |
| 16331A | thermostat | 90916-03129 · 90916-03144 · 90916-03145 · 90916-C3001 · 90916-C3003 |
| 16361 | Fan | 16361-0T010 · 16361-0T100 |
| 16363 | cooling fan motor | 16363-0T030 · 16363-0T070 |
| 16381 | Fan belt adjustment lever | 16381-0T010 · 16381-37010 · 16381-37020 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-0T010 · 16400-0T020 · 16400-0T210 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470 | Radiator reservoir assembly | 16480-0T010 · 16480-22080 |
| 16471B | Reservoir tank cover | 16475-28120 · 16475-51010 |
| 16523A | Radiator bracket cushion | 16523-0T010 |
| 16535 | Radiator lower support | 16535-0T010 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0T050 · 16561-22030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-C0008 · 90466-C0009 · 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-0T010 · 16571-0T130 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-C0009 · 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-0T010 |
| 16573B | Radiator hose No. 3 | 16573-0T020 · 16573-0T060 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-35001 · 90466-C0009 · 96136-44301 |
| 16575C | No. 1 water hose clamp bracket | 16575-22020 · 16575-37020 |
| 16577C | radiator pipe | 16577-0T010 · 16577-0T040 |
| 16581 | Hose clamp (for water hose) | 16581-0T110 · 16581-21030 · 16581-37010 · 16581-37110 |
| 16581B | Hose clamp (for radiator hose) | 16581-0T040 · 16581-0T050 · 16581-22110 · 16581-22120 |
| 16711 | fan cover | 16711-0T010 · 16711-0T080 |
| 16712 | No. 2 fan cover | 16712-0T010 · 16712-0T040 |
