Toyota COROLLA Engine Oil Pump — Figure 1501

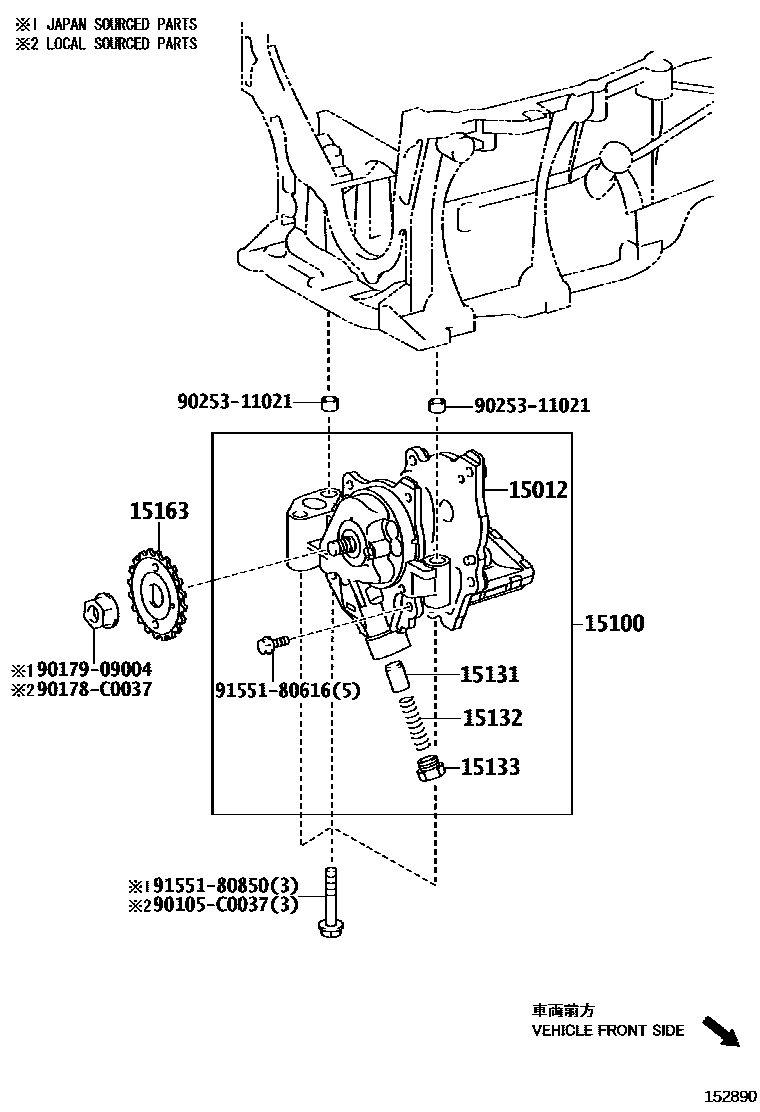

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-0T010 · 15012-37010 |
| 15100 | Oil pump assembly | 15100-0T010 · 15100-37010 · 15100-37030 |
| 15131 | Oil pump pressure reducing valve | 15131-0A040 · 15131-37010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-46060 · 15132-65020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-28020 |
| 15163 | Oil pump drive shaft gear | 15163-0H050 · 15163-28010 |
