Toyota COROLLA Engine Mounting — Figure 1107

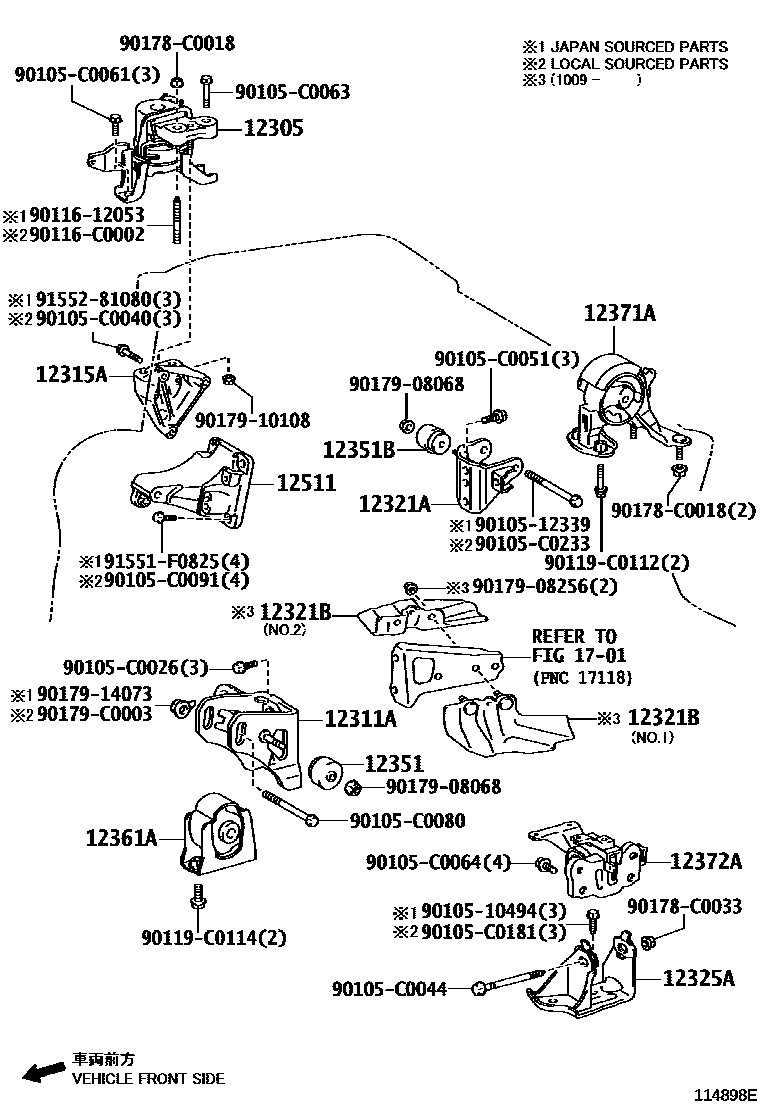

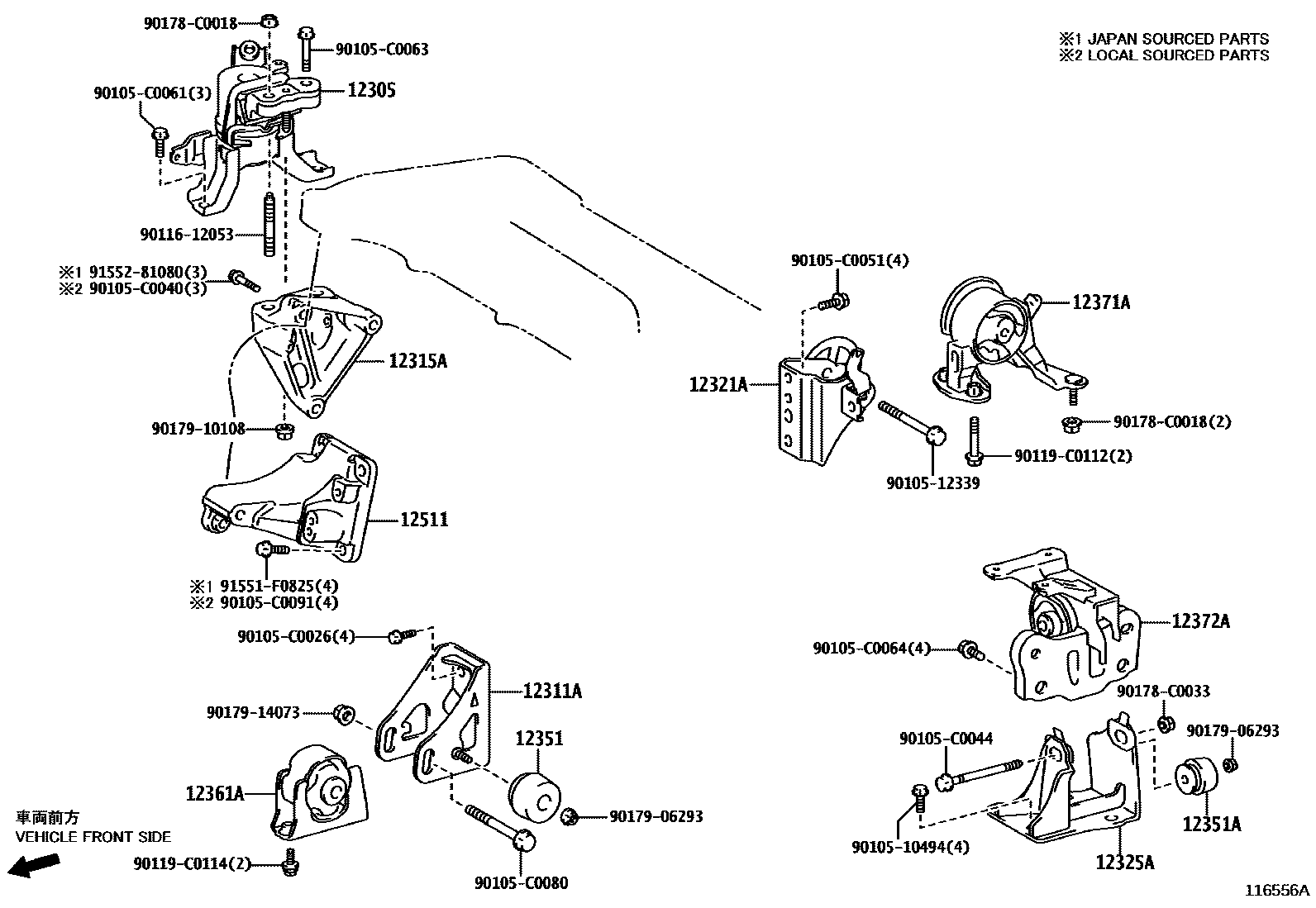

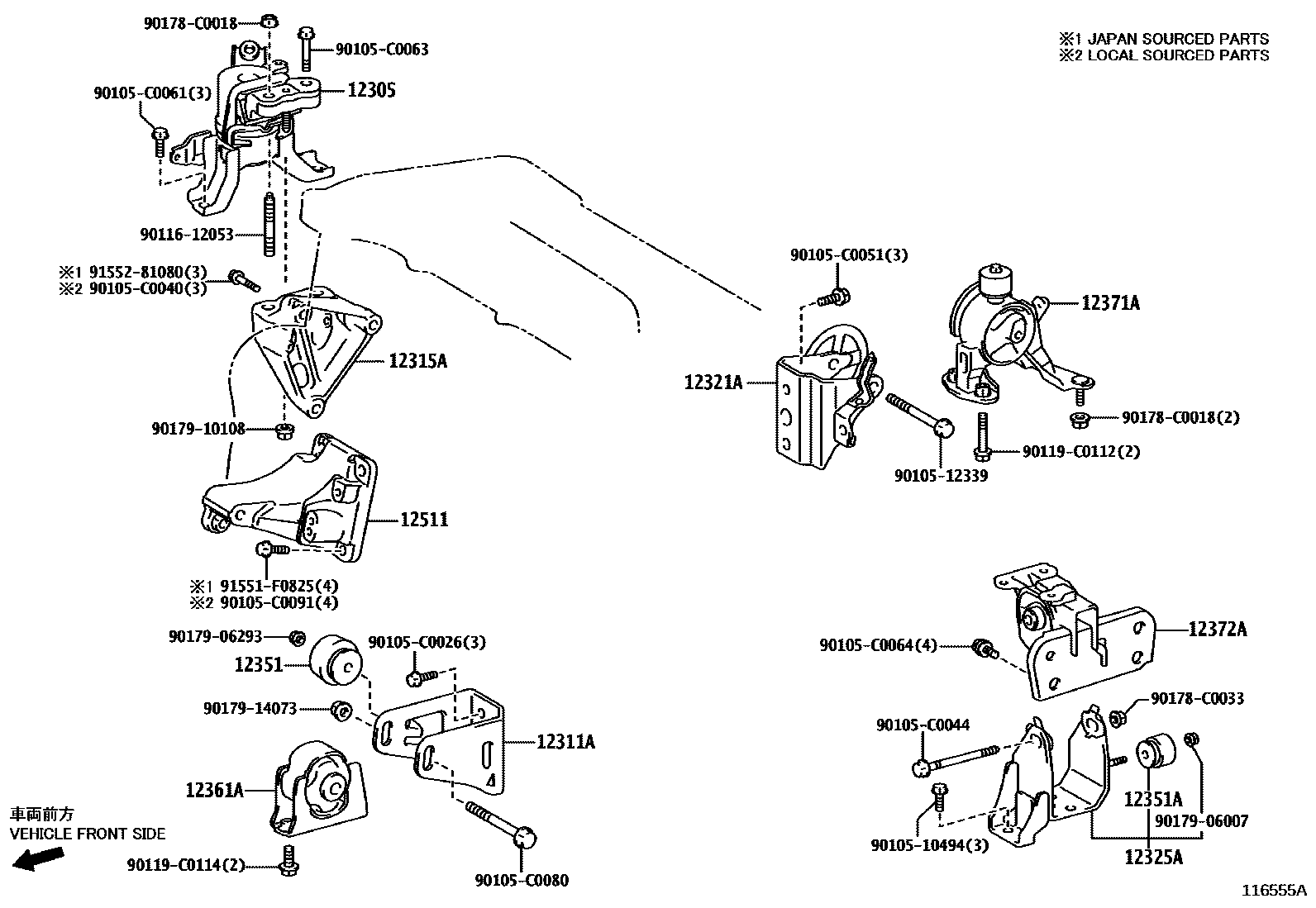

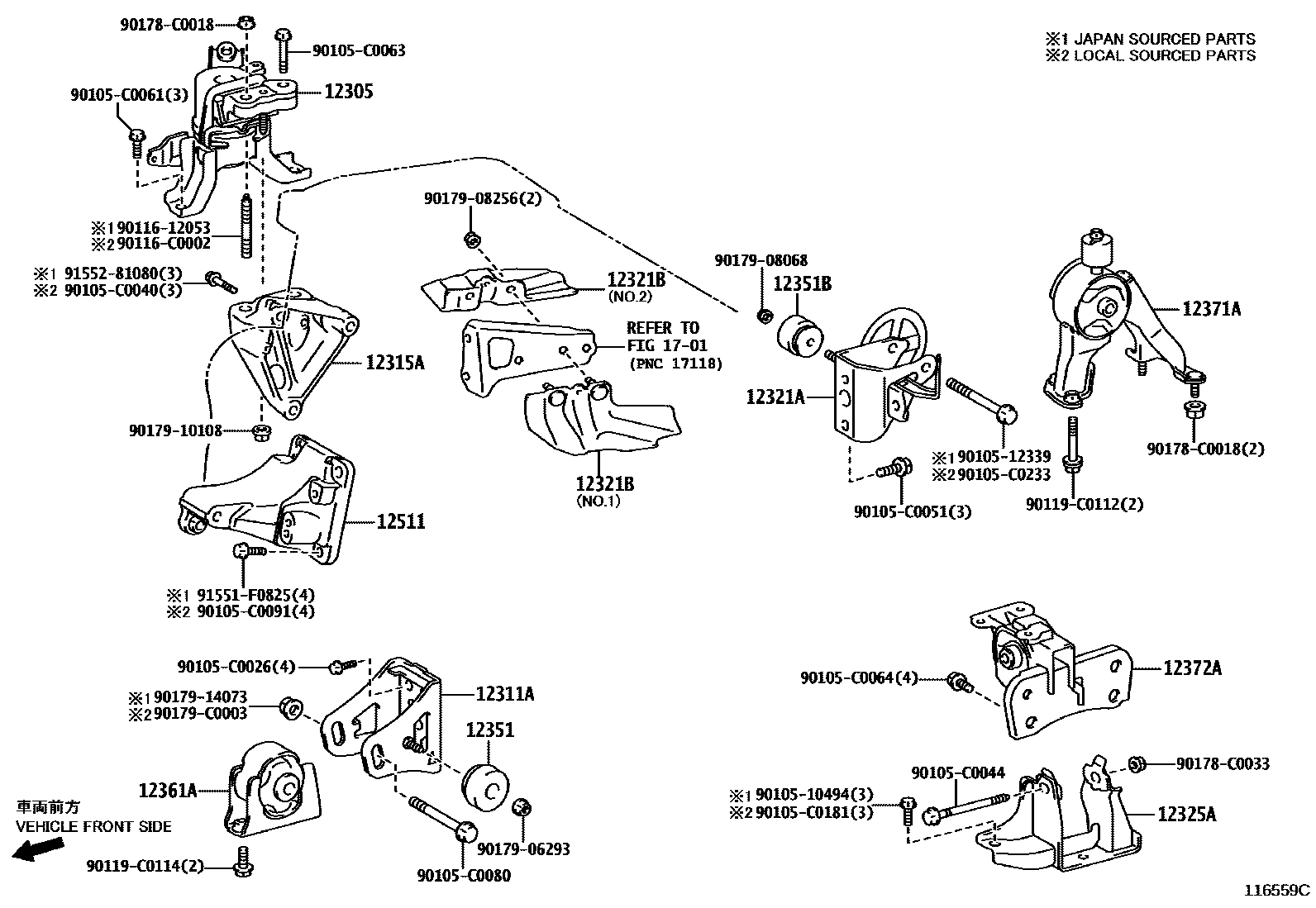

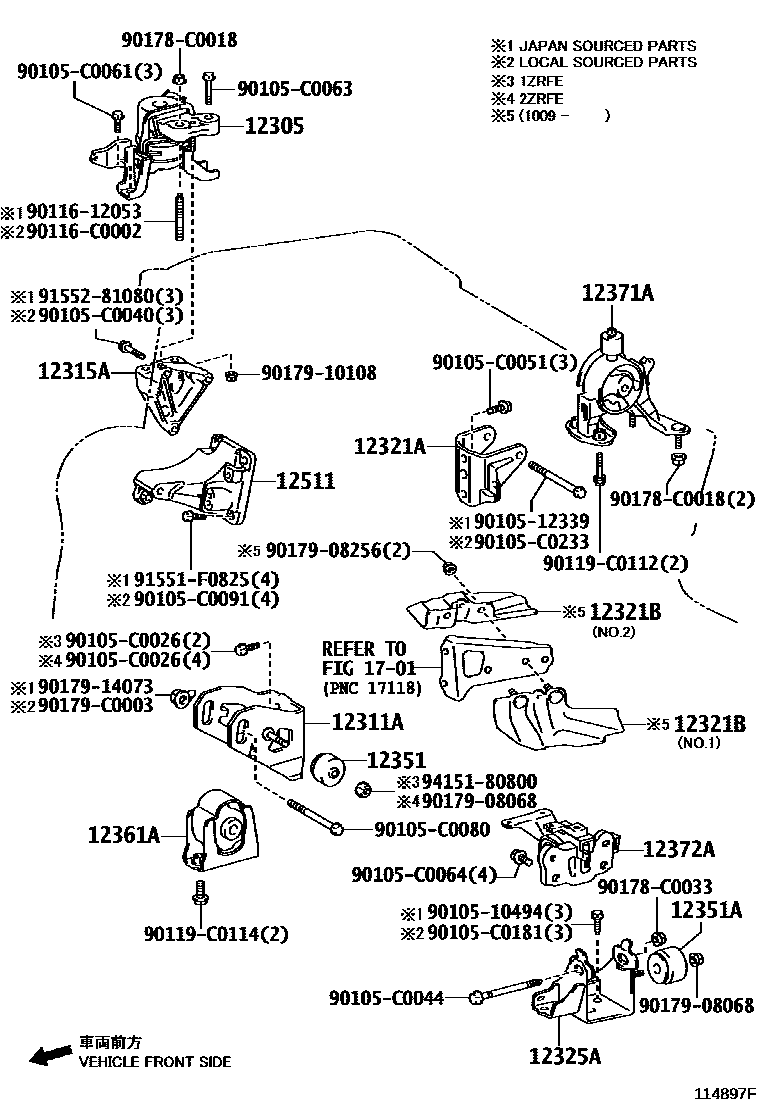

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0T010 · 12305-0T100 · 12305-0T110 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0T010 · 12311-0T020 · 12311-0T030 · 12311-0T160 · 12311-0T170 · 12311-0T180 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0T010 · 12315-37030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0T010 · 12321-0T020 · 12321-0T030 · 12321-0T190 · 12321-0T200 · 12321-0T210 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0T010 · 12325-0T020 · 12325-0T030 · 12325-0T190 · 12325-0T200 · 12325-0T210 |
| 12351 | engine mount shock absorber | 12351-0T020 · 12351-0T030 · 12351-0T040 · 12351-0T150 · 12351-0T160 · 12351-28060 · 12351-37020 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-0T020 · 12351-0T130 · 12351-0T140 |
| 12351B | engine mount shock absorber | 12351-0T010 · 12351-0T020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0T010 · 12361-0T020 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0T010 · 12371-0T020 · 12371-0T120 · 12371-0T130 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0T010 · 12372-0T020 · 12372-0T150 · 12372-0T160 · 12372-0T170 |
| 12511 | No. 1 generator bracket | 12511-0T010 · 12511-37010 |
