Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

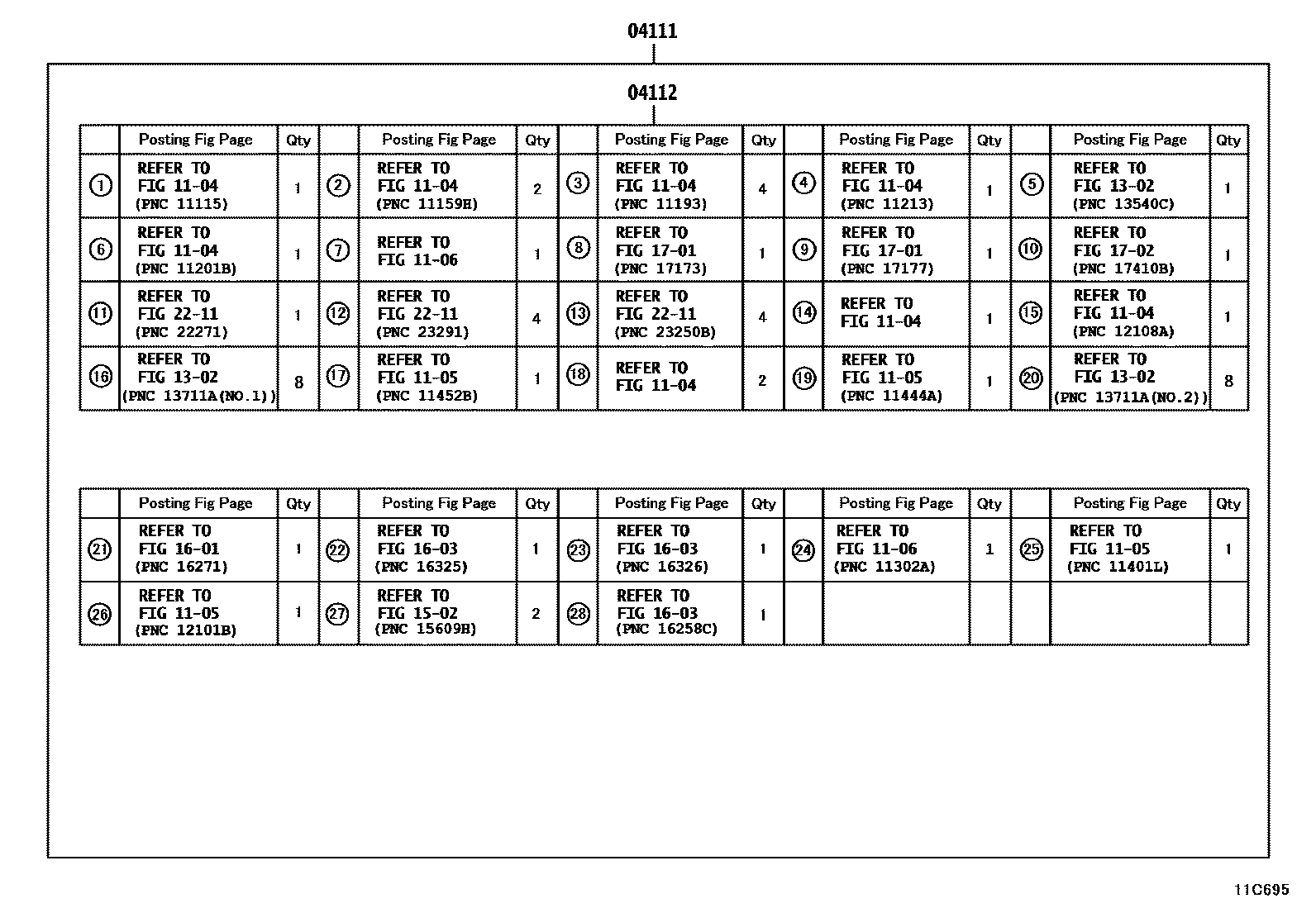

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C695
Engine Overhaul Gasket Kit — 11C695 (201009 – 201301)

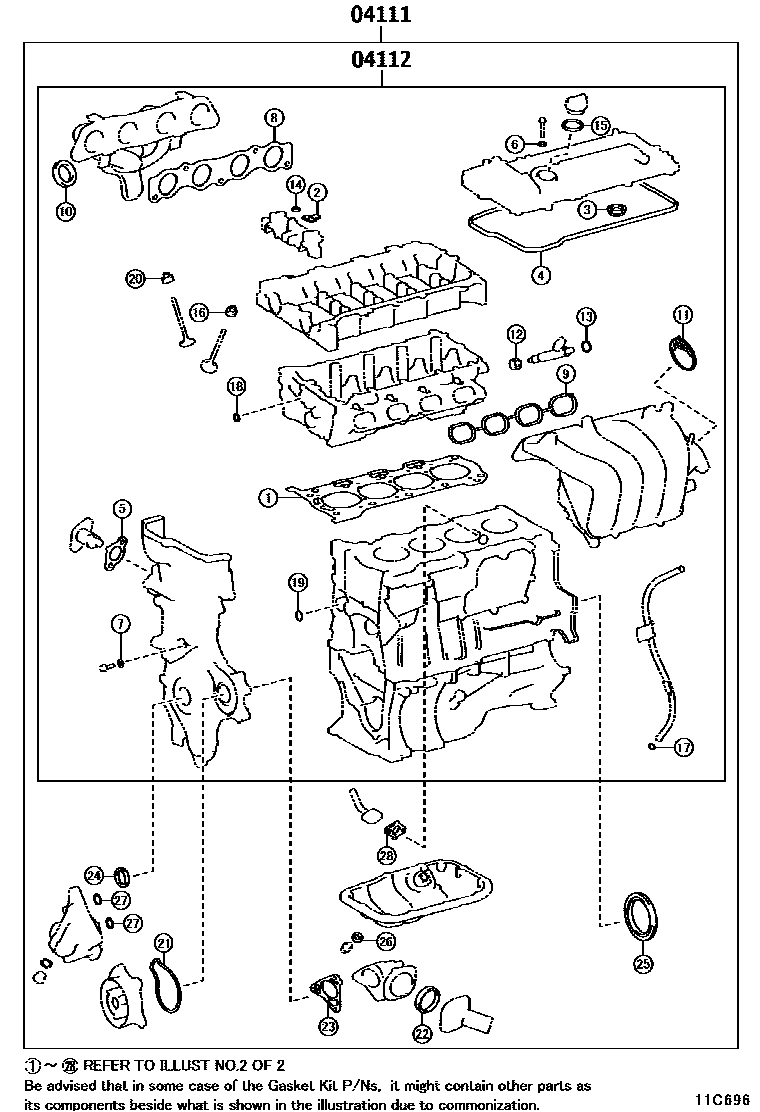

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C696
Engine Overhaul Gasket Kit — 11C696 (201009 – 201301)

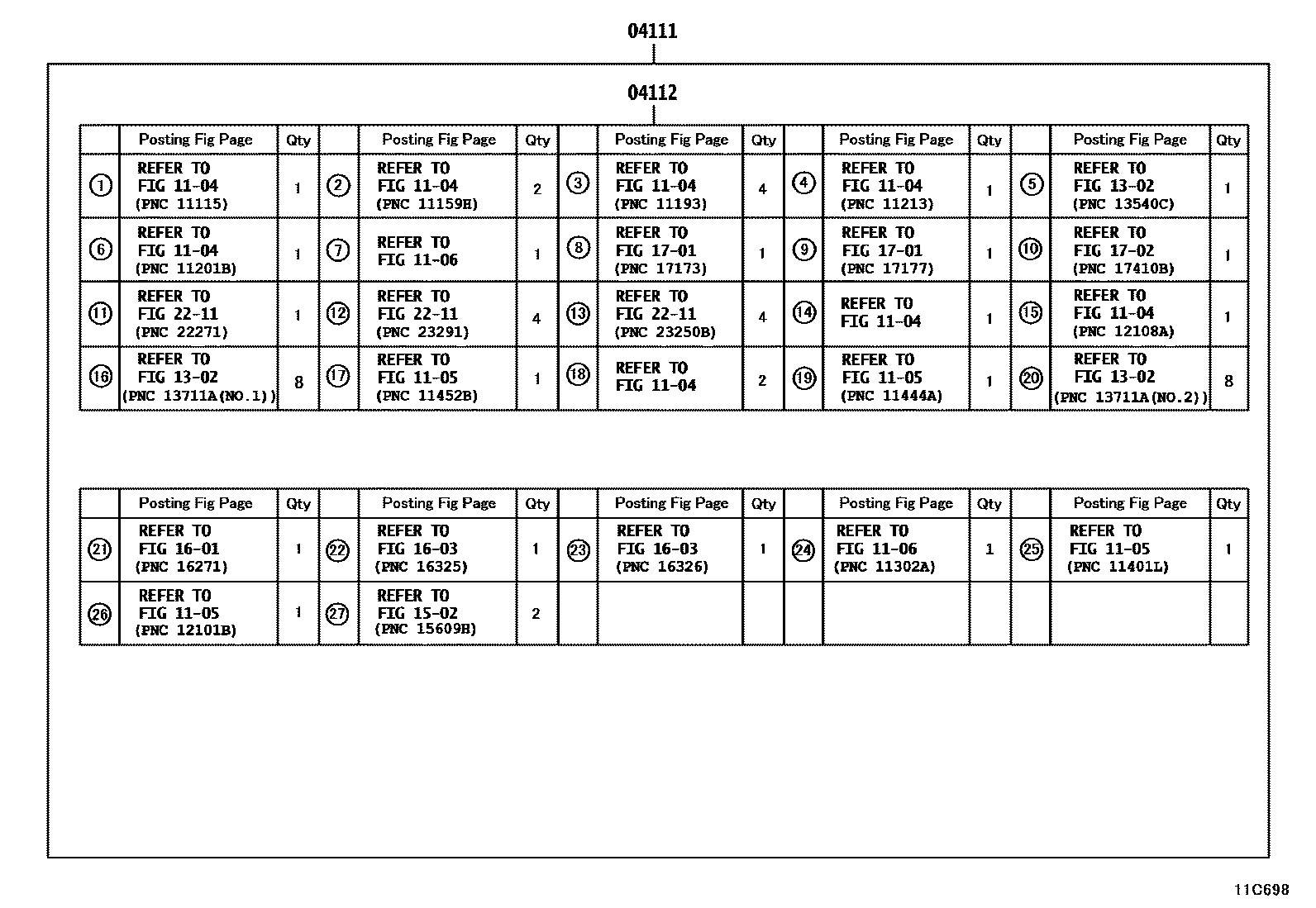

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C698
Engine Overhaul Gasket Kit — 11C698 (200705 – 201406)

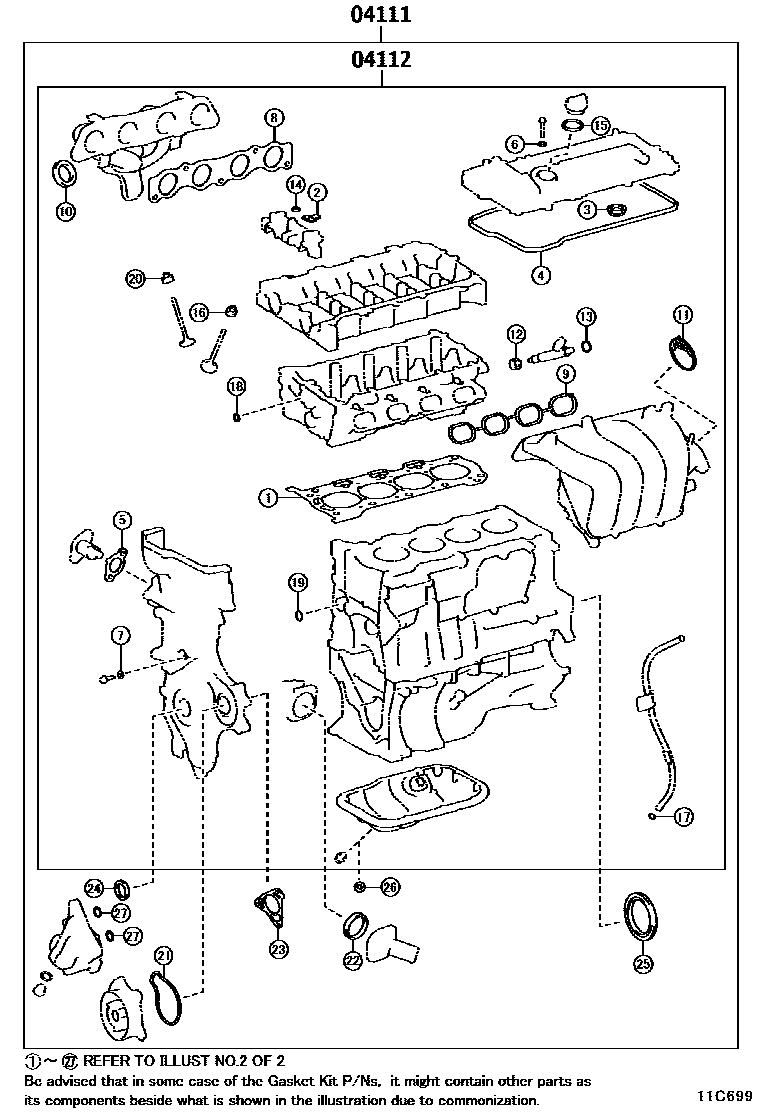

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C699
Engine Overhaul Gasket Kit — 11C699 (200705 – 201406)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T020 · 04111-0T021 · 04111-0T022 · 04111-0T023 · 04111-0T170 · 04111-37370 · 04111-37372 · 04111-37373
04112Engine valve grinding pad assembly04112-0T020 · 04112-0T021 · 04112-0T022 · 04112-0T023 · 04112-0T170 · 04112-37310 · 04112-37311 · 04112-37312
