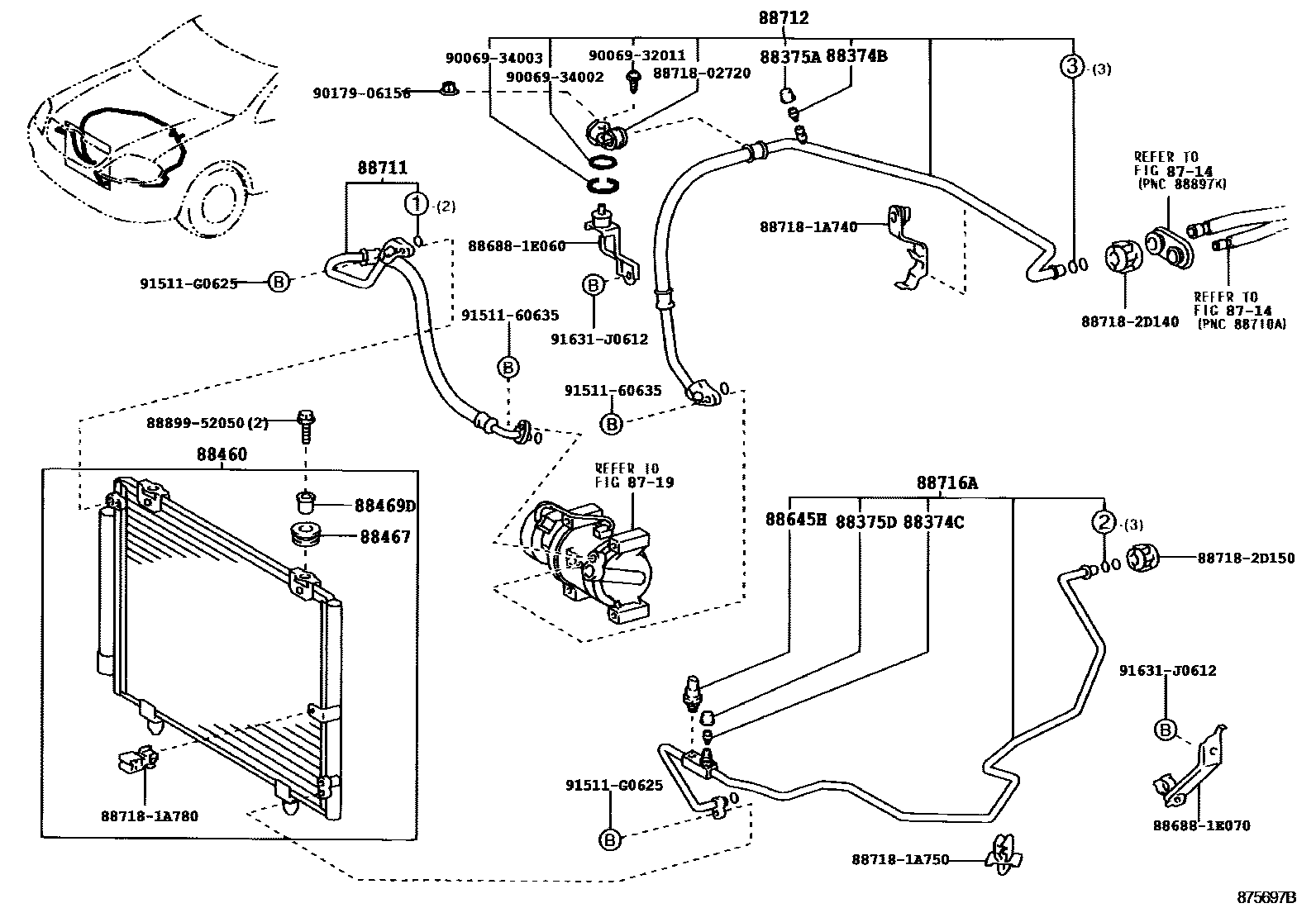

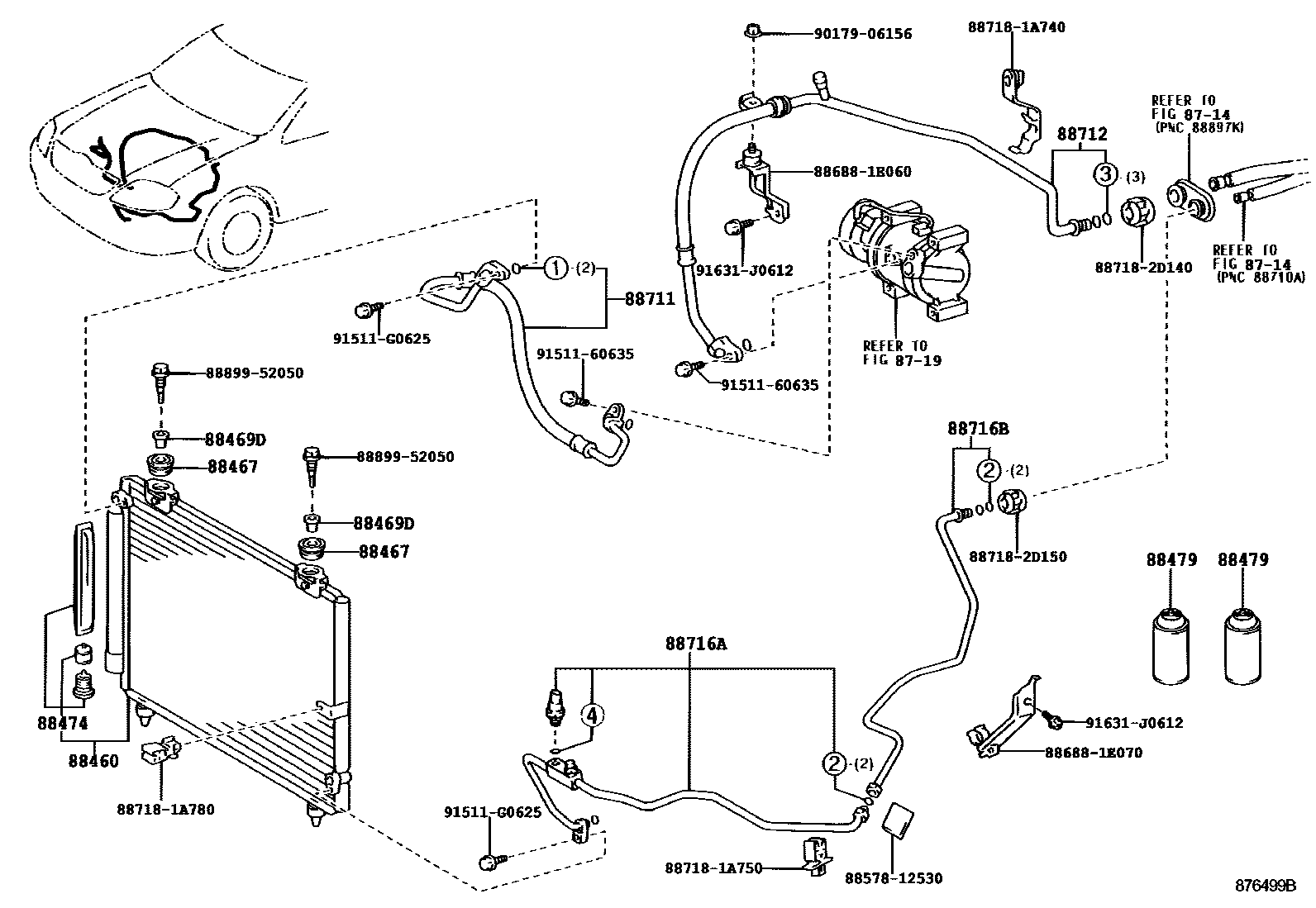

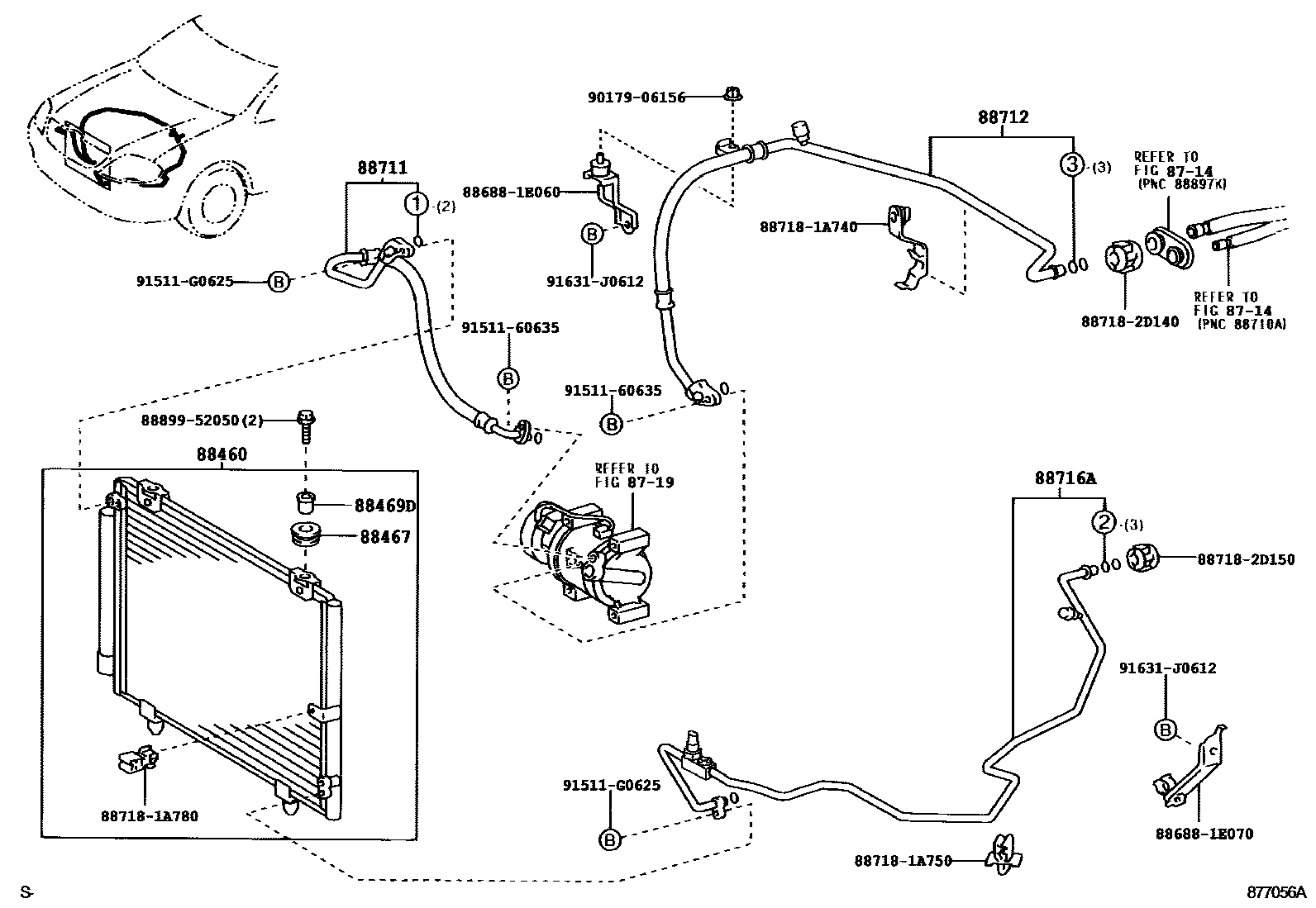

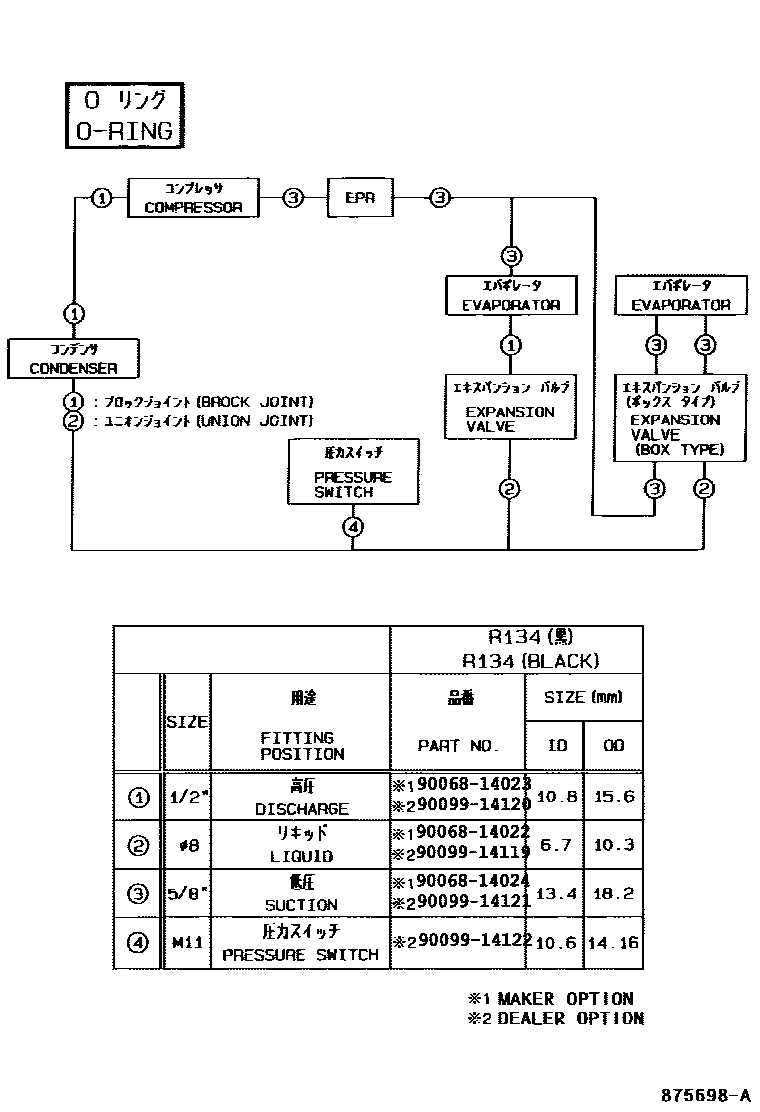

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-02020 |
| 88375A | Repair valve cover (for cooler tube) | 88375-02140 |
| 88375D | No. 2 maintenance valve cover | 88375-02150 |
| 88460 | Air conditioning condenser assembly | 88450-02220 · 88460-12561 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02110 · 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-02150 · 88703-02320 · 88703-12580 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-02320 · 88704-02380 · 88704-12810 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-02420 · 88710-02750 · 88710-12570 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1A640 |
