Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

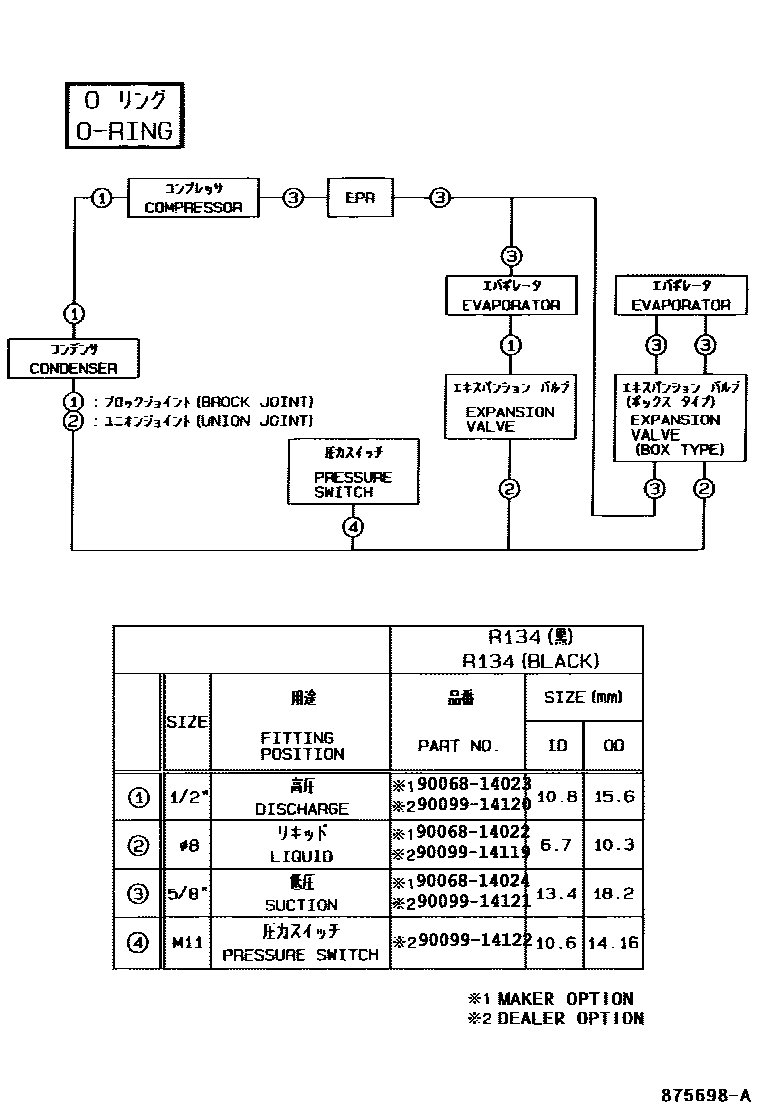

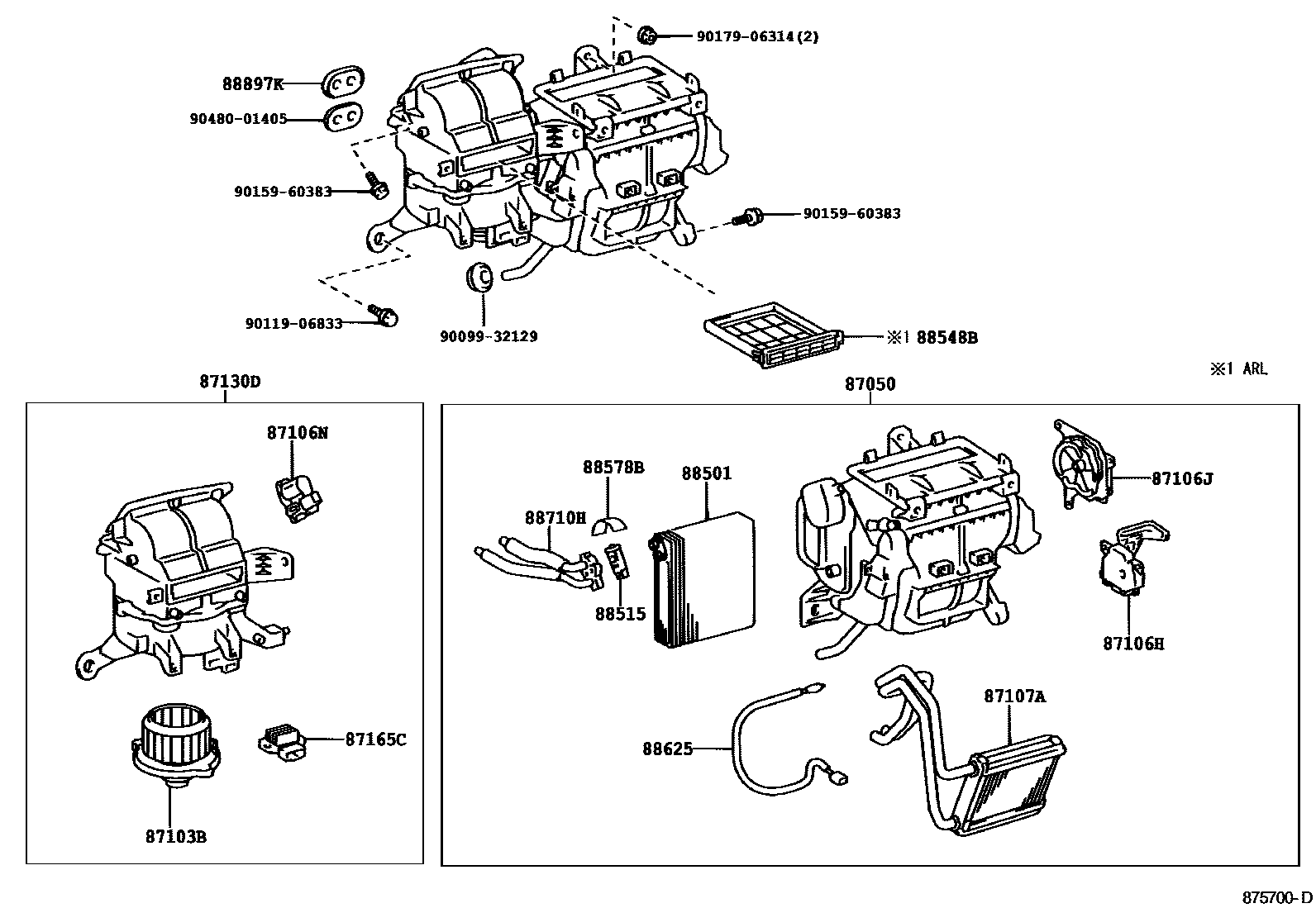

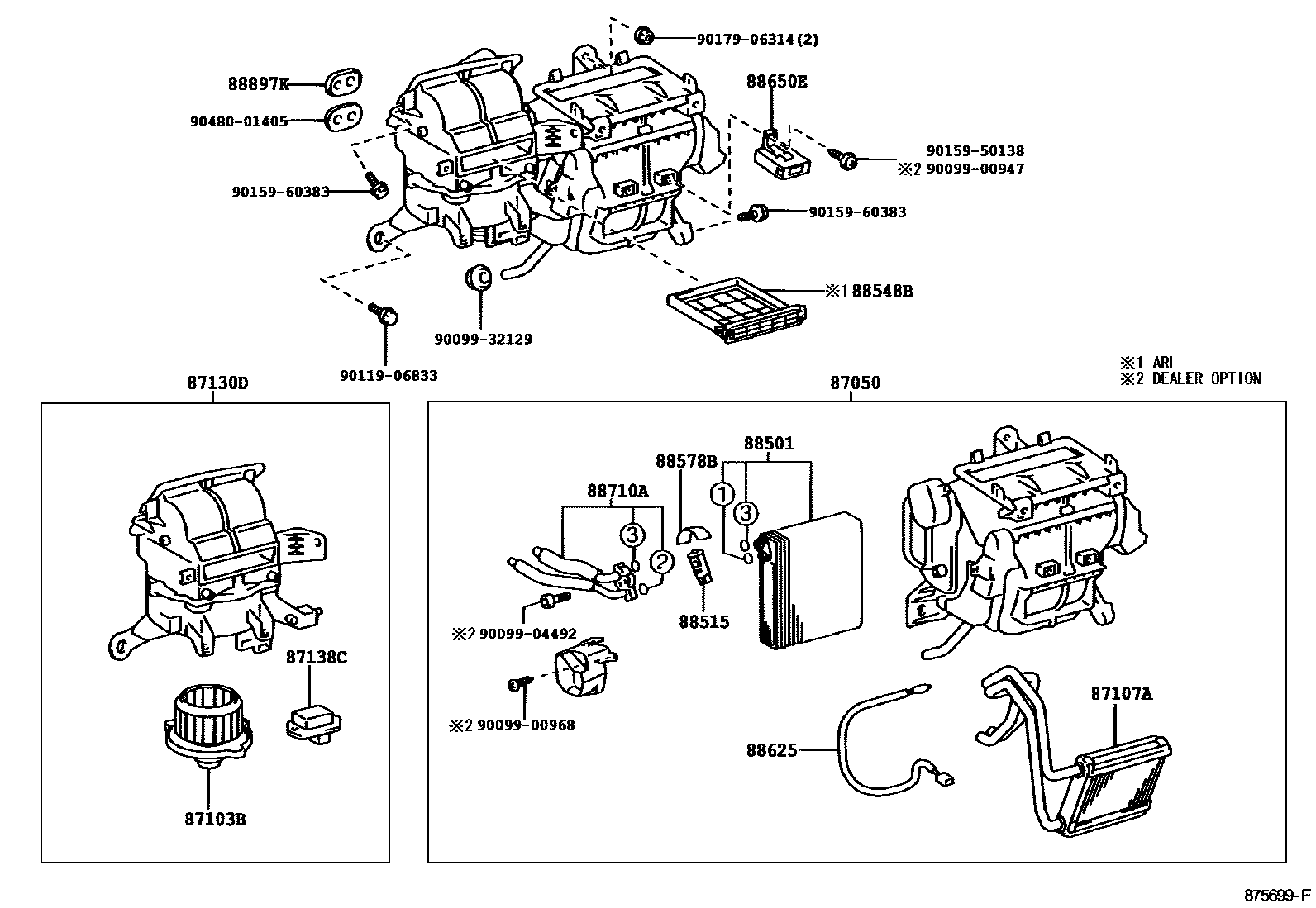

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-02380 · 87050-02390 · 87050-02400 |
| 87103B | Blower motor sub-assembly with fan | 87103-02060 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02090 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02080 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02110 |
| 87107A | Heater radiator device sub-assembly | 87107-02160 |
| 87130D | Blower assembly | 87130-02060 · 87130-02160 |
| 87138C | Blower resistor | 87138-20350 |
| 87165C | Blower motor control device | 87165-13010 · 87165-41010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02140 · 88501-02160 |
| 88515 | Cooler expansion valve | 88515-28160 · 88515-48040 |
| 88548B | air filter housing | 88548-52010 |
| 88578B | Cooling unit seal No. 1 | 88578-12520 |
| 88625 | Cooler No. 1 Thermistor | 88625-60140 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-1E420 |
| 88710A | Air conditioning pipe assembly | 88710-02460 · 88710-02510 |
| 88710H | Air conditioning pipe and accessories assembly | 88710-02460 |
| 88897K | Seals (for cooler tubes) | 88897-12240 · 90480-01434 · 90950-01559 |
