Toyota COROLLA 后视镜 — Figure 8701

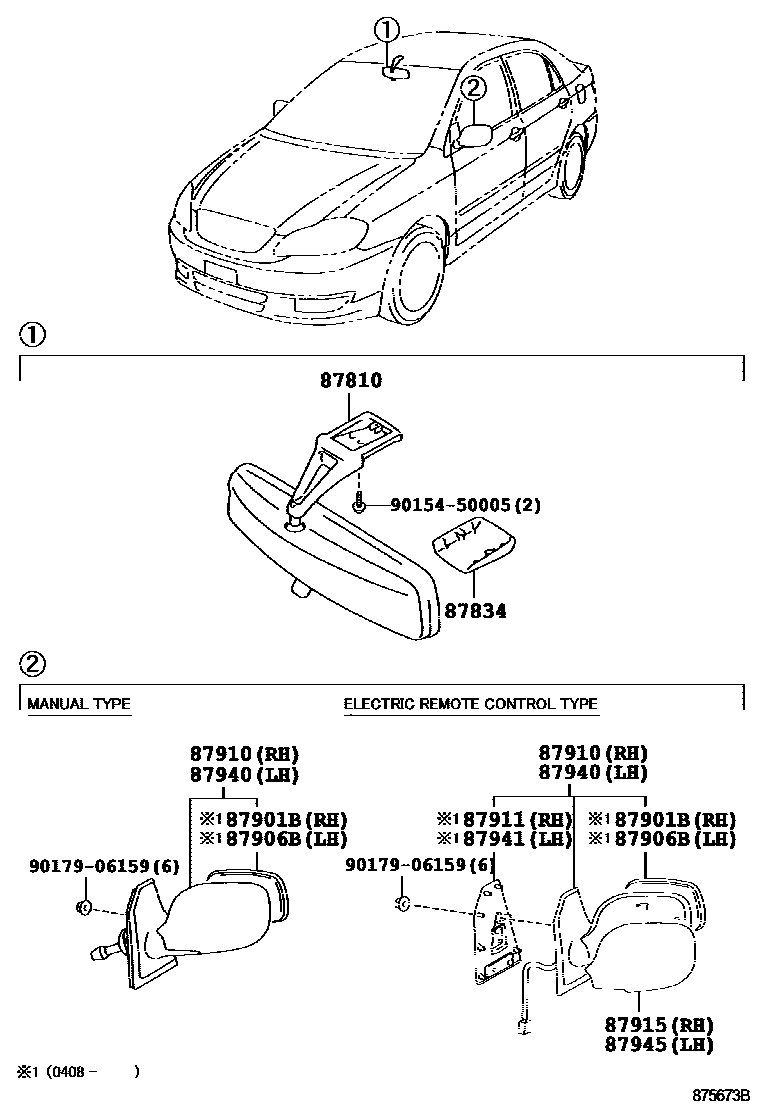

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87901B | Right exterior rearview mirror sub-assembly | 87931-02130 · 87931-47080 · 87931-47130 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-02130 · 87961-47120 |
| 87910 | Right exterior rearview mirror assembly | 87910-02130 · 87910-02480 · 87910-02490 · 87910-02500 · 87910-12A10 · 87910-1A810 |
| 87911 | Right exterior mirror pad | 87911-12320 |
| 87915 | Right exterior rearview mirror cover | 87915-02010 · 87915-02060 · 87915-02902 · 87915-12030 |
| 87940 | Left exterior rearview mirror assembly | 87940-02130 · 87940-02480 · 87940-02490 · 87940-12A00 |
| 87941 | Left exterior mirror pad | 87941-12300 |
| 87945 | Left exterior rearview mirror cap | 87945-02010 · 87945-02060 · 87945-02902 · 87945-12030 |
