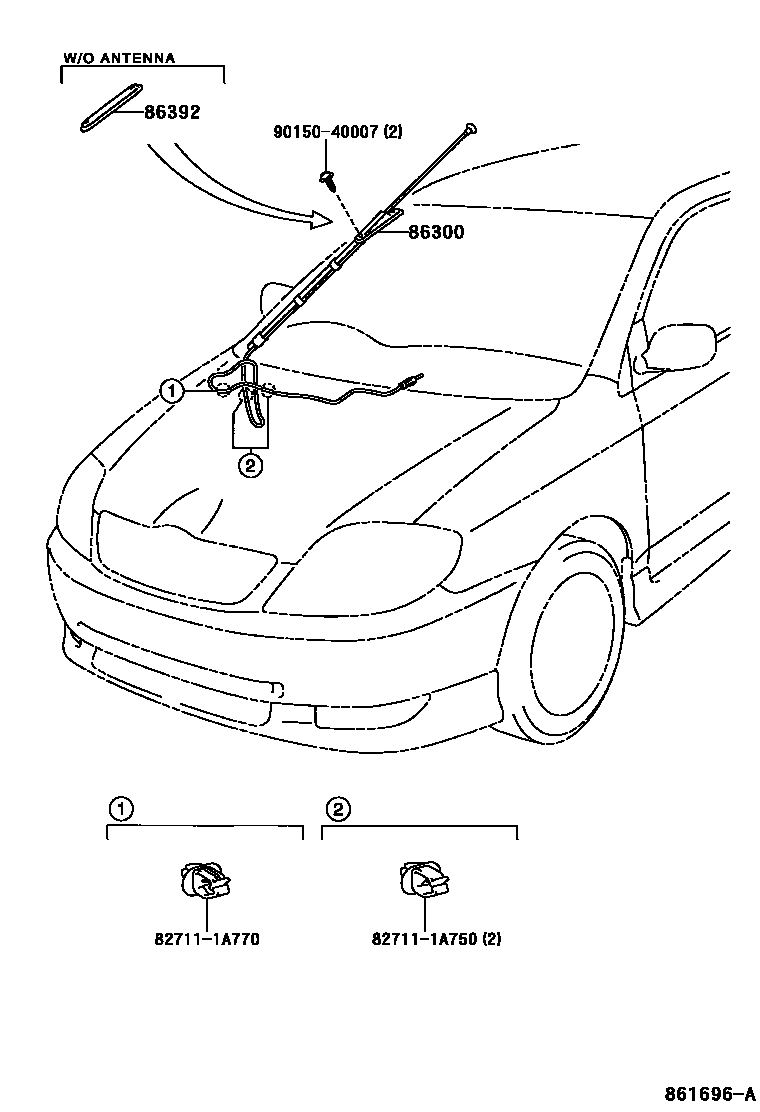

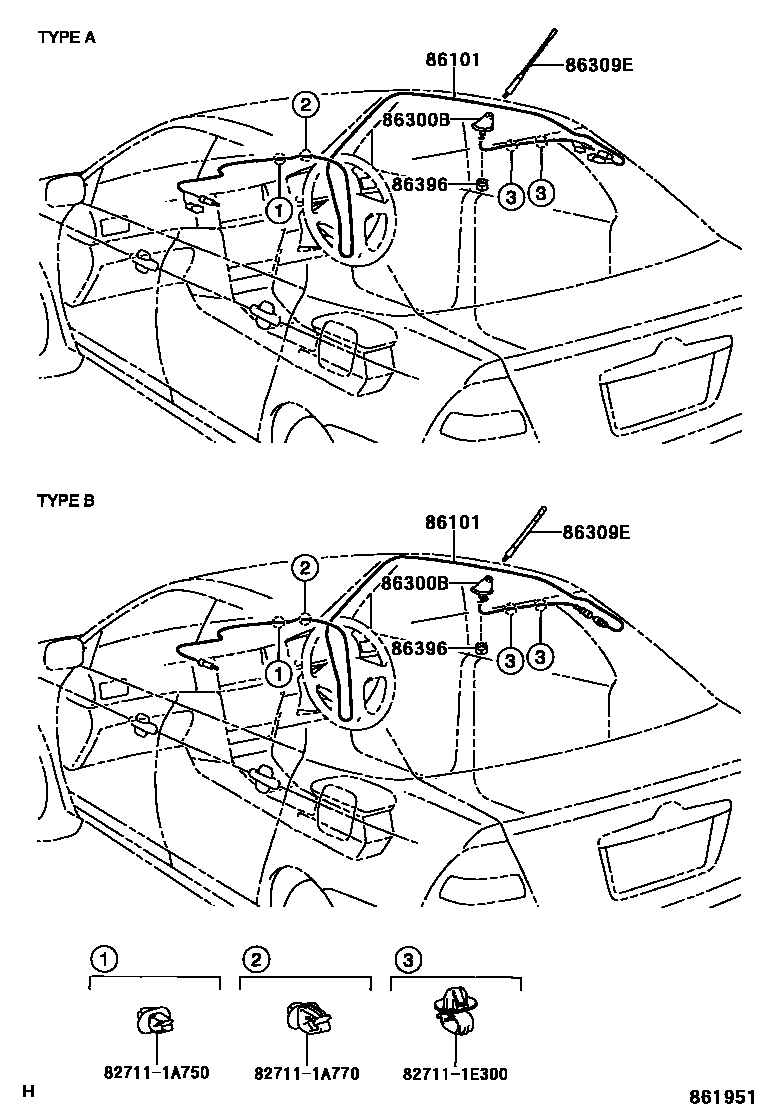

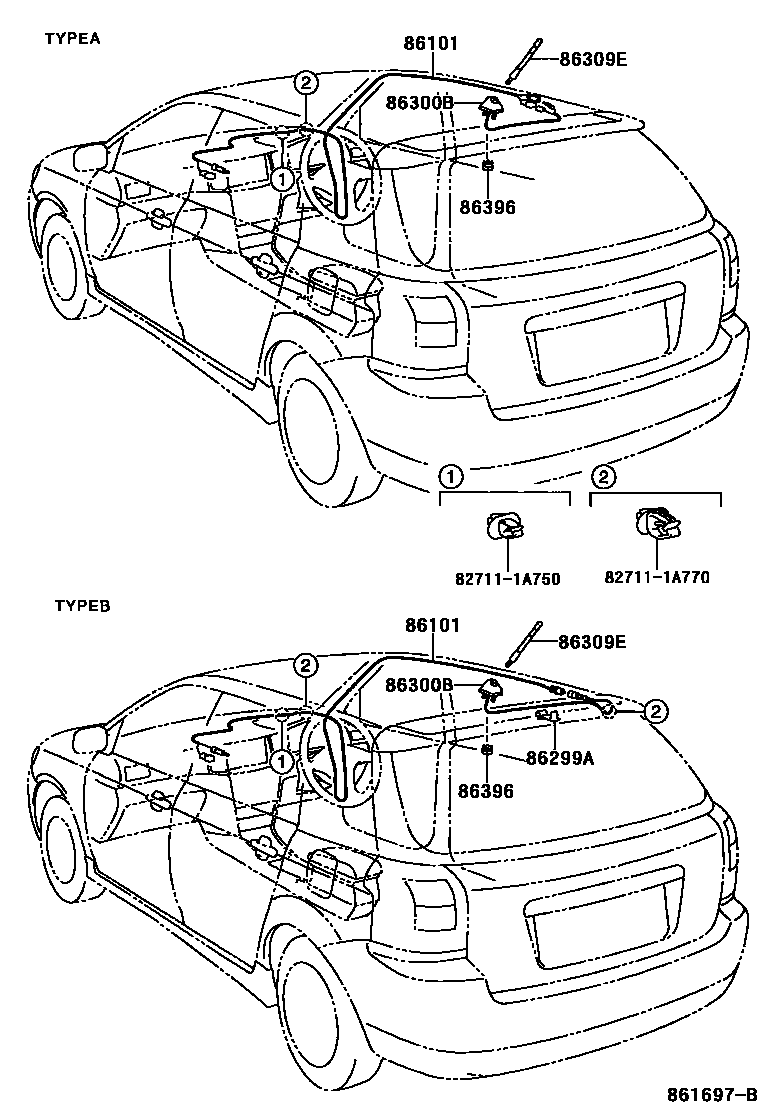

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02060 · 86101-02070 · 86101-12301 · 86101-12320 |
| 86299A | Clip (radio to antenna lead) | 86299-12010 |
| 86300 | Antenna assembly with fixing parts | 86300-02130 · 86300-12720 |
| 86300B | No. 1 amplifier antenna assembly | 86300-02070 · 86300-02071 · 86300-02080 · 86300-02081 · 86300-12740 · 86300-12750 |
| 86309E | Roof antenna sub-assembly | 86309-02040 · 86309-13010 |
| 86392 | Antenna decorative parts | 86392-10010 |
| 86396 | Antenna nut | 86396-02020 · 86396-12030 |
