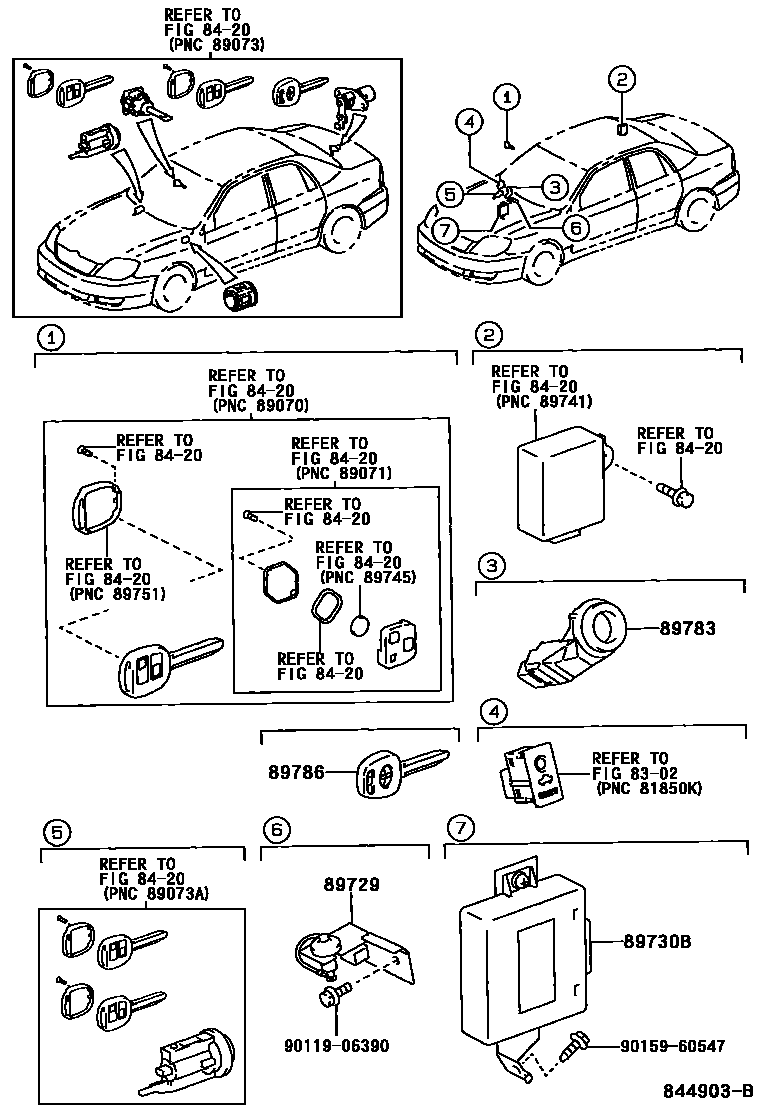

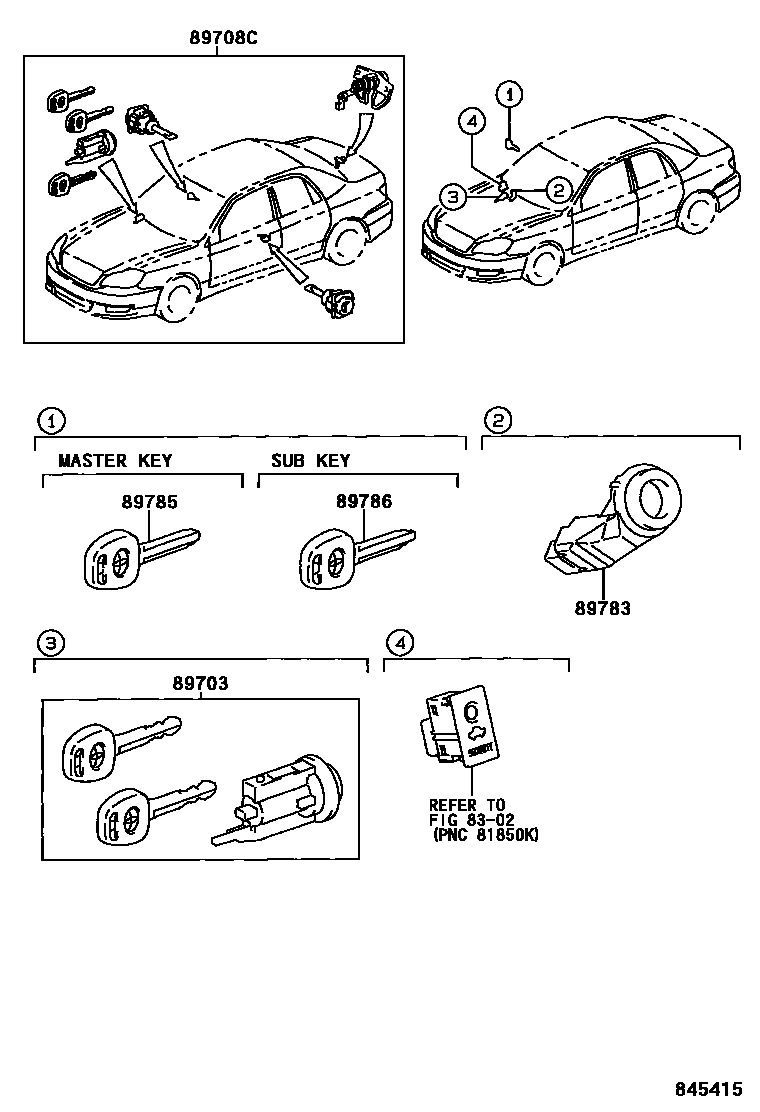

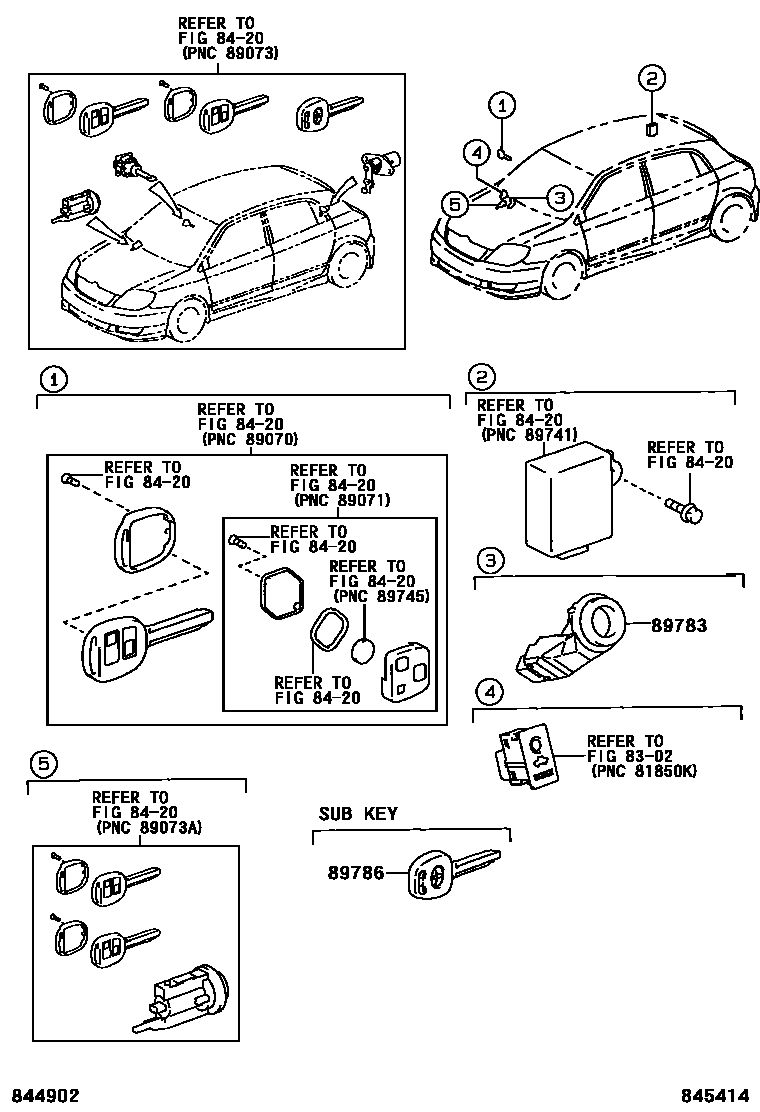

Toyota COROLLA 防盗装置 — Figure 8424
Toyota COROLLA EPC diagram 8424, 防盗装置, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89708-12190 |
| 89708C | Key lock cylinder assembly with transceiver transmitter | 89708-12250 · 89708-12270 |
| 89729 | Anti-theft warning door light switch | 84243-02010 · 84243-02011 · 84243-02020 |
| 89730B | Anti-theft warning ECU assembly | 89730-02030 |
| 89783 | transceiver key amplifier | 89783-12040 · 89783-52010 · 89783-52020 |
| 89785 | transceiver key master transmitter | 89785-26020 |
| 89786 | transceiver key secondary transmitter | 89786-60050 |
