Toyota COROLLA 遥控门锁 — Figure 8420

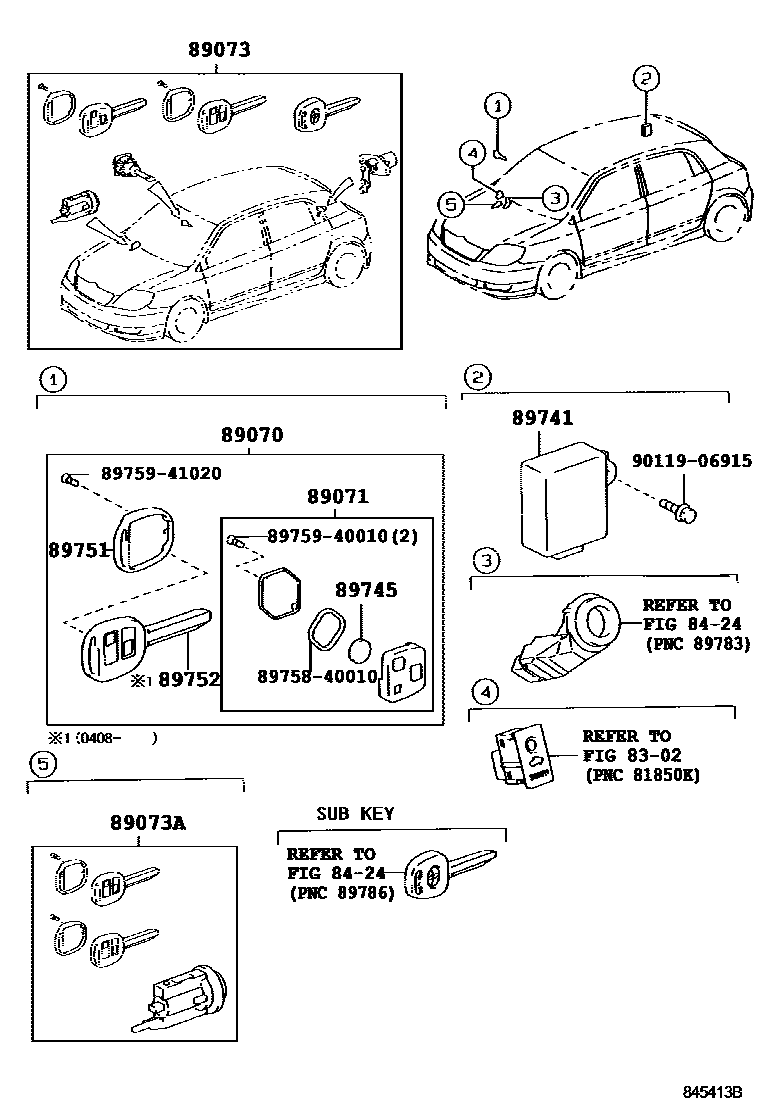

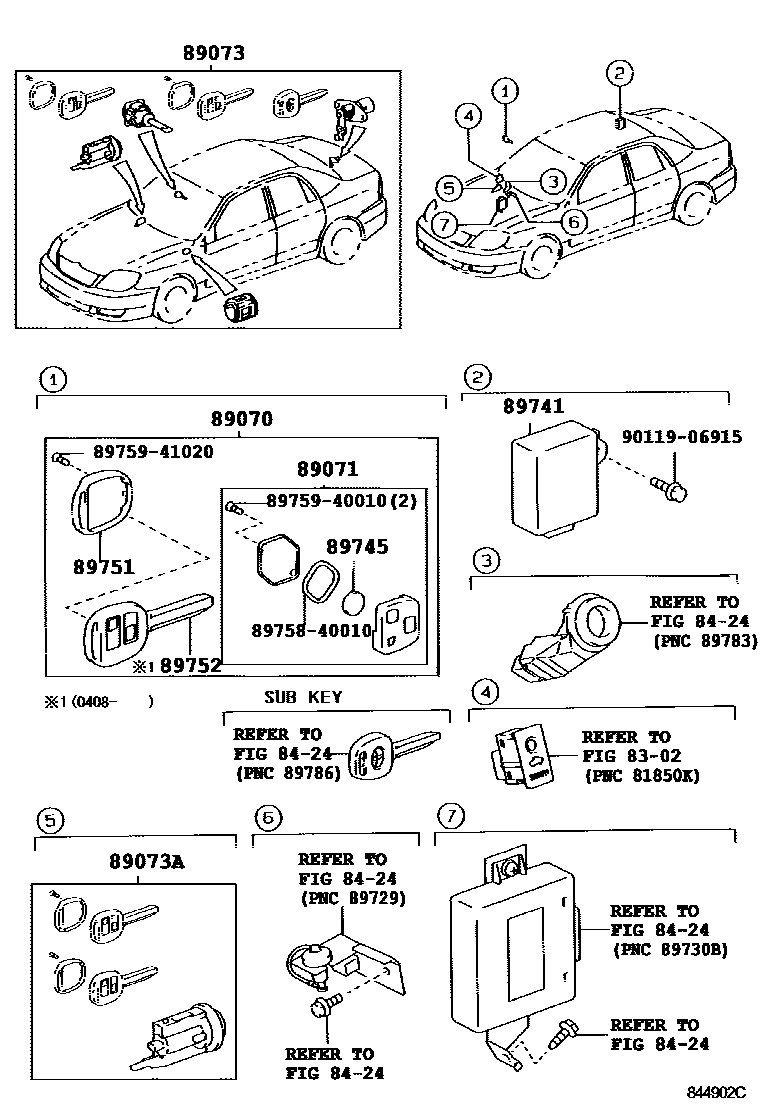

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89070 | Remote key assembly | 89070-12120 · 89070-12190 · 89070-12191 · 89070-44080 |
| 89071 | Remote key sub-assembly module assembly | 89071-60030 · 89071-60081 |
| 89073 | Lock cylinder assembly with transmitter housing (without module) | 89073-12411 · 89073-12412 · 89073-12421 · 89073-12422 · 89073-12440 |
| 89073A | Ignition lock cylinder assembly with transmitter housing (internal toothed key) | 89073-12330 · 89073-12401 · 89073-12402 |
| 89741 | door control receiver | 89741-12290 · 89741-12300 · 89741-12310 |
| 89745 | Transmitter battery | 89745-40010 |
| 89751 | Transmitter housing cover | 89751-13010 · 89751-13011 |
| 89752 | transmitter housing | 89752-13020 |
