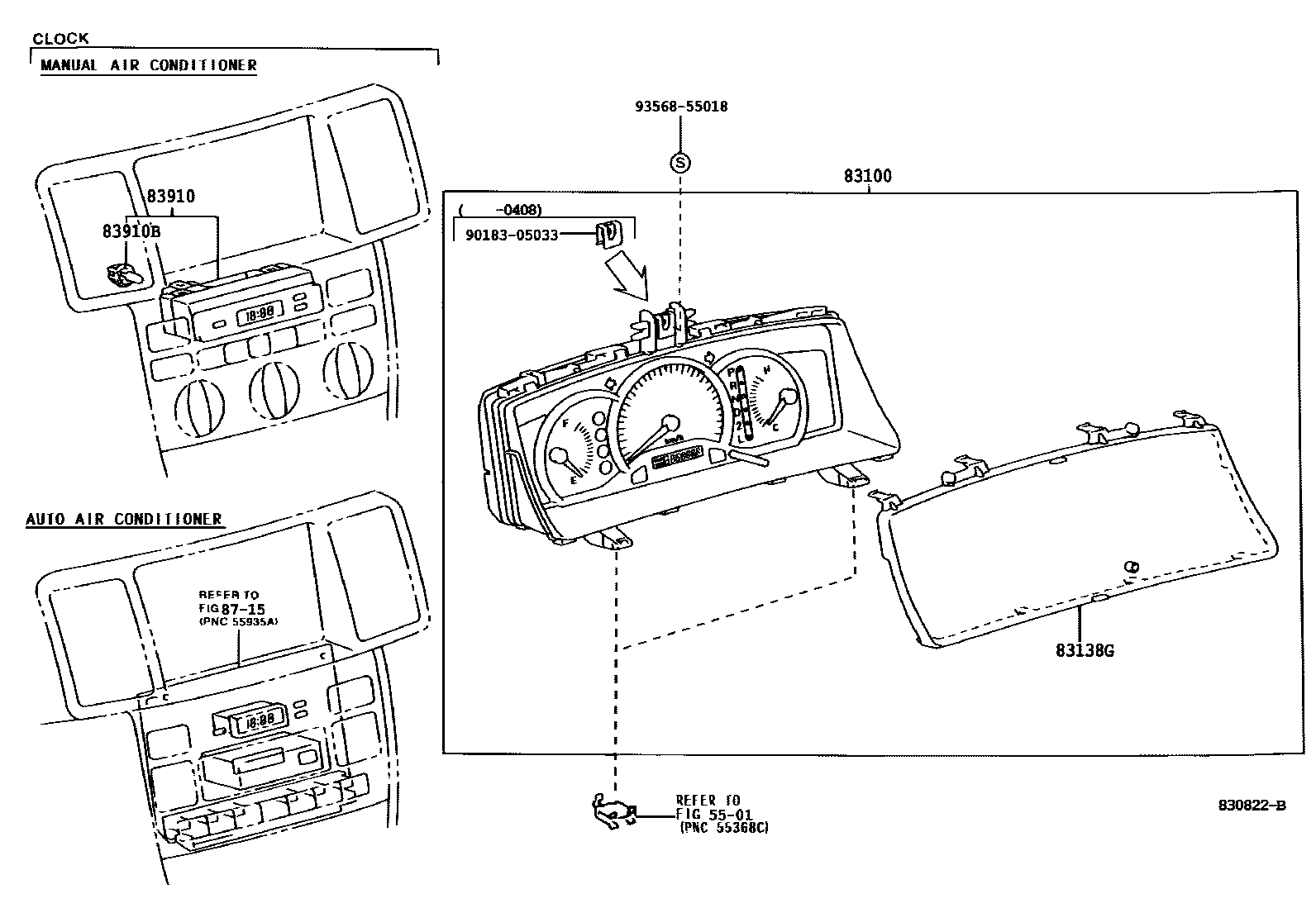

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0Z080 · 83800-0Z090 · 83800-0Z130 · 83800-0Z140 · 83800-12E40 · 83800-12E50 · 83800-12E60 · 83800-12E70 · 83800-1H470 · 83800-1H480 |
| 83138G | Instrument cluster glass | 83852-1E730 · 83852-1E760 |
| 83910 | clock assembly | 83910-12560 |
| 83910B | clock indicator light bulb | 90010-07018 |
