Toyota COROLLA 高位刹车灯 — Figure 8117

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 3 images and 3 PNC and OE references.

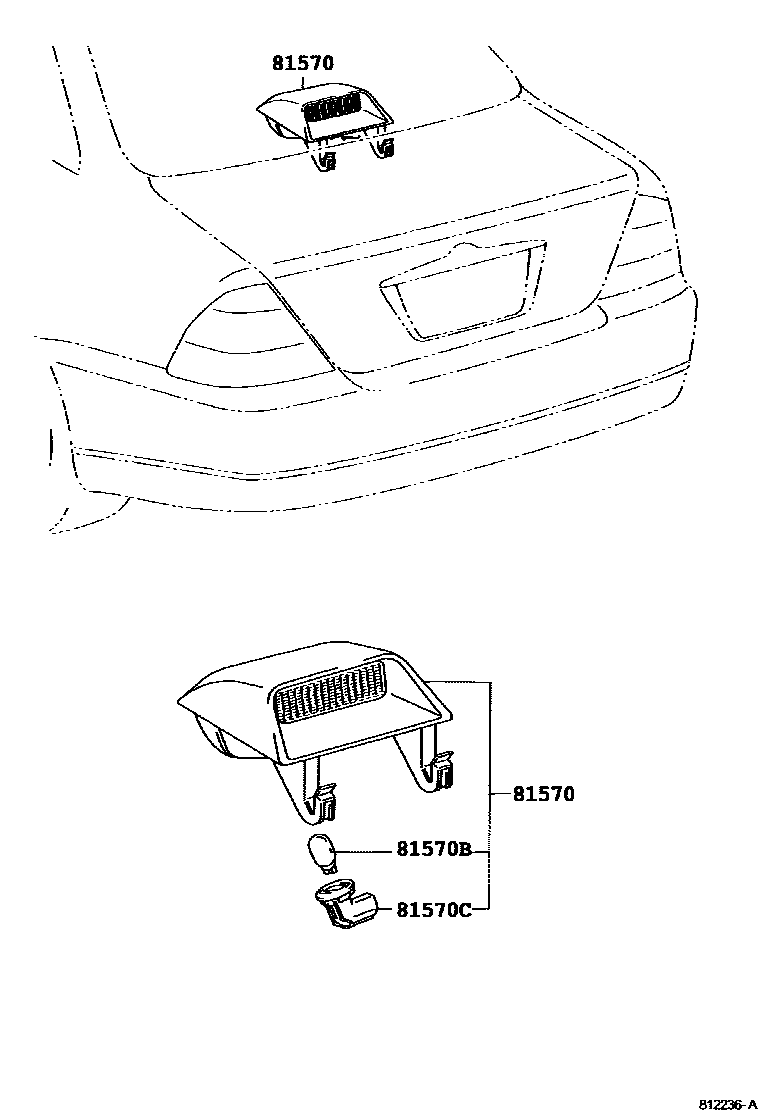

Toyota COROLLA 高位刹车灯 EPC diagram — 812236A
高位刹车灯 — 812236A (200208 – 200707)

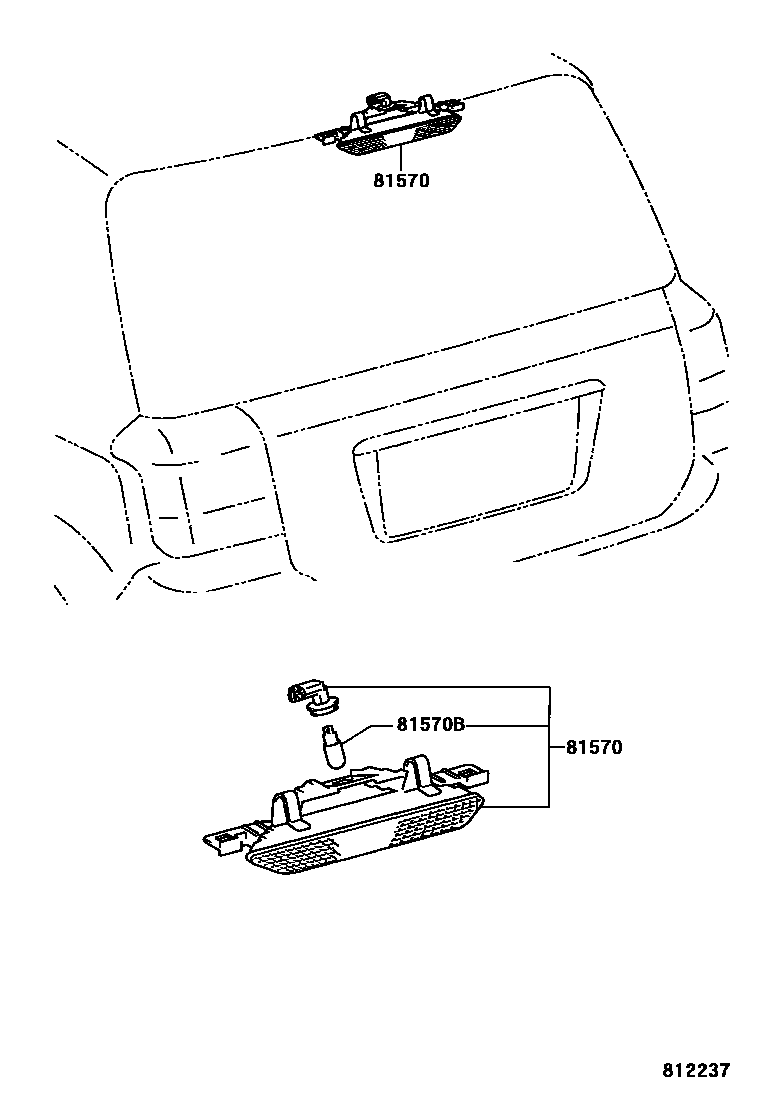

Toyota COROLLA 高位刹车灯 EPC diagram — 812237
高位刹车灯 — 812237 (200210 – 200707)

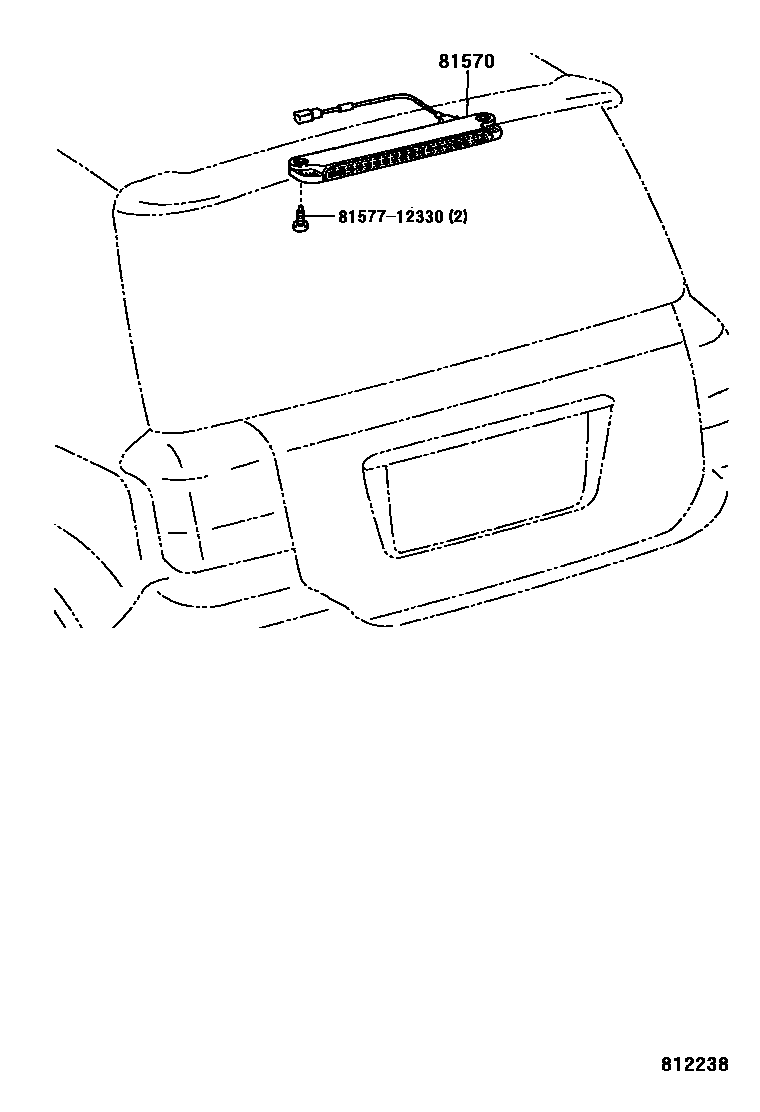

Toyota COROLLA 高位刹车灯 EPC diagram — 812238
高位刹车灯 — 812238 (200210 – 200707)

PNC and OE references

PNCPart nameOE numbers
81570Central brake light assembly81570-13180 · 81570-63010
81570BBulb (for center brake light)90981-11059
81570CCentral brake light lamp holder90075-99005
