Toyota COROLLA 后组合灯 — Figure 8111

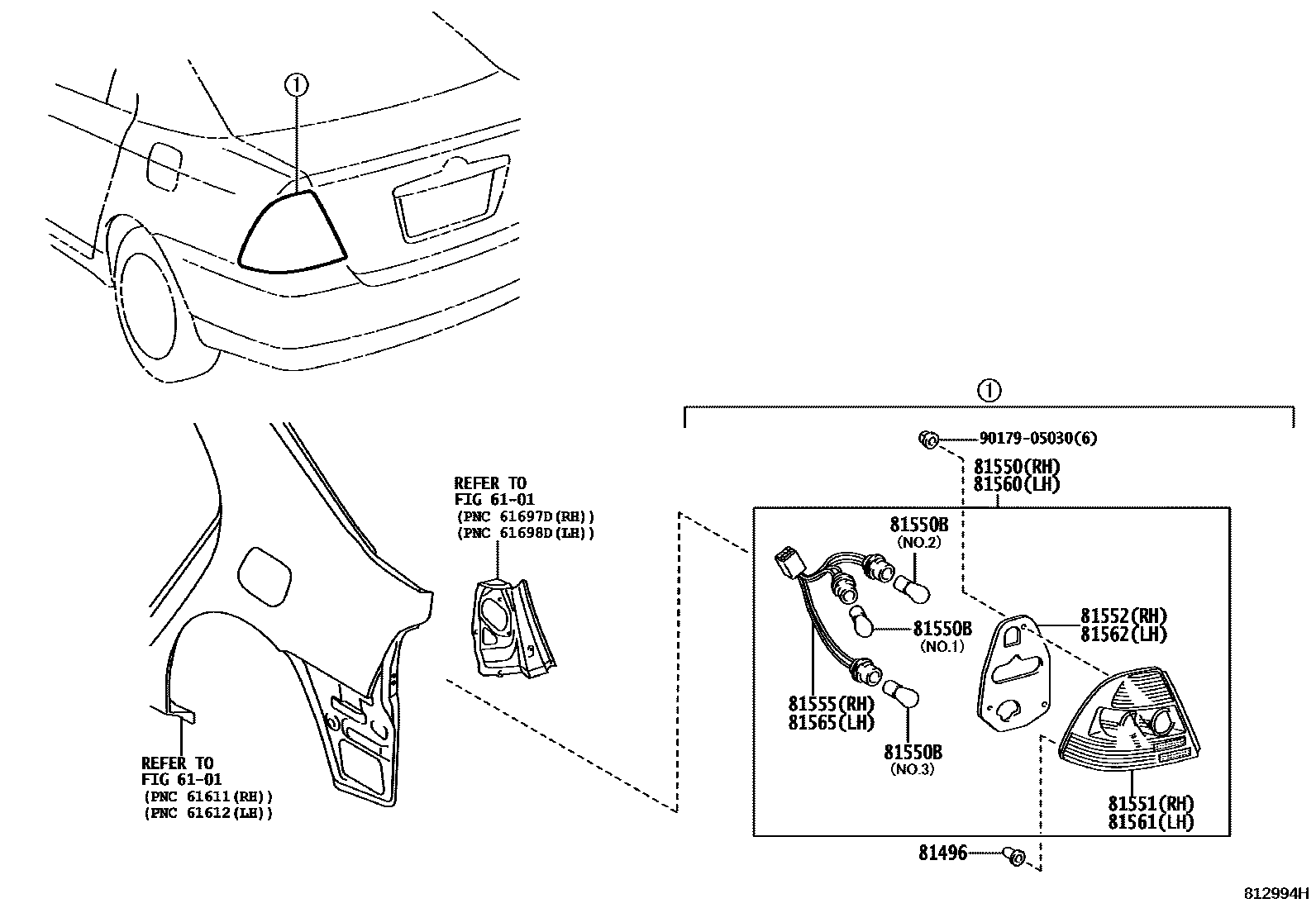

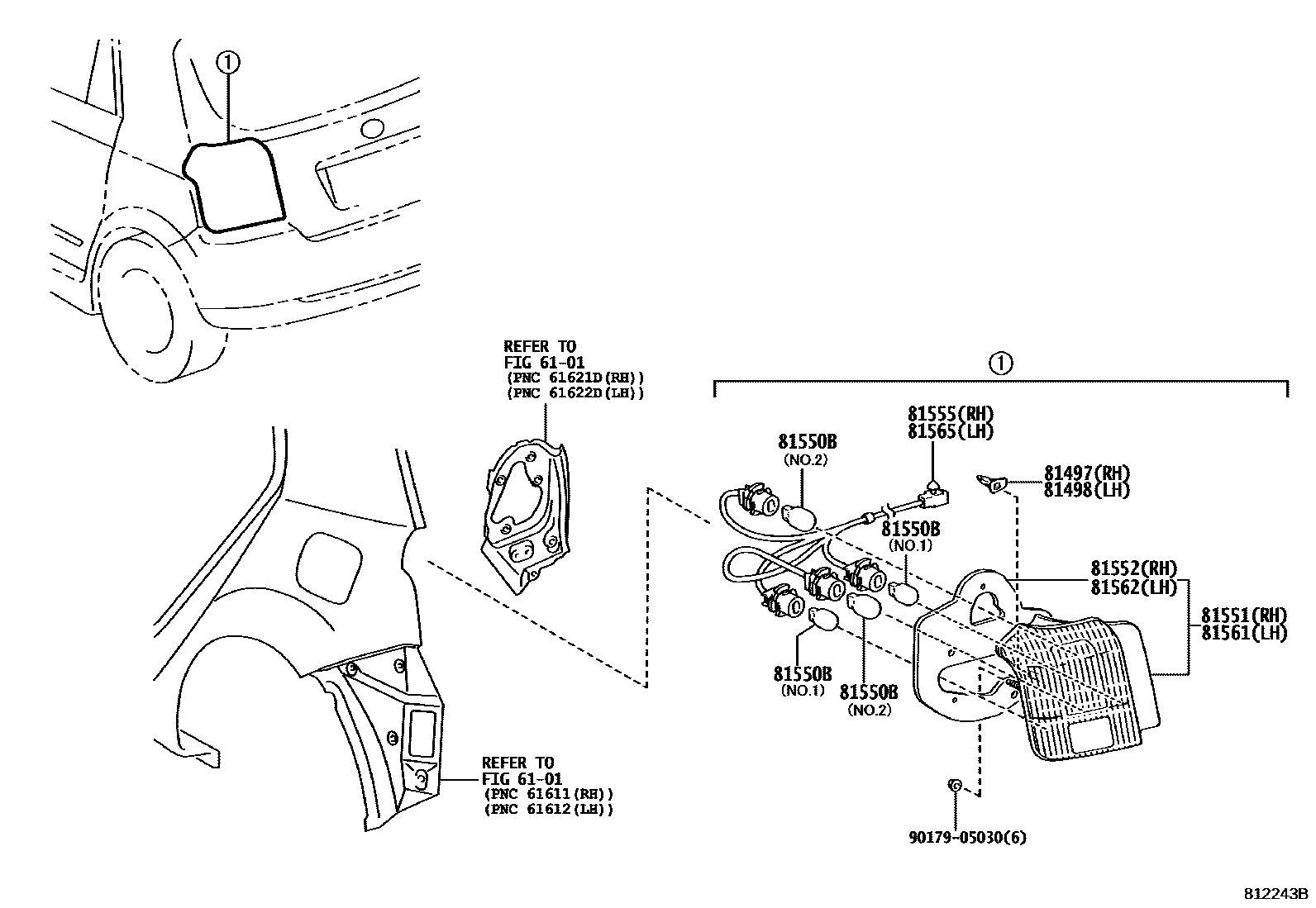

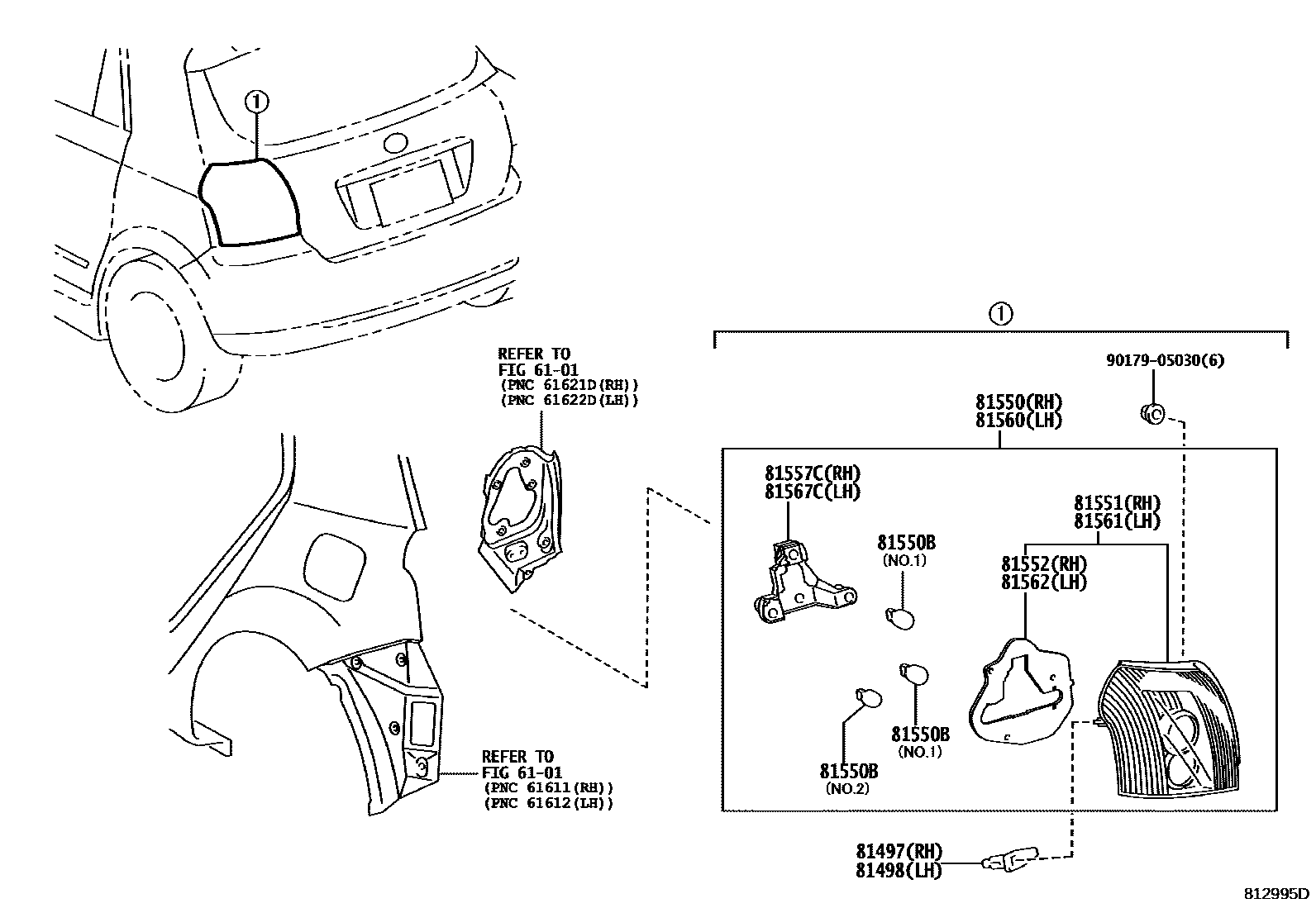

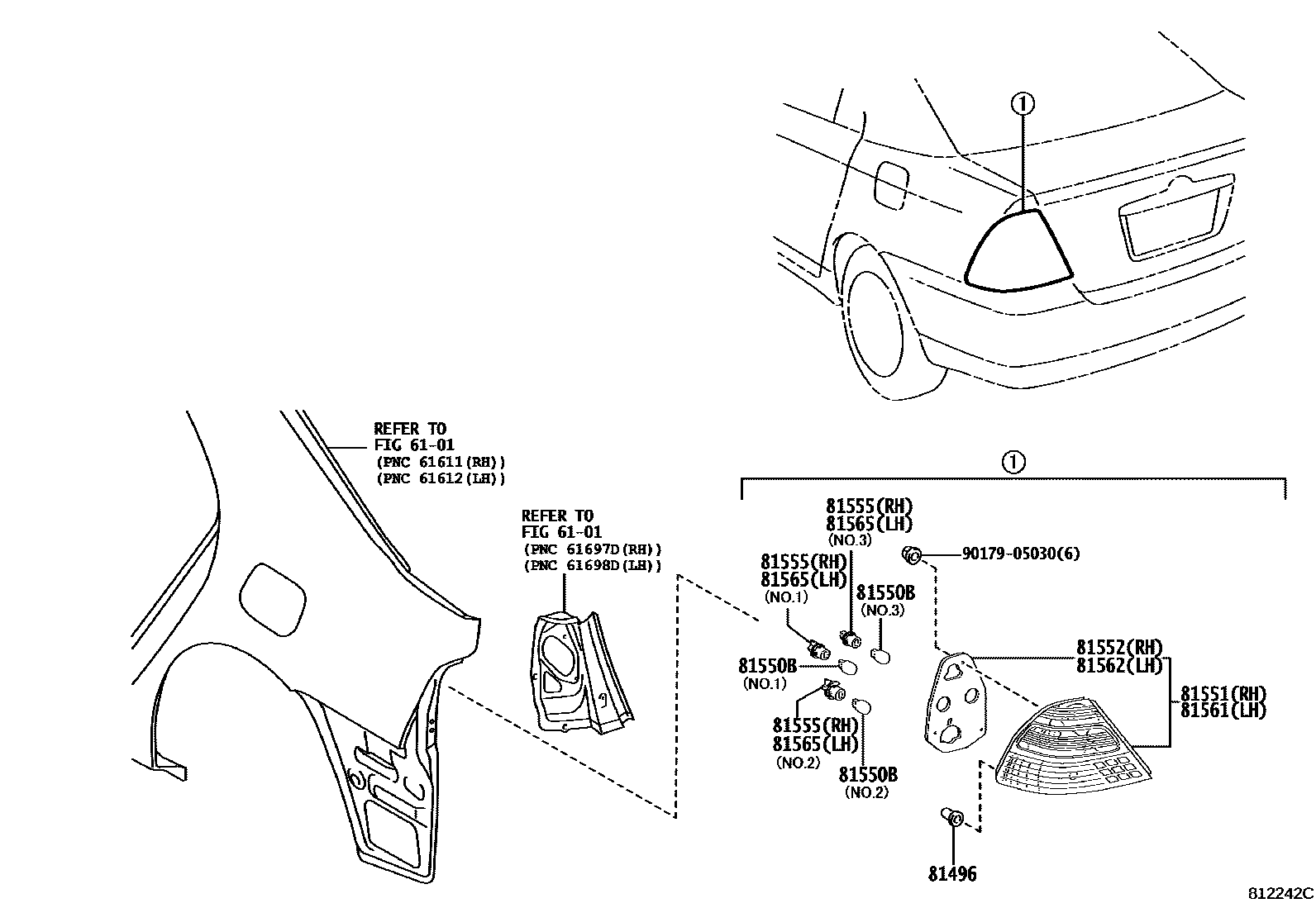

Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-12020 |
| 81497 | Right rear combination lamp cover | 81497-13010 |
| 81498 | Left rear combination lamp cover | 81498-13010 |
| 81550 | Right rear combination light assembly | 81550-02261 · 81550-13650 |
| 81550B | Bulb (for rear combination lights) | 90981-13043 · 90981-13044 · 90981-15011 · 90981-WC007 · 90981-WC008 · 90981-WF006 · 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-02260 · 81551-13650 · 81551-1E260 · 81551-1E270 |
| 81552 | Right rear combination lamp shade gasket | 81552-02270 · 81552-13480 · 81552-13660 · 81552-1E200 · 81552-1E240 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02260 · 81555-13500 · 90075-60033 · 90075-60034 · 90075-60036 |
| 81557C | Right rear combination lamp cover | 81557-13660 |
| 81560 | Left rear combination light assembly | 81560-02251 · 81560-13620 |
| 81561 | Left rear combination lamp shade | 81561-02250 · 81561-13620 · 81561-1E230 · 81561-1E240 |
| 81562 | Left rear combination lamp shade gasket | 81552-02270 · 81552-13660 · 81552-1E200 · 81552-1E240 · 81562-13470 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-02250 · 81565-13480 · 90075-60033 · 90075-60034 · 90075-60036 |
| 81567C | Left rear combination lamp cover | 81567-13620 |
