Toyota COROLLA Headlamp — Figure 8101

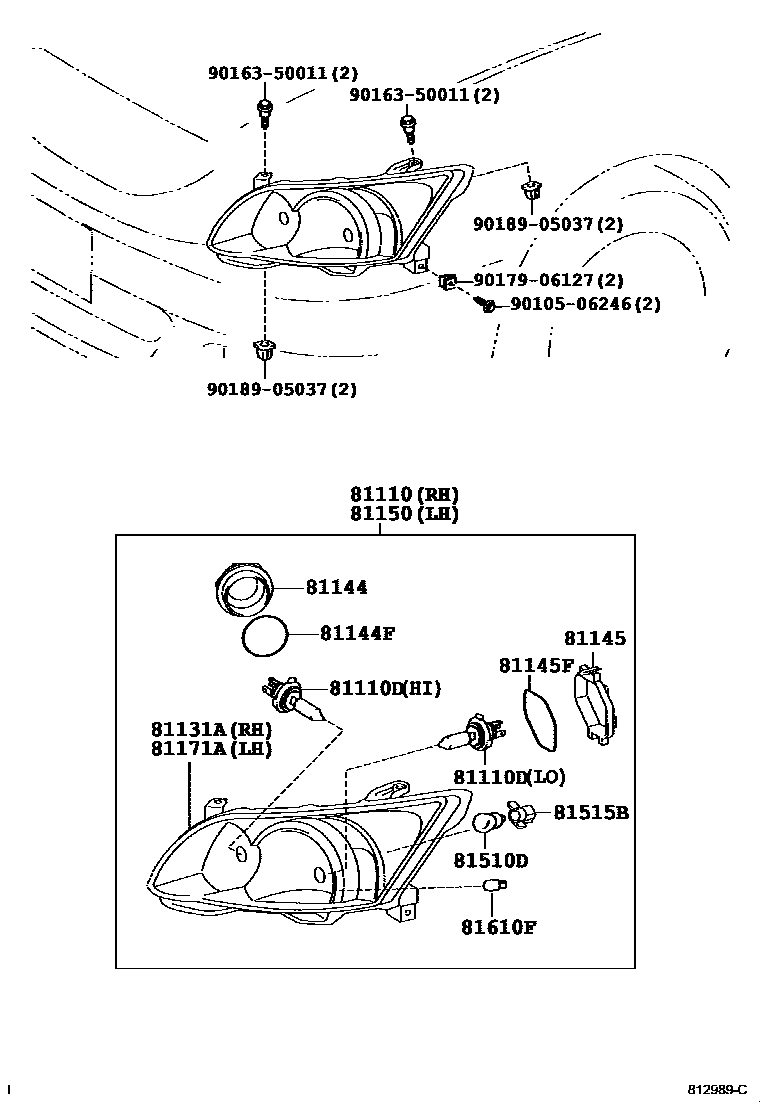

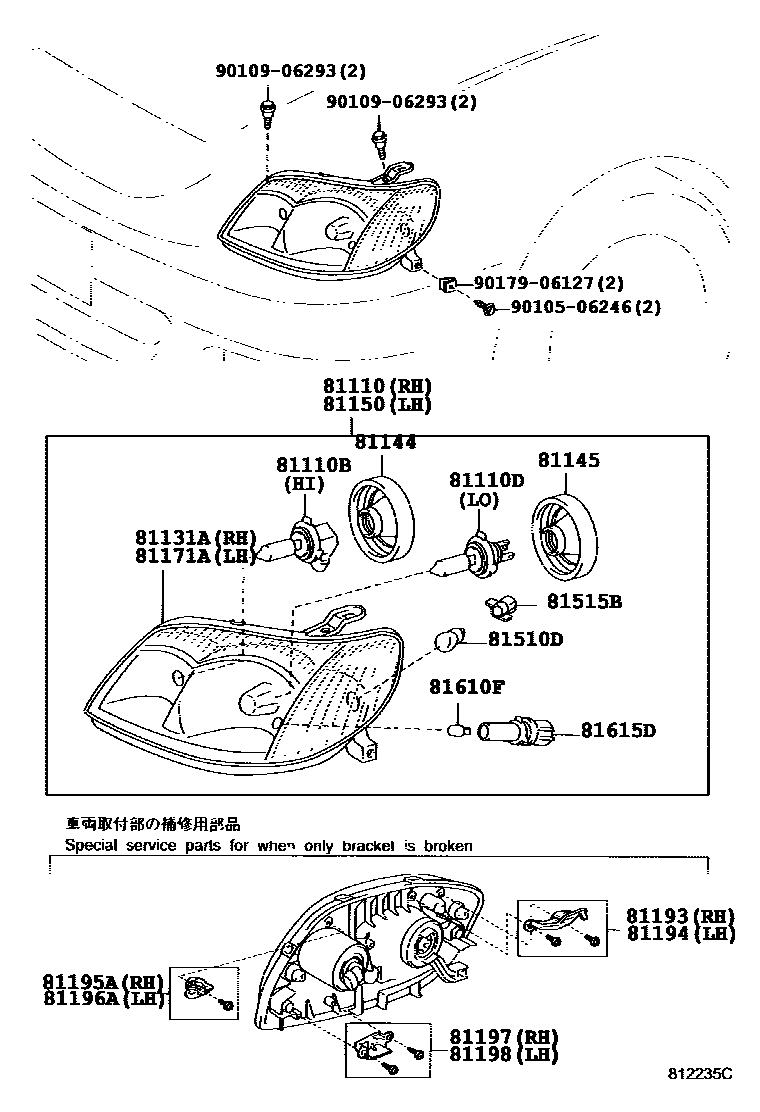

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02230 · 81110-02240 · 81110-02420 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 |
| 81110D | Bulb (for headlight No. 2) | 90981-13063 |
| 81131A | Right headlight assembly | 81130-02230 · 81130-02240 · 81130-02420 |
| 81144 | No. 1 headlight cover | 90069-81042 · 90069-81059 |
| 81144F | Headlight cover O-ring | 90069-38000 |
| 81145 | No. 2 headlight cover | 90069-81040 · 90069-81060 · 90069-81091 |
| 81145F | No. 2 headlight cover gasket | 90069-38001 |
| 81150 | Left headlight assembly | 81150-02240 · 81150-02250 · 81150-02410 |
| 81171A | Left headlight assembly | 81170-02240 · 81170-02250 · 81170-02410 |
| 81193 | Right headlight upper protective ring | 81193-12010 |
| 81194 | Left headlight upper protective ring | 81194-12010 |
| 81195A | Right headlight lower protection ring | 81195-12010 |
| 81196A | Left headlight lower protection ring | 81196-12010 |
| 81197 | Right headlight lower bracket | 81197-12010 |
| 81198 | Left headlight lower bracket | 81198-12010 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15009 |
| 81515B | Front turn signal lamp holder | 90069-81038 · 99159-10248 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90069-81039 |
