Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-02020 |
| 65632D | Left rear wheel house front panel | 65632-02020 |
| 75851E | Right body door sill panel protection strip | 75851-02060 |
| 75852B | Left body door sill panel protection strip | 75852-02060 |
| 76603 | Right front fender fender sub-assembly | 76621-02130 · 76621-12210 |
| 76604 | Left front fender fender sub-assembly | 76622-02110 · 76622-12210 |
| 76607 | Right rear side fender sub-assembly | 76625-02140 · 76625-02150 · 76625-12490 · 76625-13130 |
| 76608 | Left rear side fender sub-assembly | 76626-02140 · 76626-02150 · 76626-12490 · 76626-13130 |

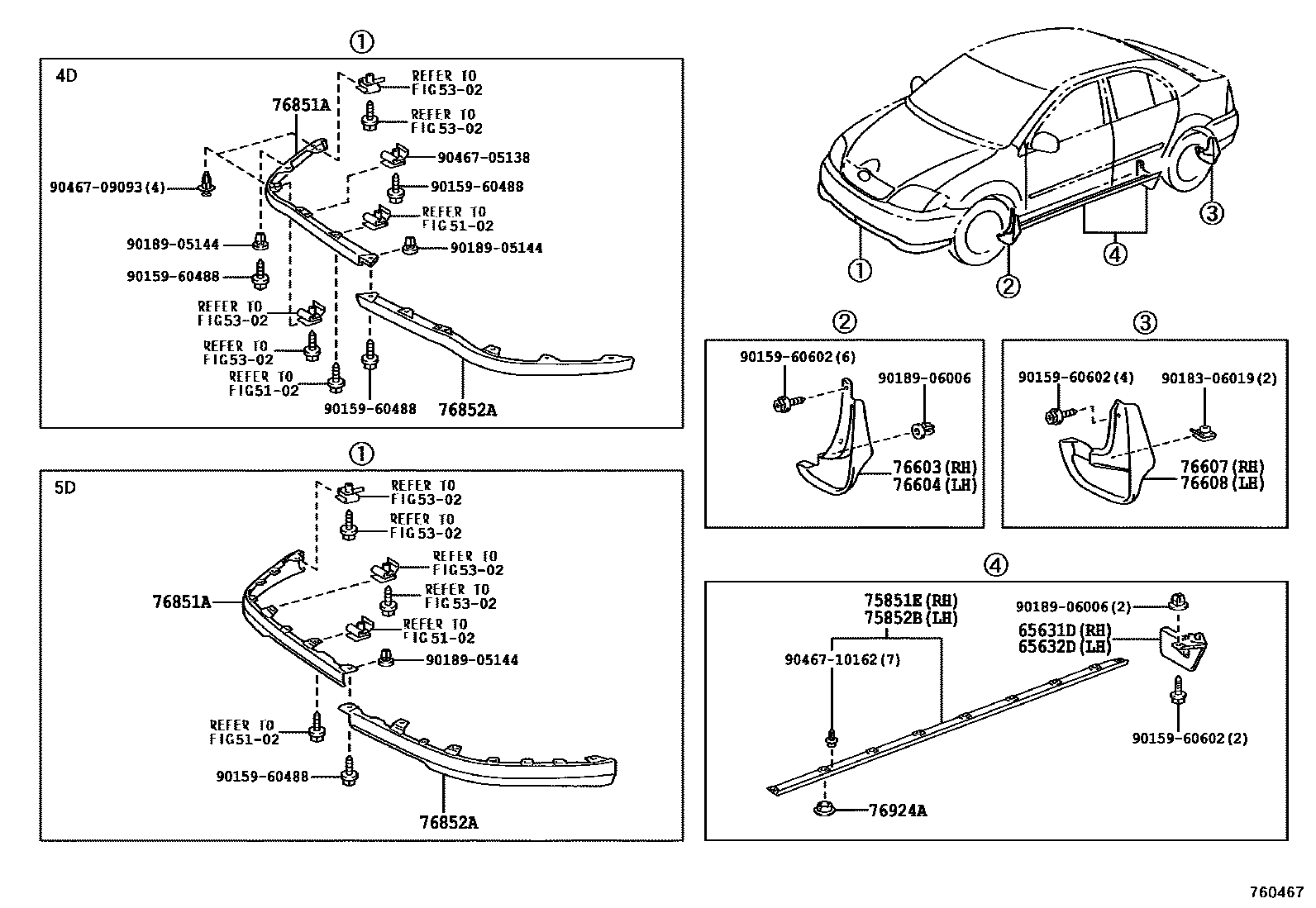

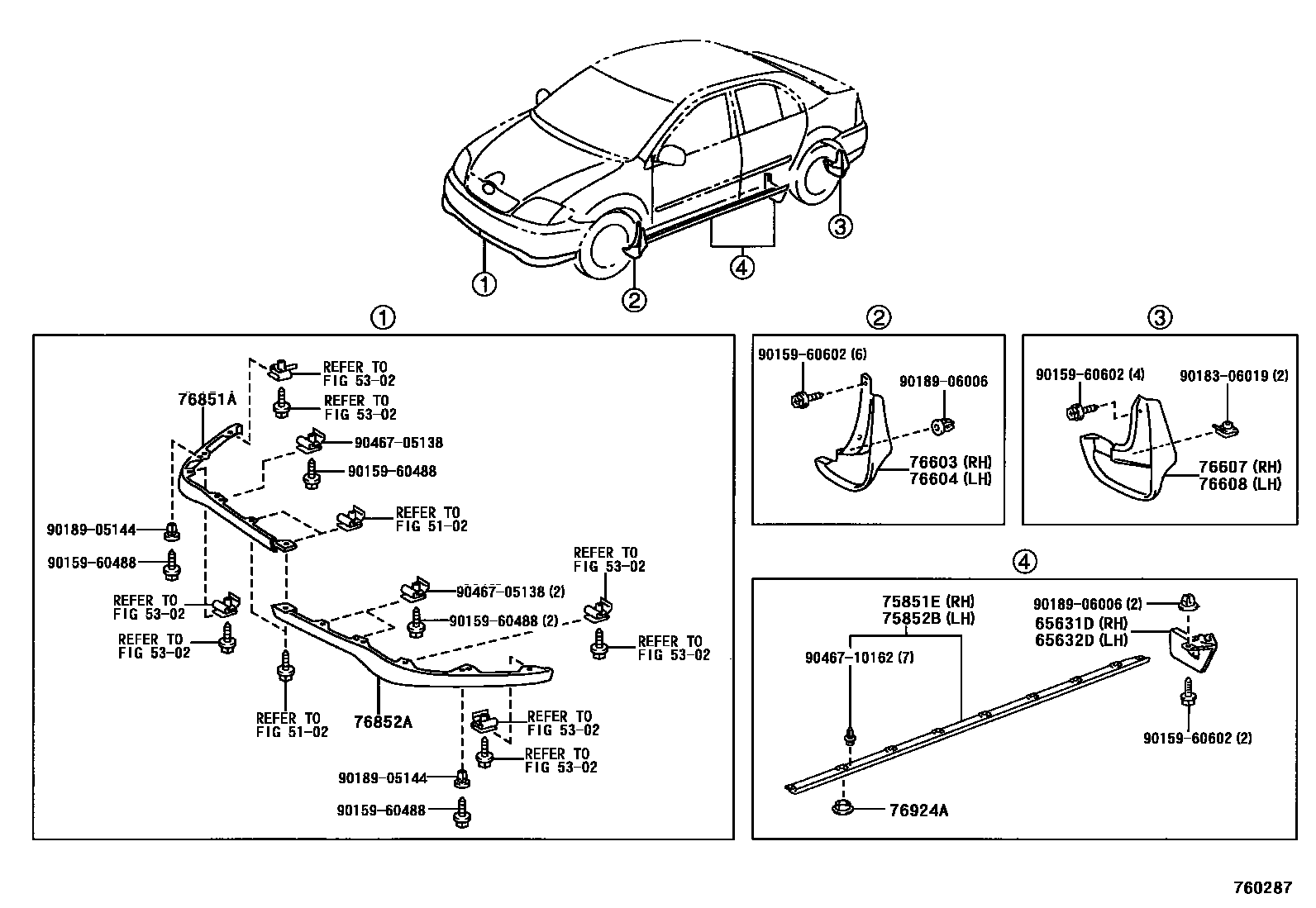

| 76851A | Right front spoiler cover | 76851-02070 · 76851-02090 · 76851-12160 |
| 76852A | Left front spoiler cover | 76852-02060 · 76852-02080 · 76852-12120 |

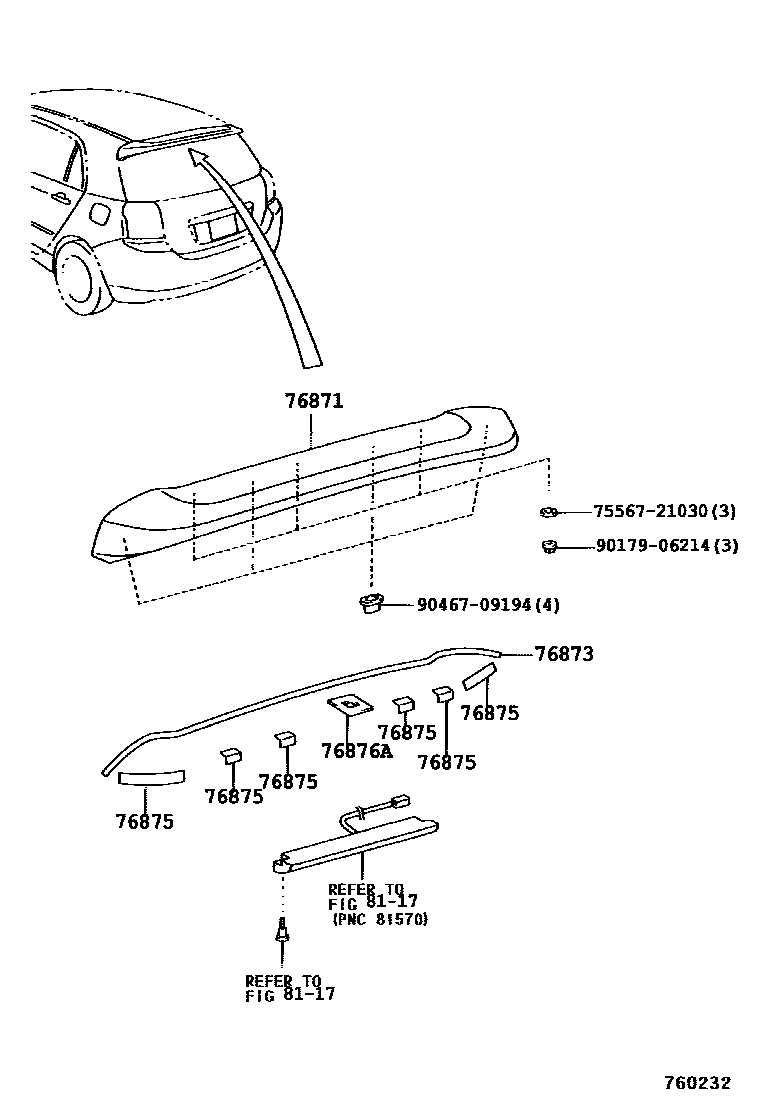

| 76871 | rear spoiler | 76871-13905 |
| 76873 | No. 2 rear spoiler protective strip | 76873-13050 |
| 76875 | No. 4 rear spoiler protective strip | 76875-13030 |
| 76876A | No. 10 rear spoiler protective strip | 76876-13010 |
| 76924A | No. 2 side fender fixings | 76924-52021 |
