Toyota COROLLA 后防护条 — Figure 7504

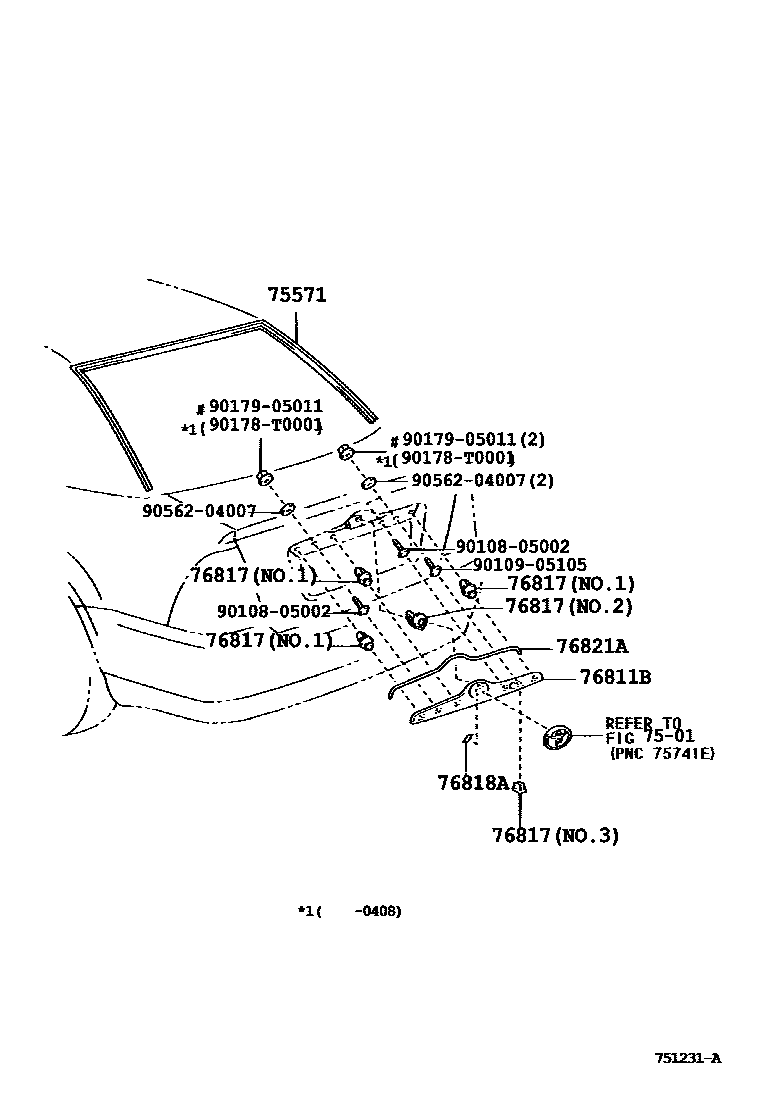

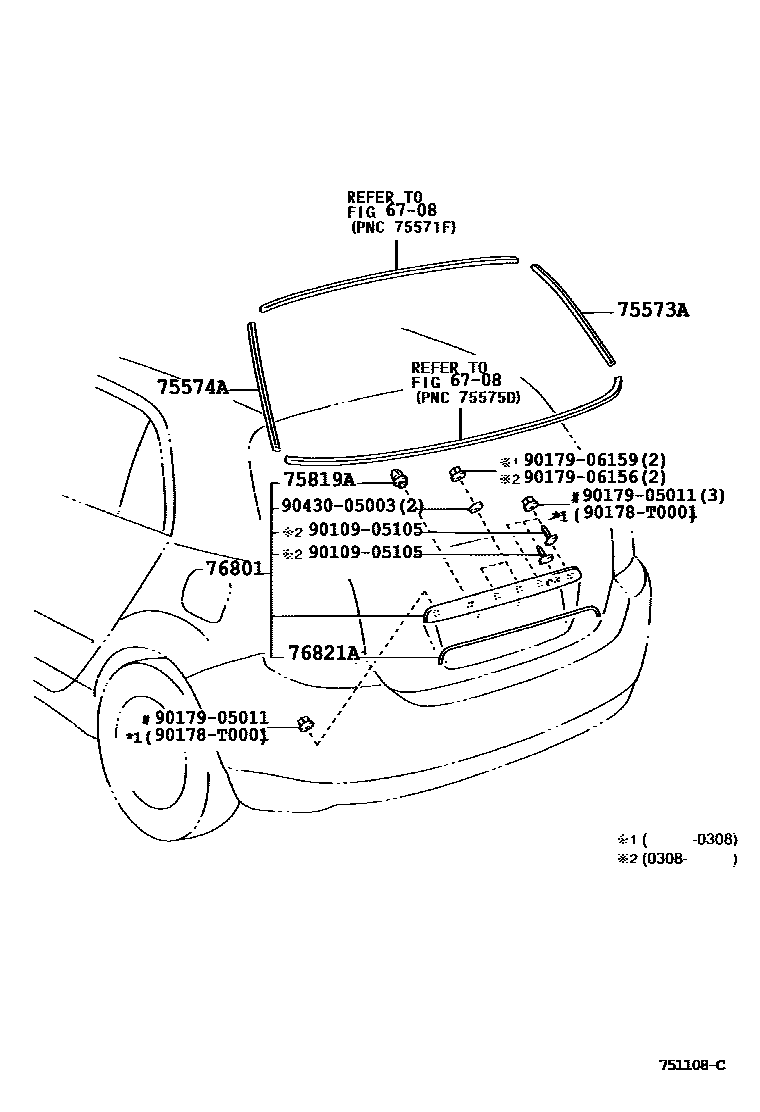

Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 75571-02130 · 75571-02140 |
| 75573A | Right outer protective strip of back window | 75573-13060 |
| 75574A | Rear window left outer protective strip | 75574-13010 |
| 75819A | Back door protective strip clip | 75819-12040 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-02200 · 76801-13120 |
| 76811B | Trunk door exterior trim strip | 76811-02150 · 76811-02905 · 76811-12680 |
| 76817 | Rear door exterior decorative strip clip | 76817-02040 · 76817-12050 · 76817-12060 |
| 76818A | Luggage trim strip lining No. 1 | 76818-12160 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-12180 · 76821-13050 |
| 76826 | No. 1 rear door trim strip fixing | 76826-12030 |
