Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 12 PNC and OE references.

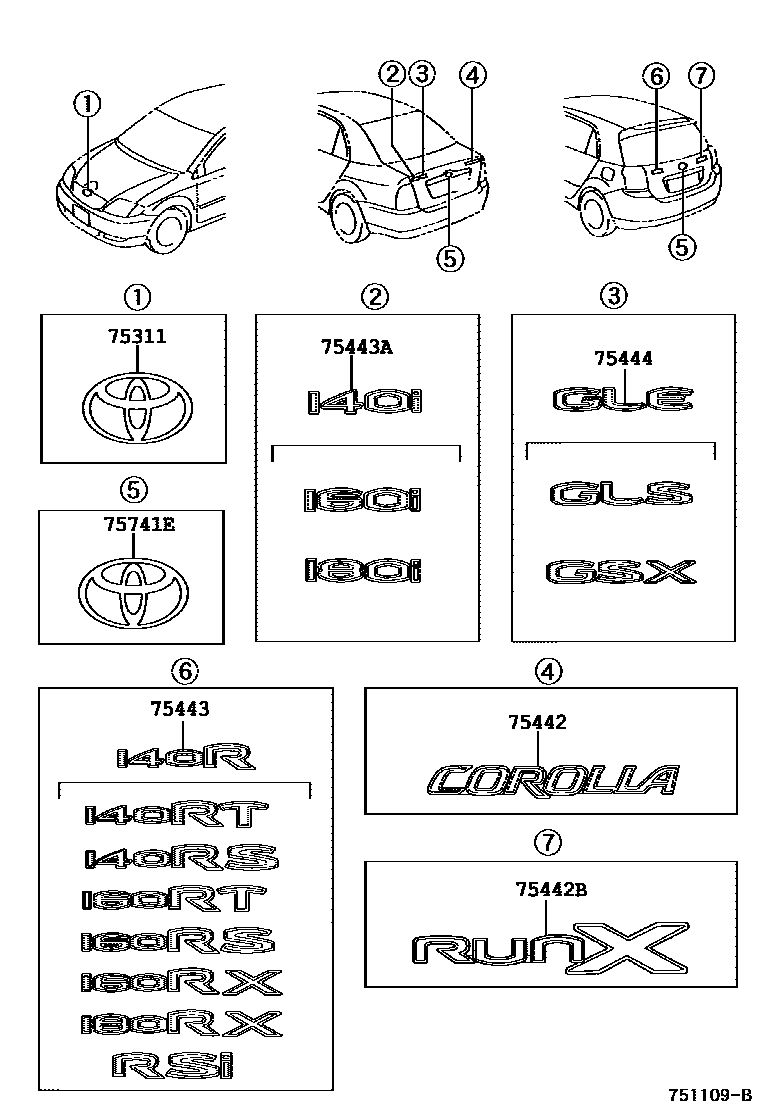

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751109B
丰田徽标和铭牌(车外和车内) — 751109B (200208 – 999999)

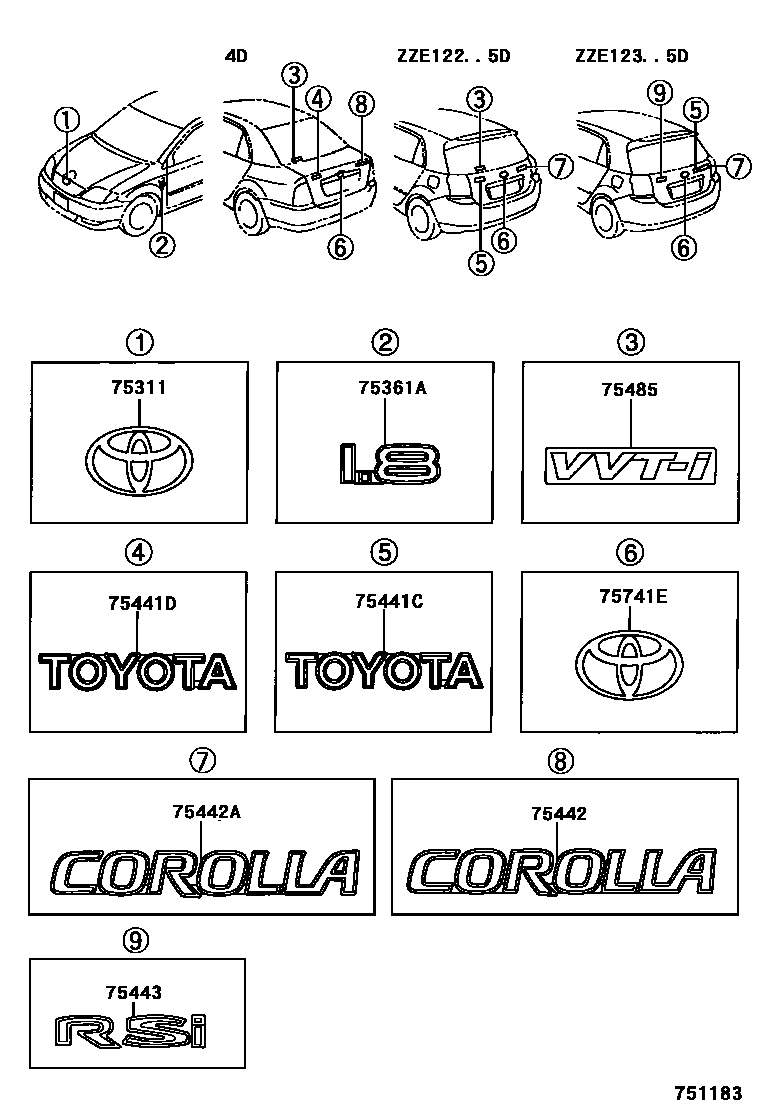

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751183
丰田徽标和铭牌(车外和车内) — 751183 (200303 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-13171 · 75311-1E100 · 90975-02014
75361AFront fender No. 1 nameplate75443-1A840
75441CBack door nameplate75441-13230
75441DTrunk door No. 1 name plate75441-12760
75442Trunk door number plate No. 275442-1A450
75442ANo. 2 nameplate on back door75442-13330
75442BNo. 2 nameplate on back door75442-1A480
75443No. 3 nameplate on back door75443-02130 · 75443-02140 · 75443-02150 · 75443-02160 · 75443-02170 · 75443-02180 · 75443-02190 · 75443-02200
75443ATrunk door No. 3 nameplate75443-02070 · 75443-02080 · 75443-02090
75444Trunk door No. 4 nameplate75443-02100 · 75443-02110 · 75443-02120
75485Back window nameplate75485-12380
75741Elogo90975-02011
