Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

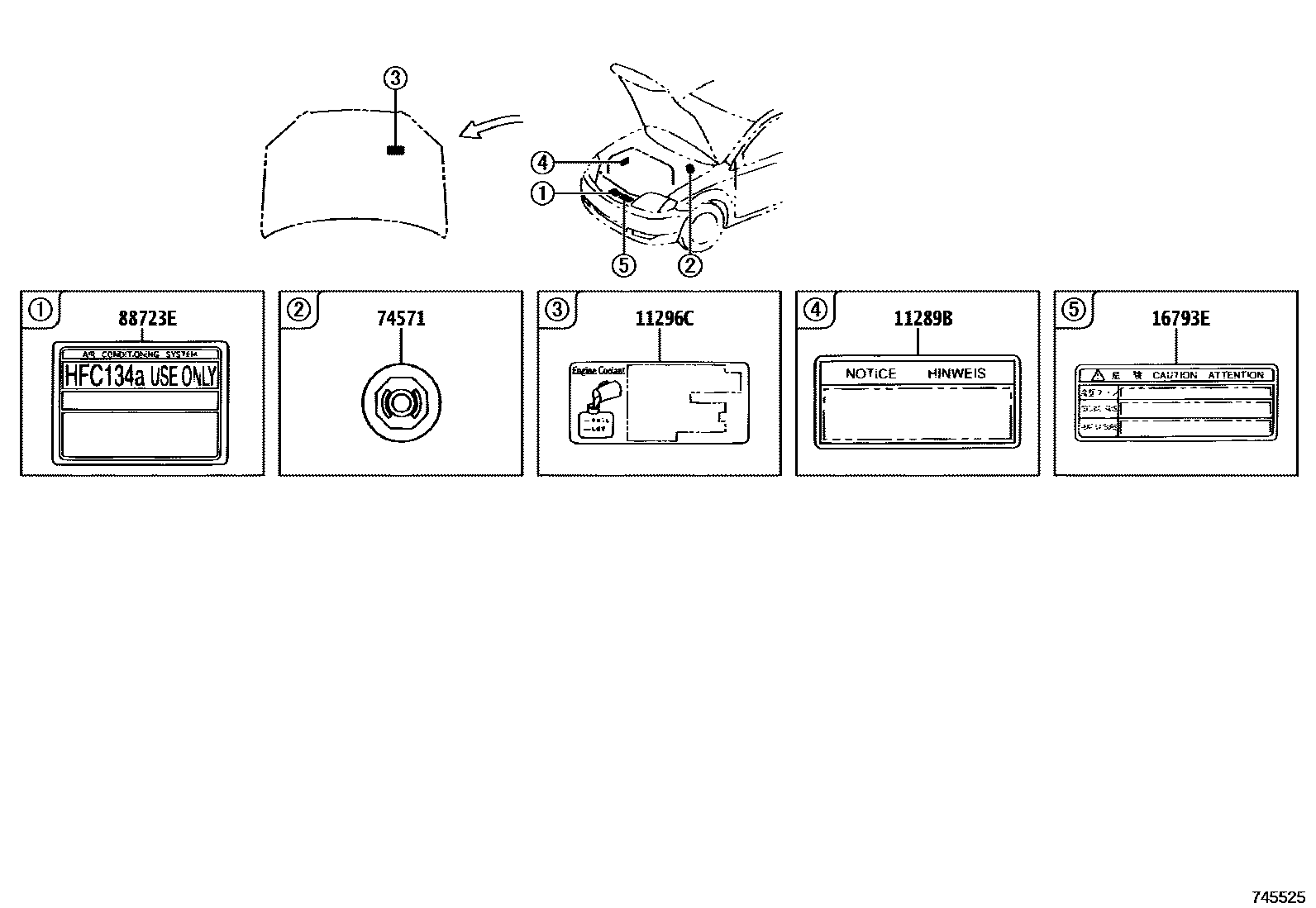

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11289B | spark plug caution label | 11289-50010 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 16793E | Cooling fan warning label | 16793-46010 |
| 69339C | Child Restraint Information Label | 69339-03010 |
| 73794 | Rear seat belt caution label | 73794-33010 |
| 74541 | tire pressure warning plate | 42661-02310 · 42661-02350 · 42661-02360 |
| 74559A | Fuel warning plate | 74559-14050 |
| 74559B | fuel information label | 74559-50010 |
| 74571 | Brake fluid warning plate | 47287-12010 |
| 88723E | Cooler maintenance warning label | 88723-28220 |
