Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

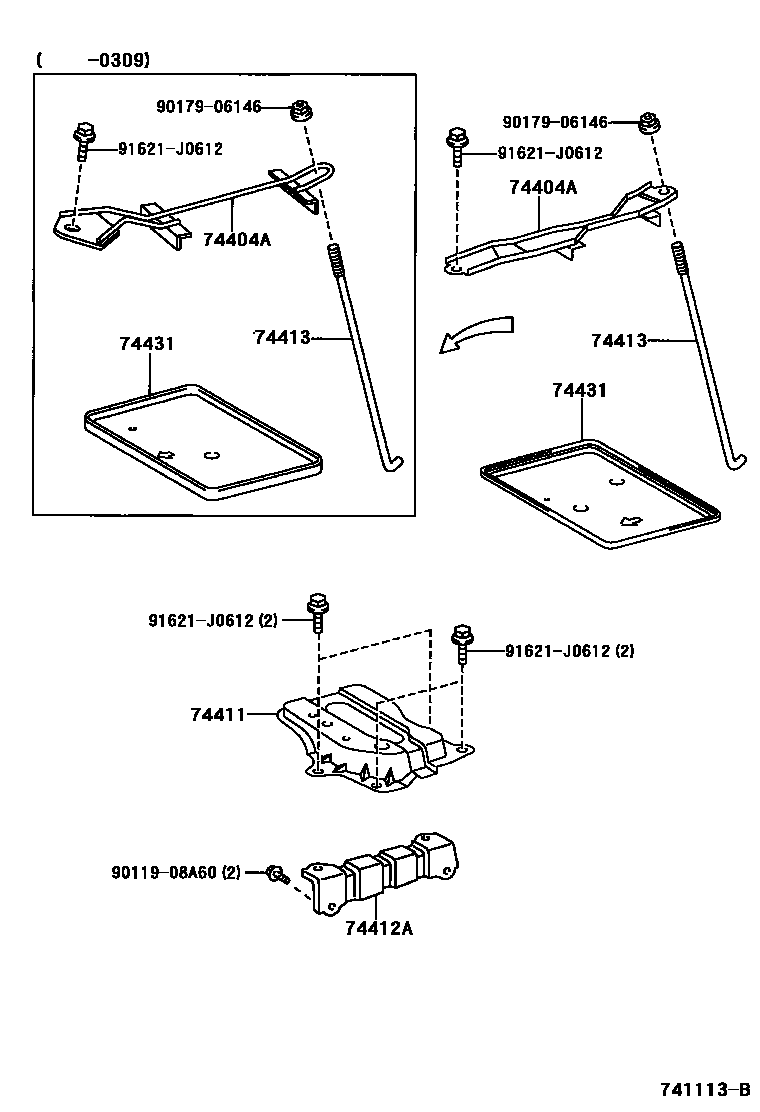

Toyota COROLLA battery holder EPC diagram — 741113B
battery holder — 741113B (200208 – 200707)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02090 · 74404-02110
74411battery holder74411-02040
74412ANo. 2 battery holder74412-02020
74413Battery clamp bolt74451-02050 · 74451-02060
74431battery tray74431-02120
