Toyota COROLLA 扶手和遮阳板 — Figure 7401

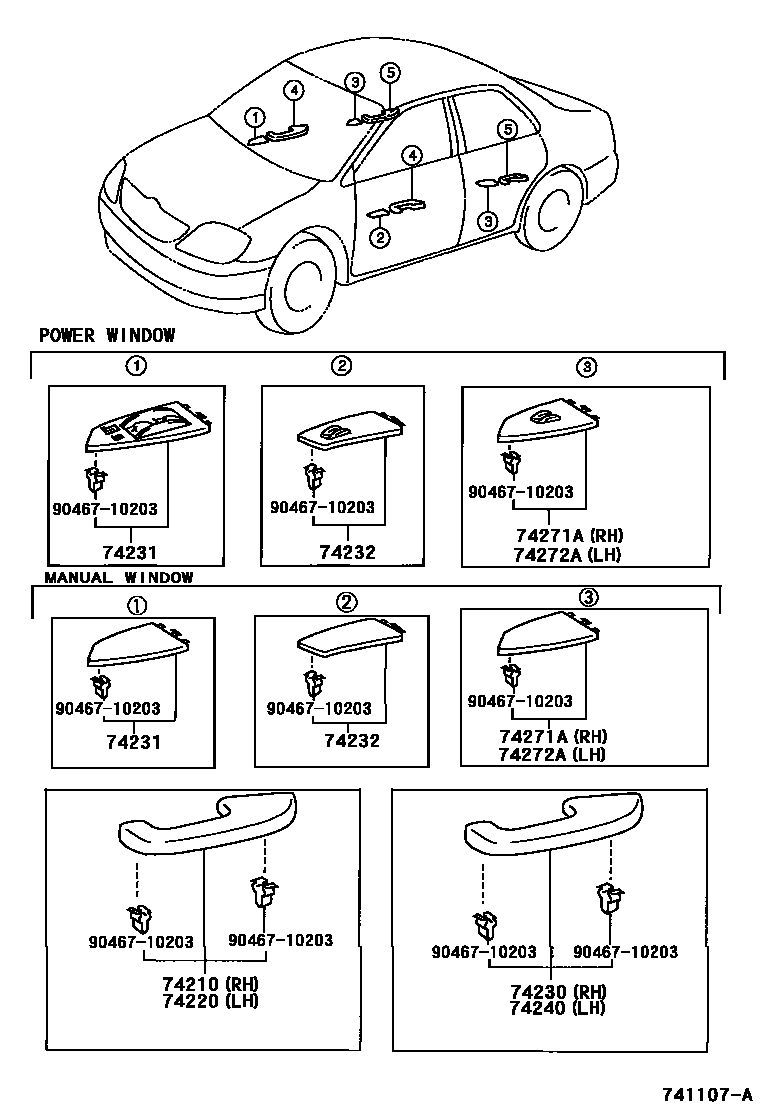

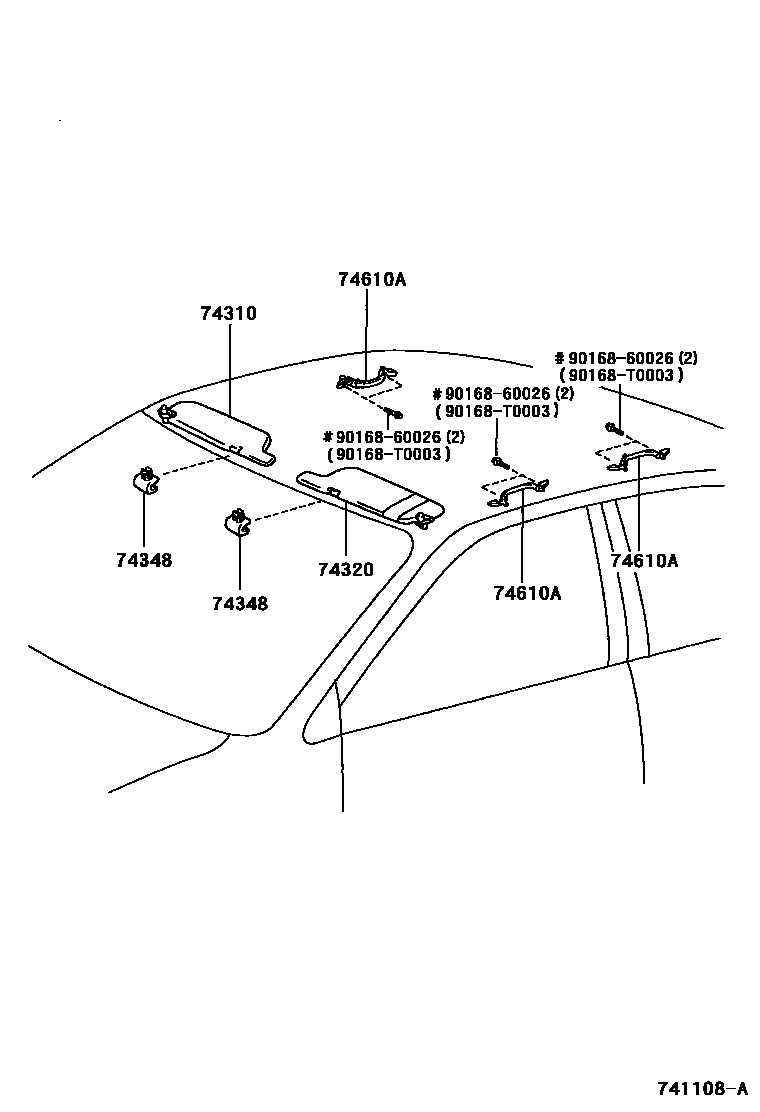

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-12700 · 74231-12710 · 74231-12720 · 74231-12730 |
| 74232 | Left front armrest upper panel | 74232-12530 · 74232-12540 · 74232-12550 |
| 74271A | Right rear door armrest upper panel | 74271-12180 · 74271-12190 · 74271-12200 |
| 74272A | Left rear door armrest upper panel | 74272-12180 · 74272-12190 · 74272-12200 |
