Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 3 PNC and OE references.

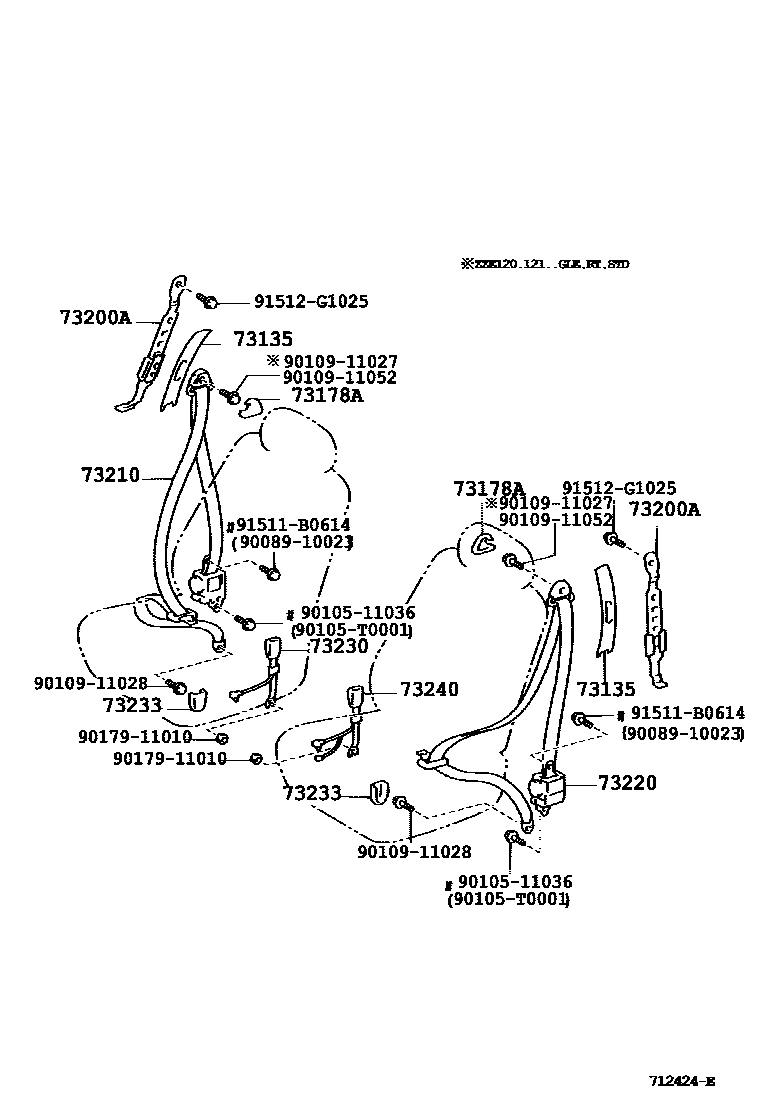

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 712424E
安全带和儿童保护座椅 — 712424E (200208 – 999999)

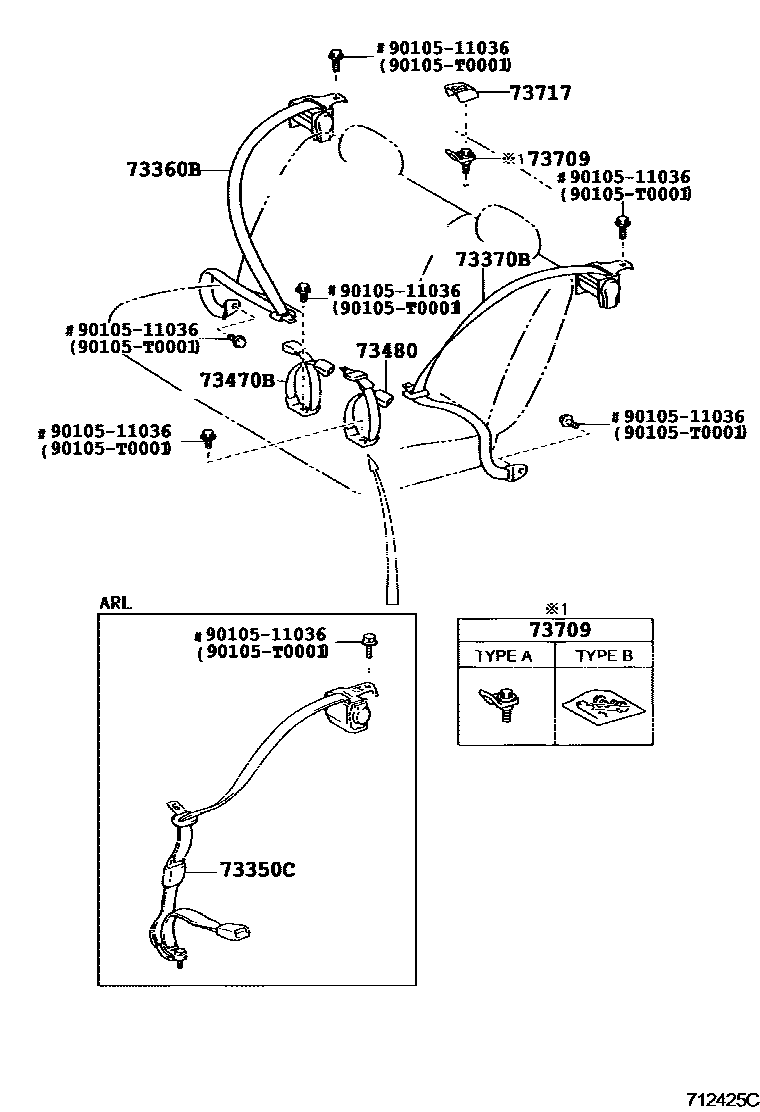

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 712425C
安全带和儿童保护座椅 — 712425C (200208 – 999999)

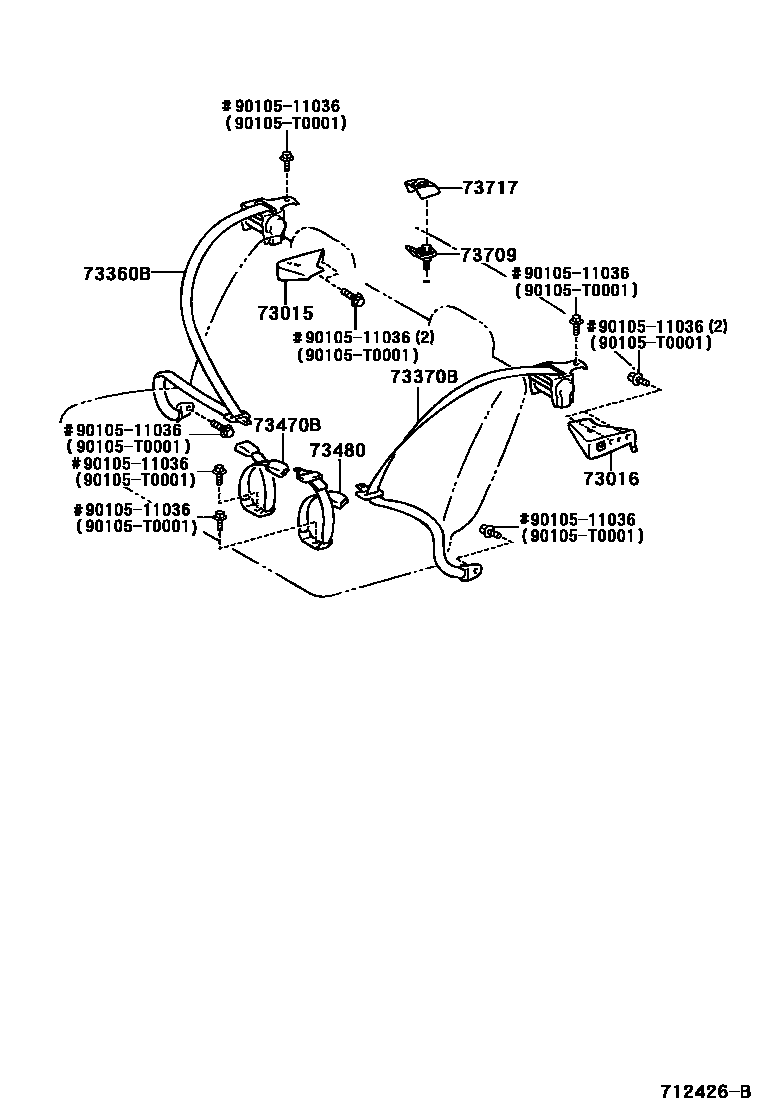

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 712426B
安全带和儿童保护座椅 — 712426B (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
73015Right seat belt outer anchor bracket sub-assembly73015-12020
73016Left side seat belt outer anchor bracket sub-assembly73016-12010
73709Tie anchor bracket sub-assembly73708-12091 · 73708-12100 · 73708-13010
