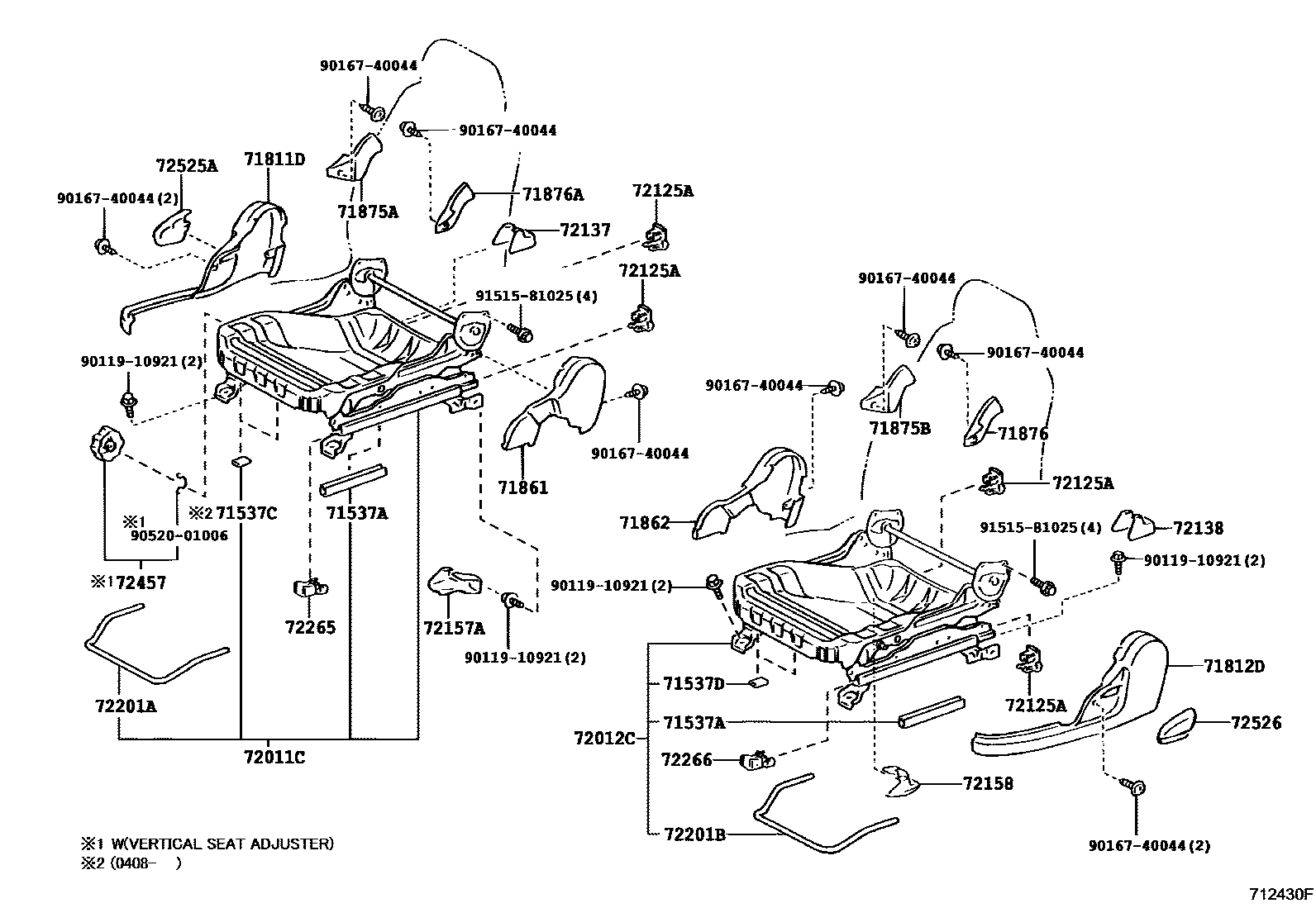

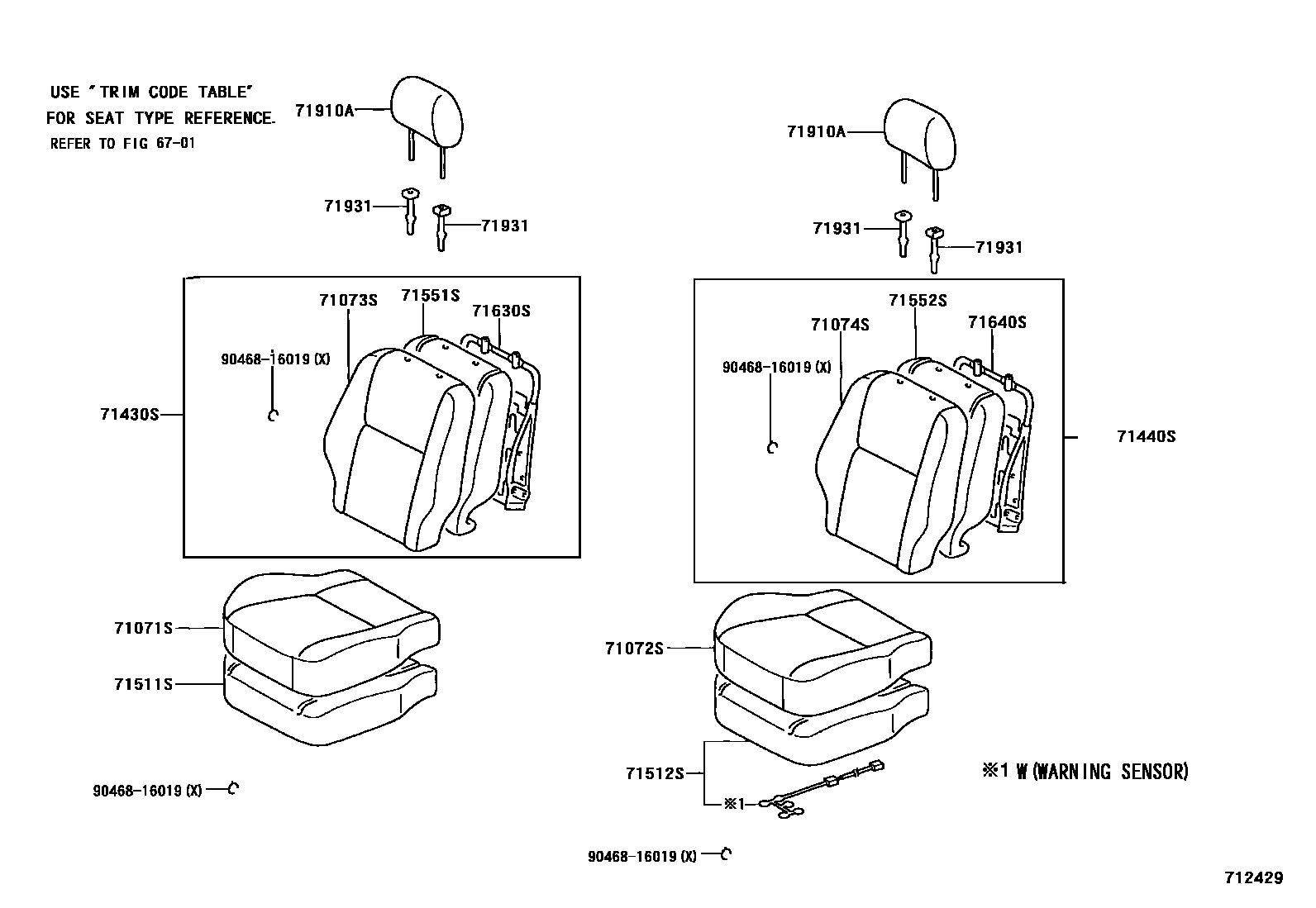

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101
Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-02200 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02010 · 71511-02200 |
| 71537A | Front seat cushion protective cover | 71537-33010 |
| 71537C | Front right seat cushion edge protective cover | 71537-26010 |
| 71537D | Front left seat cushion edge protective cover | 71537-26010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02250 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02250 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02120 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-02120 |
| 72011C | Front right seat adjuster sub-assembly | 72010-02110 · 72010-02120 |
| 72012C | Front left seat adjuster sub-assembly | 72020-02120 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72137 | Right seat outer slide rail cover | 72137-52010 |
| 72138 | Left seat outer slide rail cover | 72137-52010 |
| 72157A | Right seat inner slide rail bracket cover | 72157-12100 |
| 72158 | Left seat inner slide rail bracket cover | 72158-12100 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-12060 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-12060 |
| 72265 | Right seat rail upper rail cover | 72265-13040 |
| 72266 | Left seat rail upper rail cover | 72265-13040 |
