Toyota COROLLA 锁芯组件 — Figure 6712

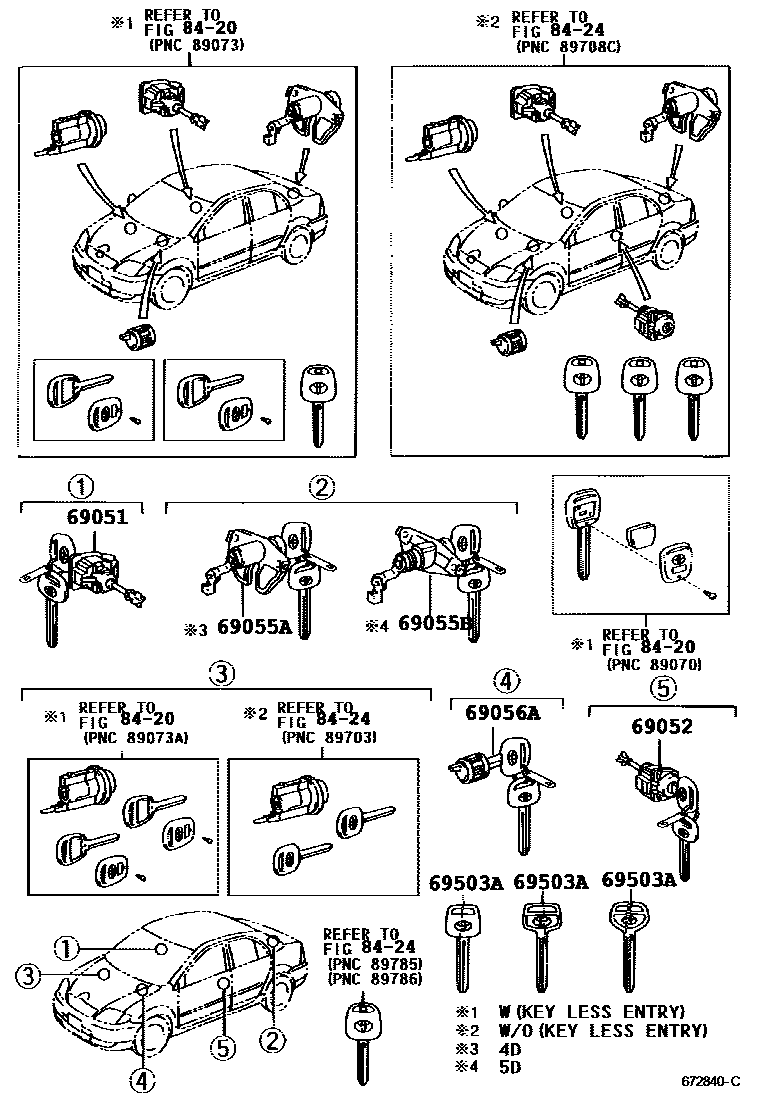

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12630 |
| 69052 | Left door lock cylinder and key assembly | 69052-12610 |
| 69055A | Luggage lock cylinder and key assembly | 69055-13290 · 69055-1A410 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13290 |
| 69056A | Glove box lock cylinder and key assembly | 69056-44010 |
| 69503A | external tooth key | 90999-00186 · 90999-00188 · 90999-00199 |
