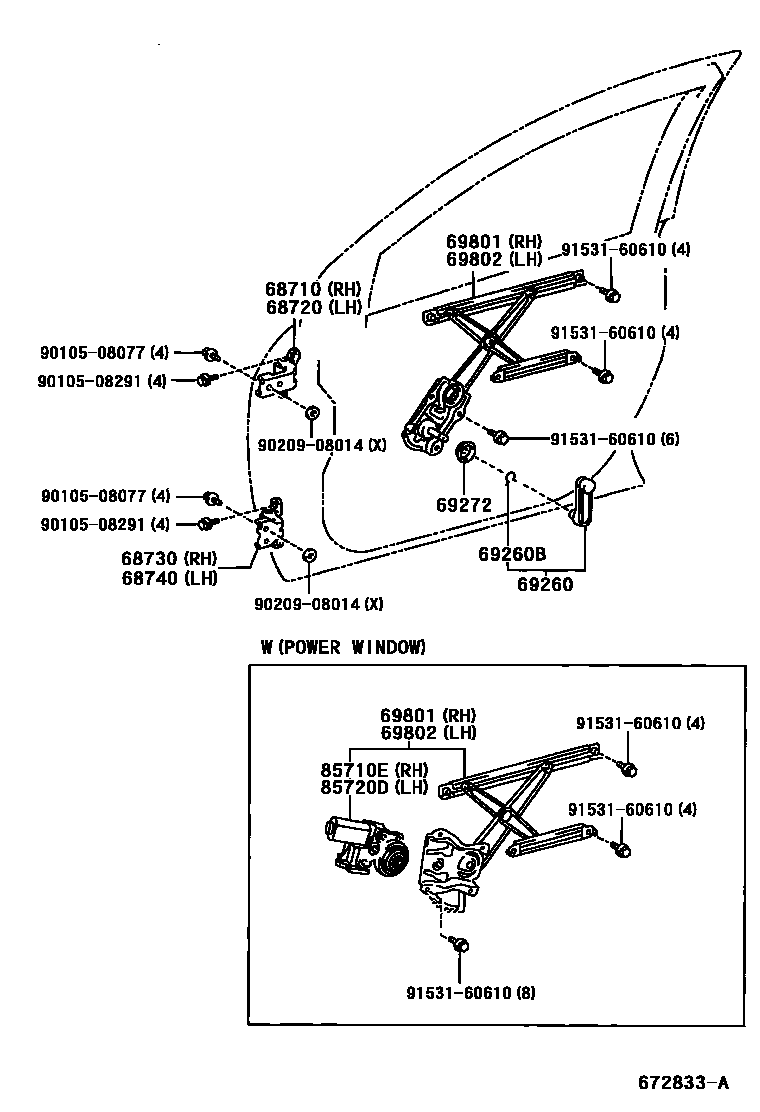

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02070 · 68710-0D030 · 68710-12150 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-02070 · 68720-0D030 · 68720-12150 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-52010 |
| 68740 | Left front door lower hinge assembly | 68740-52010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90080-52152 |
| 69272 | Front door window lift inner handle plate | 69268-02050 |
| 69801 | Right front door window lifter sub-assembly | 69810-02190 · 69810-02200 · 69810-02201 |
| 69802 | Left front door window lifter sub-assembly | 69820-02190 · 69820-02200 · 69820-02201 · 69820-02240 |
| 85710E | Right power window lift motor assembly | 85710-02110 |
| 85720D | Left electric window lift motor assembly | 85720-02110 · 85720-02150 |
