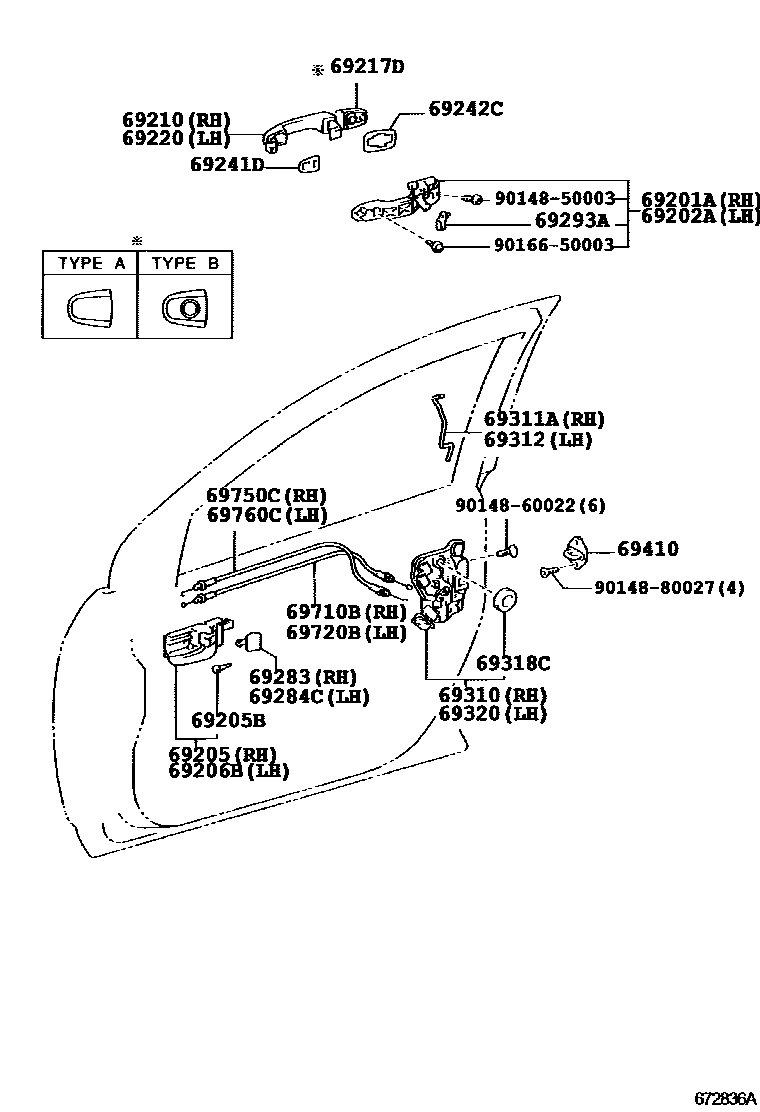

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-02050 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02030 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69211-02150 · 69211-02912 |
| 69217D | Front door outer handle cover | 69217-02080 · 69217-02100 · 69217-02931 · 69217-02932 |
| 69220 | Left front door outer handle assembly | 69211-02150 · 69211-02912 |
| 69241D | Right front door outer handle pad | 69241-02060 |
| 69242C | Left front door outer handle pad | 69242-02060 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69030-33241 · 69310-13051 |
| 69311A | Right front door lock opening lever | 69311-13020 |
| 69312 | Left front door lock opening lever | 69312-13020 |
| 69318C | door lock harness seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-13051 · 69040-13061 · 69320-13041 |
| 69410 | Front door lock plate assembly | 69410-20110 |
| 69710B | Right front door lock remote control cable assembly | 69710-13020 |
| 69720B | Left front door lock remote control cable assembly | 69710-13020 |
| 69750C | Right front door inner lock cable assembly | 69750-13030 |
| 69760C | Left front door inner lock cable assembly | 69760-13010 |
